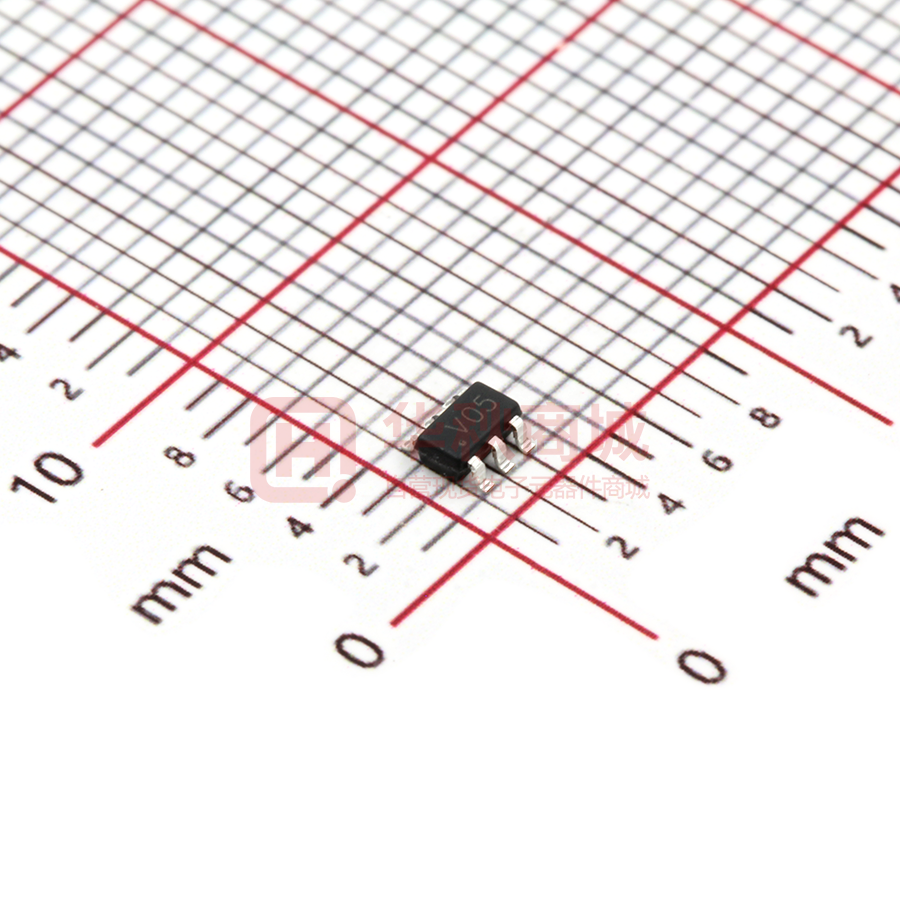

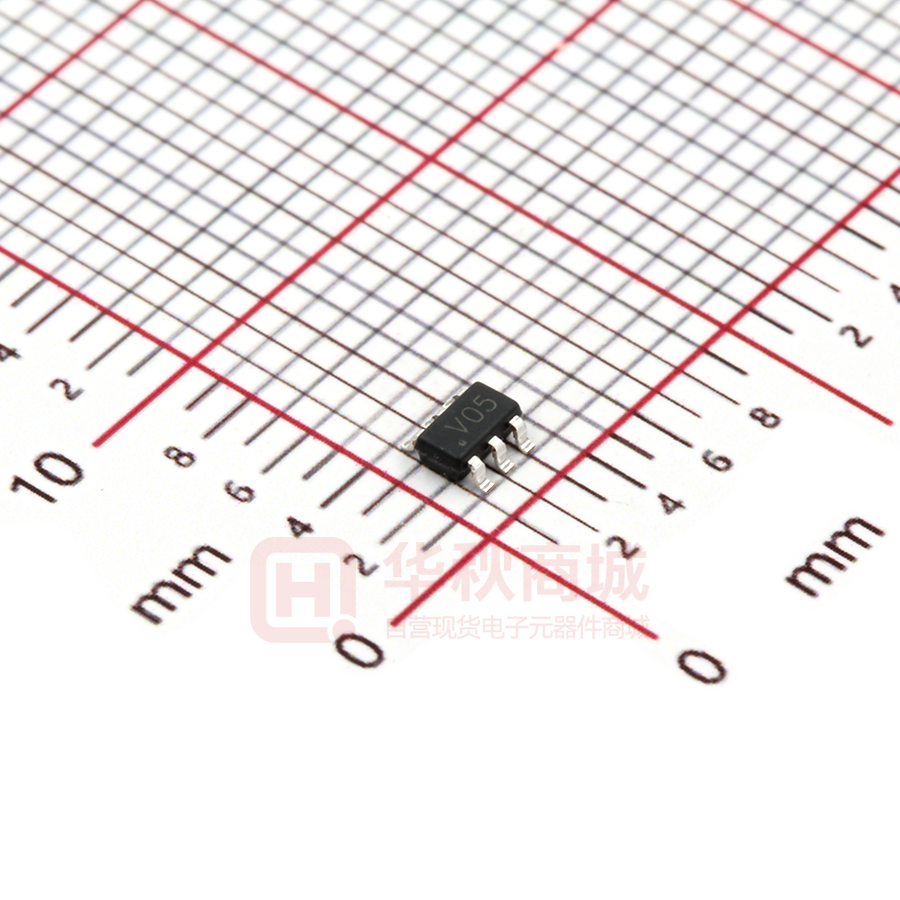

ESD0504TL Ultra Low Capacitance ESD Protection Array SOT-26 Plastic-Encapsulate ESD Protection Array DESCRIPTION ESD0504TL is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection For high-speed data interfaces. With typical capacitance of 0.20pF (I/O to I/O) only, ESD0504TL is designed to protect parasitic-sensitive systems against over-voltage and over-current transsient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transientt - EFT) (40A, 5/50 ns), very fast charged devicee model (CDM) ESD and cable discharge event (CDE), etc. ESD0504TL uses ultra-small SOT-26 package. Each ESD0504TL device can protect four high-speed data line one Vcc line. The combined features of ultra-low capacitance, small size and high ESD robustness make ESD0504TL ideal for high-speed data ports and high-frequency lines (e.g., HDMI&DVI) applications, The low clamping voltage of the ESD0504TL guarantess a minimum strese on the protected IC. Features           Transient protection for high speed data lines IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Cable Discharge Event (CDE) Package optimized for hingh-speed lines Protects four data line and one Vcc line Low Capacitance :0.20pF(I/O to I/O) Low clamping voltage Low leakage current Each I/O pin can withstand over 1000 ESD strikes for ±8KV coantact discharge Applications       Serial ATA High Definition Multi Interface (HDMI) MDDI Ports USB 2.0/3.0 Power and Data Line Protectioon Display Ports Digital Visual Interfacess (DVI) Pin Configuration Circuit Diagram 6 5 4 1 2 3 Mechanical Characteristics Package: SOT-26 Flammability Rating: UL 94V-0 Packaging: Tape and Reel High temperature soldering guaranted: 260℃/10s  Marking: V05     Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol VESD Value ± 25 ± 20 Unit KV Peak Pulse Power(8/20us ) PPP 60 W Operating Temperature TOPT −55 to +125 °C Storage Temperature TSTG −55 to +150 °C Lead Solder Temperature – Maximum (10 Second Duration) TL 260(10 sec.) °C The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :1 ESD0504TL Ultra Low Capacitance ESD Protection Array Electrical Characteristics (TA=25°C unless otherwise specified) Symbol bol Param Test Condition VRWM Reverse Working Voltage Any I/O pin to GND VBR Reverse Breakdown Voltage IR Reverse Leakage Current IT = 1mA Any I/O pin to GND VRWM = 5V Any I/O pin to GND IPP = 1A, tp = 8/20μs Any I/O pin to GND VC CESD Clamping Voltage Parasitic Capacitance Min Typ 6.0 IPP = 4A, tp = 8/20μs Any I/O pin to GND IPP = 8A, tp = 8/20μs Vcc pin to GND Max Units 5.0 V 9.0 V 1.0 uA 10 V 15 V 15 V VR = 0V, f = 1MHz Between I/O and I/O VR = 0V, f = 1MHz Between I/O and GND 0.20 0.30 pF 0.45 0.50 pF VR = 0V, f = 1MHz Between Vcc and GND 0.80 pF Note: I/O Pins are pin 1,3,4,6.Pin 5 is Vcc. Pin 2 is GND. http://www.microdiode.com Rev:2024A2 Page :2 ESD0504TL Ultra Low Capacitance ESD Protection Array ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :3 ESD0504TL Ultra Low Capacitance ESD Protection Array PACKAGE OUTLINE AND PAD LAYOUT INFORMATION SOT-26 Package Outline Dimensions Symbol A A1 A2 b c D E1 E e e1 L θ Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. http://www.microdiode.com Rev:2024A2 Page :4 ESD0504TL Ultra Low Capacitance ESD Protection Array TAPE AND REEL INFORMATION SOT-26 Embossed Carrler Tape Packaging Description: SOT-26 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 18cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). SOT-26 SOT-26 Tape Leader and Trailer SOT-26 Reel 3000 pcs 7 Inch http://www.microdiode.com 30,000 pcs 203×203×195 120,000 pcs 438×438×220 Rev:2024A2 Page :5
