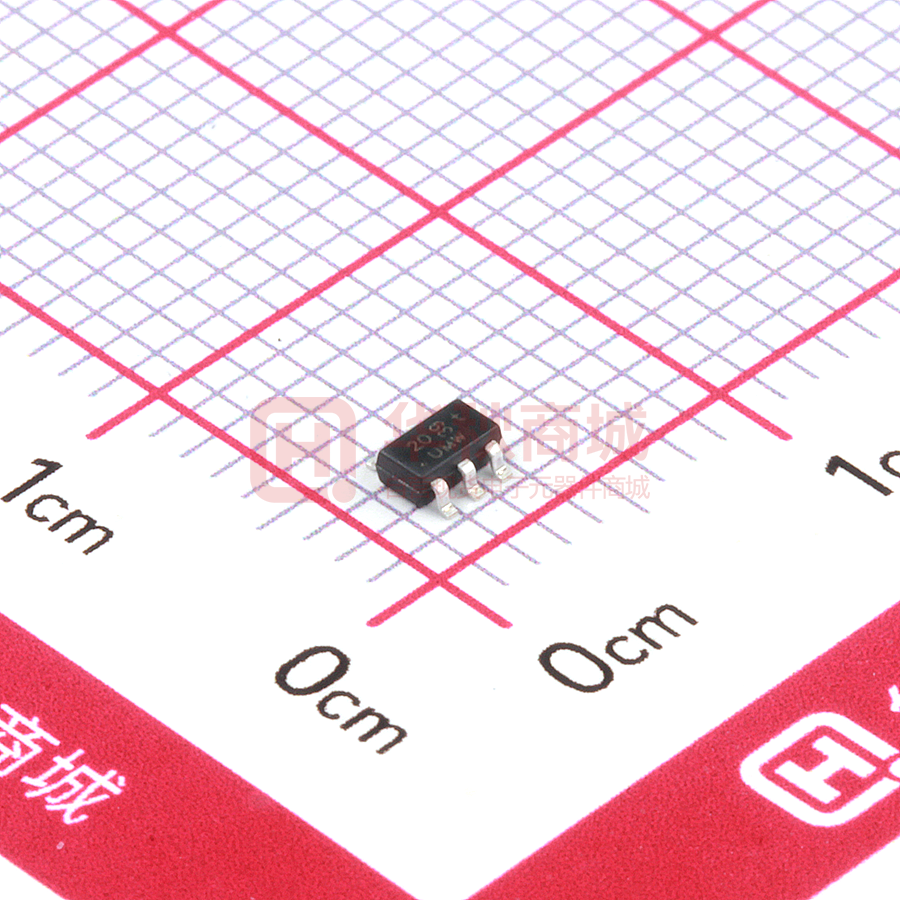

IP4220CZ6

IP4220CZ6 Low Capactiance 4-Line TVS Array Features ■ ■ ■ ■ ■ ■ ■ Ultra low capacitance: 0.35 pF typical (I/O to I/O) Ultra low leakage: nA level Low operating voltage: 5.5V Low clamping voltage Up to 4 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±25kV – IEC61000-4-4 (EFT) 40A (5/50ns) ROHS Compliant Applications ■ ■ ■ ■ ■ ■ ■ ■ Mechanical Characteristics ■ USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) ■ ■ ■ ■ Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range www.umw-ic.com 1 Value ±25 Unit kV ±25 TJ −55 to +125 °C Tstg −55 to +150 °C 友台半导体有限公司 IP4220CZ6 Low Capactiance 4-Line TVS Array Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Reverse Working Voltage Breakdown Voltage Min Typ VRWM VBR Max Unit 5.5 V Any I/O pin to ground V IT = 1mA, any I/O pin to ground 6 Test Condition Reverse Leakage Current IR 0.3 µA VRWM = 5V, any I/O pin to ground Clamping Voltage VC 20 V IPP = 3A (8 x 20µs pulse) any I/O pin to ground Junction Capacitance CJ 0.4 pF VR = 0V, f = 1MHz, between I/O pins Junction Capacitance CJ 0.8 pF VR = 0V, f = 1MHz, any I/O pin to ground 0.35 Note 1: I/O pins are Pin 1, 3, 4 and 6 www.umw-ic.com 2 友台半导体有限公司 IP4220CZ6 Low Capactiance 4-Line TVS Array Typical Characteristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 10% Time (ns) tr = 0.7~1ns 30ns 60ns t - Time ( s) Fig3. 90% Power Derating Curve % of Rated Power 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) www.umw-ic.com 3 友台半导体有限公司 IP4220CZ6 Low Capactiance 4-Line TVS Array Marking Ordering information Order code UMW IP4220CZ6 www.umw-ic.com Package Base qty Delivery mode SOT23-6 3000 Tape and reel 4 友台半导体有限公司
