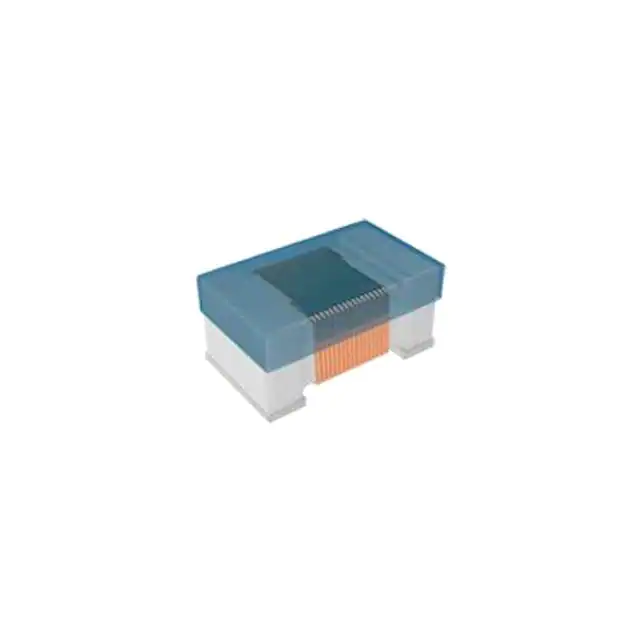

Wire Wound Chip Ceramic Inductor - SDWL-C-M Series Operating Temp. : -40℃~+125℃ FEATURES    Small chip suitable for surface mounting High Q value and high self-resonant frequency with ceramic material Tight inductance tolerance and high reliability APPLICATIONS   High frequency circuit in telecommunication and other equipments Mobile phones and other electronic devices  Bluetooth, W-LAN, Broadband network PRODUCT IDENTIFICATION SDWL ① 1608 ② C ③ ① 10N ④ J S T F M01 ⑤ ⑥ ⑦ ⑧ ⑨ ② ③ Type SDWL Ceramic ⑥ Inductance Tolerance Nominal Inductance Nominal Value C 1608 [0603] ⑤ ④ Example Material Code External Dimensions Wire Wound Chip Inductor B Feature Type Sn Plating Five-faces Coating ±0.1nH 4N7 4.7nH C ±0.2nH 10N 10nH S ±0.3nH R10 100nH D ±0.5nH G ±2% H ±3% J ±5% S ⑧ Hazardous Substance Free Products ⑦ Packing T Tape & Reel Sunlord F ⑨ Internal Code M01/M11 Specifications subject to change without notice. Please check our website for latest information. Internal Code Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SDWL-C-M Land Pattern B I F J A I F CC D EE H Unit: mm Series SDWL1608C-M A 1.6±0.2 B 0.9±0.2 C 0.8±0.2 D Typ. 0.38 E 0.8±0.15 F 0.3±0.1 H Typ. 1.02 I Typ. 0.64 J Typ. 0.64 SPECIFICATIONS SDWL1608C-M01 TYPE Part Number Inductance Tolerance Min. Quality Factor L/Q Test Freq. Min. Max. DC Self-resonant Resistance Frequency Max. Rated Current Units nH - - MHz MHz Ω mA Symbol L - Q Freq. S.R.F DCR Ir SDWL1608C2N2□STFM01 SDWL1608C3N6□STFM01 SDWL1608C3N9□STFM01 SDWL1608C4N3□STFM01 SDWL1608C4N5□STFM01 SDWL1608C4N7□STFM01 SDWL1608C5N6□STFM01 SDWL1608C6N2□STFM01 SDWL1608C6N8□STFM01 SDWL1608C7N5□STFM01 SDWL1608C8N2□STFM01 SDWL1608C8N7□STFM01 SDWL1608C9N1□STFM01 SDWL1608C9N5□STFM01 SDWL1608C10N□STFM01 SDWL1608C11N□STFM01 SDWL1608C12N□STFM01 SDWL1608C13N□STFM01 SDWL1608C15N□STFM01 SDWL1608C16N□STFM01 SDWL1608C18N□STFM01 SDWL1608C20N□STFM01 SDWL1608C22N□STFM01 SDWL1608C24N□STFM01 SDWL1608C27N□STFM01 SDWL1608C30N□STFM01 SDWL1608C33N□STFM01 SDWL1608C36N□STFM01 SDWL1608C39N□STFM01 SDWL1608C43N□STFM01 2.2 3.6 3.9 4.3 4.5 4.7 5.6 6.2 6.8 7.5 8.2 8.7 9.1 9.5 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 C,D C,D C,D C,D C,D C,D C,D C,D C,D C,D C,D C,D C,D C,D G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J 16 25 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 40 40 40 40 40 40 40 40 40 40 40 40 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/200 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 5500 5500 4900 4600 3800 3700 3300 3200 2900 2800 2700 0.049 0.059 0.059 0.059 0.059 0.059 0.082 0.082 0.082 0.082 0.11 0.11 0.11 0.11 0.11 0.11 0.13 0.13 0.13 0.16 0.16 0.16 0.17 0.21 0.21 0.23 0.23 0.26 0.26 0.29 700 850 850 850 850 850 750 750 750 750 650 650 650 650 650 650 600 600 600 550 550 550 500 500 440 420 420 400 400 380 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDWL1608C-M01 TYPE Part Number Inductance Tolerance Min. Quality Factor Min. L/Q Test Max. DC Self-resonant Freq. Resistance Frequency Max. Rated Current Units nH - - MHz MHz Ω mA Symbol L - Q Freq. S.R.F DCR Ir SDWL1608C47N□STFM01 SDWL1608C51N□STFM01 SDWL1608C56N□STFM01 SDWL1608C62N□STFM01 SDWL1608C68N□STFM01 SDWL1608C72N□STFM01 SDWL1608C75N□STFM01 SDWL1608C82N□STFM01 SDWL1608C91N□STFM01 SDWL1608CR10□STFM01 SDWL1608CR11□STFM01 SDWL1608CR12□STFM01 SDWL1608CR13□STFM01 SDWL1608CR15□STFM01 SDWL1608CR16□STFM01 SDWL1608CR18□STFM01 SDWL1608CR20□STFM01 SDWL1608CR22□STFM01 SDWL1608CR27□STFM01 SDWL1608CR33□STFM01 SDWL1608CR39□STFM01 SDWL1608CR47□STFM01 47 51 56 62 68 72 75 82 91 100 110 120 130 150 160 180 200 220 270 330 390 470 G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J G,J 38 38 38 38 38 34 34 34 34 34 32 32 32 32 32 25 25 25 30 30 30 30 100/200 100/200 100/200 100/200 100/200 100/150 100/150 100/150 100/150 100/150 100/150 100/150 100150 100/150 100/150 100 100 100 100 100 100 100 2600 2500 2400 2300 2200 2100 2050 2000 1900 1800 1700 1600 1450 1400 1350 1300 1250 1200 960 800 800 700 0.29 0.33 0.35 0.51 0.38 0.56 0.56 0.6 0.64 0.68 1.2 1.3 1.4 1.5 2.1 2.2 2.4 2.5 3.4 5.5 6.2 7 380 370 360 280 340 270 270 250 230 220 200 180 170 160 150 140 120 120 110 85 80 75 Min. Quality Factor L/Q Test Freq. SDWL1608C-M11 TYPE Part Number Inductance Tolerance Min. Max. DC Self-resonant Resistance Frequency Max. Rated Current Units nH - - MHz MHz Ω mA Symbol L - Q Freq. S.R.F DCR Ir SDWL1608C2N2□STFM11 SDWL1608C3N9□STFM11 SDWL1608C5N6□STFM11 SDWL1608C6N8□STFM11 SDWL1608C8N2□STFM11 SDWL1608C10N□STFM11 SDWL1608C12N□STFM11 SDWL1608C15N□STFM11 SDWL1608C18N□STFM11 SDWL1608C22N□STFM11 SDWL1608C27N□STFM11 SDWL1608C33N□STFM11 2.2 3.9 5.6 6.8 8.2 10 12 15 18 22 27 33 C,D C,D C,D C,D S,D G,J G,J G,J G,J G,J G,J J 18 38 38 38 38 38 38 42 42 42 42 42 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 100/250 >6000 >6000 >6000 >6000 >6000 5000 5000 4500 3500 3200 2800 2500 0.018 0.032 0.045 0.045 0.058 0.07 0.071 0.085 0.085 0.099 0.116 0.132 1400 1000 900 900 800 800 750 700 700 640 590 550 ※: Please refer to "Measurement Notice for RF Inductors". Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SDWL1608C-M TYPE Inductance vs. Frequency Characteristics 10000 140 SDWL1608C10N□STFM01 SDWL1608C47N□STFM01 SDWL1608CR33□STFM01 SDWL1608C10N□STFM01 SDWL1608C47N□STFM01 SDWL1608CR33□STFM01 120 10nH 330nH 1000 100 47nH 100 Q Inductance (nH) Q vs. Frequency Characteristics 80 47nH 60 10nH 10 40 20 1 10 100 1000 Frequency (MHz) Sunlord 10000 330nH 0 10 100 1000 10000 Frequency (MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
