BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Bridgetek Pte Ltd
BT81X (815/6) Advanced
Embedded Video Engine
Datasheet
The BT81X Series is an easy to use graphic
controllers targeted at embedded applications to
generate high-quality Human Machine Interfaces
(HMIs). It has the following features:
Advanced Embedded Video Engine(EVE) with
high resolution graphics and video playback
BT815/6 functionality includes graphic control,
audio control, and touch control interface.
Support multiple widgets for simplified design
implementation
Built-in graphics operations allow users with
little expertise to create high-quality displays
Support Adaptive Scalable Texture Compression
(ASTC) format to save considerable memory
space for larger fonts and graphics images
Support external QSPI NOR flash up to 2Gbit to
store and fetch graphic elements (image, font,
widget etc.)
Support 4-wire resistive touch screen (BT816)
Support capacitive touch screen with up to 5
touch point detection (BT815)
Hardware engine can recognize touch tags and
track touch movement. Provides notification for
up to 255 touch tags.
Enhanced sketch processing
Built-in 12MHz crystal oscillator with PLL
providing programmable system clock up to
72MHz
Support crystal-less operation with internal
relaxation clock source
Video RGB parallel output; configurable to
support PCLK up to 72MHz and R/G/B output of
1 to 8 bits
Programmable timing to adjust HSYNC and
VSYNC timing, enabling interface to numerous
displays
Support for LCD display with resolution up to
SVGA (800x600) and formats with data enable
(DE) mode or VSYNC/HSYNC mode
Support landscape and portrait orientations
Display enable control output to LCD panel
Integrated 1MByte graphics RAM, no frame
buffer RAM required
Support playback of motion-JPEG encoded AVI
videos
Mono audio channel output with Sigma-delta
modulation
Built-in sound synthesizer
Audio wave playback for mono 8-bit linear PCM,
4-bit ADPCM and µ-Law coding format at
sampling frequencies from 8 kHz to 48 kHz.
Built-in digital filter reduces the system design
complexity of external filtering
PWM output for display backlight dimming
control
Advanced object oriented architecture enables
low cost MPU/MCU as system host using SPI
interfaces
Support SPI data lines in single, dual or quad
mode; SPI clock up to 30MHz
Power mode control allows the chip to be put in
power down, sleep and standby states
Supports I/O voltage from 1.8V to 3.3V
Internal voltage regulator supplies 1.2V to the
digital core
Built-in Power-on-reset circuit
-40°C to 85°C extended operating temperature
range
Available in a compact
package, RoHS compliant
Pb-free,
VQFN-64
Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or
reproduced in any material or electronic form without the prior written consent of the copyright holder. This product and its
documentation are supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or
implied. Bridgetek Pte Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product.
Your statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or
system in which the failure of the product might reasonably be expected to result in personal injury. This document prov ides
preliminary information that may be subject to change without notice. No freedom to use patents or other intellectual property
rights is implied by the publication of this document. Bridgetek Pte Ltd, 178 Paya Lebar Road, #07-03, Singapore 409030.
Singapore Registered Company Number: 201542387H
Copyright © Bridgetek Pte Ltd
1
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
1 Typical Applications
Point of Sales Machines
Breathalyzers
Multi-function Printers
Gas chromatographs
Instrumentation
Power meter
Home Security Systems
Home appliance devices
Graphic touch pad – remote, dial pad
Set-top box
Tele / Video Conference Systems
Thermostats
Phones and Switchboards
Sprinkler system displays
Medical Appliances
Medical Appliances
Blood Pressure displays
GPS / Satnav
Heart monitors
Vending Machine Control Panels
Glucose level displays
Elevator Controls
……and many more
1.1 Part Numbers
Part Number
Description
Package

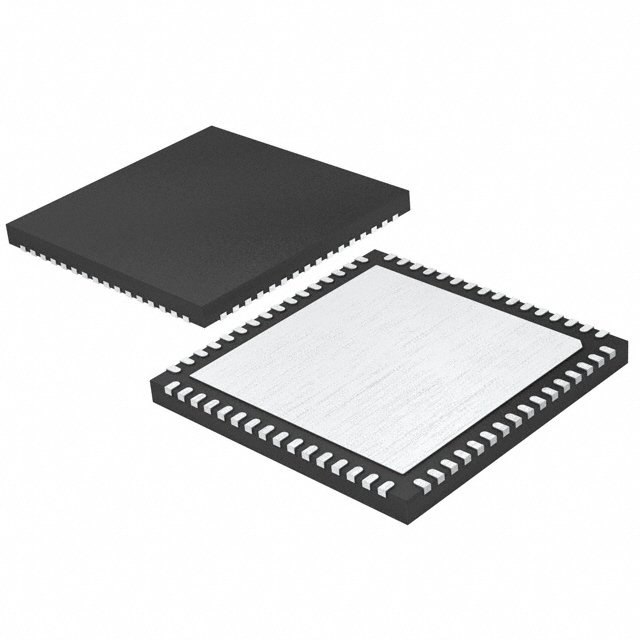

BT815Q-x
EVE with ASTC and external NOR flash,
capacitive touch
64 Pin VQFN, body 9 x 9 mm, pitch 0.5mm
BT816Q-x
EVE with ASTC and external NOR flash,
resistive touch
64 Pin VQFN, body 9 x 9 mm, pitch 0.5mm
Table 1- BT815/6 Embedded Video Engine Part Numbers
Note: Packaging codes for x is:
-R: Taped and Reel (3000 pcs per reel)
-T: Tray packing (260 pcs per tray)
For example: BT815Q-R is 3000 VQFN pieces in taped and reel packaging
Copyright © Bridgetek Pte Ltd
2
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
2 Block Diagram
Figure 2-1 BT815/6 Block Diagram
For a description of each function please refer to Section 4.
Figure 2-2 BT815/6 System Design Diagram
BT815/6 with EVE (Embedded Video Engine) technology simplifies the system architecture for advanced
human machine interfaces (HMIs) by providing support for display, audio, and touch as well as an object
oriented architecture approach that extends from display creation to the rendering of the graphics.
Copyright © Bridgetek Pte Ltd
3
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126

Table of Contents
1
Typical Applications....................................................... 2
1.1
Part Numbers ............................................................................. 2
2
Block Diagram ............................................................... 3
3
Device Pin Out and Signal Description ........................... 7
3.1
BT815 VQFN-64 Package Pin Out ............................................... 7
3.2
BT816 VQFN-64 Package Pin Out ............................................... 7
3.3
Pin Description .......................................................................... 8
4
Functional Description ................................................. 12
4.1
Quad SPI Host Interface .......................................................... 12
4.1.1
QSPI Interface .......................................................................................... 12
4.1.2
Serial Data Protocol ................................................................................... 14
4.1.3
Host Memory Read .................................................................................... 14
4.1.4
Host Memory Write.................................................................................... 15
4.1.5
Host Command ......................................................................................... 15
4.1.6
Interrupts ................................................................................................ 19
4.2
System Clock ........................................................................... 20
4.2.1
Clock Source ............................................................................................ 20
4.2.2
Phase Locked Loop .................................................................................... 21
4.2.3
Clock Enable ............................................................................................. 21
4.2.4
Clock Frequency ........................................................................................ 21
4.3
Graphics Engine ....................................................................... 21
4.3.1
Introduction ............................................................................................. 21
4.3.2
ASTC ....................................................................................................... 22
4.3.3
ROM and RAM Fonts .................................................................................. 22
4.4
SPI NOR Flash Interface .......................................................... 26
4.5
Parallel RGB Interface ............................................................. 26
4.6
Miscellaneous Control .............................................................. 29
4.6.1
Backlight Control Pin ................................................................................. 29
4.6.2
DISP Control Pin ....................................................................................... 29
4.6.3
General Purpose IO pins ............................................................................ 29
4.6.4
Pins Drive Current Control .......................................................................... 30
4.7
Audio Engine ............................................................................ 30
4.7.1
Sound Synthesizer .................................................................................... 30
4.7.2
Audio Playback ......................................................................................... 32
Copyright © Bridgetek Pte Ltd
4
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
4.8
Clearance No.: BRT#126
Touch-Screen Engine ............................................................... 33
4.8.1
Resistive Touch Control .............................................................................. 33
4.8.2
Capacitive Touch Control ............................................................................ 34
4.8.3
Compatibility Mode .................................................................................... 34
4.8.4
Extended Mode ......................................................................................... 35
4.8.5
Short-Circuit Protection .............................................................................. 35
4.8.6
Capacitive Touch Configuration ................................................................... 35
4.8.7
Host Driven Multi-Touch ............................................................................. 35
4.8.8
Touch Detection in none-ACTIVE State ........................................................ 37
4.9
Power Management ................................................................. 37
4.9.1
Power Supply ........................................................................................... 37
4.9.2
Internal Regulator and POR ........................................................................ 38
4.9.3
Power Modes ............................................................................................ 38
4.9.4
Reset and Boot-up Sequence ...................................................................... 40
4.9.5
Pin Status at Different Power States ............................................................ 40
5
Memory Map ................................................................ 42
5.1
Registers.................................................................................. 42
5.2
Chip ID..................................................................................... 47
6
Devices Characteristics and Ratings ............................ 48
6.1
Absolute Maximum Ratings ...................................................... 48
6.2
ESD and Latch-up Specifications .............................................. 48
6.3
DC Characteristics .................................................................... 48
6.4
AC Characteristics .................................................................... 51
6.4.1
System Clock and Reset ............................................................................. 51
6.4.2
SPI Interface Timing .................................................................................. 52
6.4.3
RGB Interface Timing ................................................................................ 53
7
Application Examples .................................................. 54
8
Package Parameters .................................................... 56
8.1
Part Markings .......................................................................... 56
8.1.1
Top Side .................................................................................................. 56
8.1.2
Bottom Side ............................................................................................. 56
8.2
VQFN-64 Package Dimensions ................................................. 57
8.3
Solder Reflow Profile ............................................................... 57
9
Contact Information .................................................... 59
Appendix A – References ................................................... 60
Copyright © Bridgetek Pte Ltd
5
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Document References ...................................................................... 60
Acronyms and Abbreviations............................................................ 60
Appendix B - List of Figures and Tables ............................. 62
List of Figures .................................................................................. 62
List of Tables.................................................................................... 62
Appendix C - Revision History ............................................ 64
Copyright © Bridgetek Pte Ltd
6
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
3 Device Pin Out and Signal Description
3.1 BT815 VQFN-64 Package Pin Out
Figure 3-1 Pin Configuration BT815 VQFN-64(Top View)
3.2 BT816 VQFN-64 Package Pin Out
Figure 3-2 Pin Configuration BT816 VQFN-64 (Top View)
Copyright © Bridgetek Pte Ltd
7
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
3.3 Pin Description
Pin Number
Pin Name
Type
BT815
BT816
1
1
R0
O
2
2
VCC1V2
P
3
3
SCK
I
4
4
MISO
I/O
Description
Bit 0 of Red RGB signals
Powered from pin VCCIO2
1.2V digital core supply. Connect to VOUT1V2 pin.
SPI clock input
Powered from pin VCCIO1
SPI Single mode: SPI MISO output
SPI Dual/Quad mode: SPI data line 1
Powered from pin VCCIO1
SPI Single mode: SPI MOSI input
5
5
MOSI
I/O
SPI Dual/Quad mode: SPI data line 0
Powered from pin VCCIO1
SPI slave select input
6
6
CS_N
I
Powered from pin VCCIO1
SPI Single/Dual mode: General purpose IO 0
7
7
GPIO0/IO2
I/O
SPI Quad mode: SPI data line 2
Powered from pin VCCIO1
SPI Single/Dual mode: General purpose IO 1
8
8
GPIO1/IO3
I/O
SPI Quad mode: SPI data line 3
Powered from pin VCCIO1
9
9
VCCIO1
P
10
10
GPIO2
I/O
11
11
INT_N
OD/O
I/O power supply for host interface pins. Support
1.8V, 2.5V or 3.3V.
General purpose IO 2
12
12
PD_N
I
Powered from pin VCCIO1
Interrupt to host, open drain output(default) or pushpull output, active low
Chip power down mode control input, active low.
Connect to MCU GPIO for power management or
hardware reset function, or pulled up to VCCIO1
through 47kΩ resistor and 100nF to ground.
Powered from pin VCCIO1
General purpose IO 3
13
13
GPIO3
I/O
14
14
SPIM_SCLK
O
Powered from pin VCCIO1
SPI flash clock output line
Powered from pin VCCIO3
SPI flash chip select output line
15
15
SPIM_SS_N
O
16
16
SPIM_MOSI
I/O
Copyright © Bridgetek Pte Ltd
Powered from pin VCCIO3
SPI flash MOSI line
Powered from pin VCCIO3
8
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Pin Number
Pin Name
BT815
Type
Description
BT816
I/O power supply for SPIM pins. Support 1.8V, 2.5V
or 3.3V.
17
17
VCCIO3
P
18
18
SPIM_MISO
I/O
19
19
SPIM_IO2
I/O
20
20
SPIM_IO3
I/O
VCCIO3 can be connected to different voltage with
VCCIO1 or VCCIO2.
SPI flash MISO line
Powered from pin VCCIO3
SPI flash IO2 line
Powered from pin VCCIO3
SPI flash IO3 line
Powered from pin VCCIO3
Crystal oscillator or clock input
21
21
X1/CLK
I
3.3V peak input allowed.
Powered from pin VCC.
Crystal oscillator output
22
22
X2
O
23
23
GND
P
Ground
24
24
VCC
P
3.3V power supply input.
25
25
VOUT1V2
P
1.2V regulator output pin. Connect a 4.7uF
decoupling capacitor to GND.
26
26
AUDIO_L
O
27
27
VCCA
P
3.3V power supply input.
28
28
VCCIO2
P
I/O power supply for RGB and touch pins. Supports
1.8V, 2.5V or 3.3V. VCCIO2 can be connected to
different voltage with VCCIO1 or VCCIO3.
Powered from pin VCC.
Audio Sigma-delta output
-
-
-
29
30
31
XP
YP
XM
AI/O
AI/O
AI/O
Powered from pin VCCA
Connect to X right electrode of 4-wire resistive touchscreen panel.
Powered from pin VCCIO2.
Connect to Y top electrode of 4-wire resistive touchscreen panel.
Powered from pin VCCIO2.
Connect to X left electrode of 4-wire resistive touchscreen panel.
Powered from pin VCCIO2.
-
32
YM
AI/O
29
-
CTP_RST_N
O
30
-
CTP_INT_N
I/O
Connect to Y bottom electrode of 4-wire resistive
touch-screen panel.
Powered from pin VCCIO2.
Connect to reset pin of the CTPM.
Powered from pin VCCIO2.
Connect to interrupt pin of the CTPM.
Copyright © Bridgetek Pte Ltd
Powered from pin VCCIO2.
9
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Pin Number
Pin Name
Type
BT815
BT816
31
-
CTP_SCL
I/OD
32
-
CTP_SDA
I/OD
33
33
GND
P
34
34
BACKLIGHT
O
35
35
DE
O
36
36
VSYNC
O
37
37
HSYNC
O
38
38
DISP
O
39
39
PCLK
O
40
40
B7
O
41
41
B6
O
42
42
B5
O
43
43
B4
O
44
44
B3
O
45
45
B2
O
46
46
B1
O
47
47
B0
O
48
48
GND
P
49
49
G7
O
50
50
G6
O
51
51
G5
O
Description
Connect to I2C SCL pin of the CTPM.
Powered from pin VCCIO2.
Connect to I2C SDA pin of the CTPM.
Powered from pin VCCIO2.
Ground
LED Backlight brightness PWM control signal.
Powered from pin VCCIO2.
LCD Data Enable.
Powered from pin VCCIO2.
LCD Vertical Sync.
Powered from pin VCCIO2.
LCD Horizontal Sync.
Powered from pin VCCIO2.
LCD Display Enable.
Powered from pin VCCIO2.
LCD Pixel Clock.
Powered from pin VCCIO2.
Bit 7 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 6 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 5 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 4 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 3 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 2 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 1 of Blue RGB signals.
Powered from pin VCCIO2.
Bit 0 of Blue RGB signals.
Powered from pin VCCIO2.
Ground
Bit 7 of Green RGB signals.
Powered from pin VCCIO2.
Bit 6 of Green RGB signals.
Copyright © Bridgetek Pte Ltd
Powered from pin VCCIO2.
Bit 5 of Green RGB signals.
10
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Pin Number
Pin Name
BT815
Type
Description
BT816
Powered from pin VCCIO2.
Bit 4 of Green RGB signals.
52
52
G4
O
53
53
G3
O
54
54
G2
O
55
55
G1
O
56
56
G0
O
57
57
VCC1V2
P
58
58
R7
O
59
59
R6
O
60
60
R5
O
61
61
R4
O
62
62
R3
O
63
63
R2
O
64
64
R1
O
EP
EP
GND
P
Powered from pin VCCIO2.
Bit 3 of Green RGB signals.
Powered from pin VCCIO2.
Bit 2 of Green RGB signals.
Powered from pin VCCIO2.
Bit 1 of Green RGB signals.
Powered from pin VCCIO2.
Bit 0 of Green RGB signals.
Powered from pin VCCIO2.
1.2V digital core supply. Connect to VOUT1V2 pin.
Bit 7 of Red RGB signals.
Powered from pin VCCIO2.
Bit 6 of Red RGB signals.
Powered from pin VCCIO2.
Bit 5 of Red RGB signals.
Powered from pin VCCIO2.
Bit 4 of Red RGB signals.
Powered from pin VCCIO2.
Bit 3 of Red RGB signals.
Powered from pin VCCIO2.
Bit 2 of Red RGB signals.
Powered from pin VCCIO2.
Bit 1 of Red RGB signals
Powered from pin VCCIO2
Ground. Exposed thermal pad.
Table 3-1 BT815/6 Pin Description
Note:
P
: Power or ground
I
: Input
O
: Output
OD : Open drain output
I/O : Bi-direction Input and Output
AI/O: Analog Input and Output
Copyright © Bridgetek Pte Ltd
11
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
4 Functional Description
The BT815/6 is a single chip, embedded video controller with the following functional blocks:
Quad SPI Host Interface
Quad SPI Flash Interface
System Clock
Graphics Engine
Parallel RGB video interface
Audio Engine
Touch-screen support and interface (Resistive = BT816 / Capacitive – BT815)
Power Management
The functions for each block are briefly described in the following subsections.
4.1 Quad SPI Host Interface
The BT815/6 uses a quad serial peripheral interface (QSPI) to communicate with host microcontrollers
and microprocessors.
4.1.1
QSPI Interface
The QSPI slave interface operates up to 30MHz. Only SPI mode 0 is supported. Refer to section 6.4.2 for
detailed timing specification. The QSPI can be configured as a SPI slave in SINGLE, DUAL or QUAD
channel modes.
By default the SPI slave operates in the SINGLE channel mode with MOSI as input from the master and
MISO as output to the master. DUAL and QUAD channel modes can be configured through the SPI slave
itself. To change the channel modes, write to register REG_SPI_WIDTH. The table below depicts the
setting.
REG_SPI_WIDTH[1:0]
Channel Mode
Data pins
Max bus speed
00
SINGLE – default mode
MISO, MOSI
30 MHz
01
DUAL
MOSI, MISO
30 MHz
10
QUAD
MOSI, MISO, IO2, IO3
30 MHz
11
Reserved
-
-
Table 4-1 QSPI Channel Selection
With DUAL/QUAD channel modes, the SPI data ports are now unidirectional. In these modes, each SPI
transaction (signified by CS_N going active low) will begin with the data ports set as inputs.
Hence, for writing to the BT815/6, the protocol will operate as in FT800, with “WR-Command/Addr2,
Addr1, Addr0, DataX, DataY, DataZ …” The write operation is considered complete when CS_N goes
inactive high.
For reading from the BT815/6, the protocol will still operate as in FT800, with “RD-Command/Addr2,
Addr1, Addr0, Dummy-Byte, DataX, DataY, DataZ”. However as the data ports are now unidirectional, a
change of port direction will occur before DataX is clocked out of the BT815/6. Therefore it is important
that the firmware controlling the SPI master changes the SPI master data port direction to “input” after
transmitting Addr0. The BT815/6 will not change the port direction till it starts to clock out DataX. Hence,
the Dummy-Byte cycles will be used as a change-over period when neither the SPI master nor slave will
be driving the bus; the data paths thus must have pull-ups/pull-downs. The SPI slave from the BT815/6
will reset all its data ports’ direction to input once CS_N goes inactive high (i.e. at the end of the current
SPI master transaction).
The diagram depicts the behaviour of both the SPI master and slave in the master read case.
Copyright © Bridgetek Pte Ltd
12
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
SS
WR /
Addr2
Addr
1
Addr
2
Dum
my
Data
X
Data
0
SPI Slave drives the
data bus
SPI Slave resets data
ports into inputs
SPI Master drives
the data bus
Bus not
driven
SPI Master changes
data ports into inputs
Data
Y
SPI Slave changes
data ports into outputs
Figure 4-1 SPI Master and Slave in the Master Read Case
In the DUAL channel mode, MISO (MSB) and MOSI are used while in the QUAD channel mode. IO3
(MSB), IO2, MISO and MOSI are used.
Figure 4-2 illustrates a direct connection to a 1.8-3.3V IO MPU/MCU with single or dual SPI interface.
Figure 4-3 illustrates a direct connection to a 1.8-3.3V IO MPU/MCU with Quad SPI interface.
1.8-3.3V
3.3V
VCCIO1
MPU/MCU
4.7k
SCLK
VCC
BT815/6
SCK
MISO
MISO
MOSI
MOSI
SS#
CS_N
PD#
PD_N
INT#
INT_N
GND
GND
Figure 4-2 Single/Dual SPI Interface connection
Copyright © Bridgetek Pte Ltd
13
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
1.8-3.3V
Clearance No.: BRT#126
3.3V
VCCIO1
MPU/MCU
4.7k
VCC
BT815/6
SCLK
SCK
MISO
MISO
MOSI
MOSI
IO2
IO2
IO3
IO3
SS#
CS_N
PD#
PD_N
INT#
INT_N
GND
GND
Figure 4-3 Quad SPI Interface connection
4.1.2
Serial Data Protocol
The BT815/6 appears to the host MPU/MCU as a memory-mapped SPI device. The host communicates
with the BT815/6 using reads and writes to a large (4 megabyte) address space. Within this address
space are dedicated areas for graphics, audio and touch control. Refer to section 5 for the detailed
memory map.
The host reads and writes the BT815/6 address space using SPI transactions. These transactions are
memory read, memory write and command write. Serial data is sent by the most significant bit first.
Each transaction starts with CS_N goes low, and ends when CS_N goes high. There’s no limit on data
length within one transaction, as long as the memory address is continuous.
4.1.3
Host Memory Read
For SPI memory read transactions, the host sends two zero bits, followed by the 22-bit address. This is
followed by a dummy byte. After the dummy byte, the BT815/6 responds to each host byte with read
data bytes.
7
6
0
0
5
4
3
2
1
0
Address [21:16]
Address [15:8]
Write
Address
Address [7:0]
Dummy byte
Byte 0
Read Data
Byte n
Table 4-2 Host Memory Read Transaction
Copyright © Bridgetek Pte Ltd
14
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
4.1.4
Clearance No.: BRT#126
Host Memory Write
For SPI memory write transactions, the host sends a ‘1’ bit and ‘0’ bit, followed by the 22-bit address.
This is followed by the write data.
7
6
1
0
5
4
3
2
1
0
Address [21:16]
Write
Address
Address [15:8]
Address [7:0]
Byte 0
Write Data
Byte n
Table 4-3 Host Memory Write Transaction
4.1.5
Host Command
When sending a command, the host transmits a 3 byte command. Table 4-5 Host Command List Error!
Reference source not found. lists all the host command functions.
For SPI command transactions, the host sends a ‘0’ bit and ‘1’ bit, followed by the 6-bit command code.
The 2nd byte can be either 00h, or the parameter of that command. The 3rd byte is fixed at 00h.
All SPI commands except the system reset can only be executed when the SPI is in the Single channel
mode. They will be ignored when the SPI is in either Dual or Quad channel mode.
Some commands are used to configure the device and these configurations will be reset upon receiving
the SPI PWRDOWN command, except those that configure the pin state during power down. These
commands will be sticky unless reconfigured or power-on-reset (POR) occurs.
7
6
0
1
5
4
3
2
1
0
Command [5:0]
1st Byte
2nd Byte
Parameter for the command
0
0
0
0
0
0
0
0
3rd Byte
Table 4-4 Host Command Transaction
1st Byte
2nd byte
3rd byte
Command
Description
Power Modes
00000000b
00000000b
00000000b
00h
ACTIVE
01000001b
00000000b
00000000b
41h
STANDBY
Copyright © Bridgetek Pte Ltd
Switch from Standby/Sleep/PWRDOWN
modes to active mode. Dummy memory
read from address 0(read twice) generates
ACTIVE command.
Put BT815/6 core to standby mode. Clock
gate off, PLL and Oscillator remain on
(default). ACTIVE command to wake up.
15
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
1st Byte
2nd byte
3rd byte
Command
Description
01000010b
00000000b
00000000b
42h
SLEEP
Put BT815/6 core to sleep mode. Clock gate
off, PLL and Oscillator off. ACTIVE command
to wake up.
00000000b
00000000b
43h/50h
PWRDOWN
01000011b
01010000b
Switch off 1.2V core voltage to the digital
core circuits. Clock, PLL and Oscillator off.
SPI is alive. ACTIVE command to wake up.
Clock and Reset
01000100b
00000000b
00000000b
44h
CLKEXT
01001000b
00000000b
00000000b
48h
CLKINT
Select PLL input from external crystal
oscillator or external input clock. No effect if
external clock is already selected, otherwise
a system reset will be generated
Select PLL input from internal relaxation
oscillator (default). No effect if internal clock
is already selected, otherwise a system
reset will be generated
Select the system clock frequency. Note
that software shall also update the register
value for REG_FREQUENCY to align with
system clock selected.
This command will only be effective when
the PLL is stopped (SLEEP mode).
For compatibility to FT800/FT801, set Byte2
to 0x00. This will set the PLL clock back to
default (60 MHz).
01100001b
01100010b
01101000b
xx
00000000b
00000000b
00000000b
61h/62h
CLKSEL
68h
RST_PULSE
Byte2
[5:0]
sets the clock frequency
0
Set to default clock speed
1
Reserved
2 to 6
2 to 6 times the osc
frequency (i.e. 24 to 72MHz
with 12MHz oscillator)
Byte2
[7:6]
sets the PLL range
0
When Byte2[5:0] = 0, 2, 3
1
When Byte2[5:0] = 4, 5, 6
Send reset pulse to BT815/6 core. The
behaviour is the same as POR except that
settings done through SPI commands will
not be affected
Configuration
01110000b
xx
00000000b
70h
PINDRIVE
This will set the drive strength for various
pins. For FT800/FT801 compatibility, by
default those settings are from the GPIO
registers. BT815/6 supports setting the
drive strength via SPI command instead.
When PINDRIVE for a pin from the SPI
command is not updated, the drive strength
Copyright © Bridgetek Pte Ltd
16
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
1st Byte
2nd byte
3rd byte
Command
Clearance No.: BRT#126
Description
will be determined by its corresponding
GPIO register bits, if they exist. If they don’t
exist, a hard coded setting is used. Please
refer to Table 4-21 for default values.
When PINDRIVE for a pin from the SPI
command is updated, it will override the
corresponding setting in the GPIO register
bits.
Byte2 determines which pin and the setting
are to be updated.
Byte2[1:0] determine the drive strength.
For pins
R[7:0]/G[7:0]/B[7:0]/PCLK/DISP/HSYNC/V
SYNC/DE/BACKLIGHT:
Byte2[1:0]
Drive Strength
0h
1.2mA
1h
2.4mA
2h
3.6mA
3h
4.8mA
For all other pins:
Byte2[1:0]
Drive Strength
0h
5mA
1h
10mA
2h
15mA
3h
20mA
Byte2[7:2] determine which pin/pin group
to set:
Copyright © Bridgetek Pte Ltd
Byte2
[7:2]
Pin / Pin Group
00h
GPIO 0
01h
GPIO 1
02h
GPIO 2
03h
GPIO 3
04-07h
Reserved
17
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
1st Byte
2nd byte
3rd byte
Command
Clearance No.: BRT#126
Description
08h
DISP
09h
DE
0Ah
VSYNC / HSYNC
0Bh
PCLK
0Ch
BACKLIGHT
0Dh
R[7:0], G[7:0], B[7:0]
0Eh
AUDIO_L
0Fh
INT_N
10h
CTP_RST_N
11h
CTP_SCL
12h
CTP_SDA
13h
SPI MISO/MOSI/IO2/IO3
14h
SPIM_SCLK
15h
SPIM_SS_N
16h
SPIM_MISO
17h
SPIM_MOSI
18h
SPIM_IO2
19h
SPIM_IO3
Others
Reserved
Note: GPIO0 shares the same pin as SPI
IO2 and GPIO1 with SPI IO3. When SPI is
set in Quad mode, IO2 and IO3 will inherit
the drive strength set in GROUP 13h;
otherwise GPIO0 and GPIO1 will inherit the
drive strength from GROUP 00h and 01h
respectively.
During power down, all output and in/out
pins will not be driven. Please refer to Table
4-21 for their default power down state.
01110001b
xx
00000000b
Copyright © Bridgetek Pte Ltd
71h
PIN_PD_STA
TE
These settings will only be effective during
power down and will not affect normal
operations.
Also
note
that
these
configuration bits are sticky and, unlike
other configuration bits, will not reset to
default values upon exiting power down.
Only POR will reset them.
18
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
1st Byte
2nd byte
3rd byte
Command
Clearance No.: BRT#126
Description
Byte2 determines which pin and the setting
are to be updated.
Byte2[1:0] determine the pin state.
Byte2 [1:0]
Pin Setting
0h
Float
1h
Pull-Down
2h
Pull-Up
3h
Reserved
Byte2[7:2] determine which pin/pin group
to set.
Please refer to the
PINDRIVE entry.
table
in
command
Table 4-5 Host Command List
Note: Any command code not specified is reserved and should not be used by the software
4.1.6
Interrupts
The interrupt output pin is enabled by REG_INT_EN. When REG_INT_EN is 0, INT_N is tri-state (pulled to
high by external pull-up resistor). When REG_INT_EN is 1, INT_N is driven low when any of the interrupt
flags in REG_INT_FLAGS are high, after masking with REG_INT_MASK. Writing a ‘1’ in any bit of
REG_INT_MASK will enable the corresponding interrupt. Each bit in REG_INT_FLAGS is set by a
corresponding interrupt source. REG_INT_FLAGS is readable by the host at any time, and clears when
read.
The INT_N pin is open-drain (OD) output by default. It can be configured to push-pull output by register
REG_GPIOX.
Bit
7
6
5
4
Interrupt Sources
CONVCOMPLETE
CMDFLAG
CMDEMPTY
PLAYBACK
Conditions
Touch-screen
conversions
completed
Command FIFO
flag
Command FIFO
empty
Audio playback
ended
Bit
3
2
1
0
Interrupt Sources
SOUND
TAG
TOUCH
SWAP
Conditions
Sound effect
ended
Touch-screen tag
value change
touch detected
Display list swap
occurred
Table 4-6 Interrupt Flags bit assignment
Copyright © Bridgetek Pte Ltd
19
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
4.2 System Clock
4.2.1
Clock Source
The BT815/6 can be configured to use any of the three clock sources for system clock:
Internal relaxation oscillator clock (default)
External 12MHz crystal
External 12MHz square wave clock
Figure 4-4, Figure 4-5 and Figure 4-6 show the pin connections for these clock options.
Figure 4-4 Internal relaxation oscillator connection
Figure 4-5 Crystal Oscillator Connection
Figure 4-6 External Clock Input
4.2.2
Phase Locked Loop
The internal PLL takes an input clock from the oscillator, and generates clocks to all internal circuits,
including the graphics engine, audio engine and touch engine.
Copyright © Bridgetek Pte Ltd
20
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
4.2.3
Clearance No.: BRT#126
Clock Enable
At power-on the BT815/6 is in sleep mode. The internal relaxation oscillator is selected for the PLL clock
source. The system clock will be enabled when the following step is executed:
Host sends an “ACTIVE” command
If the application chooses to use the external clock source (12MHz crystal or clock), the following steps
shall be executed:
4.2.4
Host sends a “CLKEXT” command
Host sends an “ACTIVE” command
Clock Frequency
By default the system clock is running at 60MHz when the input clock is 12MHz. The host is allowed to
switch the system clock to other frequencies (72MHz, 48MHz, 36MHz, and 24MHz) by the host command
“CLKSEL”. The clock switching command shall be sent in SLEEP mode only.
After the chip is put into Active mode, software shall update the REG_FREQUENCY value to align with the
chosen system clock frequency by CLKSEL command, if the default 60MHz is changed.
When using the internal relaxation oscillator, its clock frequency is trimmed to be 12MHz at factory.
Software is allowed to change the frequency to a lower value by programming the register REG_TRIM.
Note that software shall not change the internal oscillator frequency to be higher than 12MHz.
4.3 Graphics Engine
4.3.1
Introduction
The graphics engine executes the display list once for every horizontal line. It executes the primitive
objects in the display list and constructs the display line buffer. The horizontal pixel content in the line
buffer is updated if the object is visible at the horizontal line.
Main features of the graphics engine are:
The primitive objects supported by the graphics processor are: lines, points, rectangles, bitmaps
(comprehensive set of formats), text display, plotting bar graph, edge strips, and line strips, etc.
Operations such as stencil test, alpha blending and masking are useful for creating a rich set of
effects such as shadows, transitions, reveals, fades and wipes.
Anti-aliasing of the primitive objects (except bitmaps) gives a smoothing effect to the viewer.
Bitmap transformations enable operations such as translate, scale and rotate.
Display pixels are plotted with 1/16th pixel precision.
Four levels of graphics states
Tag buffer detection
The graphics engine also supports customized built-in widgets and functionalities such as ASTC decode,
jpeg decode, screen saver, calibration etc. The graphics engine interprets commands from the MPU host
via a 4 Kbyte FIFO in the BT815/6 memory at RAM_CMD. The MPU/MCU writes commands into the FIFO,
and the graphics engine reads and executes the commands. The MPU/MCU updates the register
REG_CMD_WRITE to indicate that there are new commands in the FIFO, and the graphics engine updates
REG_CMD_READ after commands have been executed.
Main features supported are:
Drawing of widgets such as buttons, clock, keys, gauges, text displays, progress bars, sliders,
toggle switches, dials, gradients, etc.
JPEG and motion-JPEG decode
Inflate functionality (zlib inflate is supported)
Timed interrupt (generate an interrupt to the host processor after a specified number of
milliseconds)
Copyright © Bridgetek Pte Ltd
21
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
In-built animated functionalities such as displaying logo, calibration, spinner, screen saver and
sketch
Snapshot feature to capture the current graphics display
For
a
complete
list
of
graphics
engine
BT81X_Series_Programming_Guide, Chapter 4.
4.3.2
display
commands
and
widgets
refer
to
ASTC
ASTC stands for Adaptive Scalable Texture Compression, an open standard developed by ARM for use in
mobile GPUs.
ASTC is a block-based lossy compression format. The compressed image is divided into a number of
blocks of uniform size, which makes it possible to quickly determine which block a given texel resides in.
Each block has a fixed memory footprint of 128 bits, but these bits can represent varying numbers of
texels (the block footprint).
Block footprint sizes are not confined to powers-of-two, and are also not confined to be square. For 2D
formats the block dimensions range from 4 to 12 texels.
Using ASTC for the large ROM fonts can save considerable space. Encoding the four largest fonts in ASTC
8x8 formats gives no noticeable loss in quality and reduces the ROM size from 1 MByte to about 640
Kbytes.
4.3.3
ROM and RAM Fonts
The BT815/6 has built in ROM character bitmaps as font metrics. The graphics engine can use these
metrics when drawing text fonts. There are a total of 19 ROM fonts, numbered with font handle 16-34.
Fonts 31-34 are large ROM fonts encoded in ASTC 8x8 format. The user can define and load customized
font metrics into RAM_G or external flash, making it possible to support a full range of Unicode characters
with UTF-8 coding points.
Each ROM font metric block has a 148 byte font table which defines the parameters of the font and the
pointer of font image. The font table format is shown in Table 4-7.
Address Offset
0
128
132
136
140
144
Size(byte)
Parameter Description
128
width of each font character, in pixels
4
font bitmap format, for example L1, L4 or L8
4
font line stride, in bytes
4
font width, in pixels
4
font height, in pixels
4
pointer to font image data in memory
Table 4-7 Font Table Format
The ROM fonts are stored in the memory space ROM_FONT. The ROM font table is also stored in the
ROM. The starting address of the ROM font table for font index 16 is stored at ROM_FONT_ADDR, with
other font tables following. The ROM font table and individual character width (in pixel) are listed in Table
4-8, Table 4-9 and Table 4-10. Font index 16, 18 and 20-31 are for basic ASCII characters (code 0-127),
while font index 17 and 19 are for Extended ASCII characters (code 128-255). The character width for
font index 16 through 19 is fixed at 8 pixels for any of the ASCII characters.
Font Index
Font format
Line stride
Font width
(max)
Font height
1
6
L
1
1
7
L
1
1
8
L
1
1
9
L
1
2
0
L
1
2
1
L
1
2
2
L
1
2
3
L
1
2
4
L
1
2
5
L
1
2
6
L
4
2
7
L
4
2
8
L
4
1
1
1
1
2
2
2
3
3
4
7
8
9
8
8
8
8
8
8
1
1
1
1
1
1
3
1
1
7
2
1
8
2
2
5
2
3
4
3
1
3
1
1
5
2
1
9
2
Copyright © Bridgetek Pte Ltd
2
9
L
4
1
1
2
1
2
3
0
L
4
1
4
2
8
3
3
1
L
4
1
8
3
7
4
3
2
L
4
2
3
4
9
6
3
3
L
4
3
0
6
3
8
22
3
4
L
4
3
9
8
2
1
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
6
6
3
7
0
2
9
8
6
0
5
8
6
Clearance No.: BRT#126
9
3
3
0
8
Table 4-8 ROM Font Table
ASCII Character width in pixels
Font Index
=>
0
NULL
1
SOH
2
STX
3
ETX
4
EOT
5
ENQ
6
ACK
7
BEL
8
BS
9
HT
10
LF
11
VT
12
FF
13
CR
14
SO
15
SI
16
DLE
17
DC1
18
DC2
19
DC3
20
DC4
21
NAK
22
SYN
23
ETB
24
CAN
25
EM
26
SUB
27
ESC
28
FS
29
GS
30
RS
31
US
spac
32
e
33
!
34
"
35
#
36
$
37
%
38
&
39
'
40
(
41
)
42
*
43
+
44
,
45
46
.
47
/
48
0
49
1
16/
18
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
5
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
7
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
8
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
9
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
3
3
4
6
6
9
8
2
4
4
4
6
3
4
3
3
6
6
4
4
5
8
8
12
10
3
5
5
7
9
3
4
3
4
8
8
5
5
6
9
9
14
11
3
6
6
6
10
4
5
4
5
9
9
5
6
5
10
10
16
13
3
6
6
7
10
5
6
5
5
10
10
6
6
8
14
13
22
17
6
8
8
10
14
6
8
6
7
13
13
9
9
12
19
18
29
22
6
11
11
13
19
9
11
9
9
18
18
3
3
5
10
8
11
9
3
5
5
7
9
3
6
3
6
8
8
4
4
6
11
10
13
11
4
6
6
8
10
4
7
4
7
10
10
5
6
7
14
11
16
14
4
7
8
10
12
4
10
6
9
12
12
6
6
8
15
15
17
15
5
9
8
11
14
5
11
7
10
14
14
8
9
12
19
18
23
19
7
11
10
14
17
7
15
8
13
17
17
10
11
15
26
25
31
26
10
15
14
18
24
9
18
11
17
24
24
13
15
19
33
31
40
34
11
18
18
24
30
12
24
14
22
30
30
18
19
25
44
41
52
44
15
24
24
31
41
16
32
19
29
40
40
23
25
33
57
54
68
57
20
31
31
40
52
20
41
24
38
52
52
Copyright © Bridgetek Pte Ltd
23
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Font Index
=>
50
2
51
3
52
4
53
5
54
6
55
7
56
8
57
9
58
:
59
;
60
<
61
=
62
>
63
?
64
@
65
A
66
B
67
C
68
D
69
E
70
F
71
G
72
H
73
I
74
J
75
K
76
L
77
M
78
N
79
O
80
P
81
Q
82
R
83
S
84
T
85
U
86
V
87
W
88
X
89
Y
90
Z
91
[
92
\
93
]
94
^
95
_
96
`
97
a
98
b
99
c
100
d
101
e
102
f
103
g
16/
18
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
2
0
6
6
6
6
6
6
6
6
3
3
6
5
6
6
11
7
7
8
8
7
6
8
8
3
5
7
6
9
8
8
7
8
7
7
5
8
7
9
7
7
7
3
3
3
6
6
3
5
6
5
6
5
4
6
2
1
8
8
8
8
8
8
8
8
3
4
8
9
8
8
13
9
9
10
10
9
8
11
10
4
7
9
8
12
10
11
9
11
10
9
9
10
9
13
9
9
9
4
4
4
7
8
5
8
7
7
8
8
4
8
Copyright © Bridgetek Pte Ltd
2
2
9
9
9
9
9
9
9
9
4
4
10
10
10
9
17
11
11
12
12
11
10
13
12
4
8
11
9
13
12
13
11
13
12
11
10
12
11
15
11
11
10
5
5
5
8
9
6
9
9
8
9
9
5
9
2
3
10
10
10
10
10
10
10
10
5
5
10
11
10
10
18
13
13
14
14
13
12
15
14
6
10
13
11
16
14
15
13
15
14
13
12
14
13
18
13
13
12
5
5
5
9
11
4
11
11
10
11
10
6
11
2
4
13
13
13
13
13
13
13
13
6
6
15
15
15
12
25
17
17
18
18
16
14
19
18
8
13
18
14
21
18
18
16
18
17
16
16
18
17
22
17
16
15
7
7
7
12
14
7
13
14
12
14
13
8
14
2
5
18
18
18
18
18
18
18
18
9
9
19
19
19
18
34
22
22
24
24
22
20
25
24
9
16
22
18
27
24
25
22
26
24
22
20
24
22
31
22
22
20
9
9
9
16
18
11
18
18
16
18
18
9
18
2
6
8
8
8
8
8
8
8
8
3
3
8
8
8
7
13
9
9
9
9
7
7
9
9
4
8
9
7
11
9
10
9
10
9
9
10
9
9
12
9
9
9
4
6
4
6
8
4
8
8
8
8
8
6
8
2
7
10
10
10
10
10
10
10
10
4
4
9
9
9
9
15
11
10
11
11
9
9
11
11
5
9
11
9
14
11
12
10
12
11
11
12
11
11
15
11
10
11
5
7
5
7
10
5
9
9
9
10
9
7
10
2
8
12
12
12
12
12
12
12
12
6
6
11
13
11
10
19
13
14
13
14
12
12
14
15
6
12
14
12
19
15
14
14
14
13
12
14
13
14
18
13
14
13
6
9
7
9
11
7
11
11
11
12
11
8
11
2
9
14
14
14
14
14
14
14
14
6
6
12
14
13
12
21
15
15
15
17
13
13
16
17
7
13
16
13
21
17
16
15
17
15
14
15
17
15
21
15
15
14
7
10
7
10
13
8
13
14
12
14
12
10
14
3
0
17
17
17
17
17
17
17
17
7
8
16
18
16
15
28
20
19
20
22
16
17
22
23
9
17
19
17
26
23
22
19
22
19
20
19
21
20
27
20
19
18
9
13
9
13
16
10
17
17
16
17
16
12
18
3
1
24
24
24
24
24
24
24
24
10
10
21
23
22
20
37
27
27
26
28
23
22
28
29
12
23
26
22
35
29
28
26
29
27
26
26
28
27
36
27
26
25
12
18
12
18
21
13
23
24
22
24
22
15
24
Clearance No.: BRT#126
3
2
30
30
30
30
30
30
30
30
13
14
28
30
29
26
49
34
34
34
36
29
29
37
37
15
30
34
29
46
37
37
34
38
33
33
32
37
34
46
34
34
32
15
22
15
23
26
17
30
31
28
31
29
19
31
3
3
40
40
40
40
40
40
40
40
18
18
36
40
37
34
63
45
45
45
48
39
39
48
50
20
40
45
39
62
50
49
45
50
45
43
42
48
45
61
45
45
42
19
29
19
30
34
22
39
40
37
40
37
25
41
24
3
4
52
52
52
52
52
52
52
52
23
23
46
52
48
44
82
58
58
58
63
50
50
62
65
26
50
58
51
79
65
63
58
64
58
56
56
62
58
79
58
58
55
25
38
25
38
43
29
50
52
48
52
48
31
52
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Font Index
=>
104
h
105
i
106
j
107
k
108
l
109
m
110
n
111
o
112
p
113
q
114
r
115
s
116
t
117
u
118
v
119
w
120
x
121
y
122
z
123
{
124
|
125
}
126
~
127
DEL
16/
18
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
2
2
2
2
2
2
0
1
2
3
4
5
6
8
9
10 13 18
2
3
3
4
6
7
2
3
4
4
6
7
5
7
8
9
12 16
2
3
3
4
6
7
8
11 14 16 20 27
6
8
9
10 14 18
6
8
9
11 13 18
6
8
9
11 14 18
6
8
9
11 14 18
4
5
5
6
9
11
5
7
8
9
12 16
4
4
5
6
8
9
5
7
9
10 14 18
6
7
8
10 13 16
8
10 12 14 18 23
6
7
8
10 12 16
5
7
8
10 13 16
5
7
8
9
12 16
3
5
6
6
8
11
3
3
4
5
6
9
3
5
6
6
8
11
7
8
10 10 14 19
0
0
0
0
0
0
Table 4-9 ROM font ASCII
2
2
6
7
8
9
3
4
3
4
7
9
3
4
11 15
8
9
8
10
8
9
8
10
5
6
7
9
6
7
8
9
7
9
11 13
7
9
7
9
8
9
5
6
3
4
5
6
10 11
4
3
character
2
2
8
9
11 14
6
6
6
6
11 13
6
6
18 21
11 14
12 13
11 14
12 13
7
9
11 12
8
9
12 14
11 12
16 18
11 12
11 12
11 12
8
8
5
6
7
9
14 15
5
6
width in
Clearance No.: BRT#126
3
3
0
1
17 24
7
10
8
11
16 22
7
10
27 36
17 24
17 24
17 24
17 24
11 15
17 22
11 14
17 24
16 21
23 32
16 21
16 21
15 22
11 15
7
10
10 15
21 29
5
10
pixels
3
2
31
13
14
28
13
47
31
31
31
31
19
29
17
31
27
41
27
27
27
18
14
18
36
13
3
3
41
18
18
36
18
63
41
40
40
40
25
38
23
41
36
54
36
36
36
24
18
24
47
18
3
4
52
23
23
47
23
80
52
52
51
52
32
48
29
52
46
70
46
46
46
31
23
31
63
23
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
Decimal
Symbol
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
Ç
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
É
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
á
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
░
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
└
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
╨
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
α
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
Ξ
ü
é
â
ä
à
å
ç
ê
ë
è
ï
î
ì
Ä
Å
æ
Æ
ô
ö
ò
û
ù
ÿ
Ö
Ü
₵
£
¥
Pt
ƒ
í
ó
ú
ñ
Ñ
ª
º
¿
⌐
¬
½
¼
¡
«
▒
▓
│
┤
╡
╢
╖
╕
╣
║
╗
╝
╜
╛
┴
┬
├
─
┼
╞
╟
╚
╔
╩
╦
╠
═
╬
╤
╥
╙
╘
╒
╓
╫
╪
┘
┌
█
▄
▌
▐
┐
╧
»
▀
Table 4-10 ROM Font Extended ASCII Characters
ß
Γ
∏
Σ
σ
µ
τ
Φ
θ
Ω
δ
ω
φ
Ɛ
Π
±
≥
≤
⌠
⌡
÷
≈
°
•
·
√
ⁿ
²
■
nbsp
Note 1: Font 17 and 19 are extended ASCII characters, with width fixed at 8 pixels for all characters.
Note 2: All fonts included in the BT815/6 ROM are widely available to the market-place for general
usage. See section nine for specific copyright data and links to the corresponding license agreements.
Copyright © Bridgetek Pte Ltd
25
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
4.4 SPI NOR Flash Interface
The BT815/6 implements a SPI master to connect to external SPI NOR Flash. Graphics assets such as
Unicode fonts and images can be stored in the flash memory. The BT815/6 graphics engine can fetch
these graphics assets directly without going through external host MCU, thus significantly offloading the
host MCU from feeding display contents.
The BT815/6 supports various NOR flash memory device from different vendors such as Macronix,
Winbond, Micron, ISSI and Gigadevice. The interface will work at system clock speed (up to 72MHz) at 4
bit mode.
Figure 4-7 Flash Interface States
The register REG_FLASH_STATE indicates the state of the flash subsystem. At boot the flash state is
FLASH_STATE_INIT. After detection has completed flash is in state FLASH_STATE_DETACHED or
FLASH_STATE_BASIC, depending on whether an attached flash device was detected.
If no device is detected, then all SPI output signals are driven low.
When the host MCU calls CMD_FLASHFAST, the flash system attempts to go to full-speed mode, setting
state to FLASH_STATE_FULL.
At any time the user can call CMD_FLASHDETACH in order to disable flash communications. In the
detached state, commands CMD_FLASHSPIDESEL, CMD_FLASHSPITX and CMD_FLASHSPIRX can be used
to control the SPI bus.
If detached, the host MCU can call CMD_FLASHATTACH to re-establish communication with the flash
device.
Direct rendering of bitmaps from flash is only possible in FLASH_STATE_FULL. After modifying the
contents of flash, the MCU should clear the on-chip bitmap cache by calling CMD_CLEARCACHE.
4.5 Parallel RGB Interface
The RGB parallel interface consists of 29 signals - DISP, PCLK, VSYNC, HSYNC, DE, 8 signals each for R,
G and B.
A set of RGB registers configure the LCD operation and timing parameters.
Copyright © Bridgetek Pte Ltd
26
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
REG_PCLK is the PCLK divisor. The default value is 0, which means the PCLK output is disabled. When
REG_PCLK is none 0 (1-1023), the PCLK frequency can be calculated as:
PCLK frequency = System Clock frequency / REG_PCLK
The BT815/6 system clock frequency is programmable. Some of the possible PCLK frequencies that
BT815/6 supports are listed in Table 4-11.
System Clock Frequency (MHz)
REG_PCLK
72
60(default)
48
36
24
2
36
30
24
18
12
3
24
20
16
12
8.0
4
18
15
12
9.0
6.0
5
14.5
12
9.6
7.2
4.8
6
12
10
8.0
6.0
4.0
7
10.3
8.6
6.9
5.1
3.4
8
9
7.5
6.0
4.5
3.0
9
8
6.7
5.3
4.0
2.7
10
7.2
6.0
4.8
3.6
2.4
Table 4-11 RGB PCLK Frequency
REG_PCLK_POL defines the clock polarity, with 0 for positive active clock edge, and 1 for negative clock
edge.
REG_CSPREAD controls the transition of RGB signals with respect to the PCLK active clock edge. When
REG_CSPREAD=0, R[7:0], G[7:0] and B[7:0] signals change following the active edge of PCLK. When
REG_CSPREAD=1, R[7:0] changes a PCLK clock early and B[7:0] a PCLK clock later, which helps reduce
the switching noise.
REG_DITHER enables colour dither. This option improves the half-tone appearance on displays.
Internally, the graphics engine computes the colour values at an 8 bit precision; however, the LCD colour
at a lower precision is sufficient.
REG_OUTBITS gives the bit width of each colour channel; the default is 8/8/8 bits for each R/G/B colour.
A lower value means fewer bits are output for each channel allowing dithering on lower precision LCD
displays.
REG_SWIZZLE controls the arrangement of the output colour pins, to help the PCB route different LCD
panel arrangements. Bit 0 of the register causes the order of bits in each colour channel to be reversed.
Bits 1-3 control the RGB order. Setting Bit 1 causes R and B channels to be swapped. Setting Bit 3 allows
rotation to be enabled. If Bit 3 is set, then (R, G, B) is rotated right if bit 2 is one, or left if bit 2 is zero.
REG_SWIZZLE
b3 b2 b1 b0
0
0
0
0
1
Copyright © Bridgetek Pte Ltd
X
X
X
X
0
0
0
1
1
0
0
1
0
1
0
R7, R6,
R5, R4,
R3, R2,
R1, R0
R[7:0]
R[0:7]
B[7:0]
B[0:7]
B[7:0]
RGB PINS
G7, G6,
G5, G4,
G3, G2,
G1, G0
G[7:0]
G[0:7]
G[7:0]
G[0:7]
R[7:0]
B7, B6,
B5, B4,
B3, B2,
B1, B0
B[7:0]
B[0:7]
R[7:0]
R[0:7]
G[7:0]
27
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
1
0
0
1
B[0:7]
1
0
1
0
G[7:0]
1
0
1
1
G[0:7]
1
1
0
0
G[7:0]
1
1
0
1
G[0:7]
1
1
1
0
R[7:0]
1
1
1
1
R[0:7]
Table 4-12 REG_SWIZZLE
R[0:7]
R[7:0]
R[0:7]
B[7:0]
B[0:7]
B[7:0]
B[0:7]
RGB Pins
Clearance No.: BRT#126
G[0:7]
B[7:0]
B[0:7]
R[7:0]
R[0:7]
G[7:0]
G[0:7]
Mapping
Vertical
Horizontal
REG_HCYCLE, REG_HSIZE, REG_HOFFSET, REG_HSYNC0 and REG_HSYNC1 define the LCD horizontal
timings. Each register has 12 bits to allow programmable range of 0-4095 PCLK cycles. REG_VCYCLE,
REG_VSIZE, REG_VOFFSET, REG_VSYNC0 and REG_VSYNC1 define the LCD vertical timings. Each
register has 12 bits to allow a programmable range of 0-4095 lines.
Register
Display
Parameter
Description
REG_HCYCLE
TH
Total length of line (visible and non-visible) (in PCLKs)
REG_HSIZE
THD
Length of visible part of line (in PCLKs)
REG_HOFFSET
THF + THP + THB
Length of non-visible part of line. Must be < TH - THD
(in PCLK cycles)
REG_HSYNC0
THF
Horizontal Front Porch (in PCLK cycles)
REG_HSYNC1
THF + THP
Horizontal Front Porch plus Hsync Pulse width (in PCLK
cycles)
REG_VCYCLE
TV
Total number of lines (visible and non-visible) (in lines)
REG_VSIZE
TVD
Number of visible lines (in lines)
REG_VOFFSET
TVF + TVP + TVB
Number of non-visible lines. Must be < TV - TVD
(in lines)
REG_VSYNC0
TVF
Vertical Front Porch (in lines)
REG_VSYNC1
TVF + TVP
Vertical Front Porch plus Vsync Pulse width (in lines)
Table 4-13 Registers for RGB Horizontal and Vertical Timings
Copyright © Bridgetek Pte Ltd
28
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Figure 4-8 RGB Timing Waveforms
4.6 Miscellaneous Control
4.6.1
Backlight Control Pin
The backlight dimming control pin (BACKLIGHT) is a pulse width modulated (PWM) signal controlled by
two registers: REG_PWM_HZ and REG_PWM_DUTY. REG_PWM_HZ specifies the PWM output frequency,
the range is 250-10000 Hz. REG_PWM_DUTY specifies the duty cycle; the range is 0-128. A value of 0
means that the PWM is completely off and 128 means completely on.
The BACKLIGHT pin will output low when the DISP pin is not enabled (i.e. logic 0).
4.6.2
DISP Control Pin
The DISP pin is a general purpose output that can be used to enable, or reset the LCD display panel. The
pin is controlled by writing to Bit 7 of the REG_GPIO register, or bit 15 of REG_GPIOX.
4.6.3
General Purpose IO pins
The BT815/6 can be configured to use up to 4 GPIO pins. These GPIO pins are controlled by the
REG_GPIOX_DIR and REG_GPIOX registers. Alternatively the GPIO0 and GPIO1 pins can also be
controlled by REG_GPIO_DIR and REG_GPIO to maintain backward compatibility with the FT800/FT801.
When the QSPI is enabled in Quad mode, GPIO0/IO2 and GPIO1/IO3 pins are used as data lines of the
QSPI.
Copyright © Bridgetek Pte Ltd
29
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
4.6.4
Clearance No.: BRT#126
Pins Drive Current Control
The output drive current of output pins can be changed as per the following table by writing to bit[6:2] of
REG_GPIO register or bit[14:10] of REG_GPIOX register. Alternatively, use the SPI command PINDRIVE
to change the individual pin drive strength.
REG_GPIO
Bit[6:5]
Bit[4]
Bit[3:2]
REG_GPIOX
Bit[14:13]
Bit[12]
Bit[11:10]
Value
00b#
01b
10b
11b
0b#
1b
00b#
01b
10b
11b
Drive
Current
5mA
10mA
15mA
20mA
1.2mA
2.4mA
5mA
10mA
15mA
20mA
Pins
GPIO0
PCLK
MISO
GPIO1
DISP
MOSI
GPIO2
VSYNC
IO2
GPIO3
HSYNC
IO3
CTP_RST_N
DE
INT_N
R7..R0
G7..G0
B7..B0
BACKLIGHT
Table 4-14 Output Drive Current Selection
Note: #Default value
4.7 Audio Engine
BT815/6 provides mono audio output with sigma-delta modulation through a digital output pin, AUDIO_L.
It outputs two audio sources, the sound synthesizer and audio file playback.
4.7.1
Sound Synthesizer
A sound processor, AUDIO ENGINE, generates the sound effects from a small ROM library of waves table.
To play a sound effect listed in Table 4.3, load the REG_SOUND register with a code value and write 1 to
the REG_PLAY register. The REG_PLAY register reads 1 while the effect is playing and returns a ‘0’ when
the effect ends. Some sound effects play continuously until interrupted or instructed to play the next
sound effect. To interrupt an effect, write a new value to REG_SOUND and REG_PLAY registers; e.g. write
0 (Silence) to REG_SOUND and 1 to PEG_PLAY to stop the sound effect.
The sound volume is controlled by register REG_VOL_SOUND. The 16-bit REG_SOUND register takes an
8-bit sound in the low byte. For some sounds, marked "pitch adjust" in the table below, the high 8 bits
contain a MIDI note value. For these sounds, a note value of zero indicates middle C. For other sounds
the high byte of REG_SOUND is ignored.
Value
Effect
Pitch
adjust
Value
Effect
Silence
Contin
uous
Y
00h
N
32h
square wave
Y
Y
33h
02h
sine wave
Y
Y
03h
sawtooth wave
Y
Y
01h
Copyright © Bridgetek Pte Ltd
DTMF 2
Contin
uous
Y
Pitch
adjust
N
DTMF 3
Y
N
34h
DTMF 4
Y
N
35h
DTMF 5
Y
N
30
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
04h
triangle wave
Y
05h
Beeping
Y
Alarm
Y
07h
Warble
Y
Y
39h
DTMF 9
Y
08h
Carousel
Y
Y
40h
harp
N
Y
10h
1 short pip
N
Y
41h
xylophone
N
Y
11h
2 short pips
N
Y
42h
tuba
N
Y
12h
3 short pips
N
Y
43h
glockenspiel
N
Y
13h
4 short pips
N
Y
44h
organ
N
Y
06h
14h
5 short pips
N
N
Y
36h
DTMF 6
Y
N
Y
37h
DTMF 7
Y
N
DTMF 8
Y
N
N
Y
Y
15h
6 short pips
16h
7 short pips
N
17h
8 short pips
N
Y
18h
9 short pips
N
Y
19h
10 short pips
N
1Ah
11 short pips
N
1Bh
12 short pips
N
Y
1Ch
13 short pips
N
Y
1Dh
14 short pips
N
Y
1Eh
15 short pips
N
Y
16 short pips
N
1Fh
23h
DTMF #
2Ch
DTMF *
30h
31h
Y
38h
45h
trumpet
N
Y
N
Y
46h
piano
Y
47h
chimes
N
Y
48h
music box
N
Y
49h
bell
N
Y
50h
click
N
Y
N
Y
51h
switch
N
N
52h
cowbell
N
N
53h
notch
N
N
54h
hihat
N
N
55h
kickdrum
N
N
pop
N
N
N
N
Y
56h
Y
N
57h
clack
Y
N
58h
chack
N
N
DTMF 0
Y
N
60h
mute
N
N
DTMF 1
Y
unmute
N
N
N
61h
Table 4-15 Sound Effect
MIDI
note
ANSI
note
Freq (Hz)
MIDI
note
ANSI
note
Freq (Hz)
21
A0
27.5
65
F4
349.2
22
A#0
29.1
66
F#4
370.0
23
B0
30.9
67
G4
392.0
24
C1
32.7
68
G#4
415.3
25
C#1
34.6
69
A4
440.0
26
D1
36.7
70
A#4
466.2
27
D#1
38.9
71
B4
493.9
28
E1
41.2
72
C5
523.3
29
F1
43.7
73
C#5
554.4
30
F#1
46.2
74
D5
587.3
31
G1
49.0
75
D#5
622.3
32
G#1
51.9
76
E5
659.3
33
A1
55.0
77
F5
698.5
34
A#1
58.3
78
F#5
740.0
35
B1
61.7
79
G5
784.0
36
C2
65.4
80
G#5
830.6
37
C#2
69.3
81
A5
880.0
38
D2
73.4
82
A#5
932.3
39
D#2
77.8
83
B5
987.8
40
E2
82.4
84
C6
1046.5
41
F2
87.3
85
C#6
1108.7
42
F#2
92.5
86
D6
1174.7
Copyright © Bridgetek Pte Ltd
31
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
43
G2
98.0
87
D#6
1244.5
44
G#2
103.8
88
E6
1318.5
45
A2
110.0
89
F6
1396.9
46
A#2
116.5
90
F#6
1480.0
47
B2
123.5
91
G6
1568.0
48
C3
130.8
92
G#6
1661.2
49
C#3
138.6
93
A6
1760.0
50
D3
146.8
94
A#6
1864.7
51
D#3
155.6
95
B6
1975.5
52
E3
164.8
96
C7
2093.0
53
F3
174.6
97
C#7
2217.5
54
F#3
185.0
98
D7
2349.3
55
G3
196.0
99
D#7
2489.0
56
G#3
207.7
100
E7
2637.0
57
A3
220.0
101
F7
2793.8
58
A#3
233.1
102
F#7
2960.0
59
B3
246.9
103
G7
3136.0
60
C4
261.6
104
G#7
3322.4
61
C#4
277.2
105
A7
3520.0
62
D4
293.7
106
A#7
3729.3
63
D#4
311.1
107
B7
3951.1
64
E4
329.6
108
C8
4186.0
Clearance No.: BRT#126
Table 4-16 MIDI Note Effect
4.7.2
Audio Playback
The BT815/6 can play back recorded sound through its audio output. To do this, load the original sound
data into the BT815/6’s RAM, and set registers to start the playback.
The registers controlling audio playback are:
REG_PLAYBACK_START:
the start address of the audio data
REG_PLAYBACK_LENGTH:
the length of the audio data, in bytes
REG_PLAYBACK_FREQ:
the playback sampling frequency, in Hz
REG_PLAYBACK_FORMAT:
the playback format, one of LINEAR SAMPLES, uLAW
SAMPLES, or ADPCM SAMPLES
REG_PLAYBACK_LOOP:
if zero, the sample is played once. If one, the sample is repeated
indefinitely
REG_PLAYBACK_PLAY:
a write to this location triggers the start of audio playback,
regardless of writing ‘0’ or ‘1’. Read back ‘1’ when playback
is ongoing, and ‘0’ when playback finishes
REG_VOL_PB:
playback volume, 0-255
The mono audio formats supported are 8-bits PCM, 8-bits uLAW and 4-bits IMA-ADPCM.
For
ADPCM_SAMPLES, each sample is 4 bits, so two samples are packed per byte, the first sample is in bits
0-3 and the second is in bits 4-7.
The current audio playback read pointer can be queried by reading the REG_PLAYBACK_READPTR. Using
a large sample buffer, looping, and this read pointer, the host MPU/MCU can supply a continuous stream
of audio.
Copyright © Bridgetek Pte Ltd
32
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
4.8 Touch-Screen Engine
The BT815/6 touch-screen engine supports both resistive and capacitive touch panels. BT816 supports
resistive touch, while BT815 supports capacitive touch.
4.8.1
Resistive Touch Control
The resistive touch-screen consists of a touch screen engine, ADC, Axis-switches, and ADC input
multiplexer. The touch screen engine reads commands from the memory map register and generates the
required control signals to the axis-switches and inputs mux and ADC. The ADC data are acquired,
processed and updated in the respective register for the MPU/MCU to read.
BT816
Y+
XP
YP
XM
YM
X-
Resistive Touch Screen
X+
Y-
Figure 4-9 Resistive Touch Screen Connection
The host controls the TOUCH SCREEN ENGINE operation mode by writing the REG_TOUCH_MODE.
REG_TOUCH_MODE
Mode
Description
0
OFF
Acquisition stopped, only touch detection interrupt is still valid.
1
ONE-SHOT
Perform acquisition once every time the MPU writes '1' to
REG_TOUCH_MODE.
2
FRAME-SYNC
Perform acquisition for every frame sync (~60 data
acquisition/second.
3
CONTINUOUS
Perform acquisition continuously at approximately 1000 data
acquisition / second.
Table 4-17 Resistive Touch Controller Operating Mode
The Touch Screen Engine captures the raw X and Y coordinate and writes to register REG_TOUCH_RAW
XY. The range of these values is 0-1023. If the touch screen is not being pressed, both registers read
65535 (FFFFh).
These touch values are transformed into screen coordinates using the matrix in registers
REG_TOUCH_TRANSFORM_A-F.
The
post-transform
coordinates
are
available
in
register
REG_TOUCH_SCREEN_XY. If the touch screen is not being pressed, both registers read -32768 (8000h).
The values for REG TOUCH TRANSFORM A-F may be computed using an on-screen calibration process.
If the screen is being touched, the screen coordinates are looked up in the screen's tag buffer, delivering
a final 8-bit tag value, in REG TOUCH TAG. Because the tag lookup takes a full frame, and touch
coordinates change continuously, the original (x; y) used for the tag lookup is also available in
REG_TOUCH_TAG_XY.
Copyright © Bridgetek Pte Ltd
33
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Screen touch pressure is available in REG_TOUCH_RZ. The value is relative to the resistance of the touch
contact, a lower value indicates more pressure. The register defaults to 32767 when touch is not
detected. The REG_TOUCH_THRESHOLD can be set to accept a touch only when the force threshold is
exceeded.
4.8.2
Capacitive Touch Control
The Capacitive Touch Screen Engine (CTSE) of the BT815 communicates with the external capacitive
touch panel module (CTPM) through an I2C interface. The CTPM will assert its interrupt line when there is
a touch detected. Upon detecting CTP_INT_N line active, the BT815/6 will read the touch data through
I2C. Up to 5 touches can be reported and stored in BT815 registers.
The BT815 CTSE supports Focaltech and Goodix touch controllers, as well as touch host mode (refer to
section 4.8.7). For a supported CTPM list please refer to AN_336 FT8xx - Selecting an LCD Display.
The BT815 uses the I2C address value in the REG_TOUCH_CONFIG register to differentiate Focaltech or
Goodix touch controllers. For Focaltech IC the I2C address must be set as 0x38-0x3F (example:
REG_TOUCH_CONFIG = 0x0380), while for Goodix IC the I2C address must be set as 0x5D (example:
REG_TOUCH_CONFIG = 0x05D0).
VCCIO2
(1.8-3.3V)
BT815
1K
1K
CTP_SCL
SCL
CTP_SDA
SDA
CTP_INT_N
INTN
CTP_RST_N
RSTN
Capacitive Touch
Panel Module
Figure 4-10 Touch Screen Connection
The host controls the CTSE operation mode by writing the REG_CTOUCH_MODE.
REG_CTOUCH_MODE
Mode
Description
0
OFF
Acquisition stopped
1-2
Reserved
Reserved
3
CONTINUOUS
Perform acquisition continuously at the reporting rate of the
connected CTPM.
Table 4-18 Capacitive Touch Controller Operating Mode
The BT815 CTSE supports compatibility mode and extended mode. By default the CTSE runs in
compatibility mode where the touch system provides an interface very similar to the resistive touch
engine. In extended mode, the touch register meanings are modified, and a second set of registers are
exposed. These allow multi-touch detection (up to 5 touches).
4.8.3
Compatibility Mode
The CTSE reads the X and Y coordinates from the CTPM and writes to register REG_CTOUCH_RAW_XY. If
the touch screen is not being pressed, both registers read 65535 (FFFFh).
Copyright © Bridgetek Pte Ltd
34
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
These touch values are transformed into screen coordinates using the matrix in registers
REG_CTOUCH_TRANSFORM_A-F.
The
post-transform
coordinates
are
available
in
register
REG_CTOUCH_SCREEN_XY. If the touch screen is not being pressed, both registers read -32768 (8000h).
The values for REG_CTOUCH_TRANSFORM_A-F may be computed using an on-screen calibration process.
If the screen is being touched, the screen coordinates are looked up in the screen's tag buffer, delivering
a final 8-bit tag value, in REG_TOUCH_TAG. Because the tag lookup takes a full frame, and touch
coordinates change continuously, the original (x; y) used for the tag lookup is also available in
REG_TOUCH_TAG_XY.
4.8.4
Extended Mode
Setting REG_CTOUCH_EXTENDED to 1b’0 enables extended mode. In extended mode a new set of
readout registers are available, allowing gestures and up to five touches to be read. There are two
classes of registers: control registers and status registers. Control registers are written by the MCU.
Status registers can be read out by the MCU and the BT815/6’s hardware tag system.
The five touch coordinates are packed in REG_CTOUCH_TOUCH0_XY, REG_CTOUCH_TOUCH1_XY,
REG_CTOUCH_TOUCH2_XY, REG_CTOUCH_TOUCH3_XY, REG_CTOUCH4_X and REG_CTOUCH4_Y.
Coordinates stored in these registers are signed 16-bit values, so have a range of -32768 to 32767. The
no-touch condition is indicated by x=y= -32768. These coordinates are already transformed into screen
coordinates based on the raw data read from the CTPM, using the matrix in registers
REG_CTOUCH_TRANSFORM_A-F. To obtain raw (x,y) coordinates read from CTPM, the user sets the
REG_CTOUCH_TRANSFORM_A-F registers to the identity matrix.
The BT815/6 tag mechanism is implemented by hardware, where up to 5 tags can be looked up.
4.8.5
Short-Circuit Protection
For resistive touch it is useful to protect the chip from permanent damage due to potential short-circuits
on the 4 XY lines. When a short circuit on the touch screen happens, the BT816 can detect it and stop the
touch detection operation, leaving the 4 XY pins in the high impedance state.
The short-circuit protection can be enabled/disabled by the REG_TOUCH_CONFIG.
4.8.6
Capacitive Touch Configuration
On a capacitive touch system some users may need to adjust the CTPM default values, such as the
registers affecting touch sensitivity. To do this the following sequence shall be executed once after chip
reset:
-
Hold the touch engine in reset (set REG_CPURESET = 2)
Write the CTPM configure register address and value to the BT815 designated memory location
Up to 10 register address/value can be added
Release the touch engine reset (set REG_CPURESET = 0)
The CTPM can be enabled in low power state when the touch function is not required by the application.
Setting the low-power bit in REG_TOUCH_CONFIG will enable the low power mode of the CTPM. When
the low-power bit is cleared, the BT815 touch engine will send a reset to the CTPM, thus re-enabling the
touch detection function.
4.8.7
Host Driven Multi-Touch
If the host MCU can provide touch inputs, it can supply them directly to the BT815 using touch host
mode. By using touch host mode, an application can choose to select a touch controller that is not in the
BT815 direct support list. For example, Touch Host mode would allow controllers to be used from other
manufacturers beyond Focaltech and Goodix.
To use the touch host mode, the host MCU shall be connected to the touch panel directly. The four touch
related pins of the BT815 can be left unconnected on the PCB. The host MCU is responsible for
Copyright © Bridgetek Pte Ltd
35
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
communicating with the touch controller, fetching the touch data when reported, and writing the touch
data to the BT815 for touch TAG lookup and reporting.
The touch host mode can be entered by setting bit 14 in register REG_TOUCH_CONFIG and resetting the
touch engine:
-
Hold the touch engine in reset (set REG_CPURESET = 2)
Write 1 to bit 14 in REG_TOUCH_CONFIG (set REG_TOUCH_CONFIG = 0x4000)
Release the touch engine reset (set REG_CPURESET = 0)
Figure 4-11 Touch Host Mode Connections
In touch host mode, the host supplies touch information via four registers:
BT815
address
Register Name
Bits
Description
0x30210c
REG_EHOST_TOUCH_X
Unsigned
16-bit
Touch x coordinate
0x302118
REG_EHOST_TOUCH_Y
Unsigned
16-bit
Touch y coordinate
0x302114
REG_EHOST_TOUCH_ID
4-bit
Touch ID / phase
0x302170
REG_EHOST_TOUCH_ACK
4-bit
Acknowledgement
Table 4-19 Registers for Touch Host Mode
The host writes raw (x; y) coordinates and IDs to the above registers. Up to 5 touches can be set, using
touch IDs 0-4. The host indicates no touch by supplying coordinates (0x8000; 0x8000). When the host
writes 0xf to the ID register, BT815 sets the ACK register to 0, transforms all the raw coordinates, and
writes the results to the regular touch registers.
Pseudocode:
wait until REG_EHOST_TOUCH_ACK is 1
for each touch:
write x coordinate to REG_EHOST_TOUCH_X
write y coordinate to REG_EHOST_TOUCH_Y
write id to REG_EHOST_TOUCH_ID
write 0xf to REG_EHOST_TOUCH_ID
As soon as BT815 has converted the coordinates, it writes 1 to the ACK register and sets the INT_CONV
_COMPLETE interrupt flag.
Copyright © Bridgetek Pte Ltd
36
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
The ID should be zero in touch compatibility mode. The host should indicate no touch at all by writing
(0x8000; 0x8000) with ID 0.
In extended mode, the multiple touches may be sent in any order. Any IDs not assigned are assumed to
be not pressed. Again, the host should indicate no touch at all by writing (0x8000; 0x8000) with ID 0.
The host can use three methods to ensure that BT815 is ready to accept touch inputs:
1. poll the ACK register until it is 1
2. use the INT_CONV_COMPLETE interrupt flag
3. supply touches slower than 1000 Hz, since BT815 guarantees to process the touches in
under 1 ms. Note that report rates from capacitive touch panels are about 100 Hz
Like the direct capacitive driver, this touch host mode works when REG_CTOUCH_EXTENDED is both
CTOUCH_MODE_EXTENDED and CTOUCH_MODE_COMPATIBILITY. CTOUCH_MODE_COMPATIBILITY
should be used for the calibration procedure, just as when using native capacitive support. After changing
mode, the BT815 touch engine must be reset.
4.8.8
Touch Detection in none-ACTIVE State
When the BT815/6 is in none-ACTIVE state, a touch event can still be detected and reported to the host
through the INT_N pin. In other words, a touch event can wake-up the host if needed.
For resistive touch, the INT_N pin will be asserted low when the screen is touched, regardless of the
setting of the interrupt registers. This will happen when the BT816 is in STANDBY or SLEEP state, but not
in POWERDOWN state.
For capacitive touch, the INT_N pin will follow CTP_INT_N pin when the BT815 is in STANDBY, SLEEP or
POWERDOWN state.
4.9 Power Management
4.9.1
Power Supply
The BT815/6 may be operated with a single supply of 3.3V applied to VCC and VCCIO pins. For operation
with a host MPU/MCU at a lower supply, connect the VCCIO1 to the MPU IO supply to match the interface
voltage. For operation with LCD/touch panels at lower voltages, connect the VCCIO2 to the LCD/touch IO
supply.
Symbol
Typical
Description
VCCIO1
1.8V, or 2.5V, or 3.3V
Supply for Host interface digital I/O pins
VCCIO2
1.8V, or 2.5V, or 3.3V
Supply for RGB and touch interface I/O pins
VCCIO3
1.8V, or 2.5V, or 3.3V
Supply for NOR Flash interface I/O pins
VCCA
3.3V
Supply for AUDIO_L pin and ADC circuit
VCC
3.3V
Supply for 3.3V circuits and internal 1.2V regulator
VOUT1V2,
VCC1V2
1.2V
Supply for digital core. Generated by internal regulator
Table 4-20 Power Supply
Copyright © Bridgetek Pte Ltd
37
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
4.9.2
Clearance No.: BRT#126
Internal Regulator and POR
The internal regulator provides power to the core circuit. A 47kΩ resistor is recommended to pull the
PD_N pin up to VCCIO1, together with a 100nF capacitor to ground in order to delay the internal
regulator powering up after the VCC and VCCIO are stable.
The internal regulator requires a compensation capacitor to be stable. A typical design requires a 4.7uF
capacitor between the VOUT1V2 and GND pins. Do not connect any other load to the VOUT1V2 pin.
The internal regulator will generate a Power-On-Reset (POR) pulse when the output voltage rises above
the POR threshold. The POR will reset all the core digital circuits.
It is possible to use the PD_N pin as an asynchronous hardware reset input. Drive PD_N low for at least
5ms and then drive it high will reset the BT815/6 chip.
VCCIO1
VCC
R1
47k
C2
C1
10uF
GND
VOUT1V2
BT815/6
C3
4.7uF
GND
GND
PD_N
GND
100nF
VCC
GND
Figure 4-12 Internal Regulator
4.9.3
Power Modes
When the supply to VCCIO and VCC is applied, the internal regulator is powered by VCC. An internal POR
pulse will be generated during the regulator power up until it is stable. After the initial power up, the
BT815/6 will stay in the SLEEP state. When needed, the host can set the BT815/6 to the ACTIVE state by
performing a SPI ACTIVE command. The graphics engine, the audio engine and the touch engine are only
functional in the ACTIVE state. To save power the host can send a command to put the BT815/6 into any
of the low power modes: STANDBY, SLEEP and POWERDOWN. In addition, the host is allowed to put the
BT815/6 in POWERDOWN mode by driving the PD_N pin to low, regardless of what state it is currently in.
Refer to Figure 4-13 for the power state transitions.
Copyright © Bridgetek Pte Ltd
38
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Toggle PD_N from high
to low
Clearance No.: BRT#126
VCC/VCCIO
Power ON
Toggle PD_N from low
to high
POWERDOWN
SLEEP
Write command
“ACTIVE”
Toggle PD_N from high to low or
Write command “POWERDOWN”
Toggle PD_N from high
to low
Write command
“SLEEP”
Write command
“ACTIVE”
STANDBY
ACTIVE
Write command “STANDBY”
Figure 4-13 Power State Transition
4.9.3.1
ACTIVE state
In ACTIVE state, the BT815/6 is in normal operation. The clock oscillator and PLL are functioning. The
system clock applied to the BT815/6 core engines is enabled.
4.9.3.2
STANDBY state
In STANDBY state, the clock oscillator and PLL remain functioning; the system clock applied to the
BT815/6 core engines is disabled. All register contents are retained.
4.9.3.3
SLEEP state
In SLEEP state, the clock oscillator, PLL and system clock applied to the BT815/6 core engines are
disabled. All register contents are retained.
4.9.3.4
POWERDOWN state
In POWERDOWN state, the clock oscillator, the PLL and the system clock applied to the BT815/6 core is
disabled. The core engines are powered down while the SPI interface for host commands remains
functional. All register contents are lost and reset to default when the chip is next switched on. The
internal regulator remains on.
4.9.3.5
Wake up to ACTIVE from other power states
When in the POWER DOWN state, if the device enters this state via an SPI command, then only the SPI
ACTIVE command will bring the device back to the ACTIVE state, provided PD_N pin is also high.
However, if PD_N is used instead, then making PD_N high followed by a SPI ACTIVE command will wake
up the device. Upon exiting this state, the device will perform a global reset, and will go through the
same power up sequence. All settings from SPI commands will be reset except those that pertain to pin
states during power down. The clock enable sequence mentioned in section 4.2.3 shall be executed to
properly select and enable the system clock.
Copyright © Bridgetek Pte Ltd
39
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
From the SLEEP state, the host MPU sends an SPI ACTIVE command to wake the BT815/6 into the
ACTIVE state. The host needs to wait for at least 20ms before accessing any registers or commands. This
is to guarantee the clock oscillator and PLL are up and stable.
From the STANDBY state, the host MPU sends SPI ACTIVE command to wake the BT815/6 into the
ACTIVE state. The host can immediately access any register or command.
4.9.4
Reset and Boot-up Sequence
There are a few hardware and software reset events which can be triggered to reset the BT815/6.
Hardware reset events:
Power-on-Reset(POR)
Toggle the PD_N pin
Software reset events:
SPI command RST_PULSE
SPI command to switch between the internal clock and the external clock
SPI command to enter POWERDOWN then wakeup
After reset the BT815/6 will be in the SLEEP state. Upon receiving the SPI ACTIVE command (or CLKEXT
followed by SPI ACTIVE command if external clock source is used), the clock oscillator and PLL will start
up. Once the clock is stable, the chip will check and repair its internal RAM, running the configuration and
release the clock to the system. The chip will exit the reset and boot-up state and enter into normal
operations. The boot-up may take up to 300ms to complete. During boot up process, software should not
access BT815/6 register or RAM.
4.9.5
Pin Status at Different Power States
The BT815/6 pin status depends on the power state of the chip. See the following table for more details.
At the power transition from ACTIVE to STANDBY or ACTIVE to SLEEP, all pins retain their previous
status. The software needs to set AUDIO_L, BACKLIGHT to a known state before issuing power transition
commands.
The pin status in the power down state can be changed by SPI command PIN_PD_STATE.
Pin Name
Default Drive
Reset
Normal
Power Down
(Default)
AUDIO_L
20mA
Out, Float
Out
Retain
SCK
-
In
In
In
MISO
5mA
IO
Out, Float
MOSI
5mA
In
IO
In
CS_N
-
In
In
In
IO2
5mA
In
IO
Float
GPIO0
5mA
In
IO
Float
IO3
5mA
In
IO
Float
GPIO1
5mA
In
IO
Float
GPIO2
5mA
In
IO
Float
Copyright © Bridgetek Pte Ltd
Out, Float
(CS_N = 1)
40
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
Pin Name
Default Drive
Reset
Normal
Power Down
(Default)
INT_N
5mA
OD, Float
OD / Out
Float
PD_N
-
In
In
In
GPIO3
5mA
In
IO
Float
SPIM_SCLK
5mA
In
Out
Float
SPIM_MISO
5mA
In
IO
Float
SPIM_MOSI
5mA
In
IO
Float
SPIM_SS_N
5mA
In
Out
Float
SPIM_IO2
5mA
In
IO
Float
SPIM_IO3
5mA
In
IO
Float
X1/CLK
-
In
In
In
XP
-
IO, Float
IO
Retain
YP
-
IO, Float
IO
Retain
XM
-
IO, Float
IO
Retain
YM
-
IO, Float
IO
Retain
CTP_RST_N
5mA
Out
Out
Pull Low
CTP_INT_N
5mA
In
I/O
In
CTP_SCL
20mA
OD
IO
Float
CTP_SDA
20mA
OD
IO
Float
BACKLIGHT
1.2mA
Out
Out
Pull Low
DE
1.2mA
Out
Out
Pull Low
VSYNC
1.2mA
Out
Out
Pull Low
HSYNC
1.2mA
Out
Out
Pull Low
DISP
1.2mA
Out
Out
Pull Low
PCLK
1.2mA
Out
Out
Pull Low
R/G/B
1.2mA
Out
Out
Pull Low
Table 4-21 Pin Status
Copyright © Bridgetek Pte Ltd
41
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
5 Memory Map
All memory and registers in the BT815/6 core are memory mapped in 22-bit address space with a 2-bit
SPI command prefix. Prefix 0'b00 for read and 0'b10 for write to the address space, 0'b01 is reserved for
Host Commands and 0'b11 undefined. The following are the memory space definition.
Start
Address
End
Address
Size
NAME
Description
00 0000h
0F FFFFh
1024 kB
RAM_G
General purpose graphics RAM
20 0000h
2F FFFFh
1024 kB
ROM
ROM codes, font table and bitmap
30 0000h
30 1FFFh
8 kB
RAM_DL
Display List RAM
30 2000h
30 2FFFh
4 kB
RAM_REG
Registers
30 8000h
30 8FFFh
4 kB
RAM_CMD
Command buffer
80 0000h
107F FFFFh
256 MB
FLASH
External NOR flash memory. Maximum
256MB. The address is used by internal
command only.
Table 5-1 BT815/6 Memory Map
Note 1: The addresses beyond this table are reserved and shall not be read or written unless otherwise
specified.
5.1 Registers
Table 5-2 shows the complete list of the BT815/6 registers. Refer to BT81X_Series_Programming_Guide,
Chapter 3 for details of the register function.
Address
(hex)
Register Name
302000h
REG_ID
302004h
r/
w
Reset
value
8
r/o
7Ch
REG_FRAMES
32
r/o
0
Frame counter, since reset
302008h
REG_CLOCK
32
r/o
0
Clock cycles, since reset
30200Ch
REG_FREQUENCY
28
r/w
60000000
302010h
REG_RENDERMODE
1
r/w
0
Rendering mode: 0 = normal, 1 = singleline
302014h
REG_SNAPY
11
r/w
0
Scanline select for RENDERMODE 1
302018h
REG_SNAPSHOT
1
r/w
-
Trigger for RENDERMODE 1
30201Ch
REG_SNAPFORMAT
6
r/w
20h
302020h
REG_CPURESET
3
r/w
2
Copyright © Bridgetek Pte Ltd
Bit
s
Description
Identification register, always reads as
7Ch
Main clock frequency (Hz)
Pixel format for scanline readout
Graphics, audio and touch engines reset
control. Bit2: audio, bit1: touch, bit0:
graphics
42
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Address
(hex)
Register Name
302024h
REG_TAP_CRC
302028h
Bit
s
Clearance No.: BRT#126
r/
w
Reset
value
Description
32
r/o
-
REG_TAP_MASK
32
r/w
FFFFFFFFh
30202Ch
REG_HCYCLE
12
r/w
224h
Horizontal total cycle count
302030h
REG_HOFFSET
12
r/w
02Bh
Horizontal display start offset
302034h
REG_HSIZE
12
r/w
1E0h
Horizontal display pixel count
302038h
REG_HSYNC0
12
r/w
000h
Horizontal sync fall offset
30203Ch
REG_HSYNC1
12
r/w
029h
Horizontal sync rise offset
302040h
REG_VCYCLE
12
r/w
124h
Vertical total cycle count
302044h
REG_VOFFSET
12
r/w
00Ch
Vertical display start offset
302048h
REG_VSIZE
12
r/w
110h
Vertical display line count
30204Ch
REG_VSYNC0
10
r/w
000h
Vertical sync fall offset
302050h
REG_VSYNC1
10
r/w
00Ah
Vertical sync rise offset
302054h
REG_DLSWAP
2
r/w
0
Display list swap control
302058h
REG_ROTATE
3
r/w
0
Screen rotation control. Allow
normal/mirrored/inverted for landscape
or portrait orientation.
30205Ch
REG_OUTBITS
9
r/w
0
Output bit resolution, 3 register bits each
for R/G/B. 0 indicates 8 bits, 1-7
indicates 1-7 bits respectively.
302060h
REG_DITHER
1
r/w
1
Output dither enable
302064h
REG_SWIZZLE
4
r/w
0
Output RGB signal swizzle
302068h
REG_CSPREAD
1
r/w
1
Output clock spreading enable
30206Ch
REG_PCLK_POL
1
r/w
0
PCLK polarity:
Live video tap crc. Frame CRC is
computed every DL SWAP.
Live video tap mask
0 = output on PCLK rising edge,
1 = output on PCLK falling edge
302070h
REG_PCLK
8
r/w
0
PCLK frequency divider, 0 = disable
302074h
REG_TAG_X
11
r/w
0
Tag query X coordinate
302078h
REG_TAG_Y
11
r/w
0
Tag query Y coordinate
30207Ch
REG_TAG
8
r/o
0
Tag query result
302080h
REG_VOL_PB
8
r/w
FFh
Volume for playback
302084h
REG_VOL_SOUND
8
r/w
FFh
Volume for synthesizer sound
302088h
REG_SOUND
16
r/w
0
Copyright © Bridgetek Pte Ltd
Sound effect select
43
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Address
(hex)
Register Name
Bit
s
r/
w
Reset
value
30208Ch
REG_PLAY
1
r/w
0h
302090h
REG_GPIO_DIR
8
r/w
80h
Clearance No.: BRT#126
Description
Start effect playback
Legacy GPIO pin direction,
0 = input , 1 = output
302094h
REG_GPIO
302098h
REG_GPIOX_DIR
8
r/w
00h
16
r/w
8000h
Legacy GPIO read/write
Extended GPIO pin direction,
0 = input , 1 = output
30209Ch
REG_GPIOX
3020A0h3020A4h
Reserved
-
-
3020A8h
REG_INT_FLAGS
8
r/o
00h
3020Ach
REG_INT_EN
1
r/w
0
3020B0h
REG_INT_MASK
8
r/w
FFh
3020B4h
REG_PLAYBACK_START
20
r/w
0
Audio playback RAM start address
3020B8h
REG_PLAYBACK_LENGTH
20
r/w
0
Audio playback sample length (bytes)
3020BCh
REG_PLAYBACK_READPTR
20
r/o
-
Audio playback current read pointer
3020C0h
REG_PLAYBACK_FREQ
16
r/w
8000
3020C4h
REG_PLAYBACK_FORMAT
2
r/w
0
Audio playback format
3020C8h
REG_PLAYBACK_LOOP
1
r/w
0
Audio playback loop enable
3020CCh
REG_PLAYBACK_PLAY
1
r/w
0
Start audio playback
3020D0h
REG_PWM_HZ
14
r/w
250
BACKLIGHT PWM output frequency (Hz)
3020D4h
REG_PWM_DUTY
8
r/w
128
BACKLIGHT PWM output duty cycle
0=0%, 128=100%
3020D8h
REG_MACRO_0
32
r/w
0
Display list macro command 0
3020DCh
REG_MACRO_1
32
r/w
0
Display list macro command 1
3020E0h –
3020F4h
Reserved
-
-
Reserved
3020F8h
REG_CMD_READ
12
r/w
0
Command buffer read pointer
3020FCh
REG_CMD_WRITE
12
r/o
0
Command buffer write pointer
302100h
REG_CMD_DL
13
r/w
0
Command display list offset
302104h
REG_TOUCH_MODE
2
r/w
3
Touch-screen sampling mode
302108h
REG_TOUCH_ADC_MODE
1
r/w
1
Set Touch ADC mode
REG_CTOUCH_EXTENDED
Copyright © Bridgetek Pte Ltd
16
-
r/w
0080h
-
Extended GPIO read/write
Reserved
Interrupt flags, clear by read
Global interrupt enable, 1=enable
Individual interrupt enable, 1=enable
Audio playback sampling frequency (Hz)
Set capacitive touch operation mode:
44
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Address
(hex)
Register Name
Bit
s
r/
w
Reset
value
Clearance No.: BRT#126
Description
0: extended mode (multi-touch)
1: FT800 compatibility mode (single
touch).
30210Ch
REG_TOUCH_CHARGE
16
r/w
9000
REG_EHOST_TOUCH_X
Touch charge time, units of 6 clocks
Touch host mode: touch x value updated
by host
302110h
REG_TOUCH_SETTLE
4
r/w
3
Touch settle time, units of 6 clocks
302114h
REG_TOUCH_OVERSAMPLE
4
r/w
7
Touch oversample factor
REG_EHOST_TOUCH_ID
302118h
REG_TOUCH_RZTHRESH
Touch host mode: touch ID, 0-4
16
r/w
FFFFh
REG_EHOST_TOUCH_Y
30211Ch
REG_TOUCH_
Touch host mode: touch x value updated
by host
32
r/o
-
RAW_XY
REG_TOUCH_RZ
16
r/o
-
REG_CTOUCH_TOUCH4_Y
302124h
REG_TOUCH_
32
r/o
-
32
r/o
-
Touch-screen screen (x-MSB16; yLSB16) used for tag 0 lookup
8
r/o
-
Touch-screen tag result 0
32
r/o
-
Touch-screen screen (x-MSB16; yLSB16) used for tag 1 lookup
8
r/o
-
Touch-screen tag result 1
32
r/o
-
Touch-screen screen (x-MSB16; yLSB16) used for tag 2 lookup
8
r/o
-
Touch-screen tag result 2
32
r/o
-
Touch-screen screen (x-MSB16; yLSB16) used for tag 3 lookup
8
r/o
-
Touch-screen tag result 3
TAG_XY
30212Ch
REG_TOUCH_TAG
302130h
REG_TOUCH_
TAG1_XY
302134h
REG_TOUCH_TAG1
302138h
REG_TOUCH_
TAG2_XY
30213Ch
REG_TOUCH_TAG2
302140h
REG_TOUCH_
TAG3_XY
302144h
REG_TOUCH_TAG3
Copyright © Bridgetek Pte Ltd
Compatibility mode: touch-screen screen
(x-MSB16; y-LSB16)
Extended mode: touch-screen screen
data for touch 0 (x-MSB16; y-LSB16)
REG_CTOUCH_TOUCH0_XY
REG_TOUCH_
Compatibility mode: touch-screen
resistance
Extended mode: touch-screen screen Y
data for touch 4
SCREEN_XY
302128h
Compatibility mode: touch-screen raw (xMSB16; y-LSB16)
Extended mode: touch-screen screen
data for touch 1 (x-MSB16; y-LSB16)
REG_CTOUCH_TOUCH1_XY
302120h
Touch resistance threshold
45
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Address
(hex)
Register Name
302148h
REG_TOUCH_
Bit
s
Clearance No.: BRT#126
r/
w
Reset
value
32
r/o
-
Touch-screen screen (x-MSB16; yLSB16) used for tag 4 lookup
8
r/o
-
Touch-screen tag result 4
TAG4_XY
Description
30214Ch
REG_TOUCH_TAG4
302150h
REG_TOUCH_TRANSFORM_A
32
r/w
00010000h
Touch-screen transform coefficient
(s15.16)
302154h
REG_TOUCH_TRANSFORM_B
32
r/w
00000000h
Touch-screen transform coefficient
(s15.16)
302158h
REG_TOUCH_TRANSFORM_C
32
r/w
00000000h
Touch-screen transform coefficient
(s15.16)
30215Ch
REG_TOUCH_TRANSFORM_D
32
r/w
00000000h
Touch-screen transform coefficient
(s15.16)
302160h
REG_TOUCH_TRANSFORM_E
32
r/w
00010000h
Touch-screen transform coefficient
(s15.16)
302164h
REG_TOUCH_TRANSFORM_F
32
r/w
00000000h
Touch-screen transform coefficient
(s15.16)
302168h
REG_TOUCH_CONFIG
16
r/w
8381h
(BT816)
0381h
(BT815)
Touch configuration.
RTP/CTP select
RTP: short-circuit, sample clocks
CTP: I2C address, CTPM type, low-power
mode, touch host mode
30216Ch
REG_CTOUCH_TOUCH4_X
16
r/o
-
Extended mode: touch-screen screen X
data for touch 4
302170h
REG_EHOST_TOUCH_ACK
4
r/w
0
Touch host mode: acknowledgement
302174h
REG_BIST_EN
1
r/w
0
BIST memory mapping enable
302178h302187Ch
Reserved
-
-
-
Reserved
302180h
REG_TRIM
5
r/w
0
Internal relaxation clock trimming
302184h
REG_ANA_COMP
8
r/w
0
Analogue control register
Copyright © Bridgetek Pte Ltd
46
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Address
(hex)
Register Name
302188h
REG_SPI_WIDTH
Bit
s
3
r/
w
Reset
value
r/w
0
Clearance No.: BRT#126
Description
QSPI bus width setting
Bit [2]: extra dummy cycle on read
Bit [1:0]: bus width (0=1-bit, 1=2-bit,
2=4-bit)
30218Ch
REG_TOUCH_DIRECT_XY
32
r/o
-
Extended mode: touch-screen screen
data for touch 2 (x-MSB16; y-LSB16)
REG_CTOUCH_TOUCH2_XY
302190h
REG_TOUCH_DIRECT_Z1Z2
32
r/o
-
Reserved
302564h
REG_DATESTAMP
302574h
Compatibility mode: Touch screen direct
(z1-MSB16; z2-LSB16) conversions
Extended mode: touch-screen screen
data for touch 3 (x-MSB16; y-LSB16)
REG_CTOUCH_TOUCH3_XY
302194h302560h
Compatibility mode: Touch screen direct
(x-MSB16; y-LSB16) conversions
-
-
-
Reserved
128
r/o
-
Stamp date code
REG_CMDB_SPACE
12
r/w
FFCh
302578h
REG_CMDB_WRITE
32
w/o
0
Command DL (bulk) write
30257Ch
REG_ADAPTIVE_FRAMERATE
1
r/w
1
Reduce frame rate during complex
drawing
3025ECh
REG_PLAYBACK_PAUSE
1
r/w
0
Audio playback pause
3025F0h
REG_FLASH_STATUS
2
r/w
0
Flash status
Command DL (bulk) space available
Table 5-2 Overview of BT815/6 Registers
Note: All register addresses are 4-byte aligned. The value in the “Bits” column refers to the number of
valid bits from bit 0 unless otherwise specified; other bits are reserved.
5.2 Chip ID
The BT815/6 Chip ID can be read at memory location 0C0000h – 0C0003h. The reset values of these
bytes are:
-
0C0000h:
0C0001h:
0C0002h:
0C0003h:
08h
15h (BT815), 16h(BT816)
01h
00h
Note that the Chip ID location can be over-written by software.
Copyright © Bridgetek Pte Ltd
47
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
6 Devices Characteristics and Ratings
6.1 Absolute Maximum Ratings
The absolute maximum ratings for the BT815/6 devices are as follows. These are in accordance with the
Absolute Maximum Rating System (IEC 60134). Exceeding these may cause permanent damage to the
device.
Parameter
Value
Unit
Storage Temperature
-65 to +150
°C
Floor Life (Out of Bag) At Factory Ambient
168 (IPC/JEDEC J-STD-033A MSL Level 3
Compliant)*
Hours
Ambient Temperature (Power Applied)
-40 to +85
°C
VCC Supply Voltage
0 to +4
V
VCCIO Supply Voltage
0 to +4
V
DC Input Voltage
-0.5 to + (VCCIO + 0.3)
V
(30°C / 60% Relative Humidity)
Table 6-1 Absolute Maximum Ratings
* If the devices are stored out of the packaging, beyond this time limit, the devices should be baked
before use. The devices should be ramped up to a temperature of +125°C and baked for up to 17 hours.
6.2 ESD and Latch-up Specifications
Description
Specification
Human Body Mode (HBM)
> ± 2kV
Machine mode (MM)
> ± 200V
Latch-up
> ± 200mA
Table 6-2 ESD and Latch-Up Specifications
6.3 DC Characteristics
Parameter
Description
VCCIO1/
VCCIO operating
supply voltage
VCCIO2/VCC
IO3
Copyright © Bridgetek Pte Ltd
Minimum
Typical
Maximum
Units
1.62
1.80
1.98
V
2.25
2.50
2.75
V
2.97
3.30
3.63
V
Conditions
Normal Operation
48
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Parameter
Description
VCC/VCCA
VCC operating
supply voltage
Icc1
Clearance No.: BRT#126
Minimum
Typical
Maximum
Units
Conditions
2.97
3.30
3.63
V
Normal Operation
Power Down
current
-
0.2
-
mA
Power down mode
Icc2
Sleep current
-
0.6
-
mA
Sleep Mode
Icc3
Standby current
-
3
-
mA
Standby Mode
Icc4
Operating current
-
22
-
mA
Normal Operation
Table 6-3 Operating Voltage and Current
Parameter
Description
Minimum
Typical
Maximum
Units
Voh
Output Voltage
High
VCCIO-0.4
-
-
V
Ioh=5mA
Vol
Output Voltage
Low
-
-
0.4
V
Iol=5mA
Vih
Input High
Voltage
2.0
-
-
V
Vil
Input Low
Voltage
-
-
0.8
V
Vth
Schmitt
Hysteresis
Voltage
0.22
-
0.3
V
Iin
-10
-
10
uA
-10
-
10
uA
Rpu
Input leakage
current
Tri-state output
leakage current
Pull-up resistor
-
42
-
kΩ
Rpd
Pull-down resistor
-
44
-
kΩ
Ioz
Conditions
Vin = VCCIO or 0
Vin = VCCIO or 0
Table 6-4 Digital I/O Pin Characteristics (VCCIO = +3.3V)
Parameter
Description
Voh
Output Voltage
High
VCCIO-0.4
-
-
V
Ioh=5mA
Vol
Output Voltage
Low
-
-
0.4
V
Iol=5mA
Vih
Input High
Voltage
1.7
-
-
V
-
Vil
Input Low
Voltage
-
-
0.7
V
-
Copyright © Bridgetek Pte Ltd
Minimum
Typical
Maximum
Units
Conditions
49
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Vth
Schmitt
Hysteresis
Voltage
Iin
Rpu
Input leakage
current
Tri-state output
leakage current
Pull-up resistor
Rpd
Pull-down resistor
Ioz
0.2
-
0.3
V
-10
-
10
uA
-10
-
10
uA
-
57
-
kΩ
-
59
-
kΩ
Clearance No.: BRT#126
-
Vin = VCCIO or 0
Vin = VCCIO or 0
Table 6-5 Digital I/O Pin Characteristics (VCCIO = +2.5V)
Parameter
Description
Minimum
Typical
Maximum
Units
Voh
Output Voltage
High
VCCIO-0.4
-
-
V
Ioh=5mA
Vol
Output Voltage
Low
-
-
0.4
V
Iol=5mA
Vih
Input High
Voltage
1.2
-
-
V
-
Vil
Input Low
Voltage
-
-
0.6
V
-
Vth
0.17
-
0.3
V
-10
-
10
uA
-10
-
10
uA
Rpu
Schmitt
Hysteresis
Voltage
Input leakage
current
Tri-state output
leakage current
Pull-up resistor
-
90
-
kΩ
Rpd
Pull-down resistor
-
97
-
kΩ
Iin
Ioz
Conditions
Vin = VCCIO or 0
Vin = VCCIO or 0
Table 6-6 Digital I/O Pin Characteristics (VCCIO = +1.8V)
Parameter
Description
Units
Conditions
Rsw-on
X-,X+,Y- and Y+
Drive On
resistance
-
6
10
Ω
VCCIO=3.3V
-
9
16
Ω
VCCIO=1.8V
Rsw-off
X-,X+,Y- and Y+
Drive Off
resistance
10
-
-
MΩ
Rpu
Touch sense pull
up resistance
78
100
125
kΩ
Vth+
Touch Detection
rising-edge
threshold on XP
1.59
-
2.04
V
VCCIO=3.3V
0.58
-
0.68
V
VCCIO=1.8V
Copyright © Bridgetek Pte Ltd
Minimum
Typical
Maximum
50
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Parameter
Description
Minimum
Typical
Maximum
Clearance No.: BRT#126
Units
Conditions
pin
Vth-
Rl
Touch Detection
falling-edge
threshold on XP
pin
1.23
-
1.55
V
VCCIO=3.3V
0.51
-
0.56
V
VCCIO=1.8V
X-axis and Y-axis
drive load
resistance
200
-
-
Ω
Table 6-7 Touch Sense Characteristics
6.4 AC Characteristics
6.4.1
System Clock and Reset
Value
Parameter
Units
Minimum
Typical
Maximum
Trimmed frequency target
-
12
-
MHz
Trimmed frequency accuracy
-
±1.2
±6.0
%
Trimmed frequency variation over
temperature and voltage
-
-
±4.0
%
Frequency
-
12.000
-
MHz
X1/X2 Capacitance
-
-
10
pF
Frequency
-
12.000
-
MHz
Duty cycle
45
50
55
%
-
3.3
-
V
Internal Relaxation Clock
Crystal
External clock input
Input voltage on X1/CLK
Reset
Reset pulse on PD_N
5
ms
Table 6-8 System Clock Characteristics
Copyright © Bridgetek Pte Ltd
51
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
6.4.2
Clearance No.: BRT#126
SPI Interface Timing
Figure 6-1 SPI Interface Timing
VCCIO=1.8V
VCCIO=2.5V
VCCIO=3.3V
Min
Min
Min
Units
Parameter
Description
Tsclk
SPI clock period
(SINGLE/DUAL
mode)
33.3
33.3
33.3
ns
Tsclk
SPI clock period
(QUAD mode)
33.3
33.3
33.3
ns
Tsclkl
SPI clock low
duration
13
13
13
ns
Tsclkh
SPI clock high
duration
13
13
13
ns
Tsac
SPI access time
4
3.5
3
ns
Tisu
Input Setup
4
3.5
3
ns
Tih
Input Hold
0
0
0
ns
Tzo
Output enable delay
16
13
11
ns
Toz
Output disable delay
13
11
10
ns
Tod
Output data delay
15
12
11
ns
Tcsnh
CSN hold time
0
Max
0
Max
0
Max
ns
Table 6-9 SPI Interface Timing Specifications
Copyright © Bridgetek Pte Ltd
52
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
6.4.3
Clearance No.: BRT#126
RGB Interface Timing
Value
Parameter
Description
Tpclk
Min
Typ
Pixel Clock period
13.9
27.8
Tpclkdc
Pixel Clock duty cycle
40
50
Td
Output delay relative to PCLK rising
edge (REG_PCLK_POL=0) or falling
edge (REG_PCLK_POL=1). Applied for
all the RGB output pins.
Th
Output hold time relative to PCLK
rising edge (REG_PCLK_POL=0) or
falling edge (REG_PCLK_POL=1).
Applied for all the RGB output pins.
0.5
Max
Units
ns
60
%
4
ns
ns
Table 6-10 RGB Interface Timing Characteristics
Figure 6-2 RGB Interface Timing
Copyright © Bridgetek Pte Ltd
53
Figure 7-1 BT815 application circuit
54
GND
3
2
0.1uF
EN
VIN
U3
GND
GND
6
1
R8
4.7k
C10
2.2nF
SCK_M
CS#_M
MOSI_M
MISO_M
IO2_M
IO3_M
INT#
PD#
SCK
MISO
MOSI
CS#
IO2
IO3
GND
R9
LED Current Sense R22 10k/1%
95mV/1.6R = 60mA
D1
1N4148
IO3_M
SCK_M
MOSI_M
R5
47K
MIC2289-34YML
FB
VOUT
SW
NR3015T220M
L1
0.1uF
C7
7
VCC33
INT#
CS#
MOSI
IO2
W25Q128JVSIQ
8
CS# VCC
7
MISO IO3
6
CLK
IO2
5
GND MOSI
U2
C13
GND
C14
10uF
GND
1
2
3
4
VCC33
R4
47K
BL_PWM
CS#_M
MISO_M
IO2_M
2
4
6
8
10
12
14
16
2
4
6
8
10
12
14
16
8x2 Pin Header
1
3
5
7
9
11
13
15
CN1
SPI NOR Flash
GND
R3
47K
PD#
AUDIO
1
3
5
7
9
11
13
15
R1
4.7K
Host Connector
9
SCK
MISO
IO3
VCC33
AGND
PGND
EP
C15
0.22uF
GND GND
1.6R
R10
LEDK
LEDA
VCC33
0.1uF
0.1uF
GND
C6
C5
GND
18pF
C8
R0
VCC1.2
SCK
MISO
MOSI
CS_N
GPIO0/IO2
GPIO1/IO3
VCCIO1
GPIO2
INT_N
PD_N
GPIO3
SPIMSCLK
SPIMSSN
SPIMMOSI
R0
R1
R2
R3
R4
R5
R6
R7
12MHz
GND
18pF
C9
Y1
Backlight LED driver
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
BT815
GND
C12
10uF
VCC12
0.1uF
C11
CTP_SDA
CTP_SCL
CTP_INT#
CTP_RST#
AUDIO
EP/GND
GND
B0
B1
B2
B3
B4
B5
B6
B7
PCLK
DISP
HSYNC
VSYNC
DE
BACKLIGHT
GND
BT815
65
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
CTP_INT#
CTP_RST#
CTP_SDA
CTP_SCL
B0
B1
B2
B3
B4
B5
B6
B7
PCLK
DISP
HSYNC
VSYNC
DE
BL_PWM
R6
1k
R7
1k
GND
VCC33
PCLK
DISP
HSYNC
VSYNC
DE
R0
R1
R2
R3
R4
R5
R6
R7
G0
G1
G2
G3
G4
G5
G6
G7
B0
B1
B2
B3
B4
B5
B6
B7
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0
J1
0
1
2
3
4
5
6
0
J2
CN_6Pin_FPC
0
1
2
3
4
5
6
0
GND 0.5B-40PBS
VCC33 LEDK
LEDA
CTP Connector
GND
GND
0.1uF
0.1uF
0.1uF
0.1uF
U1
C4
C3
C2
C1
VCC33
TFT Connector
Document No.: BRT_000220
4
8
9
G0
G1
G2
G3
G4
G5
G6
G7
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
R1
R2
R3
R4
R5
R6
R7
VCC1.2
G0
G1
G2
G3
G4
G5
G6
G7
VCCIO3
SPIMMISO
SPIMIO2
SPIMIO3
X1/CLK
X2
GND
VCC
VCC1.2
AUDIO_L
VCCA
VCCIO2
CTP_RST_N
CTP_INT_N
CTP_SCL
CTP_SDA
Copyright © Bridgetek Pte Ltd
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
VCC12
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Clearance No.: BRT#126
7 Application Examples
Figure 7-2 BT816 application circuit
55
2
4
6
8
10
12
14
16
GND
3
2
0.1uF
EN
VIN
U3
GND
GND
6
1
R8
4.7k
C10
2.2nF
SCK_M
CS#_M
MOSI_M
MISO_M
IO2_M
IO3_M
INT#
PD#
SCK
MISO
MOSI
CS#
IO2
IO3
GND
R9
LED Current Sense R22 10k/1%
95mV/1.6R = 60mA
D1
1N4148
IO3_M
SCK_M
MOSI_M
R5
47K
MIC2289-34YML
FB
VOUT
SW
NR3015T220M
L1
0.1uF
C7
7
VCC33
INT#
CS#
MOSI
IO2
W25Q128JVSIQ
8
CS# VCC
7
MISO IO3
6
CLK
IO2
5
GND MOSI
U2
C13
GND
C14
10uF
GND
1
2
3
4
VCC33
R4
47K
BL_PWM
CS#_M
MISO_M
IO2_M
2
4
6
8
10
12
14
16
8x2 Pin Header
1
3
5
7
9
11
13
15
CN1
SPI NOR Flash
GND
R3
47K
PD#
AUDIO
1
3
5
7
9
11
13
15
R1
4.7K
Host Connector
9
SCK
MISO
IO3
VCC33
AGND
PGND
EP
C15
0.22uF
GND GND
1.6R
R10
LEDK
LEDA
VCC33
0.1uF
0.1uF
GND
C6
C5
GND
18pF
C8
R0
VCC1V2
SCK
MISO
MOSI
CS_N
GPIO0/IO2
GPIO1/IO3
VCCIO1
GPIO2
INT_N
PD_N
GPIO3
SPIMSCLK
SPIMSSN
SPIMMOSI
R0
R1
R2
R3
R4
R5
R6
R7
12MHz
GND
18pF
C9
Y1
Backlight LED driver
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
BT816
GND
C12
10uF
VCC12
0.1uF
C11
YM
XM
YP
XP
AUDIO
EP/GND
GND
B0
B1
B2
B3
B4
B5
B6
B7
PCLK
DISP
HSYNC
VSYNC
DE
BACKLIGHT
GND
65
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
GND
GND
B0
B1
B2
B3
B4
B5
B6
B7
PCLK
DISP
HSYNC
VSYNC
DE
BL_PWM
0.1uF
0.1uF
0.1uF
0.1uF
U1
BT816
C4
C3
C2
C1
VCC33
XP
YM
XM
YP
PCLK
DISP
HSYNC
VSYNC
DE
R0
R1
R2
R3
R4
R5
R6
R7
G0
G1
G2
G3
G4
G5
G6
G7
B0
B1
B2
B3
B4
B5
B6
B7
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0
J1
GND 0.5B-40PBS
VCC33 LEDK
LEDA
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0
TFT Connector
Document No.: BRT_000220
4
8
9
G0
G1
G2
G3
G4
G5
G6
G7
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
R1
R2
R3
R4
R5
R6
R7
VCC1V2
G0
G1
G2
G3
G4
G5
G6
G7
VCCIO3
SPIMMISO
SPIMIO2
SPIMIO3
X1/CLK
X2
GND
VCC
VOUT1V2
AUDIO_L
VCCA
VCCIO2
X+
Y+
XY-
Copyright © Bridgetek Pte Ltd
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
VCC12
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Clearance No.: BRT#126
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
8 Package Parameters
The BT815/6 is available in VQFN-64 package. The package dimensions, markings and solder reflow
profile for all packages are described in following sections.
8.1 Part Markings
8.1.1
Top Side
64
1
BRT
XXXXXXXXXX
BT815Q
YYWW-A
Line 1 – BRT Logo
Line 2 – Wafer Lot Number
Line 3 – BRT Part Number
Line 4 – Date Code, Revision
Notes:
1.
YYWW = Date Code, where YY is year and WW is week number
2. BRT part number will be either BT815Q or BT816Q as per device selected.
8.1.2
Bottom Side
No markings should be placed on the bottom side.
Copyright © Bridgetek Pte Ltd
56
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Clearance No.: BRT#126
8.2 VQFN-64 Package Dimensions
A
A1
A3
b
MIN.
0.80
0.00
0.18
NOM.
0.85
0.02
0.20
0.25
MAX.
0.90
0.05
0.30
All dimensions are in millimetres (mm)
D
E
9.00
9.00
D2
7.25
7.30
7.35
E2
7.25
7.30
7.35
e
0.50
L
0.35
0.40
0.45
K
0.20
Figure 8-1 VQFN-64 Package Dimensions
8.3 Solder Reflow Profile
The recommended solder reflow profile for the package is shown in Figure 8-2.
Temperature, T (Degrees C)
tp
Tp
Critical Zone: when
T is in the range
TL to Tp
Ramp Up
TL
tL
TS Max
Ramp
Down
TS Min
tS
Preheat
25
T = 25º C to TP
Time, t (seconds)
Figure 8-2 BT815/6 Solder Reflow Profile
The recommended values for the solder reflow profile are detailed in Figure 8-2. Values are shown for
both a completely Pb free solder process (i.e. the BT815/6 is used with Pb free solder), and for a non-Pb
free solder process (i.e. the BT815/6 is used with non-Pb free solder).
Copyright © Bridgetek Pte Ltd
57
BT81X (815/6) Advanced Embedded Video Engine Datasheet
Version 1.0
Document No.: BRT_000220
Profile Feature
Average Ramp Up Rate (Ts to Tp)
Clearance No.: BRT#126
Pb Free Solder Process
Non-Pb Free Solder Process
3°C / second Max.
3°C / Second Max.
Preheat
- Temperature Min (Ts Min.)
150°C
- Temperature Max (Ts Max.)
- Time (ts Min to ts Max)
100°C
200°C
150°C
60 to 120 seconds
60 to 120 seconds
217°C
183°C 60 to 150 seconds
Time Maintained Above Critical Temperature
TL:
- Temperature (TL)
60 to 150 seconds
- Time (tL)
Peak Temperature (Tp)
260°C
240°C
Time within 5°C of actual Peak Temperature
20 to 40 seconds
20 to 40 seconds
6°C / second Max.
6°C / second Max.
8 minutes Max.
6 minutes Max.
(tp)
Ramp Down Rate
Time for T= 25°C to Peak Temperature, Tp
Table 8-1 Reflow Profile Parameter Values
