DATA SHEET
METAL LOW OHMIC JUMPER
PA series
sizes 0201/ 0402/ 0603/ 0805
Product specification – October 05, 2018 V.0
RoHS compliant & Halogen free
-
Product specification
Chip Resistor Surface Mount
SERIES
PA
2
10
0201 / 0402 / 0603 / 0805
SCOPE
ORDERING INFORMATION - GLOBAL PART NUMBER
This specification describes
PA0201/0402/0603/0805 series
current sensor - low TCR with
metal alloy layer.
Global part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
APPLICATIONS
Consumer goods
Computer
Telecom / Datacom
Industrial / Power supply
Alternative Energy
Car electronics
GLOBAL PART NUMBER
PA
XXXX
X
X
X
XX
XXXX
L
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(1) SIZE
0201 / 0402 / 0603 / 0805
(2) TOLERANCE
-
(3) PACKAGING TYPE
R = Paper taping reel
FEATURES
AEC-Q200 qualified
Halogen-free Epoxy
RoHS compliant
Reduce environmentally
hazardous wastes
High component and
equipment reliability
Non-forbidden materials used
in products/production
Low resistances applied to
current sensing
Moisture sensitivity level: MSL 1
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
-
(5) TAPING REEL
07 = 7 inch dia. Reel
7W = 7 inch dia. Reel, (0402 only)
47= 7 inch dia. Reel, (0805 only)
(6) RESISTANCE VALUE
0Ω
(7) DEFAULT CODE
Letter L is the system default code for ordering only. (Note)
Resistance rule of global part
number
Resistance code rule
Example
0R
(0 Ω)
0R = 0 Ω
ORDERING EXAMPLE

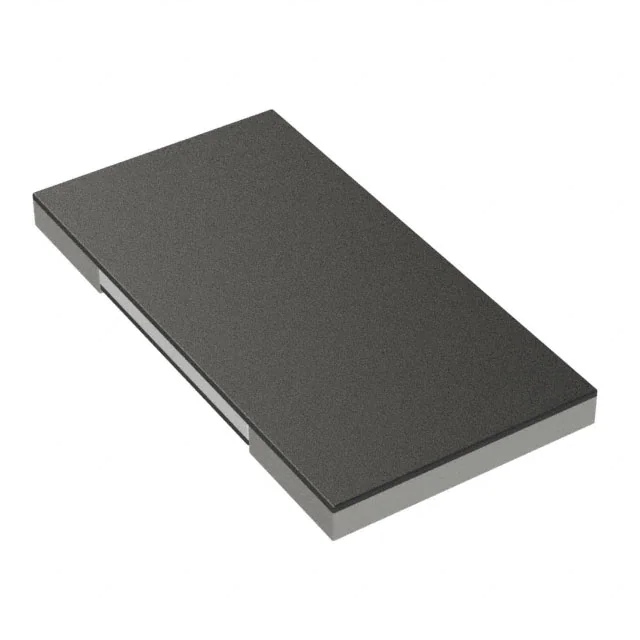

The ordering code for a PA0603 chip
resistor, value 0 Ω, supplied in 7-inch
tape reel with 5Kpcs quantify is:
PA0603-R-070RL.
NOTE
1. All our RChip products are RoHS compliant. "LFP" of the internal 2D reel label mentions
"Lead-Free Process"
www.yageo.com
Oct. 05, 2018 V0
-
Product specification
Chip Resistor Surface Mount
SERIES
PA
0201 / 0402 / 0603 / 0805
3
10
MARKING
PA0201
No Marking
Fig. 1
Value = 0 Ω
PA0402 / 0603 / 0805
Fig. 2
Value = 0 Ω
No Marking
CONSTRUCTION
The resistors are constructed using outstanding TCR level material, which makes Yageo P A resistors excellent
for current sensing application in battery charger circuit & DC -DC converter.
The composition of the resistive material is adjusted to give the approxi mate required resistance and is covered
with a protective coating. Marking is printed on the top side of the resistor.
Finally, the three external terminations (Cu / Ni / matte Tin) are added, as shown in Fig. 3.
Outlines
L
W
H
I1
I1
Fig. 3 Chip resistor outlines
www.yageo.com
Oct. 05, 2018 V0
-
Product specification
Chip Resistor Surface Mount
SERIES
PA
4
10
0201 / 0402 / 0603 / 0805
DIMENSION
Table 1 For outlines, please refer to Fig. 4
TYPE
L (mm)
W (mm)
H (mm)
I1 (mm)
PA0201
0.60± 0.03
0.31± 0.04
Max. 0.35
0.15± 0.06
PA0402
1.00± 0.10
0.55± 0.10
Max. 0.35
0.25± 0.10
PA0603
1.60± 0.20
0.8+0.10/-0.20
0.45± 0.15
0.38± 0.12
PA0805
2.00± 0.15
1.20± 0.15
Max. 0.40
0.35± 0.25
Note:
1. For relevant physical dimensions, please refer to construction outlines.
2. Please contact with sales offices, distributors and representatives in your region before ordering.
ELECTRICAL CHARACTERISTICS
Table 2
PA0201
Jumper
Criteria
Fig. 4
Maximum Resistance
Maximum Current
PA0603
PA0805
