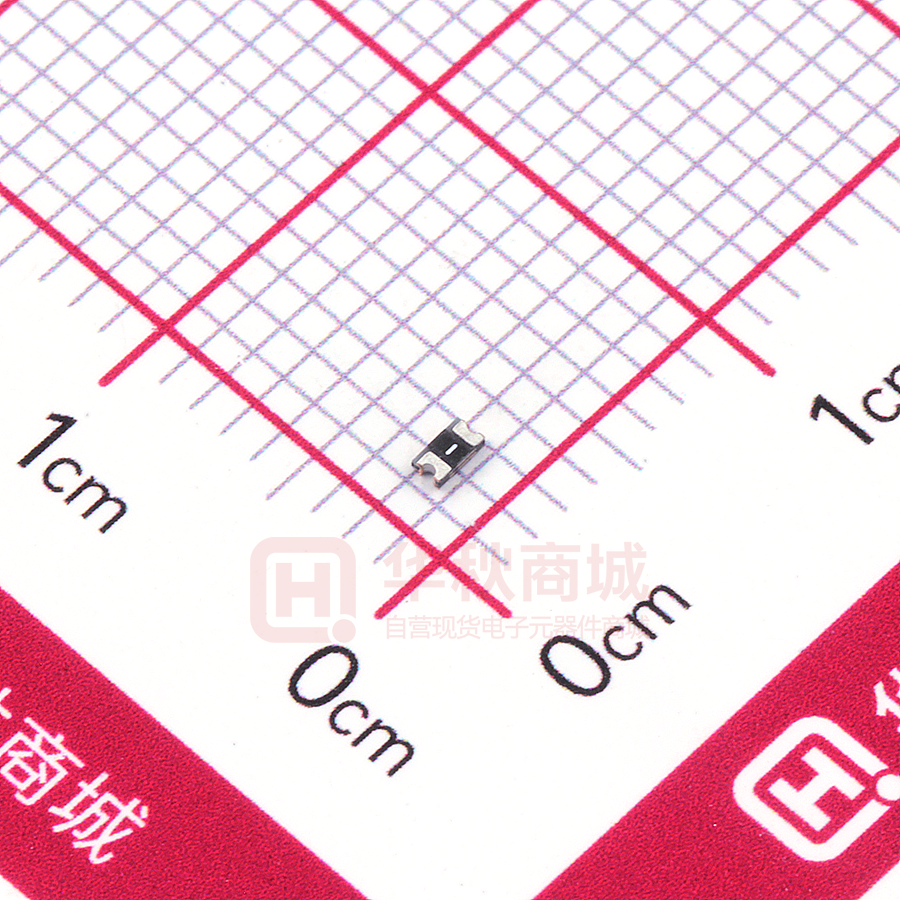

TLC-FSMD020

Revision: A Date: 2018-04-24 Page No.: 1 OF 1 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES FSMD0603 Series Features Applications ◆ Surface Mount Devices ◆ Standard 0603mils footprint ◆ Surface mount packaging for automated assembly ◆ Compatible with Pb and Pb-free solder re flow profiles ◆ UL(Pending), C-UL(Pending), TUV(Pending) ◆ RoHS, Reach, HF compliance ◆ Mobile phones ◆ PC motherboards ◆ P DA’s/Digital cameras ◆ USB port protection ◆ HDMI source protection 电气特性： P/N 保持电流 跳脱电流 最大电压 最大电流 最大动作时间 消耗功率 电阻范围（Ω） IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R1 max, TLC-FSMD010 0.10 0.30 15 40 0.50 1.00 0.50 0.90 6.00 TLC-FSMD020 0.20 0.50 9 40 1.00 0.60 0.50 0.55 3.50 TLC-FSMD035 0.35 0.75 6 40 8.00 0.10 0.50 0.20 1.40 TLC-FSMD050 0.50 1.00 6 40 8.00 0.10 0.50 0.10 0.80 产品尺寸 (Unit: mm) ： Top and Bottom View Side View A I C B D A B C D P/N Marking （标识） Min. Max. Min. Max. Min. Max. Min. TLC-FSMD010 I 1.45 1.85 0.65 1.05 0.35 0.85 0.20 TLC-FSMD020 – 1.45 1.85 0.65 1.05 0.30 0.75 0.20 TLC-FSMD035 II 1.45 1.85 0.65 1.05 0.30 0.75 0.20 TLC-FSMD050 ● 1.45 1.85 0.65 1.05 0.60 1.00 0.20 I Part Identification 环境温度与工作电流关系特性曲线 ： P/N 工作环境温度 -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ TLC-FSMD010 0.13 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03 TLC-FSMD020 0.27 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 TLC-FSMD035 0.47 0.41 0.38 0.35 0.29 0.26 0.24 0.20 0.14 TLC-FSMD050 0.67 0.59 0.54 0.50 0.41 0.37 0.34 0.29 0.20 TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 PPTC RESETTALBE FUSES 电路保护元器件专业制造商 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 FSMD0603 Series 动作电流时间曲线表 ： The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables. 标准包装数量 ： Model Q’t y/Reel TLC-FSMD010~TLC-FSMD035 5000pcs TLC-FSMD050 4000pcs Note: Reel packaging per EIA-481-1 standard 6、Agency Recognition： Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are subject to change without notice. TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
