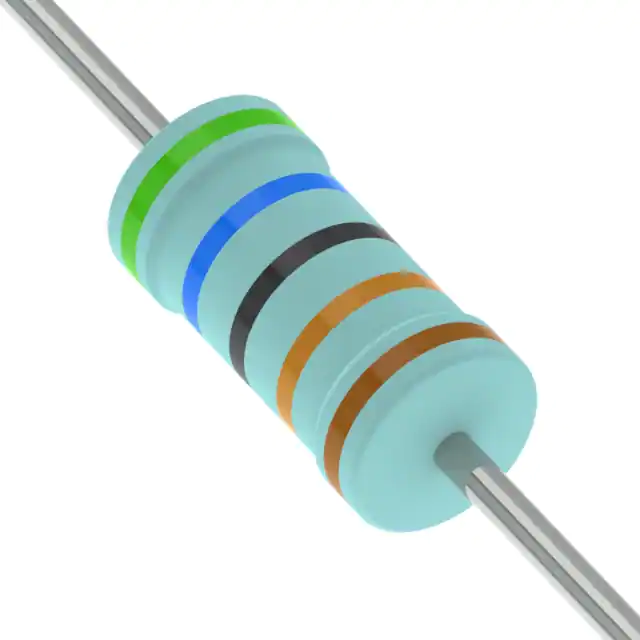

MF0207FTE52-560K

無法顯示連結的影像。檔案可能已移動、重新命名或刪除。請檢查連結是否指向正確的檔案及位置。 DATA SHEET METAL FILM RESISTORS Professional MF0 Series ±0.5%, ±1%, ±2%, ±5% 0.4W AND 0.6W Product specification – March 1, 2022 V.1 RoHS compliant & Halogen Free Through Hole Resistors Metal Film Resistors Product Specification ORDERING INFORMATION Part number of the professional t metal film resistor are identified by the series, power rating, tolerance, packing, temperature coefficient, forming and resistance value. PART NUMBER APPLICATIONS MF0 204 (1) (2)  All general purpose applications (1) SERIES  Power applications F T (3) (4) F 52- 100R (5) (6) (7) MF0 Series (2) POWER RATING FEATURES  AEC-Q200 qualified  Wide resistance range 204 = 0.4W 207 = 0.6W (3) TOLERANCE D = ±0.5% J = ±5%  Miniature & high power rating F = ±1% - = for 0R  High stability G = ±2%  RoHS compliant & halogen-free (4) PACKAGING R = Reel Pack B = Bulk T = Box Pack (5) TEMPERATURE COEFFICIENT OF RESISTANCE E=±50ppm/°C - = for 0R F=±100ppm/°C (6) FORMING 26- = 26mm 52- = 52.4mm 52B = 52.4mm, Φd =0.45±0.02mm 52C = 52.4mm, Φd= 0.5±0.02mm 52H = 52.4mm, non-painting on soldering spots M = M-Type Forming MB = M-form W/flat MT = MT Type Forming FT = FT Type Forming PN = PANAsert AV = AVIsert (7) RESISTANCE VALUE E24 & E96 Series Example: 100R = 100Ω, 10K = 10,000Ω, 1M = 1,000,000Ω www.yageo.com Mar. 01, 2022 V.0 2 12 MF0 Through Hole Resistors Product Specification Metal Film Resistors DIMENSIONS Unit: mm Miniature L ψD H ψd MF0204 3.4 ± 0.3 1.9 ± 0.2 28 ± 2.0 0.45 ± 0.05 MF0207 6.3 ± 0.5 2.4 ± 0.2 28 ± 2.0 0.55 ± 0.05 DERATING CURVE Rated Power (%) 100 80 60 40 20 20 40 70 100 155 Ambient Temperature (°C) ELECTRICAL CHARACTERISTICS CHARACTERISTICS MF0204 MF0207 Power Rating at 70 °C 0.4W 0.6W Maximum Working Voltage 250V 350V Maximum Overload Voltage 500V 700V Voltage Proof on Insulation 300V 500V Resistance Range 1Ω ~4M7Ω for E24&E96 series value Operating Temp. Range - 55°C to +155°C Temperature Coefficient ±50ppm/°C,±100ppm/°C Note: For resistance value out of above range is by request. ELECTRICAL CHARACTERISTICS FOR 0R TYPE MF0204 MF0207 Power Rating at 70 °C 0.4W 0.6W Maximum Current Rating at 70 °C 1.5A 2.5A Voltage Proof on Insulation 300V 500V Resistance Range 0R Operating Temp. Range - 55°C to +155°C www.yageo.com Mar. 01, 2022 V.0 3 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification TEST AND REQUIRMENTS TEST TEST METHOD Short Time Overload IEC 60115-1 4.13 Voltage Proof on IEC 60115-1 4.7 Insulation PROCEDURE APPRAISE 2.5 times RCWV for 5 sec.(Not more than ±0.25%+0.05Ω for maximum overload voltage) MF0207 type ±1.0 % +0.05Ω for MF0204 type In V-Block for 60 sec. test voltage as No Breakdown above table Temperature Coefficient IEC 60115-1 4.8 Between -55°C to +155°C By Type Insulation Resistance IEC 60115-1 4.6 In V-Block for 60 sec. >10,000MΩ Solderability IEC 60115-1 4.17 245±5°C for 3±0.5 Sec. 95% Min. coverage Solvent Resistance of IEC 60115-1 4.30 IPA for 5±0.5 Min. with ultrasonic No deterioration of Marking Robustness of coatings and markings IEC 60115-1 4.16 Terminations Periodic-pulse Overload Direct load for 10 Sec. in the direction of ≥2.5Kg(24.5N) the terminal leads IEC 60115-1 4.39 4 times RCWV(or Umax., whichever less) ±1.0%+0.05Ω 10,000 cycles (1 Sec. on, 25 Sec.off) Damp Heat Steady State IEC 60115-1 4.24 40±2°C,90-95% RH for 56 days, loaded ±1.5%+0.05Ω with 0.1 times RCWV(or Umax., whichever less) Endurance at 70°C IEC 60115-1 4.25 70±2°C at RCWV(or Umax., whichever ±1.5%+0.05Ω less) for 1,000 Hr.(1.5 Hr.on,0.5 Hr. off) Temperature Cycling IEC 60115-1 4.19 -55°C  Room Temp.  ±0.75%+0.05Ω +155°C  Room Temp.(5 cycles) Resistance to Soldering IEC 60115-1 4.18 Heat 260±3°C for 10±1 Sec., immersed to a ±0.25%+0.05Ω point 3±0.5mm from the body Note:. RCWV (Rated Continuous Working Voltage ): The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V=√(P X R) or max. working voltage whichever is less Where V=Continuous rated DC or AC (rms) working voltage (V) P=Rated power (W) R=Resistance value (Ω) www.yageo.com Mar. 01, 2022 V.0 4 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification AXIAL / REEL TAPE SPECIFICATION Unit: mm Miniature a MF0204 6 ± 0.5 A B1-B2 (Max.) 52.4 ± 1.5 1.2 26.0 ± 1.5 1 52.4 ± 1.5 1.2 26.0 ± 1.5 1 S (spacing) T (max. deviation of spacing) 5 0.5 mm per 5 spacing MF0207 6 ± 0.5 5 www.yageo.com Mar. 01, 2022 V.0 5 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification TAPE ON REEL PACKING TYPE Unit: mm/piece Miniature Across Flange(A) B Quantity Per Reel MF0204 66.5 75.5 5,000 MF0207 66.5 75.5 5,000 www.yageo.com Mar. 01, 2022 V.0 6 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification TAPE ON BOX PACKING TYPE DIMENSIONS Miniature A B C Quantity Per Box MF0204 48 102 255 5,000 MF0204 81 70 260 5,000 MF0207 48 102 255 5,000 MF0207 81 104 260 5,000 Unit: mm/piece BULK PACKING Miniature Piece/Per Inner Box Bag/Per Inner Box Piece Per Bag MF0204 10,000 10 1,000 MF0207 10,000 10 1,000 www.yageo.com Mar. 01, 2022 V.0 7 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification FORMING M TYPE TYPE DIMENSIONS Miniature L ψD ψd MF0204 3.4± 0.3 1.9 ± 0.2 0.45 ± 0.05 6.0 ± 1 10.0 ±1 MF0207 6.3 ± 0.5 2.4 ± 0.2 0.55 ± 0.05 10.0 ± 1 10.0 ± 1 Unit: mm P H MB TYPE TYPE DIMENSIONS Miniature L ψD ψd P H1 H2 t MF0207 6.3 ± 0.5 2.4 ± 0.2 0.55 ± 0.05 10.0 ± 1 6.0 ± 1 5.0 ± 1 1.2 ± 0.2 Unit: mm www.yageo.com Mar. 01, 2022 V.0 8 12 MF0 Through Hole Resistors Product Specification Metal Film Resistors FT TYPE (Taping Pack) MT TYPE (Taping Pack) Rated Watts : 0.4W TYPE DIMENSIONS Unit: mm Miniature H1 Max. H2 Max. H3 Max. MF0207 10 18.5 8.5 PN TYPE (Taping Pack) AV TYPE (Taping Pack) TYPE DIMENSIONS Unit: mm TYPE DIMENSIONS Unit: mm Miniature H1 Max. H2 Max. H3 Max. Miniature H1 Max. H2 Max. H3 Max. MF0207 13 21.5 8.5 MF0207 11.5 20 8.5 www.yageo.com Mar. 01, 2022 V.0 9 12 MF0 Through Hole Resistors Product Specification Metal Film Resistors MARKING 4-BAND-CODE ±2%, ±5% COLOR BLACK BROWN RED ORANGE YELLOW GREEN BLUE VIOLET GREY WHITE GOLD SILVER 1st BAND 0 1 2 3 4 5 6 7 8 9 2nd BAND 0 1 2 3 4 5 6 7 8 9 3rd BAND 0 1 2 3 4 5 6 7 8 9 MULTIPLIER 1Ω 10Ω 100Ω 1KΩ 10KΩ 100K 1MΩ 10MΩ 0.001Ω 0.0001Ω 0.1Ω 0.01Ω TOLERANCE ± 1% ± 2% ± 0.5 % ±5% (F) (G) (D) (J) ±0.5%, ±1% 5-BAND-CODE www.yageo.com Mar. 01, 2022 V.0 10 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Aug.2, 2021 - - First issue of this specification Version 1 Mar.1, 2022 -1. Updated power rating on second page -2. Independent electrical characteristics of 0R “ Yageo reserves all the rights for revising the content of this datasheet without further notification, as long as the products itse lf are unchanged. Any product change will be announced by PCN.” www.yageo.com Mar. 01, 2022 V.0 11 12 MF0 Through Hole Resistors Metal Film Resistors Product Specification LEGAL DISCLAIMER Yageo, its distributors and agents (collectively, “Yageo”), hereby disclaims any and all liabilities for any errors, inaccuracies or incompleteness contained in any product related information, including but not limited to product specifications, datasheets, pictures and/or graphics. Yageo may make changes, modifications and/or improvements to product related information at any time and without notice. Yageo makes no representation, warranty, and/or guarantee about the fitness of its products for any particular purpose or the continuing production of any of its products. To the maximum extent permitted by law, Yageo disclaims (i) any and all liability arising out of the application or use of any Yageo product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for a particular purpose, non-infringement and merchantability. Yageo statements regarding the suitability of products for certain types of applications are based on Yageo’s knowledge of typical operating conditions for such types of applications in a generic nature. Such statements are neither binding statements of Yageo nor intended to constitute any warranty concerning the suitability for a specific customer application or use. They are intended for use only by customers with requisite knowledge and experience for determining whether Yageo products are the correct products for their application or use. In addition, unpredicatable and isolated cases of product failure may still occur, therefore, customer application or use of Yageo products which requires higher degree of reliability or safety, shall employ additional protective safeguard measures to ensure that product failure would not result in personal injury or property damage. Yageo products are not designed for application or use in medical, life-saving, or life-sustaining devices or for any other application or use in which the failure of Yageo products could result in personal injury or death. Customers using or selling Yageo products not expressly indicated for above-mentioned purposes shall do so at their own risk and agree to fully indemnify Yageo and hold Yageo harmless. Information provided here is intended to indicate product specifications only. Yageo reserves all the rights for revising this content without further notification, as long as products are unchanged. Any product change will be announced by PCN. www.yageo.com Mar. 01, 2022 V.0 12 12 MF0
