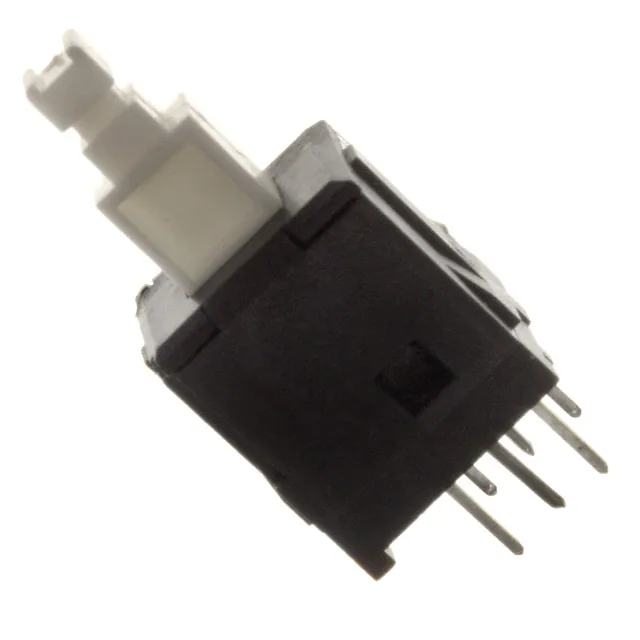

982A06RX

982A03RX 982A02RX 982A01RX BOTTOM VIEW 1 "C" CIRCUIT BREAK BEFORE MAKE BOTTOM VIEW 1 "B" CIRCUIT BOTTOM VIEW 1 "A" CIRCUIT 982A05RX 982A04RX 982A06RX BOTTOM VIEW 2 "B" CIRCUIT BOTTOM VIEW 2 "A" CIRCUIT 0.51 12.8 BOTTOM VIEW 2 "C" CIRCUIT 0.13 3.3 SQUARE 0.39 9.9 C 0.388 9.86 HOUSING OUTLINE 0.039 0.99 0.220 5.59 0.505 12.83 0.150 3.81 0.43 10.9 3 6 2 5 1 4 TERMINAL FUNCTION BY TERMINAL NUMBER 0.100 2.54 0.300 7.62 RECOMMENDED PC BOARD LAYOUT SCALE 4:1 0.100 2.54 PART NUMBER CIRCUIT 982A01RX 982A02RX 982A03RX 982A04RX 982A05RX 982A06RX 1-A 1-B 1-C 2-A 2-B 2-C FIRST POLE SECOND POLE N.O. N.C. COMMON N.O. N.C. COMMON 3 3 3 3 1 1 1 1 2 2 2 2 2 2 6 6 4 4 5* 5* 5* 5 5 5 * PIN IS USED AS A SUPPORT PIN FOR MOUNTING AND HAS NO ELECTRICAL CONNECTION. 0.16 4.1 NOTES: 1. MATERIALS: HOUSING - THERMOPLASTIC, BLACK PLUNGER - THERMOPLASTIC, WHITE SPRING - TINNED MUSIC WIRE CONTACTORS - SPECIAL COPPER ALLOY CONTACT SURFACES - GOLD PLATED TERMINALS - COPPER ALLOY, TIN PLATED CUSTOMER DRAWING THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. UNLESS OTHERWISE SPECIFIED 2. ACTUATION FORCE: MOMENTARY SWITCHES 12-15 oz. 1. ALL DIMENSIONS IN INCHES [mm] 3. PLUNGER TRAVEL: 0.14 4. CONTACT RESISTANCE 0.010 OHMS MAXIMUM WHEN SWITCH IS IN CLOSED POSITION. 5. ALL DIMENSIONS ARE FOR REFERENCE ONLY. 6. THESE PRODUCTS ARE RoHS COMPLIANT. 0.56 14.1 - TWO PLACE DECIMALS 0.02 [0.5] - THREE PLACE DECIMALS 0.005 [0.13] SIZE WIDTH FINISH SPEC No. FIRST USED ON 28440 11-23-21 PC TJK B 25464 09-29-06 TJK TJK DATE DRAWN A 26090 07-22-06 TJK TJK 02-25-10 ECO NUMBER DATE REVISIONS BY APVD DO NOT SCALE DRAWING SolidWorks CAD File NAME B LBS/M TEMPER MATERIAL C REV MULT BY SPEC No. SCALE CHKD TJK TJK 02-25-10 4:1 APVD TJK 02-25-10 MOMENTARY IBS SWITCH SHORT TERMINALS, RoHS SHEET PART No. 1 OF 982A0_RX SERIES 1 REV C
