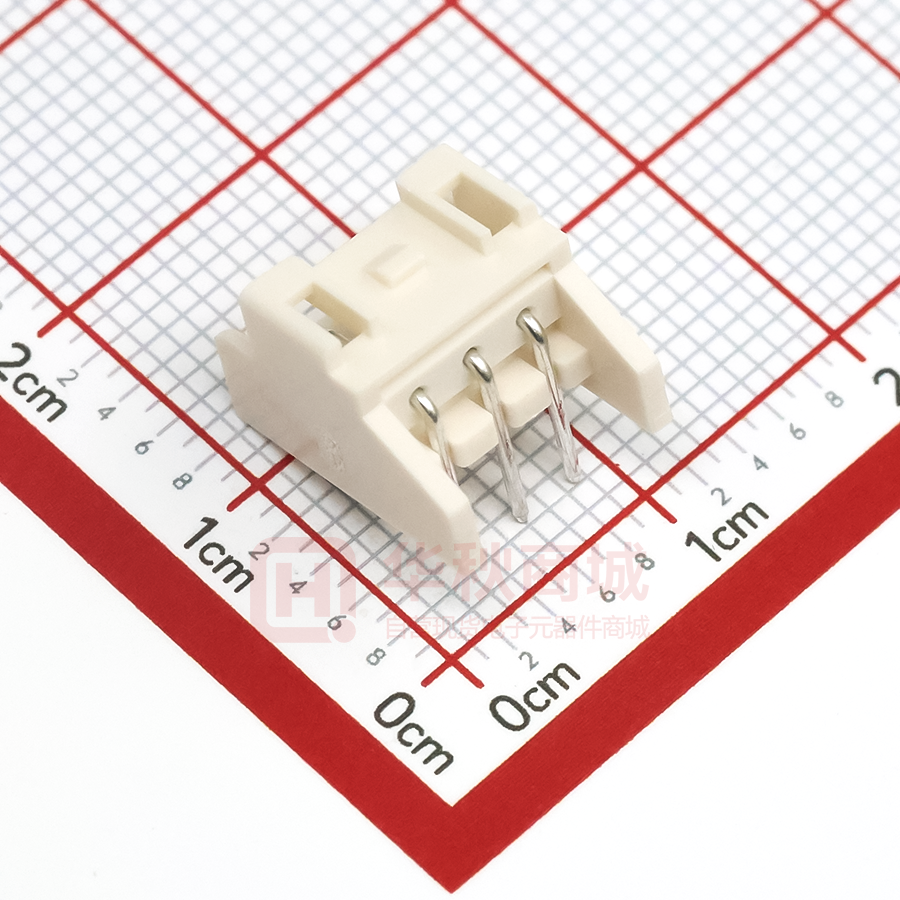

S03B-XASS-1N-BN(LF)(SN)

Emboss Tape XA CONNECTOR Radial Tape 2.5mm pitch/Disconnectable Crimp style connectors Specifications ––––––––––––––––––– • Current rating: 3 A AC DC (AWG #22, #20) • Voltage rating: 250 V AC DC • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 1,000 VAC/minute • Applicable wire: AWG #28 to #20 • Applicable PC board thickness: 1.6 mm * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. • Secure locking device • Solder crack preventive material • Low insertion force • Insertion guide mechanism • Applicable to automatic board mounting machine • Polarizing boss Standards––––––––––––––––––––––– 0 Recognized E 60389 1 Certified LR 20812 2 R9851220 〈Through-hole type〉 Side entry type Top entry type with a boss D ±0.05 2.8 ±0.05 （6.9） 2.5 φ0.9 ±0.05 ＋0.1  0 φ1.2 ＋0.1  0 （15.1） （11.3） 2 ± 0.05 6.5 ± 0.05 （8.1） 1.6 ±0.05 φ0.9 ＋0.1  0 2.5 min 2.7min without a boss 2.7 9.2 2.5 ±0.05 1.6 ±0.05 2.5 ±0.05 〈SMT type〉 φ0.9 ＋0.1  0 Dimension D: Refer to the Model No. chart of header side entry type. Top entry type A±0.05 2.5±0.03 （1.4） （11.9） 4.65 4.25 3.3±0.1 0.5±0.03 6.2±0.1 （1） ±0.1 3.3±0.1 2.3±0.05 （8） ±0.1 1.2±0.1 6.2±0.1 0.5±0.03 1.3±0.1 Note: 1. The above figure is the figure viewed from the connector mounting side . 2. Tolerances are non-cumulative: ±0.05mm for all centers. 3. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details. 1 XA CONNECTOR Contact Applicable wire 1.9 Model No. SXA-001T-P0.6 SXA-01T-P0.6 SXA-001T-P0.6L AWG# Insulation O.D. (mm) 0.08∼0.33 28∼22 0.8∼1.9 8,000 0.22∼0.5 24∼20 1.5∼1.9 8,000 0.13∼0.33 26∼22 1.3∼1.7 8,000 6.5 3.1 Q'ty / reel mm2 Material and Finish 1.3 1.6 Phosphor bronze, tin-plated (reflow treatment) 2.3 RoHS compliance Note :1. SXA-001T-P0.6L is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration. The crimp height is different from the standard contact. Note :2. Contact JST for gold-plated products. Contact Crimping machine Crimp applicator MKS-L SXA-001T-P0.6 AP-K2N SXA-001T-P0.6L Applicator Dies MK/SXA/M-001-06 APLMK SXA/M001-06 *MKS-SC SC/SXA/M-001-06 APLSC SXA/M001-06 MKS-L MK/SXA-001-06L APLMK SXA001-06L *MKS-SC SC/SXA-001-06L APLSC SXA001-06L Crimping machine Crimp applicator Contact Crimp applicator with dies SXA-01T-P0.6 AP-K2N MKS-L Applicator Dies Crimp applicator with dies MK/SXA/M-01-06 APLMK SXA/M01-06 *MKS-SC SC/SXA/M-01-06 APLSC SXA/M01-06 Note: *Strip-crimp applicator Housing Model No. Standard type Circuits 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 20 B 2.5 2.4 9.5 6.9 A Circuit No.1 5.8 Standard type XAP-02V-1 XAP-03V-1 XAP-04V-1 XAP-05V-1 XAP-06V-1 XAP-07V-1 XAP-08V-1 XAP-09V-1 XAP-10V-1 XAP-11V-1 XAP-12V-1 XAP-13V-1 XAP-14V-1 XAP-15V-1 ― XAP-20V-1 Dimensions (mm) Retainer mountable type XARP-02V XARP-03V XARP-04V XARP-05V XARP-06V XARP-07V XARP-08V XARP-09V XARP-10V XARP-11V XARP-12V XARP-13V XARP-14V XARP-15V XARP-18V ― Retainer mountable type A B 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 22.5 25.0 27.5 30.0 32.5 35.0 42.5 47.5 7.3 9.8 12.3 14.8 17.3 19.8 22.3 24.8 27.3 29.8 32.3 34.8 37.3 39.8 47.3 52.3 Q'ty / bag Standard Retainer type mountable type 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 500 500 ― 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 500 500 ― Material PA 66, UL94V-0, natural (white) B 2.5 2.4 7.4 0.6 RoHS compliance As the color identification, the following alphabet shall be put in the underlined part. For availability, delivery and minimum order quantity, contact JST. 10.5 A Circuit No.1 ex. 5.8 XAP-02V-1-oo(blank)…natural (white) K…black R…red E…blue Y…yellow L…lemon yellow M…green O…orange N…brown H…gray P…purple LE…light blue PK…pink FY…vivid yellow Z…ivory ex. 2 XARP-02V-oo (blank)…natural (white) K…black R…red E…blue L…lemon yellow XA CONNECTOR Retainer Model No. XMS-02V XMS-03V XMS-04V XMS-05V XMS-06V XMS-07V XMS-08V XMS-09V XMS-10V XMS-11V XMS-12V XMS-13V XMS-14V XMS-15V Circuits 2 3 4 A 5 2.5 6 7 8 9 0.95 2.5 10 7.8 11 12 13 Material 14 Glass-filled PA 66, UL94V-0, natural (ivory) 15 RoHS compliance Q’ty / bag A 2.5 1,000 5.0 1,000 7.5 1,000 10.0 1,000 12.5 1,000 15.0 1,000 17.5 1,000 20.0 1,000 22.5 1,000 25.0 1,000 27.5 1,000 30.0 1,000 32.5 1,000 35.0 1,000 Through-hole type shrouded header Top entry type without a boss Circuits B 6.4 2 3 Circuit No.1 4 5 7 6.5 8.8 6 8 3.4 9 10 11 2.5 φ0.6 3.2 12 13 A 14 15 20 Top entry type with a boss Without a boss B02B-XASK-1 B03B-XASK-1 B04B-XASK-1 B05B-XASK-1 B06B-XASK-1 B07B-XASK-1 B08B-XASK-1 B09B-XASK-1 B10B-XASK-1 B11B-XASK-1 B12B-XASK-1 B13B-XASK-1 B14B-XASK-1 B15B-XASK-1 B20B-XASK-1 With a boss B02B-XASK-1-A B03B-XASK-1-A B04B-XASK-1-A B05B-XASK-1-A B06B-XASK-1-A B07B-XASK-1-A B08B-XASK-1-A B09B-XASK-1-A B10B-XASK-1-A B11B-XASK-1-A B12B-XASK-1-A B13B-XASK-1-A B14B-XASK-1-A B15B-XASK-1-A B20B-XASK-1-A A Q'ty / box B 2.5 7.5 1,000 5.0 10.0 400 7.5 12.5 400 10.0 15.0 400 12.5 17.5 400 15.0 20.0 250 17.5 22.5 250 20.0 25.0 250 22.5 27.5 250 25.0 30.0 200 27.5 32.5 200 30.0 35.0 100 32.5 37.5 100 35.0 40.0 100 47.5 52.5 100 Material and Finish B Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA 66, UL94V-0, natural (ivory) 6.4 RoHS compliance This product displays (LF)(SN) on a label. Note: Contact JST for gold-plated products. 6.5 Circuits 2 1.5 8.8 Circuit No.1 3.4 3 4 5 2.5 Dimensions (mm) Model No. Top entry type φ0.6 φ1 A 1.6 6 1.6 3.2 7 8 9 Side entry type with a hook 10 11 12 B 12.6 13 14 Circuit No.1 Model No. Side entry type with a hook S02B-XASS-1 S03B-XASK-1 S04B-XASK-1 S05B-XASK-1 S06B-XASK-1 S07B-XASK-1 S08B-XASK-1 S09B-XASK-1 S10B-XASK-1 S11B-XASK-1 S12B-XASK-1 S13B-XASK-1 S14B-XASK-1 A Dimensions (mm) B D Q'ty / box 2.5 7.5 1.25 250 5.0 10.0 2.50 250 7.5 12.5 3.75 200 10.0 15.0 5.00 200 12.5 17.5 6.25 200 15.0 20.0 7.50 200 17.5 22.5 8.75 100 20.0 25.0 10.00 100 22.5 27.5 11.25 100 25.0 30.0 12.50 100 27.5 32.5 13.75 100 30.0 35.0 15.00 100 32.5 37.5 16.25 100 Material and Finish 3.5 7.6 3.2 H JST Circuit No.1 Mark Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA 66, UL94V-0, natural (ivory) 1.8 φ0.6 2.5 A 2.7 9.2 RoHS compliance This product displays (LF)(SN) on a label. Note: 1. Dimension D…See PC board layout. 2. Contact JST for gold-plated products. As the color identification, the following alphabet shall be put in the underlined part. For availability, delivery and minimum order quantity, contact JST. ex. S02B-XASK-1S…natural (ivory) K…black R…red E…blue M…green Y…yellow 3 XA CONNECTOR Through-hole type shrouded header N type Circuits Top entry type without a boss 2 3 4 B 6.4 Circuit No.1 5 6 7 9 6.5 8.8 8 10 3.4 11 12 13 2.5 φ0.6 3.2 14 15 A 18 Model No. Top entry type Without a boss With a boss B02B-XASK-1N-A B02B-XASK-1N B03B-XASK-1N-A B03B-XASK-1N B04B-XASK-1N-A B04B-XASK-1N B05B-XASK-1N-A B05B-XASK-1N B06B-XASK-1N-A B06B-XASK-1N B07B-XASK-1N-A B07B-XASK-1N B08B-XASK-1N-A B08B-XASK-1N B09B-XASK-1N-A B09B-XASK-1N B10B-XASK-1N-A B10B-XASK-1N B11B-XASK-1N-A B11B-XASK-1N B12B-XASK-1N-A B12B-XASK-1N B13B-XASK-1N-A B13B-XASK-1N B14B-XASK-1N-A B14B-XASK-1N B15B-XASK-1N-A B15B-XASK-1N ― B18B-XASK-1N Dimensions (mm) A Q'ty / box B 2.5 7.5 1,000 5.0 10.0 400 7.5 12.5 400 10.0 15.0 400 12.5 17.5 400 15.0 20.0 250 17.5 22.5 250 20.0 25.0 250 22.5 27.5 250 25.0 30.0 200 27.5 32.5 200 30.0 35.0 100 32.5 37.5 100 35.0 40.0 100 42.5 47.5 100 Material and Finish Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA 66, UL94V-0, natural (white) Top entry type with a boss RoHS compliance This product displays (LF)(SN) on a label. B 6.4 Circuit No.1 As the color identification, the following alphabet shall be put in the underlined part. For availability, delivery and minimum order quantity, contact JST. 6.5 B02B-XASK-1N-AS…natural (white) K…black R…red E…blue Y…yellow L…lemon yellow M…green O…orange N…brown H…gray P…purple LE…light blue PK…pink FY…vivid yellow 3.4 1.5 8.8 ex. 2.5 φ0.6 φ1 A 1.6 1.6 3.2 Circuits 2 3 4 Side entry type without a hook 5 6 7 12.6 B Circuit No.1 8 9 10 11 7.6 12 H JST 13 3.2 14 Circuit No.1 Mark 4 φ0.6 2.5 A Model No. Side entry type without a hook S02B-XASS-1N-BN S03B-XASS-1N-BN S04B-XASS-1N-BN S05B-XASS-1N-BN S06B-XASS-1N-BN S07B-XASS-1N-BN S08B-XASS-1N-BN S09B-XASS-1N-BN S10B-XASS-1N-BN S11B-XASS-1N-BN S12B-XASS-1N-BN S13B-XASS-1N-BN S14B-XASS-1N-BN Dimensions (mm) A B Q'ty / box 02.5 7.5 250 05.0 10.0 250 07.5 12.5 200 10.0 15.0 200 12.5 17.5 200 15.0 20.0 200 17.5 22.5 100 20.0 25.0 100 22.5 27.5 100 25.0 30.0 100 27.5 32.5 100 30.0 35.0 100 32.5 37.5 100 Material and Finish 9.2 Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA 66, UL94V-0, natural (white) RoHS compliance This product displays (LF)(SN) on a label. Note: 1. As for side entry type, we recommend to use a product with a boss (hook) because stress is applied directly to fillet part when handling the wire. When using the side entry type product without a boss (hook), please handle the wire with care. XA CONNECTOR SMT type shrouded header Circuits 2 B A 1.4 8 1 3 Circuit No.1 4 5 7.1 9.4 6 7 8 9 12 13 15 A B Q'ty / reel 2.5 10.0 500 5.0 12.5 500 7.5 15.0 500 10.0 17.5 500 12.5 20.0 500 15.0 22.5 500 17.5 25.0 500 20.0 27.5 500 27.5 35.0 500 30.0 37.5 500 35.0 42.5 500 Material and Finish B 1.4 A Dimensions (mm) Model No. Top entry type BM02B-XASS-TF BM03B-XASS-TF BM04B-XASS-TF BM05B-XASS-TF BM06B-XASS-TF BM07B-XASS-TF BM08B-XASS-TF BM09B-XASS-TF BM12B-XASS-TF BM13B-XASS-TF BM15B-XASS-TF 8 Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: PA, UL94V-0, natural Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment) 1 Circuit No.1 7.1 9.4 RoHS compliance This product displays (LF)(SN) on a label. As the color identification, the following alphabet shall be put in the underlined part. For availability, delivery and minimum order quantity, contact JST. ex. BM02B-XASS-TFS…natural K…black R…red E…blue M…green D…orange L…lemon yellow Through-hole type shrouded header on radial-tape Top entry type without a boss Circuits 2 B A 3 Circuit No.1 4 6.4 5 2.5 6 6.5 8.8 7 8 Model No. Top entry type without a boss Top entry type with a boss B02B-XASS-1-T − B03B-XASS-1-T B03B-XASS-1-A-T B04B-XASS-1-T B04B-XASS-1-A-T B05B-XASS-1-T B05B-XASS-1-A-T B06B-XASS-1-T B06B-XASS-1-A-T B07B-XASS-1-T B07B-XASS-1-A-T B08B-XASS-1-T B08B-XASS-1-A-T Dimensions (mm) Q'ty / box A B 2.5 7.5 1,000 5.0 10.0 1,000 7.5 12.5 500 10.0 15.0 500 12.5 17.5 500 15.0 20.0 500 17.5 22.5 500 2.8 Material and Finish φ  0.6 Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA 66, UL94V-0, natural (ivory) 3.2 RoHS compliance This product displays (LF)(SN) on a label. As the color identification, the following alphabet shall be put in the underlined part. For availability, delivery and minimum order quantity, contact JST. ex. Top entry type with a boss B03B-XASS-1-A-TS…natural (ivory) R…red E…blue M…green Taping specifications B A 6.4 Circuit No.1 6.4 6 3.2 18 1.6 2.8 1.6 φ  0.6 20 6.5 8.8 1.5 2.5 12.7 φ4 Note: Conforms to JIC C 0806 of "Tape packaging of components with unidirectional leads on continuous tapes". 5 XA CONNECTOR Packaging specifications Package type Distance between folds Box size Distance between the end of the tape and the first connector’s center line (either end) D TERMIN H ALS & CONN Quantity ECTORS W Distance between the end of the tape and the first connector's center line (either end) 6 316(Ｗ)×45(Ｄ)×330(Ｈ)mm 19.05mm 1,000 pcs. / box 500 pcs. / box Note: Products of different packaging specifications are also available. Contact JST for details. R Tail tape 2, 3 circuits 4∼8 circuits Flat pack (zigzag folded) 24 indexing holes per fold (304.8mm) Leader tape
