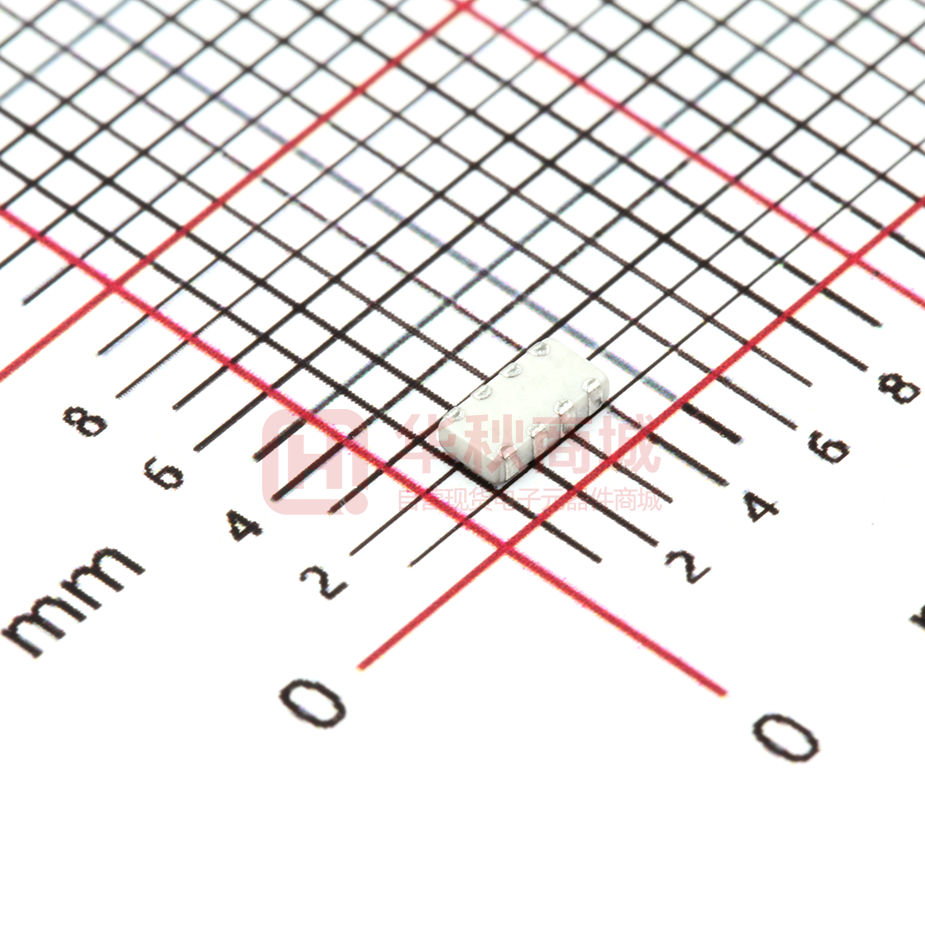

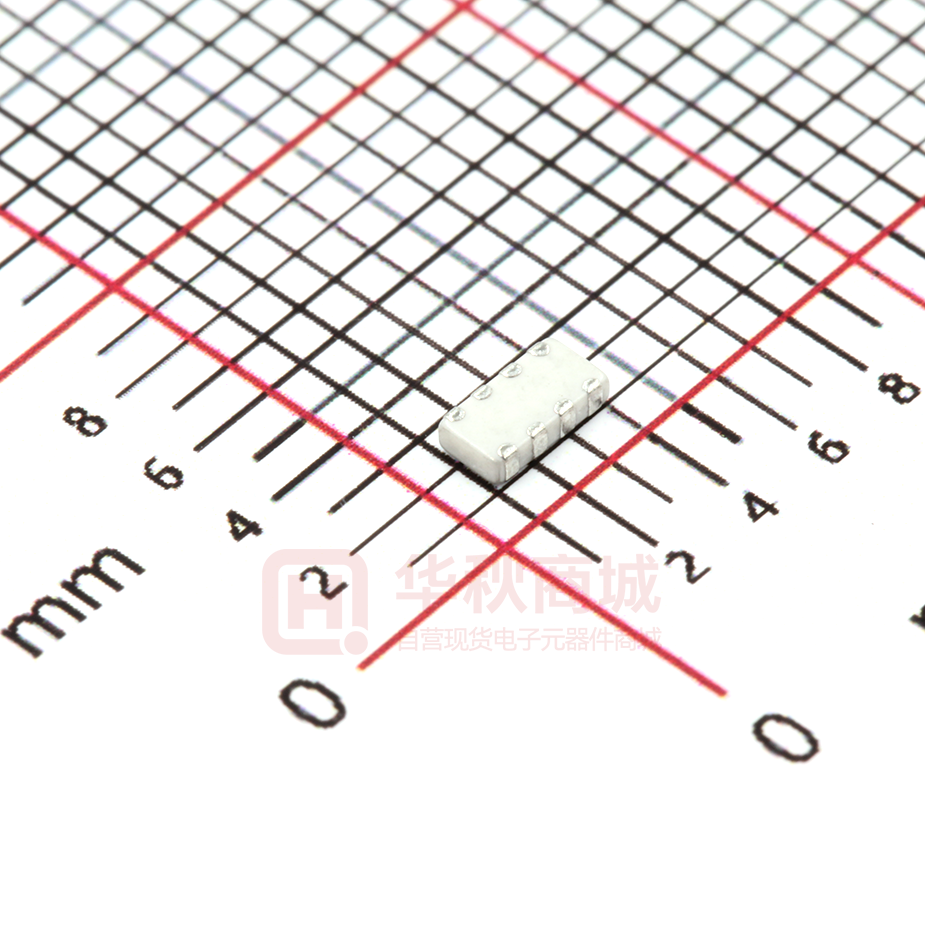

DATA SHEET
SURFACE-MOUNT CERAMIC
MULTILAYER CAPACITORS
C-Array
NP0/X7R/Y5V
16 V TO 50 V
sizes 0508 (4 x 0402) / 0612 (4 x 0603)
Product Specification – November 10, 2015 V. 4
RoHS compliant & Halogen Free
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
SCOPE
ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP
This specification describes
NP0/X7R/Y5V 4-capacitor Array
with lead-free terminations.
CTC & 12NC
2
17
All part numbers are identified by the series, size, tolerance, TC material,
packing style, voltage, process code, termination and capacitance value.
Please note that 12 digits ordering code will expire at the end of 2010.
APPLICATIONS
Professional electronics
High density consumer
electronics
YAGEO BRAND ordering code
GLOBAL PART NUMBER (PREFERRED )
CA
XXXX X X XXX X
(1)
FEATURES
Supplied in tape on reel
Nickel-barrier end termination
0508 (4x0402) / 0612 (4x0603)
capacitors (of the same
capacitance value) per array
Less than 50% board space of
an equivalent discrete
component
High volumetric efficiency
Increased throughout, by time
saved in mounting
RoHS compliant
Halogen Free compliant
(2) (3) (4)
(5)
B
X XXX
(6)
(7)
(1) SIZE – INCH BASED (METRIC)
0508 (1220)
0612 (1632)
(2) TOLERANCE
J = ± 5%
K = ± 10%
M = ± 20%
Z = -20% to +80%
(3) PACKING STYLE
R = Paper/PE taping reel; Reel 7 inch
P = Paper/PE taping reel; Reel 13 inch
(4) TC MATERIAL
NPO
X5R
X7R
Y5V
(5) RATED VOLTAGE
7 = 16 V
8 = 25 V
9 = 50 V
0 =100V
(6) PROCESS
N = NP0
B = class 2 material
(7) CAPACITANCE VALUE
2 significant digits+number of zeros
The 3rd digit signifies the multiplying factor, and letter R is decimal point
Example: 121 = 12 x 101 = 120 pF
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
3
17
CONSTRUCTION
The capacitor consists of a rectangular
block of ceramic dielectric in which
a number of interleaved metal
electrodes are contained. This
structure gives rise to a high
capacitance per unit volume.
The inner electrodes are connected
to the two end terminations and
finally covered with a layer of
plated tin (NiSn).
Fig. 1 Simplified outline
The terminations are lead-free.
An outline of the structure is
shown in Fig.1.
DIMENSIONS
OUTLINES
Table 1
TYPE
0508
(4 X 0402)
0612
(4 X 0603)
L (mm)
2.0 ± 0.15
3.2 ± 0.15
W (mm)
1.25 ± 0.15
1.60 ± 0.15
Tmin. (mm)
0.50
0.70
Tmax. (mm)
0.70
0.90
A (mm)
0.28 ± 0.10
0.4 ± 0.10
B (mm)
0.2 ± 0.10
0.3 ± 0.20
P (mm)
0.5 ± 0.10
0.8 ± 0.10
For dimensions see Table 1
Fig. 2 Surface mounted multilayer ceramic capacitor dimension
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
4
17
CAPACITANCE RANGE & THICKNESS FOR 4C-ARRAY
Table 2 Temperature characteristic material from NP0
CAPACITANCE
0508 (4 x 0402)
0612 (4 x 0603)
50 V
100V
50 V
100V
10 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
15 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
18 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
22 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
33 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
39 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
47 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
56 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
68 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
82 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
100 pF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
120 pF
0.6± 0.1
0.8± 0.1
0.8± 0.1
150 pF
0.6± 0.1
0.8± 0.1
0.8± 0.1
180 pF
0.6± 0.1
0.8± 0.1
0.8± 0.1
220 pF
0.6± 0.1
0.8± 0.1
0.8± 0.1
270 pF
0.8± 0.1
0.8± 0.1
330 pF
0.8± 0.1
0.8± 0.1
390 pF
0.8± 0.1
0.8± 0.1
470 pF
0.8± 0.1
0.8± 0.1
560 pF
680 pF
820 pF
1.0 nF
NOTE
Values in shaded cells indicate thickness class in mm
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
5
17
CAPACITANCE RANGE & THICKNESS FOR 4C-ARRAY
Table 3 Temperature characteristic material from X7R
CAPACITANCE
0508 (4 x 0402)
0612 (4 x 0603)
16 V
25 V
50 V
16 V
25 V
50 V
1.0 nF
0.6± 0.1
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
1.2 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
1.5 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
1.8 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
2.2 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
2.7 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
3.3 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
3.9 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
4.7 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
5.6 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
6.8 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
8.2 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
10 nF
0.6± 0.1
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
0.85± 0.1
12 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
0.85± 0.1
15 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
0.85± 0.1
18 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
0.85± 0.1
22 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
0.85± 0.1
27 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
33 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
47 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
56 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
68 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
82 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
100 nF
0.6± 0.1
0.8± 0.1
0.8± 0.1
0.8± 0.1
220 nF
0.8± 0.1
470 nF
0.8± 0.1
100V
NOTE
Values in shaded cells indicate thickness class in mm
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
6
17
CAPACITANCE RANGE & THICKNESS FOR 4C-ARRAY
Table 4 Temperature characteristic material from Y5V
0612 (4 x 0603)
CAPACITANCE
25 V
10 nF
22 nF
0.6± 0.1
47 nF
100 nF
NOTE
Values in shaded cells indicate thickness class in mm
THICKNESS CLASSES AND PACKING QUANTITY
Table 5
THICKNESS
TAPE WIDTH QUANTITY
Ø 180 MM / 7 INCH
Ø 180 MM / 13 INCH
CLASSIFICATION
PER REEL
Paper
Paper
0508
0.6 ± 0.1 mm
8 mm
4,000
20,000
0612
0.8 ± 0.1 mm
8 mm
4,000
15,000
SIZE
CODE
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
7
17
16 V to 50 V
ELECTRICAL CHARACTERISTICS
4C-ARRAY DIELECTRIC CAPACITORS; NISN TERMINATIONS
Unless otherwise stated all electrical values apply at an ambi ent temperature of 20± 1 °C, an atmospheric
pressure of 86 to 106 kPa, and a relative humidity of 63 to 67%.
Table 6
VALUE
DESCRIPTION
Capacitance range
10 pF to 100 nF
Rated voltage
NP0
50 V
X7R
16 V to 50 V
Y5V
0612: 25 V
NP0
± 5%, ± 10%
X7R
± 10%, ± 20%
Y5V
–20% to +80%
NP0
≤ 0.1%
Capacitance tolerance
Dissipation factor (D.F.)
X7R
Y5V
Insulation resistance after 1 minute at Ur (DC)
16 V ≤ 3.5%, 25V ≤ 2.5%, 50V ≤ 2.5%
0508/12nF~100nF/16V, Df ≤5%
0508 ≤ 9%, 0612 ≤ 7%
Rins ≥ 10 GΩ or Rins × Cr ≥ 500 seconds whichever is less
Maximum capacitance change as a function of temperature
(temperature characteristic/coefficient):
NP0
± 30 ppm/°C
X7R
± 15%
Y5V
+22% to –82%
NP0
–55 °C to +125 °C
X7R
–55 °C to +125 °C
Y5V
–30 °C to +85 °C
Operating temperature range:
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
8
17
NP0 0508/0612 50 V
Sample limits (broken lines)
Requirement levels (dotted lines)
Fig. 3
Typical temperature coefficient as a function of
temperature
Fig. 5
Typical capacitance change with respect to the
capacitance at 1 V as a function of DC voltage
Fig. 4
Typical tan δ as a function of temperature
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
9
17
X7R 0508 16 V
Fig. 6
Typical capacitance change with respect to the
capacitance at 1 V as a function of DC voltage
at 20 °C
Fig. 8
Typical capacitance change as a function of
temperature
Fig. 7
Typical tan δ as a function of temperature
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
10
17
X7R 0612 16 V to 50 V
Curve 1 = 16 V product
Curve 2 = 25 V product
Curve 3 = 50 V product
Fig. 9
Typical capacitance change with respect to the
capacitance at 1 V as a function of DC voltage
at 25 °C
Curve 1 = 16 V product
Curve 2 = 25 V product
Curve 3 = 50 V product
Fig. 10 Typical tan δ as a function of temperature
Fig. 11 Typical capacitance change as a function of
temperature
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
11
17
Y5V 0612 25 V
Fig. 12 Typical capacitance change with respect to the
capacitance at 1 V as a function of DC voltage
at 25 °C
Fig. 13 Typical tan δ as a function of temperature
Fig. 14 Typical capacitance change as a function of
temperature
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
12
17
TESTS AND REQUIREMENTS
Table 7 Test procedures and requirements
TEST
TEST METHOD
PROCEDURE
REQUIREMENTS
Mounting
IEC 60384- 4.3
21/22
The capacitors may be mounted on printed-circuit boards or
ceramic substrates
No visible damage
Visual
Inspection and
Dimension
Check
4.4
Any applicable method using × 10 magnification
In accordance with specification
Capacitance
4.5.1
Class 1:
f = 1 MHz for C ≤ 1 nF, measuring at voltage 1 Vrms at 20 °C
Within specified tolerance
f = 1 KHz for C > 1 nF, measuring at voltage 1 Vrms at 20 °C
Class 2:
f = 1 KHz for C ≤ 10 µF, measuring at voltage 1 Vrms at 20 °C
f = 120 Hz for C >10 µF, measuring at voltage 0.5 Vrms at 20 °C
Dissipation
Factor (D.F.)
4.5.2
Class 1:
f = 1 MHz for C ≤ 1 nF , measuring at voltage 1 Vrms at 20 °C
In accordance with specification
f = 1 KHz for C > 1 nF, measuring at voltage 1 Vrms at 20 °C
Class 2:
f = 1 KHz for C ≤ 10 µF, measuring at voltage 1 Vrms at 20 °C
f = 120 Hz for C > 10 µF, measuring at voltage 0.5 Vrms at 20 °C
Insulation
Resistance
4.5.3
At Ur (DC) for 1 minute
In accordance with specification
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
TEST
Temperature
Coefficient
TEST METHOD
4.6
4C-Array
NP0/X7R/Y5V
16 V to 50 V
PROCEDURE
REQUIREMENTS
Capacitance shall be measured by the steps shown in the following
table.
Class1: Δ C/C: ± 30ppm
The capacitance change should be measured after 5 min at each
specified temperature stage.
Y5V: Δ C/C: 22~-82%
Step
Temperature(℃)
a
25± 2
b
Lower temperature± 3℃
c
25± 2
d
Upper Temperature± 2℃
e
25± 2
13
17
Class2: X7R: Δ C/C: ± 15%
(1) Class I
Temperature Coefficient shall be calculated from the formula as
below
C2 - C1
106 [ppm/℃]
Temp, Coefficient =
C1 xΔT
C1: Capacitance at step c
C2: Capacitance at 125℃
∆T: 100℃(=125℃-25℃)
(2) Class II
Capacitance Change shall be calculated from the formula as below
∆C =
C2 - C1
x 100%
C1
C1: Capacitance at step c
C2: Capacitance at step b or d
Adhesion
4.7
A force applied for 10 seconds to the line joining the terminations
and in a plane parallel to the substrate
Force
size ≥ 0603: 5N
size = 0402: 2.5N
size = 0201: 1N
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
14
17
TEST
TEST METHOD
PROCEDURE
REQUIREMENTS
Bond
Strength of
Plating on
End Face
IEC 6038421/22
Mounting in accordance with IEC 60384-22
paragraph 4.3
No visible damage
Conditions: bending 1 mm at a rate of 1 mm/s,
radius jig 5 mm
Δ C/C Class 1:
NP0: within ± 1% or 0.5 pF, whichever is greater
4.8
Class2:
X5R/X7R/Y5V: ± 10%
Resistance to
Soldering
Heat
4.9
Precondition: 150 +0/–10 °C for 1 hour, then
keep for 24 ± 1 hours at room temperature
Preheating: for size ≤ 1206: 120 °C to 150 °C for
1 minute
Preheating: for size >1206: 100 °C to 120 °C for
1 minute and 170 °C to 200 °C for 1 minute
Solder bath temperature: 260 ± 5 °C
Dipping time: 10 ± 0.5 seconds
Recovery time: 24 ± 2 hours
Dissolution of the end face plating shall not
exceed 25% of the length of the edge
concerned
Δ C/C Class 1:
NP0: within ± 0.5% or 0.5 pF, whichever is
greater
Class2:
X5R/X7R: ± 10% Y5V: ± 20%
D.F. within initial specified value
Rins within initial specified value
Solderability
4.10
Preheated the temperature of 80 °C to 140 °C
and maintained for 30 seconds to 60 seconds.
The solder should cover over 95% of the critical
area of each termination
Test conditions for lead containing solder alloy
Temperature: 235 ± 5 °C
Dipping time: 2 ± 0.2 seconds
Depth of immersion: 10 mm
Alloy Composition: 60/40 Sn/Pb
Number of immersions: 1
Test conditions for leadfree containing solder alloy
Temperature: 245 ± 5 °C
Dipping time: 3 ± 0.3 seconds
Depth of immersion: 10 mm
Alloy Composition: SAC305
Number of immersions: 1
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
TEST
TEST METHOD
PROCEDURE
REQUIREMENTS
Rapid Change
of
Temperature
IEC 6038421/22
Preconditioning;
150 +0/–10 °C for 1 hour, then keep for
24 ± 1 hours at room temperature
No visual damage
5 cycles with following detail:
30 minutes at lower category temperature
30 minutes at upper category temperature
Class2:
X5R/X7R: ± 15% Y5V: ± 20%
Recovery time 24 ± 2 hours
D.F. meet initial specified value
4.11
15
17
Δ C/C Class 1:
NP0: within ± 1% or 1 pF, whichever is greater
Rins meet initial specified value
Damp Heat
with Ur Load
4.13
1. Preconditioning, class 2 only:
150 +0/-10 °C /1 hour, then keep for
24 ± 1 hour at room temp
2. Initial measure:
Spec: refer initial spec C, D, IR
3. Damp heat test:
500 ± 12 hours at 40 ± 2 °C;
90 to 95% R.H. 1.0 Ur applied
4. Recovery:
Class 1: 6 to 24 hours
Class 2: 24 ± 2 hours
5. Final measure: C, D, IR
P.S. If the capacitance value is less than the
minimum value permitted, then after the
other measurements have been made the
capacitor shall be precondition according to
“IEC 60384 4.1” and then the requirement
shall be met.
No visual damage after recovery
∆C/C
Class 1:
NP0: within ± 2% or 1 pF, whichever is greater
Class2:
X5R/X7R: ± 15%; Y5V: ± 30%
D.F.
Class 1: NP0: ≤ 2 x specified value
Class2:
X5R/X7R: ≤ 16V: ≤ 7%
≥ 25V: ≤ 5%
Y5V: ≤ 15%
Rins
Class 1:
NP0: ≥ 2,500 MΩ or Rins x Cr ≥ 25s whichever is less
Class2:
X5R/X7R/Y5V: ≥ 500 MΩ or Rins x Cr ≥ 25s
whichever is less
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
TEST
TEST METHOD
PROCEDURE
REQUIREMENTS
Endurance
IEC 6038421/22
1. Preconditioning, class 2 only:
No visual damage
4.14
150 +0/-10 °C /1 hour, then keep for
24 ± 1 hour at room temp
2. Initial measure:
Spec: refer initial spec C, D, IR
3. Endurance test:
Temperature: NP0/X7R: 125 °C
X5R/Y5V: 85 °C
Specified stress voltage applied for 1,000 hours:
Applied 2.0 x Ur for general product.
4. Recovery time: 24 ± 2 hours
5. Final measure: C, D, IR
P.S. If the capacitance value is less than the
minimum value permitted, then after the other
measurements have been made the capacitor shall
be precondition according to “IEC 60384 4.1” and
then the requirement shall be met.
16 V to 50 V
16
17
∆C/C
Class1:
NP0: within ± 2% or 1 pF, whichever is greater
Class2:
X5R/X7R: ± 15%; Y5V: ± 30%
D.F.
Class1:
NP0: ≤ 2 x specified value
Class2:
X5R/X7R: ≤ 16V: ≤ 7%
≥ 25V: ≤ 5%
Y5V: ≤ 15%
Rins
Class1:
NP0: ≥ 4,000 MΩ or
Rins x Cr ≥ 40s whichever is less
Class2:
X5R/X7R/Y5V: ≥ 1,000 MΩ or
Rins x Cr ≥ 50s whichever is less
Voltage Proof
IEC 60384-1 4.6
Specified stress voltage applied for 1 minute
Ur ≤ 100 V: series applied 2.5 Ur
100 V < Ur ≤ 200 V series applied (1.5 Ur + 100)
200 V < Ur ≤ 500 V series applied (1.3 Ur + 100)
Ur > 500 V: 1.3 Ur
I: 7.5 mA
No breakdown or flashover
www.yageo.com
Nov. 10, 2015 V.4
Product specification
Surface-Mount Ceramic Multilayer Capacitors
4C-Array
NP0/X7R/Y5V
16 V to 50 V
17
17
REVISION HISTORY
REVISION DATE
CHANGE NOTIFICATION
DESCRIPTION
Version 4
Nov. 10, 2015
-
- Product range updated
Version 3
May 21, 2014
-
- Product range updated
Version 2
Jun. 17, 2013
-
- Product range updated
Version 1
Feb 05, 2010
-
- The statement of "Halogen Free" on the cover added
Version 0
Jun 22, 2009
-
- New datasheet for 4C-Array series with RoHS compliant
- Replace from pdf files: 0508_16V to 50V_1, 0612_16V to 50V_0,
C-Array_NP0_50V_0508_7, C-Array_NP0_50V_0612_7,
C-Array_X7R_16V_25V_50V_0612_6, C-Array_X7R_16V_0508_5,
C-Array_Y5V_25V_0508_0, C-Array_Y5V_25V_0612_5
- Define global part number
- Description of "Halogen Free compliant" added
- Test method and procedure updated
www.yageo.com
Nov. 10, 2015 V.4
工商网监
湘ICP备2023018690号
