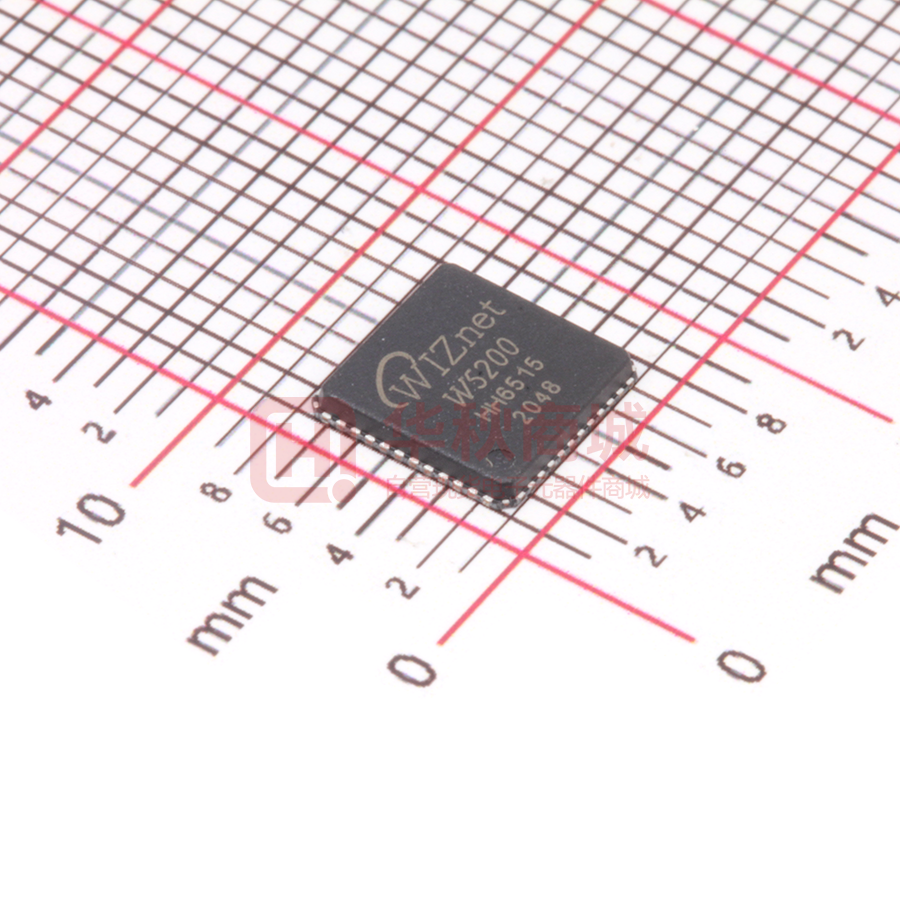

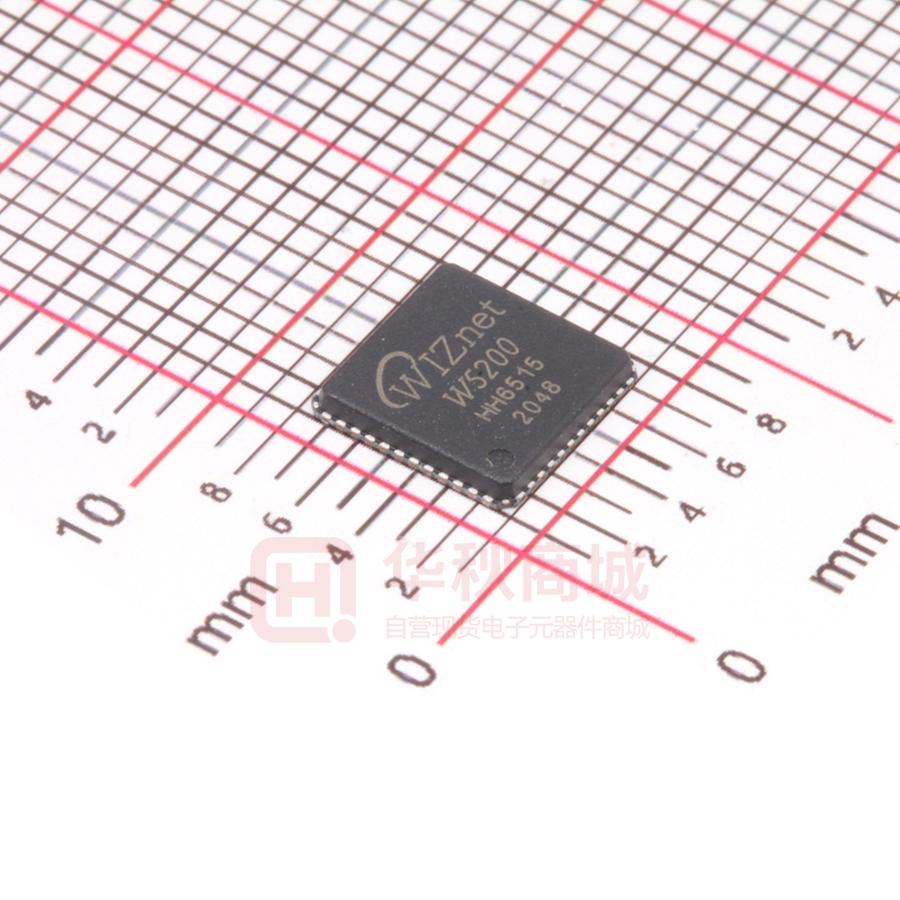

W5200

iEthernet W5200 iEthernet W5200 Datasheet Version 1.0 http://www.wiznet.co.kr © Copyright 2011WIZnet Co., Inc. All rights reserved. 1 iEthernet W5200 W5200 The W5200 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface). W5200 suits best for users who need Internet connectivity for application that uses a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC and PHY. The W5200 is composed of a fully hardwired market-proven TCP/IP stack and an integrated Ethernet MAC & PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, which has been proven in various applications for many years. W5200 uses a 32Kbytes internal buffer as its data communication memory. By using W5200, users can implement the Ethernet application they need by using a simple socket program instead of handling a complex Ethernet Controller. SPI (Serial Peripheral Interface) is provided for easy integration with the external MCU. The W5200 SPI supports a high speed SPI capable of communicating over SPI at up to 80MHz.In order to reduce power consumption of the system, W5200 provides WOL (Wake on LAN) and power down mode. To wake up during WOL, W5200 should be received magic packet, which is the Raw Ethernet packet. Features - Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet - Supports 8 independent sockets simultaneously - Very small 48 Pin QFN Package - Support Power down mode - Support Wake on LAN - Support High Speed Serial Peripheral Interface(SPI MODE 0, 3) - Internal 32Kbytes Memory for Tx/Rx Buffers - 10BaseT/100BaseTX Ethernet PHY embedded - Support Auto Negotiation (Full and half duplex, 10 and 100-based ) - Support Auto MDI/MDIX - Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode) - Not support IP Fragmentation - 3.3V operation with 5V I/O signal tolerance - Lead-Free Package - Multi-function LED outputs (Full/Half duplex, Link, Speed) © Copyright 2011WIZnet Co., Inc. All rights reserved. 2 iEthernet W5200 Target Applications The W5200 is well suited for many embedded applications, including: - Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters - Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc. - Parallel-to-Ethernet: POS / Mini Printers, Copiers - USB-to-Ethernet: Storage Devices, Network Printers - GPIO-to-Ethernet: Home Network Sensors - Security Systems: DVRs, Network Cameras, Kiosks - Factory and Building Automations - Medical Monitoring Equipments - Embedded Servers © Copyright 2011WIZnet Co., Inc. All rights reserved. 3 iEthernet W5200 Block Diagram MCU W5200 SPI Interface Tx/Rx Buffer Hardwired TCP/IP Core TCP PPPoE UDP ARP IP 802.3 Ehternet MAC Ethernet PHY Transformer RJ45 © Copyright 2011WIZnet Co., Inc. All rights reserved. 4 iEthernet W5200 Table of Contents 1 Pin Assignment ......................................................................................... 8 1.1 MCU Interface Signals ..................................................................... 8 1.2 1.2 PHY Signals ............................................................................. 9 1.3 Miscellaneous Signals ..................................................................... 10 1.4 Power Supply Signals ..................................................................... 10 1.5 Clock Signals ............................................................................... 12 1.6 LED Signals ................................................................................. 12 2 Memory Map ........................................................................................... 13 3 W5200 Registers ....................................................................................... 14 3.1 common registers ................................................................................ 14 3.1 Socket registers ........................................................................... 15 4 Register Descriptions ................................................................................. 16 4.1 Common Registers ........................................................................ 16 4.2 Socket Registers ........................................................................... 23 5 Functional Descriptions .............................................................................. 41 5.1 Initialization ............................................................................... 41 5.2 Data Communications .................................................................... 44 5.2.1 TCP .................................................................................... 44 5.2.1.1 TCP SERVER ..................................................................... 45 5.2.1.2 TCP CLIENT ..................................................................... 52 5.2.2 UDP .................................................................................... 53 5.2.2.1 Unicast and Broadcast ........................................................ 53 5.2.2.2 Multicast ........................................................................ 60 5.2.3 IPRAW ................................................................................. 63 5.2.4 MACRAW............................................................................... 65 6 Application Information ............................................................................. 71 6.1 SPI (Serial Peripheral Interface) mode ................................................. 71 6.2 Device Operations ......................................................................... 71 6.3 Process of using general SPI Master device ........................................... 72 7 Electrical Specifications ............................................................................. 77 7.1 Absolute Maximum Ratings .............................................................. 77 7.2 DC Characteristics ........................................................................ 77 7.3 POWER DISSIPATION(Vcc 3.3V Temperature 25°C) ................................... 77 7.4 AC Characteristics......................................................................... 78 7.4.1 Reset Timing ......................................................................... 78 7.4.2 SPI Timing ............................................................................ 79 7.4.3 Crystal Characteristics ............................................................. 78 © Copyright 2011WIZnet Co., Inc. All rights reserved. 5 iEthernet W5200 7.4.4 Transformer Characteristics ....................................................... 80 8 IR Reflow Temperature Profile (Lead-Free) ....................................................... 81 9 Package Descriptions ................................................................................. 82 © Copyright 2011WIZnet Co., Inc. All rights reserved. 6 iEthernet W5200 Table of Figure Figure 1 Pin Description W5200 ...................................................................... 8 Figure 2 Power Design ................................................................................ 11 Figure 3 Crystal Reference Schematic ............................................................. 12 Figure 4 INTLEVEL Timing ............................................................................ 20 Figure 5 Socket Status Transition ................................................................... 31 Figure 6 Physical Address Calculation .............................................................. 37 Figure 7 Allocation Internal TX/RX memory of Socket n-th .................................... 43 Figure 8 TCP SERVER and TCP CLIENT.............................................................. 44 Figure 9 TCP SERVER Operation Flow .............................................................. 45 Figure 10 TCP CLIENT Operation Flow ............................................................. 52 Figure 11 UDP Operation Flow ...................................................................... 53 Figure 12 The Received UDP data Format ......................................................... 55 Figure 13 IPRAW Operation Flow.................................................................... 63 Figure 14 The receive IPRAW data Format ........................................................ 64 Figure 15 MACRAW Operation Flow ................................................................. 65 Figure 16 The received MACRAW data Format .................................................. 66 Figure 17 SPI Interface ............................................................................... 71 Figure 18 W5200 SPI Frame Format ................................................................ 72 Figure 19 Address and OP/DATA Length Sequence Diagram .................................... 72 Figure 20 READ Sequence ............................................................................ 73 Figure 21 Write Sequence ............................................................................ 75 Figure 22 Reset Timing ............................................................................... 78 Figure 23 SPI Timing .................................................................................. 79 Figure 24 Transformer Type.......................................................................... 80 Figure 25 IR Reflow Temperature ................................................................... 81 Figure 26 Package Dimensions ...................................................................... 82 © Copyright 2011WIZnet Co., Inc. All rights reserved. 7 iEthernet W5200 1 Pin Assignment Figure 1 Pin Description W5200 1.1 MCU Interface Signals Symbol Type Pin No nRST I 46 Description RESET ( Active LOW ) This pin is active Low input to initialize or re-initialize W5200. RESET should be held at least 2us after low assert, and wait for at least 150ms after high de-assert in order for PLL logic to be stable. Refer to RESET timing of “7 Electrical Specification” nSCS I 41 SPI SLAVE SELECT ( Active LOW ) This pin is used to SPI Slave Select signal Pin when using SPI interface. nINT O 40 INTERRUPT (Active LOW ) This pin indicates that W5200 requires MCU attention after socket connecting, disconnecting, data receiving © Copyright 2011WIZnet Co., Inc. All rights reserved. 8 iEthernet W5200 timeout, and WOL (Wake on LAN). The interrupt is cleared by writing IR(Interrupt Register) or Sn_IR (Socket n-th Interrupt Register). All interrupts are maskable. This pin is active low. SCLK I 42 SPI CLOCK This pin is used to SPI Clock signal Pin when using SPI interface. MOSI I 43 SPI MASTER OUT SLAVE IN This pin is used to SPI MOSI signal pin when using SPI interface. MISO O 44 SPI MASTER IN SLAVE OUT This pin is used to SPI MISO signal pin. PWDN I 45 POWER DOWN ( Active HIGH ) This pin is used to power down pin. Low : Normal Mode Enable High : Power Down Mode Enable 1.2 1.2 PHY Signals Symbol Type Pin No RXIP I 20 Description RXIP/RXIN Signal Pair The differential data from the media is received on RXIN I 21 the RXIP/RXIN signal pair. TXOP O 17 TXOP/TXON Signal Pair TXON O 18 BIAS O 12 The differential data is transmitted to the media on the TXOP/TXIN signal pair. BIAS Register Connect a resistor of 28.7㏀±1% to the ground. Refer to the “Reference schematic”. ANE I 29 Auto Negotiation Mode Enable This pin selects Enable/Disable of Auto Negotiation Mode. Low :Auto Negotiation Mode Disable High : Auto Negotiation Mode Enable DUP I 30 Full Duplex Mode Enable This pin selects Enable/Disable of Full Duplex Mode. Low = Half Duplex Mode Enable High = Full Duplex Mode Enable This function activates only during reset period. © Copyright 2011WIZnet Co., Inc. All rights reserved. 9 I 31 iEthernet W5200 SPD Speed Mode This pin selects 100M/10M Speed Mode. Low = 10M Speed Mode High = 100M Speed Mode This function activates only during reset period. 1.3 Miscellaneous Signals Symbol Type Pin No Description nFDXLED/M2 I 3, W5200 MODE SELECT nSPDLED/M1 4, Normal mode : 111 nLINKLED/M0 5 Other test modes are internal test mode. This function activates only during reset period M3 I 6 W5200 I/F Enable This pin should be pull-up. RSV - 7,31,32,33,34,35, 36,37,38,39  Reserved Pin This pin should be pull-down or GND. Notes: Pull-Up/Down register = 40KΩ to 100KΩ. Typical value are 75KΩ. 1.4 Power Supply Signals Symbol Type Pin No Description VCC3V3A Power 11, 15, 23 3.3V power supply for Analog part VCC3V3 Power 27, 47 3.3V power supply for Digital part VCC1V8 Power 8, 25 1.8V power supply for Digital part GNDA Ground 13, 19, 22, 24 Analog ground GND Ground 9, 10, 26, Digital ground 28, 48 1V8O O 14 1.8V regulator output voltage 1.8V/200mA power created by internal power regulator, is used for core operation power ( VCC1V8). Be sure to connect tantalum capacitor between 1V8O and GND for output frequency compensation, and selectively connect 0.1uF capacitor for high frequency noise decoupling. Notice: 1V8O is the power for W5200 core operation. It should not be connected to the power of other devices. © Copyright 2011WIZnet Co., Inc. All rights reserved. 10 I 16 iEthernet W5200 XTALVDD Connect a capacitor of 10.1uF to the ground. Figure 2 Power Design Recommend for power design. 1. Locate decoupling capacitor as close as possible to W5200. 2. Use ground plane as wide as possible. 3. If ground plane width is adequate, having a separate analog ground plane and digital ground plane is good practice. 4. If ground plane is not wide, design analog and digital ground planes as a single ground plane, rather than separate them. © Copyright 2011WIZnet Co., Inc. All rights reserved. 11 iEthernet W5200 1.5 Clock Signals Symbol Type Pin No XI I 1 Description 25MHz crystal input/output. A 25MHz crystal and Oscillator is used to connect these pins. XO O 2 Figure 3 Crystal Reference Schematic 1.6 LED Signals Symbol Type Pin No nFDXLED/M2 O 3 Description Full Duplex/Collision LED Low: Full-duplex High: Half-duplex. nSPDLED/M1 O 4 Link speed LED Low: 100Mbps High: 10Mbps nLINKLED/M0 O 5 Link LED Low: Link (10/100M) High: Un-Link blink: TX or RX state on Link © Copyright 2011WIZnet Co., Inc. All rights reserved. 12 iEthernet W5200 2 Memory Map W5200 is composed of Common Register, Socket Register, TX Memory, and RX Memory as shown below. W5200 Memory Map © Copyright 2011WIZnet Co., Inc. All rights reserved. 13 iEthernet W5200 3 W5200 Registers 3.1 common registers Address Register Address 0x0000 Mode (MR) Register Authentication Type Gateway Address 0x001C in PPPoE 0x0001 (GAR0) 0x001D (PATR0) 0x0002 (GAR1) (PATR1) 0x0003 (GAR2) Authentication 0x0004 (GAR3) Algorithm in PPPoE Subnet mask Address 0x001E (PPPALGO) 0x0005 (SUBR0) 0x001F Chip version(VERSIONR) 0x0006 (SUBR1) 0x0020 0x0007 (SUBR2) ~ 0x0008 (SUBR3) 0x0027 Source Hardware Address Reserved PPP LCP 0x0009 (SHAR0) 0x000A (SHAR1) (PTIMER) 0x000B (SHAR2) PPP 0x000C (SHAR3) 0x000D (SHAR4) 0x000E (SHAR5) 0x002A Source IP Address ~ 0x000F (SIPR0) 0x002F 0x0010 (SIPR1) 0x0011 (SIPR2) 0x0030 Timer 0x0012 (SIPR3) 0x0031 (INTLEVEL0) 0x0013 Reserved 0x0028 0x0029 RequestTimer LCP Magic number (PMAGIC) Reserved Interrupt Low Level (INTLEVEL1) 0x0014 Reserved 0x0015 Interrupt (IR) 0x0016 Socket Interrupt 0x0032 Mask ~ (IMR) 0x0033 Retry Time 0x0034 Socket Interrupt (IR2) 0x0017 (RTR0) 0x0018 (RTR1) 0x0035 PHY Status(PSTATUS) 0x0019 Retry Count (RCR) 0x0036 Interrupt Mask (IMR2) 0x001A Reserved 0x001B © Copyright 2011WIZnet Co., Inc. All rights reserved. 14 iEthernet W5200 3.1 Socket registers Note : n is socket number ( 0, 1, 2, 3, 4, 5, 6, 7 ) Address Register 0x4n00 Socket n Mode (Sn_MR) 0x4n01 Socket n Command (Sn_CR) 0x4n02 Socket n Interrupt (Sn_IR) 0x4n03 Socket n Status (Sn_SR) Address Register Receive Memory Size 0x4n1E (Sn_RXMEM_SIZE) Transmit Memory Size 0x4n1F (Sn_TXMEM_SIZE) Socket 0 TX Free Size Socket n SourcePort 0x4n04 (SN_PORT0) 0x4n20 (Sn_TX_FSR0) 0x4n05 (SN_PORT1) 0x4n21 (Sn_TX_FSR1) Socket 0 TX Read Pointer Socket n Destination Hardware Address 0x4n22 (Sn_TX_RD0) 0x4n06 (Sn_DHAR0) 0x4n23 (Sn_TX_RD1) 0x4n07 (Sn_DHAR1) 0x4n08 (Sn_DHAR2) 0x4n24 (Sn_TX_WR0) 0x4n09 (Sn_DHAR3) 0x4n25 (Sn_TX_WR1) 0x4n0A (Sn_DHAR4) 0x4n0B (Sn_DHAR5) 0x4n26 (Sn_RX_RSR0) Socket 0 Destination IP Address 0x4n27 (Sn_RX_RSR1) Socket 0 TX Write Pointer Socket 0 RX Received Size 0x4n0C (Sn_DIPR0) 0x4n0D (Sn_DIPR1) 0x4n28 (Sn_RX_RD0) 0x4n0E (Sn_DIPR2) 0x4n29 (Sn_RX_RD1) 0x4n0F (Sn_DIPR3) Socket 0 RX Read Pointer Socket 0 RX Write Pointer Socket 0 Destination Port 0x4n2A (Sn_RX_WR0) 0x4n10 (Sn_DPORT0) 0x4n2B (Sn_RX_WR1) 0x4n11 (Sn_DPORT1) Socket 0 Maximum Segment Size Socket Interrupt Mask 0x4n2C (Sn_IMR) 0x4n12 (Sn_MSSR0) 0x4n13 (Sn_MSSR1) 0x4n2D (Sn_FRAG0) Socket 0 Protocol in IP Raw mode 0x4n2E (Sn_FRAG1) 0x4n14 (Sn_PROTO) 0x4n30 Reserved 0x4n15 Socket n IP TOS (Sn_TOS) ~ 0x4n16 Socket n IP TTL (Sn_TTL) 0x4nFF Fragment Offset in IP header 0x4n17 ~ Reserved 0x4n1D © Copyright 2011WIZnet Co., Inc. All rights reserved. 15 iEthernet W5200 4 Register Descriptions 4.1 Common Registers MR (Mode Register) [R/W] [0x0000] [0x00] This register is used for S/W reset, ping block mode and PPPoE mode. 7 6 5 RST Bit 4 3 PB PPPoE Symbol 2 1 0 Description S/W Reset 7 RST If this bit is ‘1’, internal register will be initialized. It will be automatically cleared after reset. 6 Reserved Reserved 5 Reserved Reserved Ping Block Mode 4 PB 0 : Disable Ping block 1 : Enable Ping block If the bit is set as ‘1’, there is no response to the ping request. PPPoE Mode 0 : DisablePPPoE mode 3 PPPoE 1 : EnablePPPoE mode If you use ADSL without router or etc, you should set the bit as ‘1’ to connect to ADSL Server. For more detail, refer to the application note, “How to connect ADSL”. 2 Reserved Reserved 1 Reserved Reserved 0 Reserved Reserved GAR (Gateway IP Address Register) [R/W] [0x0001 – 0x0004] [0x00] This Register sets up the default gateway address. Ex) In case of “192.168.0.1” 0x0001 0x0002 0x0003 0x0004 192 (0xC0) 168 (0xA8) 0 (0x00) 1 (0x01) SUBR (Subnet Mask Register) [R/W] [0x0005 – 0x0008] [0x00] This register sets up the subnet mask address. Ex) In case of “255.255.255.0” © Copyright 2011WIZnet Co., Inc. All rights reserved. 16 0x0006 0x0007 0x0008 255 (0xFF) 255 (0xFF) 255 (0xFF) 0 (0x00) iEthernet W5200 0x0005 SHAR (Source Hardware Address Register) [R/W] [0x0009 – 0x000E] [0x00] This register sets up the Source Hardware address. Ex) In case of “00.08.DC.01.02.03” 0x0009 0x000A 0x000B 0x000C 0x000D 0x000E 0x00 0x08 0xDC 0x01 0x02 0x03 SIPR (Source IP Address Register) [R/W] [0x000F – 0x0012] [0x00] This register sets up the Source IP address. Ex) In case of “192.168.0.2” 0x000F 0x0010 0x0011 0x0012 192 (0xC0) 168 (0xA8) 0 (0x00) 2 (0x02) IR (Interrupt Register) [R] [0x0015] [0x00] This register is accessed by the host processor to know the cause of interrupt. Any interruption can be masked in the Interrupt Mask Register (IMR). The nINT signal retain low as long as any masked signal is set, and will not go high until all masked bits in this Register have been cleared. 7 6 5 4 3 2 1 0 CONFLICT Reserved PPPoE Reserved Reserved Reserved Reserved Reserved Bit Symbol Description IP Conflict 7 CONFLICT It is set as ‘1’ when there is ARP request with same IP address as Source IP address. This bit is cleared to ‘0’ by writing ‘1’ to this bit. 6 Reserved Reserved PPPoE Connection Close 5 PPPoE In the Point-to-Point Protocol over Ethernet (PPPoE) Mode, if the PPPoE connection is closed, ‘1’ is set. This bit will be cleared to ‘0’ by writing ‘1’ to this bit. 4 Reserved Reserved 3 Reserved Reserved 2 Reserved Reserved 1 Reserved Reserved 0 Reserved Reserved © Copyright 2011WIZnet Co., Inc. All rights reserved. 17 iEthernet W5200 IMR (Interrupt Mask Register) [R/W] [0x0016] [0x00] The Interrupt Mask Register is used to mask interrupts. Each interrupt mask bit corresponds to a bit in the Interrupt Register (IR). If an interrupt mask bit is set, an interrupt will be issued whenever the corresponding bit in the IR is set. If any bit in the IMR is set as ‘0’, an interrupt will not occur though the bit in the IR is set. 7 6 5 4 3 2 1 0 IM_IR7 Reserved IM_IR5 Reserved Reserved Reserved Reserved Reserved Bit Symbol 7 IM_IR7 6 Reserved 5 IM_IR5 4 Reserved Reserved 3 Reserved Reserved 2 Reserved Reserved 1 Reserved Reserved 0 Reserved Reserved Description IP Conflict Enable Reserved PPPoE Close Enable RTR (Retry Time-value Register) [R/W] [0x0017 – 0x0018] [0x07D0] It configures the retransmission timeout-period. The standard unit of RTR is 100us. RTR is initialized with 2000(0x07D0) and has 200ms timeout-period. Ex) When timeout-period is set as 400ms, RTR = (400ms / 1ms) X 10 = 4000(0x0FA0) 0x0017 0x0018 0x0F 0xA0 Re-transmission will occur if there is no response from the remote peer to the commands of CONNECT, DISCON, CLOSE, SEND, SEND_MAC and SEND_KEEP, or the response is delayed. RCR (Retry Count Register) [R/W] [0x0019] [0x08] It configures the number of retransmission times. When retransmission occurs as many as ‘RCR+1’ times, Timeout interrupt is set (‘TIMEOUT’ bit of Sn_IR is set as ‘1’). In case of using TCP communication, the value of Sn_SR (Socket n-th-th Status Register) is changed to ‘SOCK_CLOSED’ and Sn_IR(Socket n-th Status Register) (TIMEOUT) turns into ‘1’. In case of not using TCP communication, only Sn_IR(TIMEOUT) turns into ‘1’. Ex) RCR = 0x0007 0x0019 0x07 © Copyright 2011WIZnet Co., Inc. All rights reserved. 18 iEthernet W5200 The timeout of W5200 can be configurable with RTR and RCR. W5200’s timeout has Address Resolution Protocol (ARP) and TCP retransmission timeout. At the ARP (Refer to RFC 826, http://www.ietf.org/rfc.html) retransmission timeout, W5200 automatically sends ARP-request to the peer’s IP address in order to acquire MAC address information (used for communication of IP, UDP, or TCP). As waiting for ARP-response from the peer, if there is no response during the time set in RTR, Timeout occurs and ARP-request is retransmitted. It is repeated as many as ‘RCR + 1’ times. Even after ARP-request retransmissions are repeated ‘RCR + 1’ times, if there is no ARPresponse, the final timeout occurs and Sn_IR(TIMEOUT) becomes ‘1’. The value of final timeout (ARPTO) of ARP-request is as below. ARPTO =(RTR X 0.1ms ) X ( RCR + 1 ) At the TCP packet retransmission timeout, W5200 transmits TCP packets (SYN, FIN, RST, DATA packets) and waits for the acknowledgement (ACK) during the time set in RTR and RCR. If there is no ACK from the peer, Timeout occurs and TCP packets (sent earlier) are retransmitted. The retransmissions are repeated as many as ‘RCR + 1’ times. Even after TCP packet retransmissions are repeated ‘RCR +1’ times, if there is no ACK from the peer, final timeout occurs and Sn_SR is changed to ‘SOCK_CLOSED” at the same time with Sn_IR(TIMEOUT) = ‘1’ M N=0 TCPTO = ( Σ(RTR X 2N ) + ((RCR-M) X RTRMAX) ) X 0.1ms N : Retransmission count, 0 If CLOSE is used instead of DISCON, only Sn_SR is changed to SOCK_CLOSED without disconnect-process(disconnect-request). If a RST packet is received from a peer during communication, Sn_SR is unconditionally changed to SOCK_CLOSED. 0x10 CLOSE Closes Socket n-th. Sn_SR is changed to SOCK_CLOSED. SEND transmits all the data buffered in the TX memory. For more details, please refer to Socket n-th TX Free Size Register (Sn_TX_FSR0), Socket n- 0x20 SEND th TX Write Pointer Register(Sn_TX_WR0), and Socket n-th TX Read Pointer Register(Sn_TX_RD0). Used in UDP mode only The basic operation is same as SEND. Normally SEND operation needs 0x21 SEND_MAC Destination Hardware Address which can be retrieved by the ARP (Address Resolution Protocol) process. SEND_MAC uses Socket n-th Destination Hardware Address(Sn_DHAR0) that is chosen by the user without going through the ARP process. Used in TCP mode 0x22 SEND_KEEP It checks the connection status by sending 1byte data. If the connection has no response from peers or is terminated, the Timeout interrupt will occur. RECV processes the data received by using a RX read pointer register(Sn_RX_RD). 0x40 RECV For more detail, please refer to 5.2.1.1 SERVER mode Receiving Process with Socket n-th RX Received Size Register (Sn_RX_RSR0), Socket n-th RX Write Pointer Register(Sn_RX_WR), and Socket n-th RX Read Pointer Register(Sn_RX_RD). © Copyright 2011WIZnet Co., Inc. All rights reserved. 26 iEthernet W5200 Below commands are only valid for SOCKET 0 and S0_MR(P3:P0) = S0_MR_PPPoE. For more detail refer to the “How to use ADSL”. Value Symbol Description 0x23 PCON 0x24 PDISCON 0x25 PCR In each phase, it transmits REQ message. 0x26 PCN In each phase, it transmits NAK message. 0x27 PCJ In each phase, it transmits REJECT message. PPPoE connection begins by transmitting PPPoE discovery packet Closes PPPoE connection © Copyright 2011WIZnet Co., Inc. All rights reserved. 27 iEthernet W5200 Sn_IR (Socket n-th Interrupt Register) [R] [0x4002+0x0n00] [0x00] Sn_IR register provides information such as the type of interrupt (establishment, termination, receiving data, timeout) used in Socket n-th. When an interrupt occurs and the mask bit of Sn_IMR is ‘1’, the interrupt bit of Sn_IR becomes ‘1’. In order to clear the Sn_IR bit, the host should write the bit as ‘1’. When all the bits of Sn_IR is cleared (‘0’), IR(n) is automatically cleared. 7 6 5 4 3 2 1 0 PRECV PFAIL PNEXT SEND_OK TIMEOUT RECV DISCON CON Bit Symbol Description Sn_IR(PRECV) Interrupt Mask 7 PRECV Valid only in case of 'SOCKET=0' and 'S0_MR(P3:P0)=S0_MR_PPPoE' PPP Receive Interrupts when the option which is not supported is received Sn_IR(PFAIL) Interrupt Mask 6 PFAIL Valid only in case of 'SOCKET=0' & 'S0_MR(P3:P0)=S0_MR_PPPoE' PPP Fail Interrupts when PAP Authentication is failed Sn_IR(PNEXT) Interrupt Mask 5 PNEXT Valid only in case of 'SOCKET=0' & 'S0_MR(P3:P0)=S0_MR_PPPoE' PPP Next Phase Interrupts when the phase is changed during ADSL connection process 4 SEND_OK 3 TIMEOUT 2 RECV Sn_IR(SENDOK) Interrupt Mask SEND OK Interrupts when the SEND command is completed Sn_IR(TIMEOUT) Interrupt Mask TIMEOUT Interrupts when ARPTO or TCPTO occurs Sn_IR(RECV) Interrupt Mask Receive Interrupts whenever data packet is received from a peer Sn_IR(DISCON) Interrupt Mask 1 DISCON Disconnect Interrupts when FIN of FIN/ACK packet is received from a peer 0 CON Sn_IR(CON) Interrupt Mask Connect Interrupts when a connection is established with a peer © Copyright 2011WIZnet Co., Inc. All rights reserved. 28 iEthernet W5200 Sn_SR (Socket n-th Status Register) [R] [0x4003+0x0n00] [0x00] This register provides the status of Socket n-th. SOCKET status are changed when using the Sn_CR register or during packet transmission/reception. The table below describes the different states of Socket n-th. Value Symbol 0x00 SOCK_CLOSED Description It is the status that resource of SOCKETn is released. When DISCON or CLOSE command is performed, or ARPTO, or TCPTO occurs, it is changed to SOCK_CLOSED regardless of previous value. 0x13 SOCK_INIT It is shown in case that Sn_MR is set as TCP and OPEN commands are given to Sn_CR. It is changed to SOCK_INIT when Sn_MR (P3:P0) is Sn_MR_TCP and OPEN command is performed. It is the initial step of TCP connection establishment. It is possible to perform LISTEN command at the "TCP SERVER" mode and CONNECT command at the "TCP CLIENT". It is the status that SOCKETn operates as "TCP SERVER" and waits for connect-request (SYN packet) from "TCP CLIENT". 0x14 SOCK_LISTEN Socket n-th operates in TCP Server Mode and waits for a connection-request (SYN packet) from a “TCP CLIENT”. When the LISTEN command is used, the stage changes to SOCK_LISTEN Once the connection is established, the SOCKET state changes from SOCK_LISTEN to SOCK_ESTABLISHED; however, if the connection fails, TCPTO occurs (Sn_IR(TIME_OUT) = ‘1’) and the state changes to SOCK_CLOSED. 0x17 SOCK_ESTABLISHED It is shown in case that connection is established. It is changed to SOCK_ESTABLISHED when SYN packet from “TCP CLIENT” is successfully processed at the SOCK_LISTEN, or CONNECTS command is successfully performed. At this status, DATA packet can be transferred, that is, SEND or RECV command can be performed. 0x1C SOCK_CLOSE_WAIT It is the status that disconnect-request (FIN packet) is received from the peer As TCP connection is half-closed, it is possible to transfer data packet. In order to complete the TCP disconnection, DISCON command should be performed. For SOCKETn close without disconnection-process, CLOSE command should be just performed. © Copyright 2011WIZnet Co., Inc. All rights reserved. 29 SOCK_UDP iEthernet W5200 0x22 It is the status that SOCKETn is open as UDP mode. It is changed to SOCK_UDP when Sn_MR(P3:P0) is Sn_MR_UDP and OPEN command is performed. DATA packet can be transferred without connection that is necessary to TCP mode SOCKET. 0x32 SOCK_IPRAW The socket is opened in IPRAW mode. The SOCKET status is change to SOCK_IPRAW when Sn_MR (P3:P0) is Sn_MR_IPRAW and OPEN command is used. IP Packet can be transferred without a connection similar to the UDP mode. 0x42 SOCK_MACRAW It is changed to SOCK_MACRAW in case of S0_CR=OPEN and S0_MR (P3:P0)=S0_MR_MACRAW. MACRAW packet (Ethernet frame) can be transferred similar to UDP mode. 0x5F SOCK_PPPOE It is the status that SOCKET0 is open as PPPoE mode. It is changed to SOCK_PPPoE in case of S0_CR=OPEN and S0_MR (P3:P0)=S0_MR_PPPoE . It is temporarily used at the PPPoE connection. Below is shown during changing the status. Value Symbol Description 0x15 SOCK_SYNSENT This status indicates that a connect-request (SYN packet) is sent to a "TCP SERVER". This status shows changing process from SOCK_INIT to SOCK_ESTABLISHED by CONNECT command. At this status, if connect-accept (SYN/ACK packet) is received from "TCP SERVER", it is automatically changed to SOCK_ ESTBLISHED. If SYN/ACK packet is not received from the "TCP SERVER" before TCPTO occurs (Sn_IR(TIMEOUT)=‘1’), it is changed to SOCK_CLOSED. 0x16 SOCK_SYNRECV This status indicate that a connect-request(SYN packet) is received from a "TCP CLIENT". It is automatically changed to SOCK_ESTABLISHED when W5200 successfully transmits connect-accept (SYN/ACK packet) to the "TCP CLIENT". If it is failed, TCPTO occurs (Sn_IR(TIMEOUT)=‘1’), and it is changed to SOCK_CLOSED 0x18 SOCK_FIN_WAIT These status shows that Socket n-th is closed. It is observed 0x1A SOCK_CLOSING in the disconnect-process of active close or passive close. It 0X1B SOCK_TIME_WAIT is changed to SOCK_CLOSED, when disconnect-process is 0X1D SOCK_LAST_ACK successfully finished or TCPTO occurs (Sn_IR (TIMEOUT) =‘1’). 0x01 SOCK_ARP This status indicates that ARP-request is transmitted in order to acquire destination hardware address. This status © Copyright 2011WIZnet Co., Inc. All rights reserved. 30 iEthernet W5200 is observed when SEND command is performed at the SOCK_UDP or SOCK_IPRAW, or CONNECT command is performed at the SOCK_INIT. If hardware address is successfully acquired from destination (when ARP-response is received), it is changed to SOCK_UDP, SOCK_IPRAW or SOCK_SYNSENT. If it's failed and ARPTO occurs (Sn_IR(TIMEOUT)=‘1’), in case of UDP or IPRAW mode it goes back to the previous status(the SOCK_UDP or SOCK_IPRAW), in case of TCP mode it goes to the SOCK_CLOSED. cf> ARP-process operates at the SOCK_UDP or SOCK_IPRAW when the previous and current values of Sn_DIPR are different. If the previous and current values of Sn_DIPR are same, ARP-process doesn’t operate because the destination hardware address is already acquired. Figure 5 Socket Status Transition © Copyright 2011WIZnet Co., Inc. All rights reserved. 31 iEthernet W5200 Sn_PORT (Socket n-th Source Port Register) [R/W] [0x4004+0x0n00-0x4005+0x0n00] [0x0000] This register sets the Source Port number for each Socket when using TCP or UDP mode, and the set-up needs to be made before executing the OPEN command. Ex) In case of Socket 0 Port = 5000(0x1388), configure as below, 0x4004 0x4005 0x13 0x88 Sn_DHAR (Socket n-th Destination Hardware Address Register) [R/W] [0x4006+0x0n000x400B+0x0n00] [0xFFFFFFFFFFFF] It sets or is set as destination hardware address of Socket n-th. Also, if SOCKET 0 is used for PPPoE mode, S0_DHAR sets as PPPoE server hardware an address that is already known. When using SEND_MAC command at the UDP or IPRAW mode, it sets the destination hardware address of Socket n-th. At the TCP, UDP and IPRAW mode, Sn_DHAR is set as destination hardware address that is acquired by ARP-process of CONNECT or SEND command. The host can acquire the destination hardware address through Sn_DHAR after successfully performing CONNET or SEND command. When using PPPoE-process of W5200, PPPoE server hardware address is not required to be set. However, even if PPPoE-process of W5200 is not used, but implemented by yourself with MACRAW mode, in order to transmit or receive the PPPoE packet, PPPoE server hardware address(acquired by your PPPoE-process), PPPoE server IP address, and PPP session ID should be set, and MR(PPPoE) also should be set as '1'. S0_DHAR sets the PPPoE server hardware address before the OPEN command. PPPoE server hardware address which is set by S0_DHAR is applied to PDHAR after performing the OPEN command. The configured PPPoE information is internally valid even after the CLOSE command. Ex) In case of Socket 0 Destination Hardware address = 08.DC.00.01.02.10, configuration is as below, Sn_DIPR 0x4006 0x4007 0x4008 0x4009 0x400A 0x400B 0x08 0xDC 0x00 0x01 0x02 0x0A (Socket n-th Destination IP Address Register)[R/W][0x400C+0x0n00 0x400F+0x0n00] [0x00000000] It sets or is set as destination IP address of Socket n-th. If SOCKET0 is used as PPPoE mode, S0_DIPR sets PPPoE server IP address that is already known. It is valid only in TCP, UDP, IPRAW or PPPoE mode, but ignored in MACRAW mode. At the TCP mode, when operating as "TCP CLIENT" it sets as IP address of "TCP SERVER" before performing CONNECT command and when operating as "TCP SERVER", it is internally set as IP address of "TCP CLIENT" after successfully establishing connection. © Copyright 2011WIZnet Co., Inc. All rights reserved. 32 iEthernet W5200 At the UDP or IPRAW mode, Sn_DIPR sets as destination IP address to be used for transmitting UDP or IPRAW DATA packet before performing SEND or SEND_MAC command. Ex) In case of Socket 0 Destination IP address = 192.168.0.11, configure as below. 0x400C 0x040D 0x400E 0x040F 192 (0xC0) 168 (0xA8) 0 (0x00) 11 (0x0B) Sn_DPORT (Socket n-th Destination Port Register)[R/W][0x4010+0x0n00-0x4011+0x0n00] [0x00] The destination port number is set in the Sn_DPORT of Socket n-th. If SOCKET 0 is used as PPPoE mode, S0_DPORT0 sets PPP session ID that is already known. It is valid only in TCP, UDP or PPPoE mode, and ignored in other modes. At the TCP mode, when operating as "TCP CLIENT", it listens for the port number of the "TCP SERVER" before performing the CONNECT command. At the UDP mode, the destination port number is set in the Sn_DPORT to be used for transmitting UDP DATA packets before performing SEND or SEND_MAC command. At the PPPoE mode, the PPP session ID that is already known is set in the S0_DPORT. PPP session ID (set by S0_DPORT0) is applied to PSIDR after performing the OPEN command. Ex) In case of Socket 0 Destination Port = 5000(0x1388), configure as below, Sn_MSS (Socket n-th 0x4010 0x4011 0x13 0x88 Maximum Segment Size Register)[R/W][0x4012+0x0n00- 0x4013+0x0n00] [0x0000] This register is used for MSS (Maximum Segment Size) of TCP, and the register displays MSS set by the other party when TCP is activated in Passive Mode. It just supports TCP or UDP mode. When using PPPoE (MR(PPPoE)=‘1’), the MTU of TCP or UDP mode is assigned in the range of MTU of PPPoE. Mode Normal (MR(PPPoE)=‘0’) PPPoE (MR(PPPoE)=‘1’) Default Default Range MTU Range MTU TCP 1460 1 ~ 1460 1452 1 ~ 1452 UDP 1472 1 ~ 1472 1464 1 ~ 1464 IPRAW 1480 MACRAW 1472 1514 At the IPRAW or MACRAW, MTU is not processed internally, but default MTU is used. Therefore, when transmitting the data bigger than default MTU, the host should manually divide the data into the unit of default MTU. At the TCP or UDP mode, if transmitting data is bigger than MTU, W5200 automatically divides © Copyright 2011WIZnet Co., Inc. All rights reserved. 33 iEthernet W5200 the data into the unit of MTU. MTU is called as MSS at the TCP mode. By selecting from HostWritten-Value and peer's MSS, MSS is set as smaller value through TCP connection process. Ex) In case of Socket 0 MSS = 1460(0x05B4), configure as below, 0x4012 0x4013 0x05 0xB4 Sn_PROTO (Socket n-th IP Protocol Register) [R/W] [0x4014+0x0n00] [0x00] It is a 1 byte register that sets the protocol number field of the IP header at the IP layer. It is valid only in IPRAW mode, and ignored in other modes. Sn_PROTO is set before OPEN command. When Socket n-th is opened in IPRAW mode, it transmits and receives the data of the protocol number set in Sn_PROTO. Sn_PROTO can be assigned in the range of 0x00 ~ 0xFF, but W5200 does not support TCP(0x06) and UDP(0x11) protocol number Protocol number is defined in IANA(Internet assigned numbers authority). For the detail, refer to online document ( http://www.iana.org/assignments/protocol-numbers ). U U Ex) Internet Control Message Protocol (ICMP) = 0x01, Internet Group Management Protocol = 0x02 Sn_TOS (Socket n-th IP Type Of Service Register) [R/W] [0x4015+0x0n00] [0x00] It sets the TOS(Type of Service) field of the IP header at the IP layer. It should be set before the OPEN command. Refer to http://www.iana.org/assignments/ip-parameters . U U Sn_TTL (Socket n-th IP Time To Live Register) [R/W] [0x4016+0x0n00] [0x80] It sets the TTL(Time To Live) field of the IP header at the IP layer. It should be set before the OPEN command. Refer to http://www.iana.org/assignments/ip-parameters . U © Copyright 2011WIZnet Co., Inc. All rights reserved. U 34 iEthernet W5200 Sn_RXMEM_SIZE (Socket n-th IP Time To Live Register) [R/W] [0x401E+0x0n00] [0x02] It configures the internal RX Memory size of each SOCKET. RX Memory size of each SOCKET is configurable in the size of 1, 2, 4, 8, and 16 Kbytes. 2Kbytes is assigned when reset. Sn_RXMEM_SIZESUM(sum of Sn_RXMEM_SIZE) of each SOCKET should be 16KB. Value 0x01 0x02 0x04 0x08 0x0F Memory size 1KB 2KB 4KB 8KB 16KB Ex1) SOCKET 0 : 8KB, SOCKET 1 : 2KB 0xFE401E 0xFE411E 0x08 0x02 Ex2) SOCKET 2 : 1KB, SOCKET 3 : 1KB 0xFE421E 0xFE431E 0x01 0x01 Ex3) SOCKET 4 : 1KB, SOCKET 5 : 1KB 0xFE441E 0xFE451E 0x01 0x01 Ex4) SOCKET 6 : 1KB, SOCKET 7 : 1KB 0xFE461E 0xFE471E 0x01 0x01 Sn_TXMEM_SIZE (Socket n-th IP Time To Live Register) [R/W] [0x401E+0x0n00] [0x02] It configures the internal TX Memory size of each SOCKET. TX Memory size of each SOCKET is configurable in the size of 1, 2, 4, 8, and 16Kbytes. 2Kbytes is assigned when reset. Sn_TXMEM_SIZESUM(summation of Sn_TXMEM_SIZE) of each SOCKET should be 16KB. Ex1) SOCKET 0 : 4KB, SOCKET 1 : 1KB 0xFE401F 0xFE411F 0x04 0x01 Ex2) SOCKET 2 : 2KB, SOCKET 3 : 1KB 0xFE421F 0xFE431F 0x02 0x01 Ex3) SOCKET 4 : 2KB, SOCKET 5 : 2KB 0xFE441F 0xFE451F 0x02 0x02 Ex4) SOCKET 6 : 2KB, SOCKET 7 : 2KB 0xFE461F 0xFE471F 0x02 0x02 © Copyright 2011WIZnet Co., Inc. All rights reserved. 35 iEthernet W5200 Sn_TX_FSR (Socket n-th TX Free Size Register) [R] [0x4020+0x0n00-0x4021+0x0n00] [0x0800] It notifies the available size of the internal TX memory (the byte size of transmittable data) of Socket n-th. The host can’t write data as a size bigger than Sn_TX_FSR. Therefore, be sure to check Sn_TX_FSR before transmitting data, and if your data size is smaller than or the same as Sn_TX_FSR, transmit the data with SEND or SEND_MAC command after copying the data. At the TCP mode, if the peer checks the transmitted DATA packet (if DATA/ACK packet is received from the peer), Sn_TX_FSR is automatically increased by the size of that transmitted DATA packet. At the other modes, when Sn_IR(SENDOK) is ‘1’, Sn_TX_FSR is automatically increased by the size of the transmitted data.When checking this register, user should read upper byte(0x4020, 0x4120, 0x4220, 0x4320, 0x4420, 0x4520, 0x4620, 0x4720) first and lower byte(0x4021, 0x4121, 0x4221, 0x4321, 0x4421, 0x4521, 0x4621, 0x4721) later to get the correct value. Ex) In case of 2048(0x0800) in S0_TX_FSR, 0x4020 0x4021 0x08 0x00 Sn_TX_RD (Socket n-th TX Read Pointer Register) [R] [0x4022+0x0n00-0x4023+0x0n00] [0x0000] This register shows the address of the last transmission finishing in the TX memory. With the SEND command of Socket n-th Command Register, it transmits data from the current Sn_TX_RD to the Sn_TX_WR and automatically updates after transmission is finished. Therefore, after transmission is finished, Sn_TX_RD and Sn_TX_WR will have the same value. When reading this register, user should read upper byte (0x4022, 0x4122, 0x4222, 0x4322, 0x4422, 0x4522, 0x4622, 0x4722) first, and lower byte (0x4023, 0x4123, 0x4223, 0x4323, 0x4423, 0x4523, 0x4623, 0x4723) later to get the correct value. Sn_TX_WR (Socket n-th TX Write Pointer Register) [R/W] [0x4024+0x0n00- 0x4025+0x0n00] [0x0000] This register offers the location information to write the transmission data. When reading this register, user should read upper byte (0x4024, 0x4124, 0x4224, 0x4324, 0x4424, 0x4524, 0x4624, 0x4724) first, and lower byte (0x4025, 0x4125, 0x4225, 0x4325, 0x4425, 0x4525, 0x4625, 0x4725) later to get the correct value. Caution: This register value is changed after the send command is successfully executed to Sn_CR. Ex) In case of 2048(0x0800) in S0_TX_WR, 0x4024 0x4025 0x08 0x00 © Copyright 2011WIZnet Co., Inc. All rights reserved. 36 iEthernet W5200 Figure 6 Physical Address Calculation But this value itself is not the physical address to read. So, the physical address should be calculated as follow. 1. Socket n-th TX Base Address (hereafter we'll call gSn_TX_BASE) and Socket n-th TX Mask Address (hereafter we'll call gSn_TX_MASK) are calculated on TMSR value. Refer to the psedo code of the Initialization if detail is needed. 2. The bitwise-AND operation of two values, Sn_TX_WR and gSn_TX_MASK give result to the offset address(hereafter we'll call get_offset) in TX memory range of the socket. 3. Two values get_offset and gSn_TX_BASE are added together to give result tothe physical address(hereafter, we'll call get_start_address). Now, write the transmission data to get_start_address as large as you want. (* There's a case that it exceeds the TX memory upper-bound of the socket while writing. In this case, write © Copyright 2011WIZnet Co., Inc. All rights reserved. 37 iEthernet W5200 the transmission data to the upper-bound, and change the physical address to the gSn_TX_BASE. Next, write the rest of the transmission data.) After that, be sure to increase the Sn_TX_WR value as much as the data size that indicates the size of writing data. Finally, give SEND command to Sn_CR(Socket n-th Command Register). Refer to the psedo code of the transmission part on TCP Server mode if detail is needed. Sn_RX_RSR (RX Received Size Register) [R] [0x4026+0x0n00-0x4027+0x0n00] [0x0000] It informs the user of the byte size of the received data in Internal RX Memory of Socket n-th. As this value is internally calculated with the values of Sn_RX_RD and Sn_RX_WR, it is automatically changed by RECV command of Socket n-th Command Register (Sn_CR) and receives data from the remote peer. When reading this register, user should read upper byte(0x4026, 0x4126, 0x4226, 0x4326, 0x4426, 0x4526, 0x4626, 0x4726) first, and lower byte(0x4027, 0x4127, 0x4227, 0x4327, 0x4427, 0x4527, 0x4627, 0x4727) later to get the correct value. Ex) In case of 2048(0x0800) in S0_RX_RSR, 0x4026 0x04027 0x08 0x00 The total size of this value can be decided according to the value of RX Memory Size Register. Sn_RX_RD (Socket n-th RX Read Pointer Register) [R/W] [0x4028+0x0n00-0x4028+0x0n00] [0x0000] This register offers the location information to read the receiving data. When reading this register, user should read upper byte (0x4028, 0x4128, 0x4228, 0x4328, 0x4428, 0x4528, 0x4628, 0x4728) first, and lower byte (0x4029, 0x4129, 0x4229, 0x4329, 0x4429, 0x4529, 0x4629, 0x4729) later to get the correct value. It has a random value as its initial value. Caution: This register value is changed after the send command is successfully executed to Sn_CR. Ex) In case of 2048(0x0800) in S0_RX_RD, 0x4028 0x4029 0x08 0x00 But this value itself is not the physical address to read. So, the physical address should be calculated as follow. 1. Socket n-th RX Base Address (hereafter we'll call gSn_RX_BASE) and Socket n-th RX Mask Address (hereafter we'll call gSn_RX_MASK) are calculated on RMSR value. Refer to the pseudo code of the 5.1 Initialization if the detail is needed. 2. The bitwise-AND operation of two values, Sn_RX_RD and gSn_RX_MASK give result the offset address(hereafter we'll call get_offset), in RX memory range of the socket. 3. Two values get_offset and gSn_RX_BASE are added together to give result the physical address(hereafter, we'll call get_start_address). © Copyright 2011WIZnet Co., Inc. All rights reserved. 38 iEthernet W5200 Sn_RX_WR (Socket n-th RX Write Pointer Register)[R/W][(0xFE402A + 0xn00) – (0xFE402B + 0xn00)][0x0000] This register offers the location information to write the receive data. When reading this register, the user should read upper bytes (0x402A, 0x412A, 0x422A, 0x432A, 0x442A, 0x452A, 0x462A, 0x472A) first and lower bytes (0x402B, 0x412B, 0x422B, 0x432B, 0x442B, 0x452B, 0x462B, 0x472B) later to get the correct value. Ex) In case of 2048(0x0800) in S0_RX_WR, 0x402A 0x402B 0x08 0x00 Sn_IMR (Socket n-th Interrupt Mask Register)[R/W][0x402C+0x0n00][0xFF] It configures the interrupt of Socket n-th so as to notify to the host. Interrupt mask bit of Sn_IMR corresponds to interrupt bit of Sn_IR. If interrupt occurs in any SOCKET and the bit is set as ‘1’, its corresponding bit of Sn_IR is set as ‘1’. When the bits of Sn_IMR and Sn_IR are ‘1’, IR(n) becomes ‘1’. At this time, if IMR(n) is ‘1’, the interrupt is issued to the host. (‘nINT’ signal is asserted low) 7 6 5 4 3 2 1 0 PRECV PFAIL PNEXT SEND_OK TIMEOUT RECV DISCON CON Bit 7 6 5 Symbol Description PRECV Sn_IR(PRECV) Interrupt Mask Valid only in case of ‘SOCKET = 0’ & ‘S0_MR(P3:P0) = S0_MR_PPPoE’ PFAIL Sn_IR(PFAIL) Interrupt Mask Valid only in case of ‘SOCKET = 0’ & ‘S0_MR(P3:P0) = S0_MR_PPPoE’ PNEXT Sn_IR(PNEXT) Interrupt Mask Valid only in case of ‘SOCKET = 0’ & ‘S0_MR(P3:P0) = S0_MR_PPPoE’ 4 SENDOK Sn_IR(SENDOK) Interrupt Mask 3 TIMEOUT Sn_IR(TIMEOUT) Interrupt Mask 2 RECV Sn_IR(RECV) Interrupt Mask 1 DISCON Sn_IR(DISCON) Interrupt Mask 0 CON Sn_IR(CON) Interrupt Mask © Copyright 2011WIZnet Co., Inc. All rights reserved. 39 iEthernet W5200 Sn_FRAG (Socket n-th Fragment Register)[R/W][0x402D+0x0n00-0x402E+ 0x0n100][0x4000] It sets the Fragment field of the IP header at the IP layer. W5200 does not support the packet fragment at the IP layer. Even though Sn_FRAG is configured, IP data is not fragmented, and not recommended either. It should be configured before performing OPEN command. Ex) Sn_FRAG0 = 0x4000 (Don’t Fragment) 0x402D 0x402E 0x40 0x00 © Copyright 2011WIZnet Co., Inc. All rights reserved. 40 iEthernet W5200 5 Functional Descriptions By setting some register and memory operation, W5200 provides internet connectivity. This chapter describes how it can be operated. 5.1 Initialization Basic Setting For the W5200 operation, select and utilize appropriate registers shown below. 1. Mode Register (MR) 2. Interrupt Mask Register (IMR) 3. Retry Time-value Register (RTR) 4. Retry Count Register (RCR) For more information of above registers, refer to the “Register Descriptions.” Setting network information Basic network information setting for communication: It must be set the basic network information. ① SHAR(Source Hardware Address Register) It is prescribed that the source hardware addresses, which is set by SHAR, use unique hardware addresses (Ethernet MAC address) in the Ethernet MAC layer. The IEEE manages the MAC address allocation. The manufacturer which produces the network device allocates the MAC address to product. Details on MAC address allocation refer to the website as below. http://www.ieee.org/, http://standards.ieee.org/regauth/oui/index.shtml U U U U ② GAR(Gateway Address Register) ③ SUBR(Subnet Mask Register) ④ SIPR(Source IP Address Register) © Copyright 2011WIZnet Co., Inc. All rights reserved. 41 iEthernet W5200 Set socket memory information This stage sets the socket tx/rx memory information. The base address and mask address of each socket are fixed and saved in this stage. In case of, assign 2KB rx, tx memory per SOCKET { gS0_RX_BASE = 0x0000(Chip base address) + 0xC000(Internal RX buffer address); // Set base address of RX memory for SOCKET 0 Sn_RXMEM_SIZE(ch) = (uint8 *) 2; // Assign 2K rx memory per SOCKET gS0_RX_MASK = 2K – 1; // 0x07FF, for getting offset address within assigned SOCKET 0 RX memory gS1_RX_BASE = gS0_RX_BASE + (gS0_RX_MASK + 1); gS1_RX_MASK = 2K – 1; gS2_RX_BASE = gS1_RX_BASE + (gS1_RX_MASK + 1); gS2_RX_MASK = 2K – 1; gS3_RX_BASE = gS2_RX_BASE + (gS2_RX_MASK + 1); gS3_RX_MASK = 2K – 1; gS4_RX_BASE = gS3_RX_BASE + (gS3_RX_MASK + 1); gS4_RX_MASK = 2K – 1; gS5_RX_BASE = gS4_RX_BASE + (gS4_RX_MASK + 1); gS5_RX_MASK = 2K – 1; gS6_RX_BASE = gS5_RX_BASE + (gS5_RX_MASK + 1); gS6_RX_MASK = 2K – 1; gS7_RX_BASE = gS6_RX_BASE + (gS6_RX_MASK + 1); gS7_RX_MASK = 2K – 1; gS0_TX_BASE = 0x0000(Chip base address) + 0x8000(InternalTX buffer address); // Set base address of TX memory for SOCKET 0 Sn_TXMEM_SIZE(ch) = (uint8 *) 2; // Assign 2K rx memory per SOCKET gS0_TX_MASK = 2K – 1; /* Same method, set gS1_TX_BASE, gS1_TX_MASK, gS2_TX_BASE, gS2_TX_MASK, gS3_TX_BASE, gS3_TX_MASK, gS4_TX_BASE, gS4_TX_MASK, gS5_TX_BASE, gS5_TX_MASK, gS6_TX_BASE, gS6_tx_MASK, gS7_TX_BASE, gS7_TX_MASK */ } © Copyright 2011WIZnet Co., Inc. All rights reserved. 42 iEthernet W5200 Figure 7 Allocation Internal TX/RX memory of Socket n-th © Copyright 2011WIZnet Co., Inc. All rights reserved. 43 iEthernet W5200 5.2 Data Communications After the initialization process, W5200 can transmit and receive the data with others by ‘open’ the SOCKET of TCP, UDP, IPRAW, and MACRAW mode. The W5200 supports the independently and simultaneously usable 8 SOCKETS. In this section, the communication method for each mode will be introduced. 5.2.1 TCP The TCP is a connection-oriented protocol. The TCP make the connection SOCKET by using its own IP address, port number and destination IP address, port number. Then transmits and receives the data by using this SOCKET. Methods of making the connection to SOCKET are “TCP SERVER” and “TCP CLIENT”. It is divided by transmitting the connect-request (SYN packet). The “TCP SERVER” listens to the connect-request from the “TCP CLIENT”, and makes connection SOCKET by accepting the transmitted connect-request (Passive-open). The “TCP CLIENT” transmits the connect-request first to “TCP SERVER” to make the connection (Active-open). Figure 8 TCP SERVER and TCP CLIENT © Copyright 2011WIZnet Co., Inc. All rights reserved. 44 iEthernet W5200 5.2.1.1 TCP SERVER Figure 9 TCP SERVER Operation Flow SOCKET Initialization SOCKET initialization is required for TCP data communication. The initialization is opening the SOCKET. The SOCKET opening process selects one SOCKET from 8 SOCKETS of the W5200, and sets the protocol mode (Sn_MR) and Sn_PORT0 which is source port number (Listen port number in “TCP SERVER”) in the selected SOCKET, and then executes OPEN command. After the OPEN command, if the status of Sn_SR is changed to SOCK_INIT, the SOCKET initialization process is completed. The SOCKET initialization process is identically applied in “TCP SEVER” and “TCP CLIENT.”The Initialization process of Socket n-th in TCP mode is shown below. © Copyright 2011WIZnet Co., Inc. All rights reserved. 45 iEthernet W5200 { START: Sn_MR = 0x01; // sets TCP mode Sn_PORT0 = source_port; // sets source port number Sn_CR = OPEN; // sets OPEN command /* wait until Sn_SR is changed to SOCK_INIT */ if (Sn_SR != SOCK_INIT) Sn_CR = CLOSE; goto START; } LISTEN Run as “TCP SERVER” by LISTEN command. { /* listen SOCKET */ Sn_CR = LISTEN; /* wait until Sn_SR is changed to SOCK_LISTEN */ if (Sn_SR != SOCK_LISTEN) Sn_CR = CLOSE; goto START; } ESTABLISHMENT When the status of Sn_SR is SOCK_LISTEN, if it receives a SYN packet, the status of Sn_SR is changed to SOCK_SYNRECV and transmits the SYN/ACK packet. After that, the Socket n-th makes a connection. After it makes the connection of Socket n-th, it enables the data communication. There are two methods to confirm the connection of Socket n-th. First method : { if (Sn_IR(CON) == ‘1’) Sn_IR(CON) = ‘1’; goto ESTABLISHED stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second method : { if (Sn_SR == SOCK_ESTABLISHED) goto ESTABLISHED stage; } © Copyright 2011WIZnet Co., Inc. All rights reserved. 46 iEthernet W5200 ESTABLISHMENT : Check received data Confirm the reception of the TCP data. First method : { if (Sn_IR(RECV) == ‘1’) Sn_IR(RECV) = ‘1’; goto Receiving Process stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second Method : { if (Sn_RX_RSR0 != 0x0000) goto Receiving Process stage; } The First method: set the Sn_IR(RECV) to ‘1’ whenever you receive a DATA packet. If the host receives the next DATA packet without setting the Sn_IR(RECV) as ‘1’ in the prior DATA packet, it cannot recognize the Sn_IR(RECV) of the next DATA packet. This is due to the prior Sn_IR(RECV) and next Sn_IR(RECV) being overlapped. So this method is not recommended if the host cannot perfectly process the DATA packets of each Sn_IR(RECV). ESTABLISHMENT : Receiving process In this process, it processes the TCP data which was received in the Internal RX memory. At the TCP mode, the W5200 cannot receive the data if the size of received data is larger than the RX memory free size of Socket n-th. If the prior stated condition is happened, the W5200 holds on to the connection (pauses), and waits until the RX memory’s free size is larger than the size of the received data. { /* first, get the received size */ len = Sn_RX_RSR; // len is received size /* calculate offset address */ src_mask = Sn_RX_RD&gSn_RX_MASK; // src_mask is offset address /* calculate start address(physical address) */ src_ptr = gSn_RX_BASE + src_mask; // src_ptr is physical start address /* if overflow SOCKET RX memory */ If((src_mask + len) > (gSn_RX_MASK + 1)) { /* copy upper_size bytes of source_ptr to destination_address */ upper_size = (gSn_RX_MASK + 1) – src_mask; memcpy(src_ptr, dst_ptr, upper_size); © Copyright 2011WIZnet Co., Inc. All rights reserved. 47 iEthernet W5200 /* update destination_ptr */ dst_address += upper_size; /* copy left_size bytes of gSn_RX_BASE to destination_address */ left_size = len – upper_size; memcpy(gSn_RX_BASE, dst_address, left_size); } else { copy len bytes of source_ptr to destination_address */ memcpy(src_ptr, dst_ptr, len); } /* increase Sn_RX_RD as length of len */ Sn_RX_RD += len; /* set RECV command */ Sn_CR = RECV; } ESTABLISHMENT: Check send data / Send process The size of the transmit data cannot be larger than assigned internal TX memory of Socket n-th. If the size of transmit data is larger than configured MSS, it is divided by size of MSS and transmits. To transmit the next data, user must check the completion of prior SEND command. An error may occur if the SEND command executes before completion of prior SEND command. The larger the data size, the more time to complete the SEND command. So the user should properly divide the data to transmit. To check the completion of the SEND command, it should be check that the send data length is equal with the actual sent data length. The actual sent data length is calculated by the difference of the Sn_TX_RD before and after performing the SEND command. If the actual sent data is less than the send data length, the SEND command is retried for sending the left data. The send process is therefore completed the SENDwhen the sum of the actual sent data is equal the send data length. A simple example of the send process is as below Ex) Send Data Length Size= 10, 1) Execute SEND Command with send data length 2) Calculate the actual sent data length If the actual sent data length is7 (=Sn_TX_RD_after_SEND-Sn_TX_RD_befor_SEND), the left Data length= 3 3) Retry SEND Command until the sum of the actual sent data length is same the send data length. Note: Don’t copy data until the sum of the actual sent data length is the send data length. © Copyright 2011WIZnet Co., Inc. All rights reserved. 48 iEthernet W5200 { /* first, get the free TX memory size */ FREESIZE: freesize = Sn_TX_FSR; if (freesize (gSn_TX_MASK + 1) ) { /* copy upper_size bytes of source_addr to destination_address */ upper_size = (gSn_TX_MASK + 1) – dst_mask; memcpy(src_addr, dst_ptr, upper_size); /* update source_addr*/ source_addr += upper_size; /* copy left_size bytes of source_addr to gSn_TX_BASE */ left_size = len – upper_size; memecpy(source_addr, gSn_TX_BASE, left_size); } else { /* copy len bytes of source_addr to destination_address */ memcpy(source_addr, dst_ptr, len); } /* increase Sn_TX_WR as length of len */ Sn_TX_WR0 += send_size; /* set SEND command */ Sn_CR = SEND; /* return real packet size */ return ( read_ptr_after_send - read_ptr_befor_send ) /* if return value is not equal len (len is send size), retry send left data without copying data*/ } © Copyright 2011WIZnet Co., Inc. All rights reserved. 49 iEthernet W5200 ESTABLISHMENT : Check disconnect-request(FIN packet) Check if the Disconnect-request(FIN packet) has been received. User can confirm the reception of FIN packet as below. First method : { if (Sn_IR(DISCON) == ‘1’) Sn_IR(DISCON)=‘1’; goto CLOSED stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second method : { if (Sn_SR == SOCK_CLOSE_WAIT) goto CLOSED stage; } ESTABLISHMENT : Check disconnect / disconnecting process When the user does not need data communication with others, or receives a FIN packet, disconnect the connection SOCKET. { /* set DISCON command */ Sn_CR = DISCON; } ESTABLISHMENT : Check closed Confirm that the Socket n-th is disconnected or closed by DISCON or close command. First method : { if (Sn_IR(DISCON) == ‘1’) goto CLOSED stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second method : { if (Sn_SR == SOCK_CLOSED) goto CLOSED stage; } © Copyright 2011WIZnet Co., Inc. All rights reserved. 50 iEthernet W5200 ESTABLISHMENT: Timeout The timeout can occur by Connect-request(SYN packet) or its response(SYN/ACK packet), the DATA packet or its response(DATA/ACK packet), the Disconnectrequest(FIN packet) or its response(FIN/ACK packet) and transmission all TCP packet. If it cannot transmit the above packets within ‘timeout’ which is configured at RTR and RCR, the TCP final timeout(TCPTO) occurs and the state of Sn_SR is set to SOCK_CLOSED. Confirming method of the TCPTO is as below: First method : { if (Sn_IR(TIMEOUT bit) == ‘1’) Sn_IR(TIMEOUT)=‘1’; goto CLOSED stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second method : { if (Sn_SR == SOCK_CLOSED) goto CLOSED stage; } SOCKET Close It can be used to close the Socket n-th, which disconnected by disconnect-process, or closed by TCPTO or closed by host’s need without disconnect-process. { /* clear the remained interrupts of Socket n-th*/ Sn_IR = 0xFF; IR(n) = ‘1’; /* set CLOSE command */ Sn_CR = CLOSE; } © Copyright 2011WIZnet Co., Inc. All rights reserved. 51 iEthernet W5200 5.2.1.2 TCP CLIENT It is same as TCP server except ‘CONNECT’ state. User can refer to the “5.2.1.1 TCP SERVER”. Figure 10 TCP CLIENT Operation Flow CONNECT Transmit the connect-request (SYN packet) to “TCP SERVER”. It may occurs the timeout such as ARPTO, TCPTO when make the “connection SOCKET” with “TCP SERVER” { Sn_DIPR0 = server_ip; Sn_DPORT0 = server_port; Sn_CR = CONNECT; /* set TCP SERVER IP address*/ /* set TCP SERVER listen port number*/ /* set CONNECT command */ } © Copyright 2011WIZnet Co., Inc. All rights reserved. 52 iEthernet W5200 5.2.2 UDP The UDP is a Connection-less protocol. It communicates without “connection SOCKET.” The TCP protocol guarantees reliable data communication, but the UDP protocol uses datagram communication which has no guarantees of data communication. Because the UDP does not use “connection SOCKET,” it can communicate with many other devices with the known host IP address and port number. This is a great advantage; communication with many others by using just one SOCKET, but also it has many problems such as loss of transmitted data, unwanted data received from others, etc. To avoid these problems and guarantee reliability, the host retransmits damaged data or ignores the unwanted data which is received from others. The UDP protocol supports unicast, broadcast, and multicast communication. It follows the below communication flow. Figure 11 UDP Operation Flow 5.2.2.1 Unicast and Broadcast The unicast is one method of UDP communication. It transmits data to one destination at one time. On the other hand, the broadcast communication transmits data to all receivable destinations by using ‘broadcast IP address (255.255.255.255)’. For example, suppose that the user transmits data to destination A, B, and C. The unicast communication transmits each destination A, B, and C at each time. At this time, the ARPTO can also occur when the user gets the destination hardware address of destinations A, B and C. User cannot transmit data to destinations which have ARPTO. The broadcast communication can simultaneously transmit data to destination A, B and C at one time by using “255.255.255.255” or “local address | (~subnet address)” © Copyright 2011WIZnet Co., Inc. All rights reserved. 53 iEthernet W5200 IP address. At this time, there is no need to get the destination hardware address about destination A, B and C, and also ARPTOis not occurred. Note: Broadcast IP => The Broadcast IP address can be obtained by performing a bit-wise logical OR operation between the bit complement of the subnet mask and the host’s IP address. ex> If IP:”222.98.173.123” and the subnet mask:“255.255.255.0”, broadcast IP is “222.98.173.255” Description Decimal Binary HOST IP 222.098.173.123 11011110.01100010.10101101.01111011 Bit Complement Subnet mask 000.000.000.255 00000000.00000000.00000000.11111111 Bitwise OR - - Broadcast IP 222.098.173.255 11011110.01100010.10101101.11111111 SOCKET Initialization For the UDP data communication, SOCKET initialization is required; it opens the SOCKET. The SOCKET open process is as followed. At first, choose one SOCKET among the 8 SOCKETS of W5200, then set the protocol mode (Sn_MR(P3:P0)) of the chosen SOCKET and set the source port number Sn_PORT0 for communication. Finally, execute the OPEN command. After the OPEN command, the state of Sn_SR is changed to SOCK_UDP. Then the SOCKET initialization is complete. { START: Sn_MR = 0x02; /* sets UDP mode */ Sn_PORT0 = source_port; /* sets source port number */ Sn_CR = OPEN; /* sets OPEN command */ /* wait until Sn_SR is changed to SOCK_UDP */ if (Sn_SR != SOCK_UDP) Sn_CR = CLOSE; goto START; } Check received data Check the reception of UDP data from destination. User can also check for received data via TCP communication. It is strongly recommended to use the second method because of the same reasoning from TCP. Please refer to the “5.2.1.1 TCP SERVER”. First method : { if (Sn_IR(RECV) == ‘1’) Sn_IR(RECV) = ‘1’; goto Receiving Process stage; © Copyright 2011WIZnet Co., Inc. All rights reserved. 54 iEthernet W5200 /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to IR, IMR Sn_IMR and Sn_IR. */ } Second Method : { if (Sn_RX_RSR0 != 0x0000) goto Receiving Process stage; } Receiving process Process the received UDP data in Internal RX memory. The structure of received UDP data is as below. Figure 12 The Received UDP data Format The received UDP data consists of 8bytes PACKET-INFO, and DATA packet. The PACKETINFO contains transmitter’s information (IP address, Port number) and the length of DATA packet. The UDP can receive UDP data from many others. User can classify the transmitter by transmitter’s information of PACKET-INFO. It also receives broadcast SOCKET by using “255.255.255.255” IP address. So the host should ignore unwanted reception by analysis of transmitter’s information. If the DATA size of Socket n-th is larger than Internal RX memory free size, user cannot receive that DATA and also cannot receive fragmented DATA. { /* calculate offset address */ src_mask = Sn_RX_RD &g Sn_RX_MASK; // src_mask is offset address /* calculate start address(physical address) */ src_ptr = gSn_RX_BASE + src_mask; // src_ptr is physical start address /* read head information (8 bytes) */ header_size = 8; /* if overflow SOCKET RX memory */ if ( (src_mask + header_size) > (gSn_RX_MASK + 1) ) { /* copy upper_size bytes of src_ptr to header_addr*/ upper_size = (gSn_RX_MASK + 1) – src_mask; memcpy(src_ptr, header, upper_size); © Copyright 2011WIZnet Co., Inc. All rights reserved. 55 iEthernet W5200 /* update header_addr*/ header_addr += upper_size; /* copy left_size bytes of gSn_RX_BASE to header_address */ left_size = header_size – upper_size; memcpy(gSn_RX_BASE, header, left_size); /* update src_mask */ src_mask = left_size; } else { /* copy header_size bytes of get_start_address to header_address */ memcpy(src_ptr, header, header_size); /* update src_mask */ src_mask += header_size; } /* update src_ptr */ src_ptr = gSn_RX_BASE + src_mask; /* save remote peer information & received data size */ peer_ip = header[0 to 3]; peer_port = header[4 to 5]; get_size = header[6 to 7]; /* if overflow SOCKET RX memory */ if ( (src_mask + get_size) > (gSn_RX_MASK + 1) ) { /* copy upper_size bytes of src_ptr to destination_address */ upper_size = (gSn_RX_MASK + 1) – src_mask; memcpy(src_ptr, destination_addr, upper_size); /* update destination_addr*/ destination_addr += upper_size; /* copy left_size bytes of gSn_RX_BASE to destination_address */ left_size = get_size – upper_size; memcpy(gSn_RX_BASE, destination_addr, left_size); } else { /* copy len bytes of src_ptr to destination_address */ memcpy(src_ptr, destination_addr, get_size); © Copyright 2011WIZnet Co., Inc. All rights reserved. 56 iEthernet W5200 } /* increase Sn_RX_RD as length of len+ header_size */ Sn_RX_RD = Sn_RX_RD + header_size + get_size; /* set RECV command */ Sn_CR = RECV; } © Copyright 2011WIZnet Co., Inc. All rights reserved. 57 iEthernet W5200 Check send data / sending process The size of DATA that the user wants to transmit cannot be larger than Internal TX memory. If it is larger than MTU, it is automatically divided by MTU unit and transmitted. The Sn_DIPR0 is set “255.255.255.255” when user wants to broadcast. { /* first, get the free TX memory size */ FREESIZE: freesize = Sn_TX_FSR0; if (freesize (gSn_TX_MASK + 1) ) { /* copy upper_size bytes of source_address to dst_ptr */ upper_size = (gSn_TX_MASK + 1) – dst_mask; memcpy(src_ptr, destination_addr, upper_size); /* update source_address*/ source_address += upper_size; /* copy left_size bytes of source_address to gSn_TX_BASE */ left_size = send_size – upper_size; memcpy(src_ptr, destination_addr, left_size); else { /* copy len bytes of source_address to dst_ptr */ memcpy(src_ptr, destination_addr, len); } /* increase Sn_TX_WR0 as length of len */ Sn_TX_WR0 += len; © Copyright 2011WIZnet Co., Inc. All rights reserved. 58 iEthernet W5200 /* set SEND command */ Sn_CR = SEND; } Check complete sending / Timeout To transmit the next data, user must check that the prior SEND command is completed. The larger the data size, the more time to complete the SEND command. Therefore, the user must properly divide the data to transmit. The ARPTO can occur when user transmits UDP data. If ARPTO occurs, the UDP data transmission has failed. First method : { /* check SEND command completion */ while(Sn_IR(SENDOK)==‘0’) /* wait interrupt of SEND completion */ { /* check ARPTO */ if (Sn_IR(TIMEOUT)==‘1’) Sn_IR(TIMEOUT)=‘1’; goto Next stage; } Sn_IR(SENDOK) = ‘1’; /* clear previous interrupt of SEND completion */ } Second method : { If (Sn_CR == 0x00) transmission is completed. If (Sn_IR(TIMEOUT bit) == ‘1’) goto next stage; /* In this case, if the interrupt of Socket n-th is activated, interrupt occurs. Refer to Interrupt Register(IR), Interrupt Mask Register (IMR) and Socket n-th Interrupt Register (Sn_IR). */ } Check Finished / SOCKET close If user doesn’t need the communication any more, close the Socket n-th. { /* clear remained interrupts */ Sn_IR = 0x00FF; IR(n) = ‘1’; /* set CLOSE command */ Sn_CR = CLOSE; } © Copyright 2011WIZnet Co., Inc. All rights reserved. 59 iEthernet W5200 5.2.2.2 Multicast The broadcast communication communicates with many and unspecified others. But the multicast communication communicates with many specified others who registered at a multicast-group. Suppose that A, B, and C are registered at a specified multicast-group. If user transmits data to multicast-group (contains A), B and C also receive the DATA for A. To use multicast communication, the destination list registers to multicast-group by using IGMP protocol. The multicast-group consists of ‘Group hardware address,’ ‘Group IP address,’ and ‘Group port number.’ User cannot change the ‘Group hardware address’ and ‘Group IP address.’ But the ‘Group port number’ can be changed. The ‘Group hardware address’ is selected at the assigned range (From “01:00:5e:00:00:00”to “01:00:5e:7f:ff:ff”) and the ‘Group IP address’ is selected in Dclass IP address (From “224.0.0.0” to “239.255.255.255”, please refer to the website; http://www.iana.org/assignments/multicast-addresses). U When selecting, the upper 23bit of 6bytes ‘Group hardware address’ and the 4bytes ‘Group IP address’ must be the same. For example, if the user selects the ‘Group IP address’ to “244.1.1.11,” the ‘Group hardware address’ is selected to “01:00:5e:01:01:0b.” Please refer to the “RFC1112” (http://www.ietf.org/rfc.html). U U In the W5200, IGMP processing to register the multicast-group is internally (automatically) processed. When the user opens the Socket n-th with multicast mode, the “Join” message is internally transmitted. If the user closes it, the “Leave” message is internally transmitted. After the SOCKET opens, the “Report” message is periodically and internally transmitted when the user communicates. The W5200 support IGMP version 1 and version 2 only. If user wants use an updated version, the host processes IGMP directly by using the IPRAW mode SOCKET. SOCKET Initialization Choose one SOCKET for multicast communication among 8 SOCKETS of W5200. Set the Sn_DHAR0 to ‘Multicast-group hardware address’ and set the Sn_DIPR0 to ‘Multicastgroup IP address.’ Then set the Sn_PORT0 and Sn_DPORT0 to ‘Multicast-group port number.’ Set the Sn_MR(P3:P0) to UDP and set the Sn_MR(MULTI) to ‘1.’ Finally, execute OPEN command. If the state of Sn_SR is changed to SOCK_UDP after the OPEN command, the SOCKET initialization is completed. { START: /* set Multicast-Group information */ Sn_DHAR0 = 0x01; /* set Multicast-Group H/W address(01:00:5e:01:01:0b) */ Sn_DHAR1 = 0x00; Sn_DHAR2 = 0x5E; © Copyright 2011WIZnet Co., Inc. All rights reserved. 60 iEthernet W5200 Sn_DHAR3 = 0x01; Sn_DHAR4 = 0x01; Sn_DHAR5 = 0x0B; Sn_DIPR0 = 211; /* set Multicast-Group IP address(211.1.1.11) */ Sn_DIPR1 = 1; Sn_DIPR2 = 1; Sn_DIRP3 = 11; Sn_DPORT0 = 0x0BB8; /* set Multicast-GroupPort number(3000) */ Sn_PORT0 = 0x0BB8; /* set SourcePort number(3000) */ Sn_MR = 0x02 | 0x80; /* set UDP mode & Multicast on Socket n-th Mode Register */ Sn_CR = OPEN; /* set OPEN command */ /* wait until Sn_SR is changed to SOCK_UDP */ if (Sn_SR != SOCK_UDP) Sn_CR = CLOSE; goto START; } Check received data Refer to the “5.2.2.1 Unicast & Broadcast.” Receiving process Refer to the “5.2.2.1 Unicast & Broadcast.” Check send data / Sending Process Since the user sets the information about multicast-group at SOCKET initialization, user does not need to set IP address and port number for destination any more. Therefore, copy the transmission data to internal TX memory and executes SEND command. { /* first, get the free TX memory size */ FREESIZE: freesize = Sn_TX_FSR; if (freesize (gSn_TX_MASK + 1) ) { /* copy upper_size bytes of source_addr to destination_address */ upper_size = (gSn_TX_MASK + 1) – dst_mask; wizmemcpy((0x000000 + source_addr), (0xFE0000 + dst_ptr), upper_size); /* update source_addr*/ source_addr += upper_size; /* copy left_size bytes of source_addr to gSn_TX_BASE */ left_size = len – upper_size; wizmemcpy( source_addr, gSn_TX_BASE, left_size); } else { /* copy len bytes of source_addr to dst_ptr */ wizmemcpy( source_addr, dst_ptr, len); } /* increase Sn_TX_WR as length of len */ Sn_TX_WR0 += send_size; /* set SEND command */ Sn_CR = SEND; } Check complete sending / Timeout Since the host manages all protocol process for data communication, timeout cannot occur. { /* check SEND command completion */ while(S0_IR(SENDOK)==‘0’); /* wait interrupt of SEND completion */ S0_IR(SENDOK) = ‘1’; /* clear previous interrupt of SEND completion */ } Check finished / SOCKET close Refer to the “5.2.2.1 Unicast & Broadcast.” © Copyright 2011WIZnet Co., Inc. All rights reserved. 62 iEthernet W5200 5.2.3 IPRAW IPRAW is data communication using TCP, UDP, and IP layers, which are the lower protocol layers. IPRAW supports IP layer protocol such as ICMP (0x01) and IGMP (0x02) according to the protocol number. The ‘ping’ of ICMP or IGMP v1/v2 is already included in W5200 by hardware logic. But if the user needs, the host can directly process the IPRAW by opening the Socket n-th to IPRAW. In the case of using IPRAW mode, user must set the protocol number field of the IP header to what the user wants to use. The protocol number is defined by IANA. Refer to the web (http://www.iana.org/assignments/protocol-numbers). The protocol number must be U U configured to Sn_PROTO before ‘SOCKET open.’ In IPRAW mode, W5200 does not support TCP (0x06) or UDP (0x11) protocol number. The SOCKET communication of IPRAW mode only allows the communication of an assigned protocol number. The ICMP SOCKET cannot receive unassigned protocol data except assigned protocol data such as IGMP. Figure 13 IPRAW Operation Flow SOCKET Initialization Select the SOCKET and set the protocol number. Then set the Sn_MR(P3:P0) to IPRAW mode and execute ‘OPEN’ command. If the Sn_SR is changed to SOCK_IPRAW after the ‘OPEN’ command, the SOCKET initialization is completed. { START: /* sets Protocol number */ /* The protocol number is used in Protocol Field of IP Header. */ © Copyright 2011WIZnet Co., Inc. All rights reserved. 63 iEthernet W5200 Sn_PROTO = protocol_num; /* sets IP raw mode */ Sn_MR = 0x03; /* sets OPEN command */ Sn_CR = OPEN; /* wait until Sn_SR is changed to SOCK_IPRAW */ if (Sn_SR != SOCK_IPRAW) Sn_CR = CLOSE; goto START; } Check received data Refer to the “5.2.2.1 Unicast & Broadcast.” Receiving process Process the IPRAW data which is received in internal RX memory. The structure of received IPRAW data is as below. Figure 14 The receive IPRAW data Format The IPRAW data consists 6 bytes PACKET-INFO and DATA packet. The PACKET-INFO contains information about the transmitter (IP address) and the length of the DATApacket. The data reception of IPRAW is the same as UDP data reception except processing the port number of the transmitter in UDP PACKET-INFO. Refer to the “5.2.2.1 Unicast & Broadcast.” If the transmitted DATA size is larger than RX memory free size of Socket n-th, user cannot receive that DATA and also cannot receive fragmented DATA. Checks send data / Sending process The size of DATA which user wants to transmit cannot be larger than Internal TX memory and default MTU. The transmission of IPRAW data is the same as transmission of UDP data except setting ‘Destination port number’. Refer to the “5.2.2.1 Unicast & Broadcast.” Complete sending / Timeout Same as UDP, please refer to the “5.2.2 UDP.” Check finished / SOCKET closed Same as UDP, please refer to the “5.2.2 UDP.” © Copyright 2011WIZnet Co., Inc. All rights reserved. 64 iEthernet W5200 5.2.4 MACRAW The MACRAW communication is based on Ethernet MAC, and it can flexibly use upper layer protocol to suit the host’s needs. The MACRAW mode can only be used with a SOCKET. If the user uses the SOCKET in MACRAW mode, not only can it use the SOCKET1~7 in the ‘Hardwired TCP/IP stack’, but it can also be used as a NIC (Network Interface Controller). Therefore, any SOCKET1~7 can be used with ‘Software TCP/IP stack’. Since the W5200 supports ‘Hardwired TCP/IP stack’ and ‘Software TCP/IP stack’, it calls ‘Hybrid TCP/IP stack’. If user wants more SOCKETs beyond the supported 8 SOCKETS, the SOCKET in which the user wants high performance should be utilizing the ‘‘Hardwired TCP/IP stack’, and the others should be using ‘Software TCP/IP stack’ by MACRAW mode. So it overcomes the limited capacity of 8 SOCKETS. The SOCKET of MACRAW mode can process all protocols except using in SOCKET1~7. Since the MACRAW communication is pure Ethernet packet communication (there is no other processing), the MACRAW designer should use the ‘Software TCP/IP stack’ to process the protocol. The MACRAW data should basically contain the 6bytes of ‘Source hardware address’, 6bytes of ‘destination hardware address’ and 2bytes of ‘Ethernet type’ because it is based on Ethernet MAC. Figure 15 MACRAW Operation Flow © Copyright 2011WIZnet Co., Inc. All rights reserved. 65 iEthernet W5200 SOCKET Initialization Select the SOCKET and set the SN_MR(P3:P0) to MACRAW mode. Then execute the ‘OPEN’ command. After the ‘OPEN’ command, if the Sn_SR is successfully changed to ‘SOCK_MACRAW’, the SOCKET initialization is completed. Since all information about communication (Source hardware address, Source IP address, Source port number, Destination hardware address, Destination IP address, Destination port number, Protocol header, etc.) is in the ‘MACRAW data’, there is no more register setting. { START: /* sets MAC raw mode */ S0_MR = 0x04; /* sets OPEN command */ S0_CR = OPEN; /* wait until Sn_SR is changed to SOCK_MACRAW */ if (Sn_SR != SOCK_MACRAW) S0_CR = CLOSE; goto START; } Check received data Refer to the “5.2.2.1 Unicast & Broadcast.” Receiving process Process the MACRAW data of the SOCKET which received it in internal RX memory. The structure of the MACRAW data is as below: Figure 16 The received MACRAW data Format The MACRAW data consists of ‘PACKET-INFO,’ ‘DATA packet’ and 4bytes CRC. The ‘PACKET-INFO’ is the length of the DATA packet. The ‘DATA packet’ consists of 6bytes ‘Destination MAC address,’ 6bytes ‘Source MAC address’ and 2bytes ‘Type,’ 46~1500 bytes ‘Payload.’ The ‘Payload’ of DATA packet consists of Internet protocol such as ARP, IP according to the ‘Type.’ The details of ‘Type’ please refer to the web: (http://www.iana.org/assignments/ethernet-numbers) U U { /* calculate offset address */ src_mask = Sn_RX_RD & gSn_RX_MASK; // src_mask is offset address /* calculate start address(physical address) */ © Copyright 2011WIZnet Co., Inc. All rights reserved. 66 iEthernet W5200 src_ptr = gSn_RX_BASE + src_mask; // src_ptr is physical start address /* get the received size */ len = get_Byte_Size_Of_Data_packet // get Byte size of DATA packet from Packet-INFO /* if overflow SOCKET RX memory */ If((src_mask + len) > (gSn_RX_MASK + 1)) { /* copy upper_size bytes of get_start_address to destination_address */ upper_size = (gSn_RX_MASK + 1) – src_mask; memcpy(src_ptr, dst_addr, upper_size); /* update destination_address */ dst_addr += upper_size; /* copy left_size bytes of gSn_RX_BASE to destination_address */ left_size = len – upper_size; memcpy(src_ptr, dst_addr, left_size); } else { /* copy len bytes of src_ptr to destination_address */ memcpy(src_ptr, dst_addr, len); } /* increase Sn_RX_RD as length of len */ Sn_RX_RD += len; /* extract 4 bytes CRC from internal RX memory and then ignore it */ memcpy(src_ptr, dst_addr, len); /* set RECV command */ Sn_CR = RECV; } If the free size of the internal RX memory is smaller than the MACRAW data, a problem may occasionally occur where some parts of that PACKET-INFO and DATA packet are stored to the internal RX memory. Since the problem occurs as an analysis error for PACKET-INFO, it cannot process the MACRAW data correctly. The closer the internal RX memory is to being full, the higher the probability is for an error to occur. This problem can be resolved if user allows some loss of the MACRAW data. The solution is as follows: ▪ Process the internal RX memory as fast as possible to prevent that it closes to full. ▪ Reduce the receiving load by reception only its MACRAW data by setting the MF (MAC Filter) bit of S0_MR in sample code of SOCKET initialization. © Copyright 2011WIZnet Co., Inc. All rights reserved. 67 iEthernet W5200 { START: /* sets MAC raw mode with enabling MAC filter */ S0_MR = 0x44; /* sets OPEN command */ S0_CR = OPEN; /* wait until Sn_SR is changed to SOCK_MACRAW */ if (Sn_SR != SOCK_MACRAW) S0_CR = CLOSE; goto START; } ▪If the free size of the internal RX memory is smaller than ‘1528 - Default MTU(1514)+PACKET INFO(2) + DATA packet(8) + CRC(4)’, close the SOCKET and process all received data. Then reopen the SOCKET. After closing the SOCKET, the received MACRAW data from closing time can be lost. { /* check the free size of internal RX memory */ if((Sn_RXMEM_SIZE(0) * 1024) - Sn_RX_RSR0(0) < 1528) { recved_size = Sn_RX_RSR0(0); Sn_CR0 = CLOSE; /* backup Sn_RX_RSR */ /* SOCKET Closed */ while(Sn_SR != SOCK_CLOSED); /* wait until SOCKET is closed */ /* process all data remained in internal RX memory */ while(recved_size> 0) {/* calculate offset address */ src_mask = Sn_RX_RD&gSn_RX_MASK; // src_mask is offset address /* calculate start address(physical address) */ src_ptr = gSn_RX_BASE + src_mask; // src_ptr is physical start address /* if overflow SOCKET RX memory */ If((src_mask + len) > (gSn_RX_MASK + 1)) { /* copy upper_size bytes of get_start_address to destination_address */ upper_size = (gSn_RX_MASK + 1) – src_mask; memcpy(src_ptr, dst_addr, upper_size); /* update destination_address */ dst_address += upper_size; /* copy left_size bytes of gSn_RX_BASE to destination_address */ left_size = len – upper_size; memcpy(src_ptr, dst_addr, left_size); } © Copyright 2011WIZnet Co., Inc. All rights reserved. 68 iEthernet W5200 else { /* copy len bytes of src_ptr to destination_address */ memcpy(src_ptr, dst_addr, len); } /* increase Sn_RX_RD as length of len */ Sn_RX_RD += len; /* extract 4 bytes CRC from internal RX memory and then ignore it */ memcpy(src_ptr, dst_addr, len); /* calculate the size of remained data in internal RX memory*/ recved_size = recved_size – 2 – len – 4; } /* Reopen the SOCKET */ /* sets MAC raw mode with enabling MAC filter */ S0_MR = 0x44; /* or S0_MR = 0x04 */ /* sets OPEN command */ S0_CR = OPEN; /* wait until Sn_SR is changed to SOCK_MACRAW */ while (Sn_SR != SOCK_MACRAW); } else /* process normally the DATA packet from internal RX memory */ {/* This block is same as the code of “Receiving process” stage*/ } } Check send data / sending process The size of the data which the user wants to transmit cannot be larger than the internal TX memory and default MTU. The host generates the MACRAW data in the same format as the “Receiving process” data packet, and transmits it. At this time, if the size of the generated data is smaller than 60bytes, the transmitted Ethernet packet internally fills to 60bytes by “Zero padding” and then it is transmitted. { /* first, get the free TX memory size */ FREESIZE: freesize = S0_TX_FSR; if (freesize (gSn_TX_MASK + 1) ) {/* copy upper_size bytes of source_addr to destination_address */ upper_size = (gSn_TX_MASK + 1) – dst_mask; memcpy(src_ptr, dst_addr, upper_size); /* update source_addr*/ source_addr += upper_size; /* copy left_size bytes of source_addr to gSn_TX_BASE */ left_size = len – upper_size; memcpy(src_ptr, dst_addr, left_size); } else {/* copy len bytes of source_addr to destination_address */ memcpy(src_ptr, dst_addr, len); } /* increase Sn_TX_WR as length of len */ Sn_TX_WR += send_size; /* set SEND command */ S0_CR = SEND; } Check complete sending Since the host manages all protocol processors to communicate, the timeout can notoccur. { /* check SEND command completion */ while(S0_IR(SENDOK)==‘0’); /* wait interrupt of SEND completion */ S0_IR(SENDOK) = ‘1’; /* clear previous interrupt of SEND completion */ } Check finished / SOCKET close Refer to the “5.2.2.1 Unicast & Broadcast.” © Copyright 2011WIZnet Co., Inc. All rights reserved. 70 iEthernet W5200 6 External Interface For the communication with MCU, W5200 provides SPI I/F modes. For the communication with Ethernet PHY, MII is used. 6.1 SPI (Serial Peripheral Interface) mode Serial Peripheral Interface Mode uses only four pins for data communication. Four pins are nSCS, SCLK, MOSI, and MISO. Figure 17 SPI Interface 6.2 Device Operations W5200 is controlled by a set of instruction that is sent from a external host , commonly referred to as the SPI Master. The SPI Master communicates with W5200 via the SPI bus, which is composed of four signal lines: Slave Chip Select (nSCS), Serial Clock (SCLK), MOSI (Master Out Slave In) and MISO (Master In Slave Out). The SPI protocol defines four modes for its operation (Mode 0-3). Each mode differs according to the SCLK polarity and phase - how the polarity and phase control the flow of data on the SPI bus. The W5200 operates as SPI Slave device and supports the most common modes - SPI Mode 0 and 3. The only difference between SPI Mode 0 and 3 is the polarity of the SCLK signal at the inactive state. With SPI Mode 0 and 3, data is always latched in on the rising edge of SCLK and always output on the falling edge of SCLK. © Copyright 2011WIZnet Co., Inc. All rights reserved. 71 iEthernet W5200 6.3 Process of using general SPI Master device 1. Configure Input/Output direction on SPI Master Device pins. 2. Configure nSCS as ‘High’ on inactive 3. Write target address for transmission on SPDR register (SPI Data Register). 4. Write OP code and data length for transmission on SPDR register. 5. Write desired data for transmission on SPDR register. 6. Configure nSCS as ‘Low’ (data transfer start) 7. Wait for reception complete 8. If all data transmission ends, configure nSCS as ‘High’ Figure 18 W5200 SPI Frame Format Figure 19 Address and OP/DATA Length Sequence Diagram © Copyright 2011WIZnet Co., Inc. All rights reserved. 72 iEthernet W5200 READ Processing The READ Processing Sequence Diagram is shown in Figure 20.The READ processing is entered by driving nSCS low, followed by the Address, the OP code, the Data Length and the Data byte on MOSI. The Address, the OP/Data Length Sequence Diagram and the Data are shown in Figure 19. The OP code (OP) is defined type of the READ OP and WIRTE OP. On OP = 0, the read operation is selected. Otherwise, the write operation is selected. In W5200 SPI mode, the Byte READ processing and the burst READ processing are provided. The Byte READ processing takes 4 instructions which is consist of the 16-bit Address, the 1-bit OP code(0x0), the 15-bit Data length and 8-bit Data. Otherwise, The Burst READ processing only takes the Data instruction after the setting of the burst read processing. To distinguish between the Byte READ and the burst READ processing, the Data length is used. If the Data length is ‘1,’ the Byte READ processing is operated. Otherwise, the Burst READ Processing is operated when the Data length is more than two. The MISO pin should be selected by driving MISO low after the falling edge of the nSCS. Figure 20 READ Sequence /* Pseudo Code for Read data of 8bit per packet */ #define data_read_command0x00 uint16 addr; int16 data_len; //address : 16bits //data_length :15bits uint8 data_buf[];// array for data SpiSendData(); //send data from MCU to W5200 SpiRecvData(); //Receive data from W5200 to MCU { ISR_DISABLE();// Interrupt Service Routine disable CSoff();// CS=0, SPI start © Copyright 2011WIZnet Co., Inc. All rights reserved. 73 iEthernet W5200 //SpiSendData SpiSendData(((addr+idx) & 0xFF00) >> 8); //Address byte 1 SpiSendData((addr+idx) & 0x00FF); //Address byte 2 // data write command + data length upper 7bits SpiSendData((data_read_command| ((data_len& 0x7F00) >> 8))); // data length bottom 8bits SpiSendData((data_len& 0x00FF)); //Read data:On data_len> 1, Burst Read Processing Mode. for(int idx = 0; idx> 8);//Address byte 1 SpiSendData((addr+idx) & 0x00FF);//Address byte 2 // data write command + data length upper 7bits SpiSendData((data_write_command | ((data_len& 0x7F00) >> 8))); // data length bottom 8bits SpiSendData((data_len& 0x00FF)); //Write data: On data_len> 1, Burst Write Processing Mode. for(int idx = 0; idx
