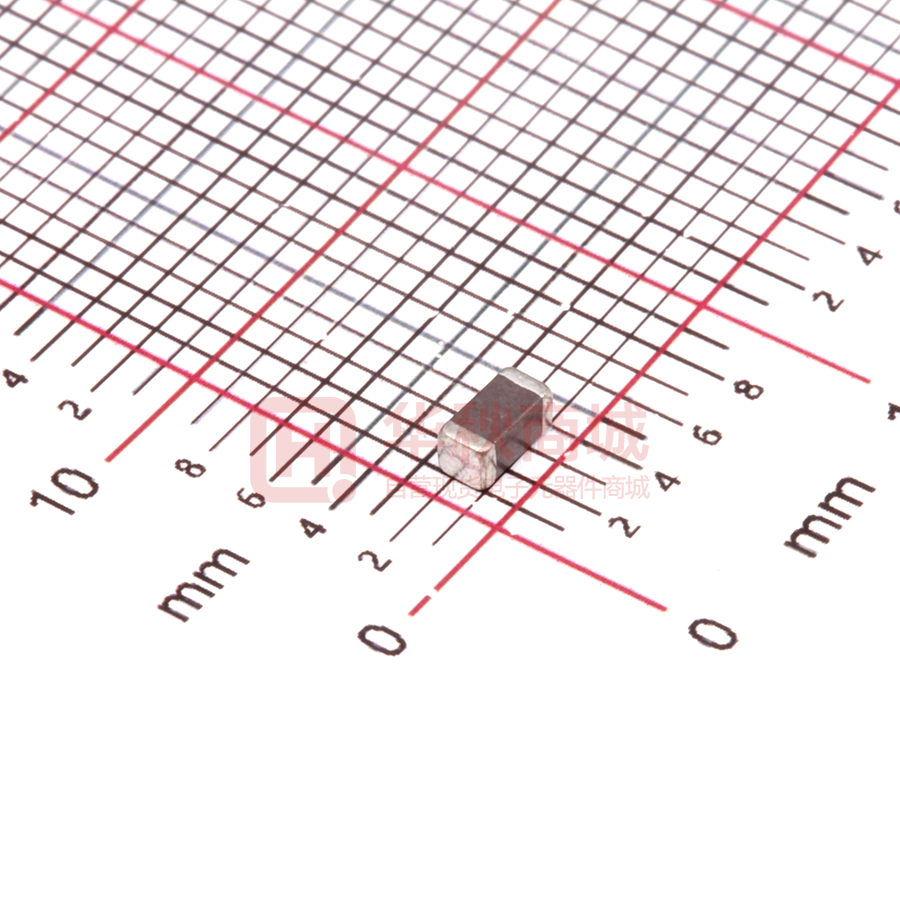

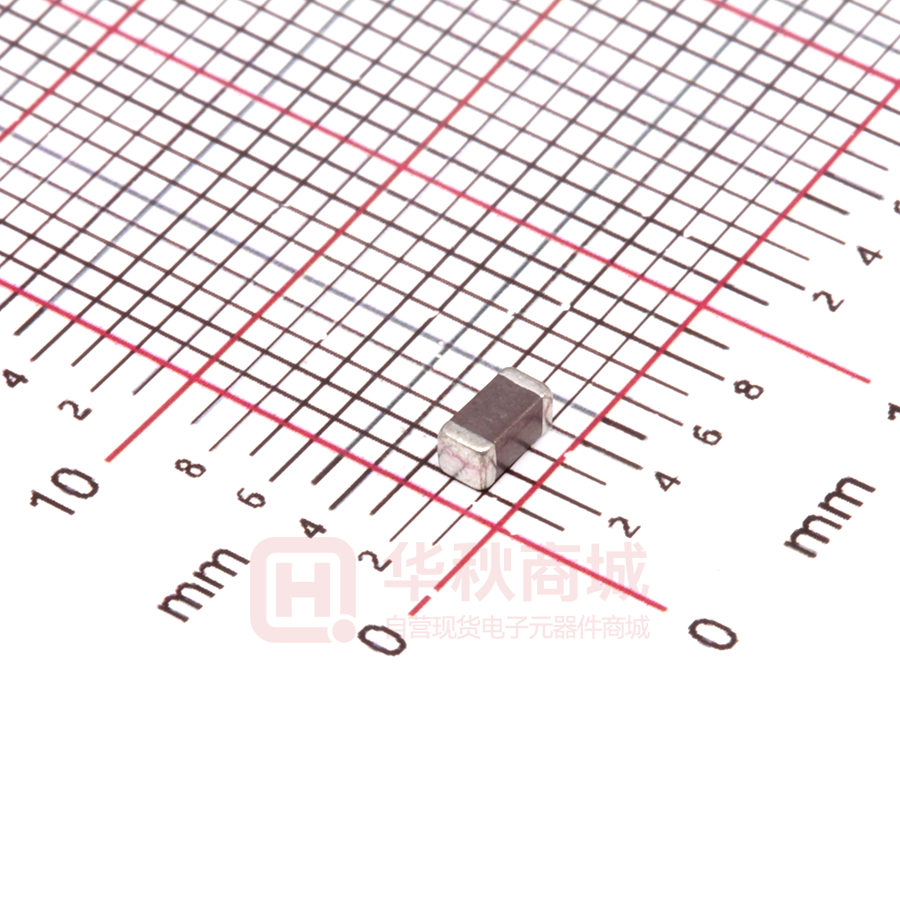

CC1206KKX7R6BB106

DATA SHEET SURFACE-MOUNT CERAMIC MULTILAYER CAPACITORS Mid-voltage NP0/X7R 100 V TO 630 V 0.47 pF to 2.2 µF RoHS compliant & Halogen Free Product Specification – June 11, 2021 V.24  Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 100 V to 630 V SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP This specification describes Midvoltage NP0/X7R series chip capacitors with lead-free terminations. CTC & 12NC APPLICATIONS PCs, Hard disk, Game PCs Power supplies, Charger LCD panel ADSL, Modem FEATURES Supplied in tape on reel Nickel-barrier end termination RoHS compliant MSL class MSL 1 Halogen Free compliant 2 22 All part numbers are identified by the series, size, tolerance, TC material, packing style, voltage, process code, termination and capacitance value. YAGEO BRAND ordering code GLOBAL PART NUMBER (PREFERRED) CC XXXX X X XXX X (1) (2) (3) (4) (5) B X XXX (6) (7) (1) SIZE – INCH BASED (METRIC) 0201 (0603) / 0402 (1005) / 0603 (1608) / 0805 (2012) / 1206 (3216) / 1210 (3225) 1808 (4520) / 1812 (4532) / 2220 (5750) (2) TOLERANCE C = ± 0.25 pF D = ± 0.5 pF F = ± 1% G = ± 2% J = ± 5% K = ± 10% M = ± 20% (3) PACKING STYLE R = Paper/PE taping reel; Reel 7 inch K = Blister taping reel; Reel 7 inch P = Paper/PE taping reel; Reel 13 inch F = Blister taping reel; Reel 13 inch (4) TC MATERIAL NPO X7R (5) RATED VOLTAGE 0 = 100 V A = 200 V Y = 250 V B = 500 V Z = 630 V (6) PROCESS N = NP0 B = Class 2 MLCC (7) CAPACITANCE VALUE 2 significant digits+number of zeros The 3rd digit signifies the multiplying factor, and letter R is decimal point Example: 121 = 12 x 101 = 120 pF www.yageo.com Jun. 11, 2021 V.24 3 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 22 100 V to 630 V CONSTRUCTION The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and finally covered with a layer of plated tin (NiSn). The terminations are lead-free. A cross section of the structure is shown in Fig.1. terminations electrodes MLB457 ceramic material Fig. 1 Surface mounted multilayer ceramic capacitor construction DIMENSION OUTLINES Table 1 For outlines see fig. 2 TYPE L1 (mm) W (mm) T (MM) L2 / L3 (mm) L4 (mm) min. max. min. 0201 0.6 ± 0.03 0.3± 0.03 0.3± 0.03 0.10 0.20 0.20 0402 1.0 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.15 0.30 0.40 0603 1.6 ± 0.10 0.8 ± 0.10 0.8 ± 0.10 0.20 0.60 0.40 2.0 ± 0.10 1.25 ± 0.10 2.0 ± 0.20 1.25 ± 0.20 0805 1206 3.2 ± 0.15 1.6 ± 0.15 3.2 ± 0.30 1.6 ± 0.20 3.2 ± 0.30 1.6 ± 0.30 3.2 ± 0.20 2.5 ± 0.20 3.2 ± 0.30 2.5 ± 0.20 4.5 ± 0.40 2.0 ± 0.30 1210 1808 W T L2 0.6 ± 0.10 0.85 ± 0.10 For dimension see Table 1 L4 L1 0.25 0.75 L3 MBB211 0.70 1.25 ± 0.20 Fig. 2 Surface mounted multilayer ceramic capacitor dimension 0.6 ± 0.10 0.85 ± 0.10 1.25 ± 0.20 0.25 0.75 1.40 0.25 0.75 1.40 0.25 0.75 2.20 0.25 0.75 2.20 0.25 0.75 3.40 1.6 ± 0.20 1.6 ± 0.30 0.85 ± 0.10 1.25 ± 0.20 1.6 ± 0.20 2.0 ± 0.20 1.25 ± 0.20 0.85 ± 0.10 1812 4.5 ± 0.40 3.2 ± 0.30 1.25 ± 0.20 1.60 ± 0.20 2020 5.7 ± 0.40 5.0 ± 0.30 0.85 ± 0.10 2.0 ± 0.20 1.25 ± 0.20 1.25 ± 0.20 1.6 1.6 ± ± 0.20 0.20 www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 100 V to 630 V 4 22 CAPACITANCE RANGE & THICKNESS FOR NP0 Table 2 Sizes from 0201 to 0805 CAP. 0201 0402 0603 0805 100V 100V 100 V 200 V 250 V 100 V 200 V 250 V 500 V 630V 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.22 pF 0.47 pF 0.56 pF 0.68 pF 0.82 pF 1.0 pF 1.2 pF 1.5 pF 1.8 pF 2.2 pF 2.7 pF 3.3 pF 3.9 pF 4.7 pF 5.6 pF 6.8 pF 8.2 pF 10 pF 12 pF 15 pF 18 pF 22 pF 27 pF 33 pF 39 pF 47 pF 56 pF 68 pF 82 pF 100 pF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 100 V to 630 V 5 22 CAPACITANCE RANGE & THICKNESS FOR NP0 Table 3 Sizes from 0603 to 0805 (continued) CAP. 0402 0603 100 V 100 V 0805 200 V 250 V 100 V 200 V 250 V 500 V 630 V 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 120 pF 150 pF 180 pF 220 pF 270 pF 330 pF 390 pF 0.8± 0.1 0.5± 0.05 0.8± 0.1 0.6± 0.1 470 pF 0.85± 0.1 0.85± 0.1 560 pF 680 pF 820 pF 1.0 nF 1.2 nF 0.8± 0.1 1.5 nF 0.85± 0.1 1.8 nF 2.2 nF 1.25± 0.2 2.7 nF 1.25± 0.2 3.3 nF 3.9 nF 4.7 nF 1.25± 0.2 5.6 nF 6.8 nF 8.2 nF 10 nF 12 nF 15 nF 18 nF 22 nF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors CAPACITANCE RANGE & THICKNESS FOR NP0 Table 4 Sizes from 1206 to 1210 1206 CAP. 100 V 200 V 250 V 0.6± 0.1 0.6± 0.1 0.6± 0.1 Mid-voltage NP0/X7R 100 V to 630 V 6 22 1210 500 V 630 V 0.6± 0.1 1.25± 0.2 100 V 200 V 250 V 500 V 630 V 0.47 pF 0.56 pF 0.68 pF 0.82 pF 1.0 pF 1.2 pF 1.5 pF 1.8 pF 2.2 pF 2.7 pF 3.3 pF 3.9 pF 4.7 pF 5.6 pF 6.8 pF 8.2 pF 10 pF 12 pF 15 pF 18 pF 22 pF 27 pF 33 pF 39 pF 47 pF 56 pF 68 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 82 pF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors CAPACITANCE RANGE & THICKNESS FOR NP0 Table 5 Sizes from 1206 to 1210 (continued) CAP. 1206 100 V 200 V 250 V 500 V 0.6± 0.1 0.6± 0.1 0.6± 0.1 Mid-voltage NP0/X7R 100 V to 630 V 7 22 1210 630 V 100 V 200 V 250 V 500 V 630 V 100 pF 120 pF 150 pF 180 pF 220 pF 270 pF 330 pF 1.25± 0.2 390 pF 470 pF 560 pF 1.25± 0.2 0.6± 0.1 680 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 820 pF 1.0 nF 0.85± 0.1 1.2 nF 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.5 nF 1.8 nF 1.25± 0.2 2.2 nF 2.7 nF 1.25± 0.2 1.25± 0.2 3.3 nF 3.9 nF 4.7 nF 0.85± 0.1 5.6 nF 6.8 nF 8.2 nF 10 nF 1.60± 0.2 1.25± 0.2 1.60± 0.2 12 nF 15 nF 18 nF 22 nF 1.6± 0.2 2.0± 0.2 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 8 22 100 V to 630 V CAPACITANCE RANGE & THICKNESS FOR NP0 Table 6 Sizes 1812 1812 CAP. 100 V 200 V 250 V 500 V 630V 10 pF 12 pF 15 pF 18 pF 22 pF 27 pF 33 pF 39 pF 47 pF 56 pF 68 pF 82 pF 100 pF 120 pF 150 pF 180 pF 220 pF 270 pF 1.25± 0.2 330 pF 390 pF 470 pF 1.25± 0.2 560 pF 680 pF 820 pF 1 nF 1.2 nF 1.25± 0.2 1.5 nF 1.25± 0.2 1.8 nF 2.2 nF 2.7 nF 1.25± 0.2 3.3 nF 3.9 nF 4.7 nF 5.6 nF 6.8 nF 8.2 nF 10 nF 12 nF 15 nF 18 nF 22 nF 1.6± 0.2 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 9 22 100 V to 630 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 7 Sizes from 0402 to 0805 CAP. 0402 0603 100 V 100 V 0805 200V/250V 100 V 200 V 250 V 500 V 630 V 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 100 pF 150 pF 220 pF 330 pF 470 pF 680 pF 1.0 nF 0.5± 0.05 1.5 nF 0.6± 0.1 2.2 nF 3.3 nF 0.8± 0.1 0.8± 0.1 4.7 nF 6.8 nF 10 nF 15 nF 22 nF 1.25± 0.2 1.25± 0.2 0.85± 0.1 1.25± 0.2 33 nF 1.25± 0.2 47 nF 68 nF 100 nF 150 nF 1.25± 0.2 220 nF 330 nF 470 nF 1 µF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For special ordering code, please contact local sales force before order 4. For product with 5% tolerance, please contact local sales force before order www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors CAPACITANCE RANGE & THICKNESS FOR X7R Table 8 Sizes from 1206 to 1210 1206 CAP. 100 V 200 V 250 V 0.85± 0.1 0.85± 0.1 500 V Mid-voltage NP0/X7R 100 V to 630 V 10 22 1210 630 V 100 V 200 V 250 V 0.85± 0.1 0.85± 0.1 500 V 630V 100 pF 150 pF 220 pF 330 pF 470 pF 680 pF 1.0 nF 1.5 nF 2.2 nF 3.3 nF 1.25± 0.2 1.25± 0.2 0.85± 0.1 4.7 nF 6.8 nF 10 nF 15 nF 1.6± 0.2 33 nF 1.25± 0.2 47 nF 1.25± 0.2 1.6± 0.2 1.6± 0.2 2.0± 0.2 68 nF 150 nF 1.25± 0.2 0.85± 0.1 22 nF 100 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.6± 0.2 1.6± 0.2 220 nF 1.25± 0.2 2.0± 0.2 1.25± 0.2 330 nF 470 nF 680 nF 1.6± 0.2 1 µF 2.0± 0.2 2.2 µF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before order www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors CAPACITANCE RANGE & THICKNESS FOR X7R Table 9 Sizes from 1808 to 1812 1812 CAP. 100 V 200 V 250 V 0.85± 0.1 0.85± 0.1 500 V Mid-voltage NP0/X7R 100 V to 630 V 11 22 2020 630 V 630 V 100 pF 150 pF 220 pF 330 pF 470 pF 680 pF 1.0 nF 1.5 nF 2.2 nF 3.3 nF 4.7 nF 6.8 nF 10 nF 0.85± 0.1 1.35± 0.2 1.25± 0.2 15 nF 22 nF 33 nF 47 nF 1.6± 0.2 68 nF 1.25± 0.2 100 nF 150 nF 220 nF 1.25± 0.2 1.6± 0.2 1.25± 0.2 330 nF 2.0± 0.2 1.6± 0.2 1.6± 0.2 470 nF 680 nF 1.6± 0.2 1 µF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before order www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 100 V to 630 V 12 22 THICKNESS CLASSES AND PACKING QUANTITY Table 10 QUANTITY PER REEL SIZE CODE THICKNESS CLASSIFICATION PACKING CODE. 7 INCH 13 INCH Ø 180 MM / 7 INCH Ø 330 MM / 13 INCH TAPE WIDTH Paper Blister Paper Blister 0201 0.3 ± 0.03 mm R P 8 mm 15,000 --- 50,000 --- 0402 0.5 ± 0.05 mm R P 8 mm 10,000 --- 50,000 --- 0603 0.8 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 0.6 ± 0.1 mm R P 8 mm 4,000 --- 20,000 --- 0.8 / 0.85 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 1.25 ± 0.2 mm K F 8 mm --- 3,000 --- 10,000 0.6 ± 0.1 mm R P 8 mm 4,000 --- 20,000 --- 0.8 / 0.85 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 1.00 / 1.15 ± 0.1 mm K F 8 mm --- 3,000 --- 10,000 1.25 ± 0.2 mm K F 8 mm --- 3,000 --- 10,000 1.6 ± 0.15 mm K F 8 mm --- 2,500 --- 10,000 1.6 ± 0.2 mm K F 8 mm --- 2,000 --- 8,000 0.6 / 0.7 ± 0.1 mm K F 8 mm --- 4,000 --- 15,000 0.85 ± 0.1 mm K F 8 mm --- 4,000 --- 10,000 1.15 ± 0.1 mm K F 8 mm --- 3,000 --- 10,000 1.15 ± 0.15 mm K F 8 mm --- 3,000 --- 10,000 1.25 ± 0.2 mm K 8 mm --- 3,000 --- --- 1.5 ± 0.1 mm K 8 mm --- 2,000 --- --- 1.6 / 1.9 ± 0.2 mm K 8 mm --- 2,000 --- --- 8 mm --- 2,000 1,000 --- --- 8 mm --- 1,000 500 --- --- 0805 1206 1210 2.0 ± 0.2 mm 2.5 ± 0.2 mm 1808 K K 1.15 ± 0.15 mm K 12 mm --- 3,000 --- --- 1.25 ± 0.2 mm K 12 mm --- 3,000 --- --- 1.35 ± 0.15 mm K 12 mm --- 2,000 --- --- 1.5 ± 0.1 mm K 12 mm --- 2,000 --- --- 1.6 ± 0.2 mm K 12 mm --- 2,000 --- 8,000 F 2.0 ± 0.2 mm K 12 mm --- 2,000 --- --- 0.6 / 0.85 ± 0.1 mm K 12 mm --- 2,000 --- --- 1.15 ± 0.1 mm K 12 mm --- 1,000 --- --- 1.15 ± 0.15 mm K 12 mm --- 1,000 --- --- 1.25 ± 0.2 mm K 12 mm --- 1,000 --- --- 1.35 ± 0.15 mm K 12 mm --- 1,000 --- --- 1.5 ± 0.1 mm K 12 mm --- 1,000 --- --- 1.6 ± 0.2 mm K 12 mm --- 1,000 --- --- 2.0 ± 0.2 mm K 12 mm --- 1,000 --- --- 2.5 ± 0.2 mm K 12 mm --- 500 --- --- 2.0 ± 0.2 mm K 12 mm --- 1000 --- --- 1812 2220 www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 13 22 100 V to 630 V PAPER/PE TAPE SPECIFICATION P0 D0 T P2 E F cover tape W B0 K0 A0 P1 MBG251-1 Fig. 3 Paper/PE tape Table 11 Dimensions of paper/PE tape for relevant chip size; see Fig.3 SIZE Unit: mm SYMBOL CODE A0 B0 W E F P0 (1) P1 P2 Ø D0 K0 T 0.38 ± 0.05 (0.47 / 0.55)±0.10 0201 0.39 ± 0.06 0.70 ± 0.06 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.55 ± 0.03 0402 0.70 ± 0.15 1.21 ± 0.12 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.50 +0.1 /-0 (0.75 / 0.60)±0.10 (0.85 / 0.70)±0.10 0603 1.05 ± 0.14 1.86 ± 0.13 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)±0.10 (1.15 / 1.05 / 0.85)±0.10 0805 1.50 ± 0.15 2.26 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)±0.10 (1.15 / 1.05 / 0.85)±0.10 1206 1.90 ± 0.15 3.50 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (0.95 / 0.75)±0.10 (1.05 / 0.85)± 0.10 NOTE 1. P0 pitch tolerance over any 10 pitches is 0.2 mm www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 14 22 100 V to 630 V BLISTER TAPE SPECIFICATION P0 D0 K0 P2 E F cover tape W B0 A0 T2 SCM015 D1 P1 K0: so chosen that the orientation of the component cannot change For W = 8 mm: T2 = 3.5 mm max. For W = 12 mm: T2 = 6.5 mm max. direction of unreeling Fig. 4 Blister tape Table 12 Dimensions of blister tape for relevant chip size; see Fig.4 SYMBOL SIZE A0 B0 CODE Unit: mm K0 W E F Min. Max. Min. Max. Min. Max. Ø D0 Ø D1 P0 (2) P1 P2 T2 Min. Min. Max. 0805 1.29 1.65 2.09 2.60 1.25 1.62 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.30 1.67 1206 1.65 2.12 3.30 3.75 1.22 2.15 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.27 2.20 1210 2.55 3.02 3.31 3.88 0.97 2.92 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.02 2.97 1808 2.05 2.55 4.80 5.45 1.30 2.45 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.35 2.50 1812 3.35 3.75 4.70 5.33 0.70 2.40 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 8.0 ± 0.10 2.0 ± 0.05 0.75 2.45 NOTE 1. Typical capacitor displacement in pocket 2. P0 pitch tolerance over any 10 pitches is ±0.2 mm www.yageo.com Jun. 11, 2021 V.24 Product specification Surface-Mount Ceramic Multilayer Capacitors Mid-voltage NP0/X7R 100 V to 630 V 15 22 REEL SPECIFICATION W2 C N A HBK039 W1 Fig. 5 Reel Table13 Reel dimensions; see Fig.5 TAPE WIDTH SYMBOL Unit: mm A N C W1 W2max. 8 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 9.4 ± 1.5 14.4 8 (Ø 330 mm/13") 330 ± 1.0 100 ± 1.0 13 +0.50/-0.20 9.0 ± 0.2 14.4 12 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 13.4 ± 1.5 18.4 P ROPERTIES OF REEL Material: polystyrene Surface resistance:
