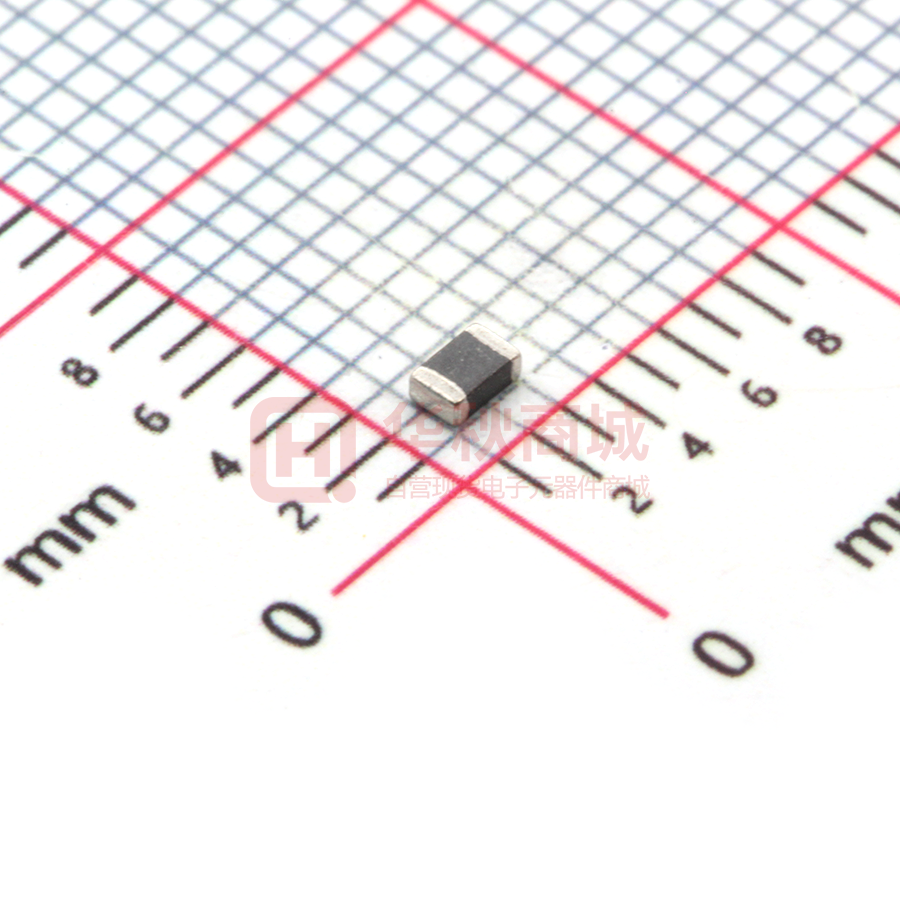

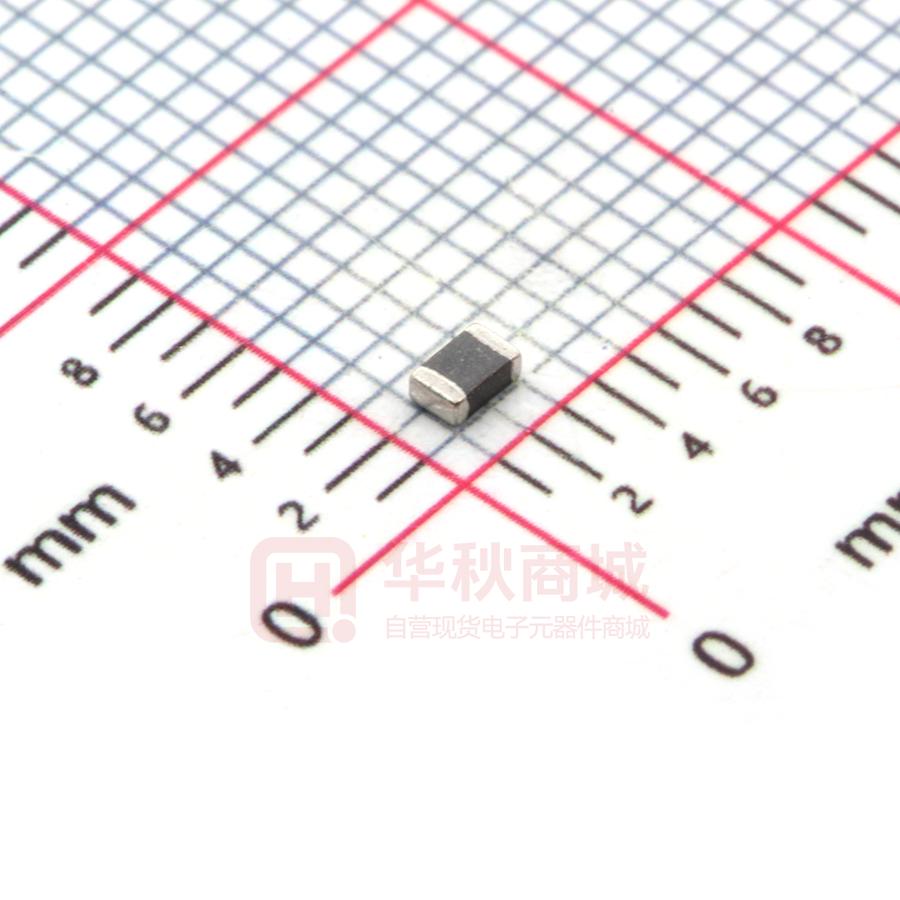

SZ2012G102TF

Multilayer Chip Ferrite Bead – SZ Series Operating Temp. : -55℃~+125℃ FEATURES Internal silver printed layers and magnetic shielded structures to minimize crosstalk It has sharp impedance characteristics at desirable frequency and does not affect the signal frequency Three types material and wide range of impedance values for various applications ● ● ● APPLICATIONS  Noise suppression for high speed signal of electric equipments such as computers and peripheral devices, DVD cameras, LCD TVs, communication equipments, OA equipments, etc. PRODUCT IDENTIFICATION SZ 1608 G ② ③ ① ① 121 T F ④ ⑤ ⑥ ② Type Chip Ferrite Bead For High Speed SZ ④ ③ External Dimensions (L×W) (mm) 0603 [0201] 0.6×0.3 1005 [0402] 1608 [0603] 1.0×0.5 1.6×0.8 2012 [0805] 2.0×1.25 Material Code F, G, K,Q Nominal Impedance Example Nominal Value 300 30Ω 121 120Ω 102 1000Ω ⑥ ⑤ Hazardous Substance Free Products F Packing T Tape & Reel SHAPE AND DIMENSIONS Unit: mm [inch] 规格特性 Sunlord Type L W T a SZ0603 [0201] 0.6±0.05 [.024±.002] 0.3±0.05 [.012±.002] 0.3±0.05 [.012±.002] 0.15±0.05 [.006±.002] SZ1005 [0402] 1.0±0.15 [.039±.006] 0.5±0.15 [.020±.006] 0.5±0.15 [.020±.006] 0.25±0.1 [.010±.004] SZ1608 [0603] 1.6±0.15 [.063±.006] 0.8±0.15 [.031±.006] 0.8±0.15 [.031±.006] 0.3±0.2 [.012±.008] SZ2012 [0805] 2.0 (+0.3, -0.1) [.079 (+.012, -.004)] 1.25±0.2 [.049±.008] 0.85±0.2 [.033±.008] 0.5±0.3 [.020±.012] Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SZ0603 TYPE Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ0603F330TF SZ0603F560TF SZ0603F800TF SZ0603G100TF SZ0603G220TF SZ0603G330TF SZ0603G470TF SZ0603G560TF SZ0603G800TF SZ0603G121TF SZ0603K100TF SZ0603K220TF SZ0603K470TF SZ0603K750TF SZ0603K121TF SZ0603Q750TF SZ0603Q121TF SZ0603Q241TF SZ0603Q471TF SZ0603Q601TF Ω Z 33±25% 56±25% 80±25% 10±25% 22±25% 33±25% 47±25% 56±25% 80±25% 120±25% 5~15 22±25% 47±25% 75±25% 120±25% 75±25% 120±25% 240±25% 470±25% 600±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.85 1.05 1.40 0.25 0.45 0.55 0.70 1.00 1.30 1.50 0.40 0.50 0.70 1.00 1.50 0.40 0.50 0.80 1.50 1.70 mA Ir 150 100 100 200 200 150 150 100 100 100 300 200 200 200 100 300 250 200 215 200 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1005F050TF SZ1005F100TF SZ1005F330TF SZ1005G050TF SZ1005G300TF SZ1005G750TF SZ1005G121TF SZ1005G221TF SZ1005K750TF SZ1005K121TF SZ1005K221TF SZ1005K301TF SZ1005K421TF SZ1005K601TF SZ1005K102TF SZ1005K152TF SZ1005K182TF Ω Z 0~10 5~15 33±25% 0~15 30±25% 75±25% 120±25% 220±25% 75±25% 120±25% 220±25% 300±25% 420±25% 600±25% 1000±25% 1500±25% 1800±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.10 0.20 0.40 0.15 0.15 0.30 0.40 0.70 0.30 0.40 0.70 0.80 1.00 1.10 1.20 1.40 1.80 mA Ir 300 300 300 600 600 600 400 200 600 400 200 200 150 100 100 100 50 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1608F050TF SZ1608F100TF SZ1608F220TF Ω Z 0~10 5~15 22±25% MHz Freq. 100 100 100 Ω DCR 0.20 0.25 0.35 mA Ir 500 500 500 mm [inch] T 0.3±0.05 [.012±.002] SZ1005 TYPE 0.5±0.15 [.020±.006] SZ1608 TYPE Sunlord Specifications subject to change without notice. Please check our website for latest information. 0.8±0.15 [.031±.006] Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SZ1608 TYPE Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1608F470TF SZ1608F750TF SZ1608F121TF SZ1608G050TF SZ1608G220TF SZ1608G600TF SZ1608G121TF SZ1608G221TF SZ1608G331TF SZ1608G471TF SZ1608G601TF SZ1608G102TF SZ1608K121TF SZ1608K221TF SZ1608K331TF SZ1608K421TF SZ1608K471TF SZ1608K601TF SZ1608K102TF SZ1608K152TF SZ1608K202TF SZ1608K222TF SZ1608K252TF SZ1608K272TF Ω Z 47±25% 75±25% 120±25% 0~15 22±25% 60±25% 120±25% 220±25% 330±25% 470±25% 600±25% 1000±25% 120±25% 220±25% 330±25% 420±25% 470±25% 600±25% 1000±25% 1500±25% 2000±25% 2200±25% 2500±25% 2700±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.55 0.70 0.90 0.10 0.20 0.30 0.45 0.55 0.70 0.80 1.10 1.20 0.40 0.45 0.50 0.55 0.55 0.60 0.80 0.80 1.00 1.00 1.20 1.40 mA Ir 300 300 200 800 800 600 600 500 500 400 200 150 600 500 500 400 400 200 200 200 200 200 200 200 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ2012G050TF SZ2012G600TF SZ2012G121TF SZ2012G221TF SZ2012G421TF SZ2012G601TF SZ2012G102TF SZ2012K121TF SZ2012K221TF SZ2012K301TF SZ2012K601TF SZ2012K102TF SZ2012K152TF SZ2012K222TF SZ2012K252TF SZ2012K272TF Ω Z 0~15 60±25% 120±25% 220±25% 420±25% 600±25% 1000±25% 120±25% 220±25% 300±25% 600±25% 1000±25% 1500±25% 2200±25% 2500±25% 2700±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.07 0.20 0.25 0.30 0.40 0.45 0.50 0.20 0.25 0.30 0.35 0.40 0.45 0.60 0.70 0.80 mA Ir 1000 800 600 600 600 600 500 600 600 600 600 500 200 200 200 200 mm [inch] T 0.8±0.15 [.031±.006] SZ2012 TYPE 0.85±0.2 [.033±.008] ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS F, G, K Material Comparison 15000 SZ1608F121TF Impedance(Ω) 12000 9000 SZ1608G121TF 6000 SZ1608K121TF 3000 0 1 10 100 1000 3000 Frequency(MHz) DETAIL ELECTRICAL CHARACTERISTICS SZ0603 TYPE 2000 900 1800 800 Z Z 700 300 Impedance(Ω) R 250 200 150 600 1200 500 R 1000 400 300 100 200 X 50 0 10 100 1000 800 600 400 X 100 1 Z 1600 1400 Impedance(Ω) 350 Impedance(Ω) SZ0603F800TF SZ0603F560TF SZ0603F330TF 400 0 3000 R 200 1 10 Frequency(MHz) 100 1000 3000 3000 Frequency(MHz) SZ0603G330TF SZ0603G220TF 120 1000 100 10 1 Frequency(MHz) SZ0603G100TF X 0 400 300 240 300 Z R 60 X Z Impedance(Ω) Impedance(Ω) Impedance(Ω) 90 180 R 120 60 0 R 200 100 X 30 Z 0 0 1 10 100 1000 3000 X 1 10 Frequency(MHz) 100 1000 1 3000 10 100 SZ0603G470TF SZ0603G560TF 3000 SZ0603G800TF 800 600 1000 Frequency(MHz) Frequency(MHz) 1000 900 Impedance(Ω) Impedance(Ω) 600 R 300 150 R 400 Z 800 Z Impedance(Ω) Z 450 200 600 R 500 400 300 200 X X 700 100 0 0 1 10 100 1000 3000 1 10 Frequency(MHz) 1000 10 1 100 SZ0603K220TF Z R 400 300 120 Z 40 R 20 200 Impedance(Ω) Impedance(Ω) 60 600 100 3000 160 Z 700 500 1000 Frequency(MHz) 80 800 X 0 3000 SZ0603K100TF SZ0603G121TF 900 Impedance(Ω) 100 Frequency(MHz) R 80 X 40 X X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 0 1 10 100 Frequency(MHz) 1000 3000 1 10 100 1000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS SZ0603 TYPE SZ0603K470TF SZ0603K750TF 300 SZ0603K121TF 500 700 Z 375 R 150 75 525 Z Impedance(Ω) Impedance(Ω) Impedance(Ω) 225 R 250 125 0 3000 1000 100 X X 0 10 R 350 175 X 1 Z 1 10 Frequency(MHz) 100 0 3000 1000 1 10 Frequency(MHz) 100 SZ0603Q121TF SZ0603Q750TF 3000 1000 3000 SZ0603Q241TF 250 150 1000 Frequency(MHz) 500 450 Z 100 R 50 150 R 100 X X 50 Z 400 Impedance(Ω) 200 Impedance(Ω) Impedance(Ω) Z 350 300 R 250 200 150 X 100 50 0 0 1 10 1 3000 1000 100 10 SZ0603Q471TF 3000 1000 0 1 10 100 Frequency(MHz) SZ0603Q601TF 900 1100 800 1000 Z Z 900 700 800 Impedance(Ω) Impedance(Ω) 100 Frequency(MHz) Frequency(MHz) 600 R 500 400 300 700 R 600 500 400 300 200 200 X 100 X 100 0 0 1 10 100 1000 3000 1 10 Frequency(MHz) 100 1000 3000 Frequency(MHz) SZ1005 TYPE SZ1005F100TF SZ1005F050TF SZ1005F330TF 200 120 1000 120 X 40 Z Impedance(Ω) Z 750 Z Impedance(Ω) Impedance(Ω) 160 80 R 500 80 X R 250 40 R 0 0 1 10 1000 100 1 3000 10 100 1 10 Frequency(MHz) Frequency(MHz) SZ1005G050TF 100 1000 3000 1000 3000 Frequency(MHz) SZ1005G750TF SZ1005G300TF 40 X 0 3000 1000 500 250 200 Impedance(Ω) 150 Z 20 375 Z Impedance(Ω) Impedance(Ω) 30 X 10 Z R 250 R 100 125 50 R X X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 0 1 10 100 1000 10 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 Frequency(MHz) Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS SZ1005 TYPE SZ1005G121TF SZ1005K750TF SZ1005G221TF 800 250 1600 200 Z Z Impedance(Ω) Impedance(Ω) 1200 400 Impedance(Ω) 600 Z 150 800 200 400 R R 100 50 X X R 0 1 1000 100 10 3000 X 0 0 Frequency(MHz) 1 10 100 1000 1 3000 10 SZ1005K121TF SZ1005K221TF 400 Impedance(Ω) Impedance(Ω) Impedance(Ω) 1000 3000 1000 3000 Z 600 Z 400 R 3000 800 Z 200 1000 SZ1005K301TF 600 300 100 Frequency(MHz) Frequency(MHz) R R 400 200 100 200 X X 0 X 0 1 10 100 1000 3000 0 1 10 Frequency(MHz) 100 1000 SZ1005K102TF 1600 2000 1200 800 R Impedance(Ω) Z 500 X X X 0 0 10 R 1000 R 400 300 Z 1500 Z Impedance(Ω) Impedance(Ω) 900 100 Frequency(MHz) SZ1005K601TF SZ1005K421TF 1 10 Frequency(MHz) 1200 600 1 3000 100 1000 3000 0 1 10 100 1000 3000 1 10 Frequency(MHz) Frequency(MHz) SZ1005K152TF 100 Frequency(MHz) SZ1005K182TF 2500 3000 2000 2400 Z Impedance(Ω) Impedance(Ω) Z 1500 1800 R 1000 R 1200 500 600 X X 0 1 100 10 1000 0 3000 1 10 Frequency(MHz) 100 1000 3000 Frequency(MHz) SZ1608 TYPE SZ1608F050TF SZ1608F100TF 160 120 600 Z 150 Z 450 80 100 40 300 50 R 10 100 1000 0 1 10 1 10 16000 6000 12000 4000 1000 500 3000 SZ1608F121TF 8000 Impedance(Ω) Z 1000 100 Frequency(MHz) SZ1608F750TF SZ1608F470TF Impedance(Ω) 3000 1000 100 Frequency(MHz) 2000 X R 0 3000 Frequency(MHz) 1500 X R Z Impedance(Ω) 1 150 X 0 Z Impedance(Ω) Impedance(Ω) Impedance(Ω) SZ1608F220TF 200 8000 Z 2000 R 4000 X R X R 0 1 10 100 Frequency(MHz) Sunlord X 1000 0 3000 1 10 100 Frequency(MHz) 1000 3000 0 1 10 Specifications subject to change without notice. Please check our website for latest information. 100 1000 Frequency(MHz) Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS SZ1608 TYPE SZ1608G220TF 15 120 Z 10 X 5 SZ1608G600TF 800 600 Impedance(Ω) 160 Impedance(Ω) Impedance(Ω) SZ1608G050TF 20 Z 80 Z 400 R 40 200 R X R 0 1 10 100 1000 0 3000 10 100 1000 1 3000 10 Frequency(MHz) SZ1608G121TF 100 1000 3000 Frequency(MHz) SZ1608G221TF 1600 X 0 1 Frequency(MHz) SZ1608G331TF 5000 12000 4000 1200 9000 800 Z 3000 Z Impedance(Ω) Impedance(Ω) Impedance(Ω) Z 6000 2000 400 3000 1000 R 0 R X 0 1 10 100 1000 3000 1 10 0 100 Frequency(MHz) 1000 3000 1 10 100 Frequency(MHz) 1000 3000 Frequency(MHz) SZ1608G102TF SZ1608G601TF SZ1608G471TF 7000 18000 X R X 40000 6000 Z Z 30000 Impedance(Ω) Impedance(Ω) Impedance(Ω) 5000 12000 4000 3000 6000 2000 X 10000 X X R 1000 R Z 20000 R 0 0 1 10 100 1000 10 1 3000 1000 100 SZ1608K121TF 300 SZ1608K331TF 600 R 300 100 400 R X 0 1000 X 0 0 3000 1 10 Frequency(MHz) 100 1000 1 3000 900 R 500 100 1000 3000 0 1 10 1000 100 3000 1 10 Frequency(MHz) Frequency(MHz) 100 Frequency(MHz) SZ1608K152TF SZ1608K102TF 2000 3000 X 0 0 1000 300 X X 10 R 600 250 250 Z Impedance(Ω) Z Impedance(Ω) Impedance(Ω) R 3000 1200 750 500 1000 SZ1608K601TF 1000 Z 100 Frequency(MHz) SZ1608K471TF SZ1608K421TF 1 10 Frequency(MHz) 1000 750 R 200 150 X 100 Z Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 200 3000 800 450 Z 1000 100 Frequency(MHz) 600 10 10 1 SZ1608K221TF 400 1 0 3000 Frequency(MHz) Frequency(MHz) SZ1608K202TF 3000 3000 2500 2400 1500 Z 1000 Z 1800 1500 R Impedance(Ω) Impedance(Ω) Impedance(Ω) Z 2000 R R 1200 1000 500 600 500 X X 0 X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 10 100 1000 3000 1 10 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 1000 Frequency(MHz) Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS SZ1608 TYPE SZ1608K222TF SZ1608K272TF SZ1608K252TF 3000 4000 3600 2400 Impedance(Ω) Impedance(Ω) 1800 R Z R 2000 1200 Z 2700 Impedance(Ω) 3000 Z 1800 1000 900 600 X X 0 100 10 1 X R 0 3000 1000 0 1 10 Frequency(MHz) 100 1000 3000 1 10 Frequency(MHz) 100 1000 3000 Frequency(MHz) SZ2012 TYPE SZ2012G050TF SZ2012G600TF 30 Z 2400 600 20 10 1200 200 R 600 R 0 10 100 X 0 3000 1000 Z Impedance(Ω) 400 X 1 1800 Z Impedance(Ω) Impedance(Ω) SZ2012G121TF 800 1 Frequency(MHz) 10 100 1000 SZ2012G221TF R X 0 3000 1 Frequency(MHz) 10 1000 3000 1000 3000 Frequency(MHz) SZ2012G421TF 8000 100 SZ2012G601TF 12000 24000 6000 Z Z Impedance(Ω) 4000 6000 2000 Z 18000 Impedance(Ω) Impedance(Ω) 9000 12000 3000 R X 1 10 100 R 1 Frequency(MHz) 1000 100 10 1 Frequency(MHz) SZ2012K221TF 300 500 250 400 Z Z Impedance(Ω) Impedance(Ω) Impedance(Ω) Z 200 15000 300 R 150 10000 R R 200 100 5000 100 50 X X X 0 0 1 100 10 1000 0 1 3000 100 10 Frequency(MHz) 1000 3000 10 SZ2012K102TF 1200 Impedance(Ω) 900 R 500 300 Z Impedance(Ω) Z 750 R 3000 1500 1000 Z 1000 100 Frequency(MHz) SZ2012K601TF SZ2012K301TF Impedance(Ω) 1 Frequency(MHz) 600 450 100 10 SZ2012K121TF SZ2012G102TF 20000 0 3000 Frequency(MHz) 25000 X 0 3000 1000 6000 X R 0 R 600 250 150 300 X X X 0 0 0 1 10 100 3000 1000 1 100 10 1000 3000 1000 3000 3000 2000 2400 Z Z Impedance(Ω) Impedance(Ω) Z 1500 1000 1000 SZ2012K252TF 2500 R 100 Frequency(MHz) SZ2012K222TF SZ2012K152TF 2000 Impedance(Ω) 10 Frequency(MHz) Frequency(MHz) 1500 1 3000 1800 1000 1200 500 500 600 R X R X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 X 0 1 10 100 1000 3000 1 10 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 Frequency(MHz) Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS SZ2012 TYPE SZ2012K272TF 4000 Impedance(Ω) 3000 Z 2000 1000 R X 0 1 10 100 1000 3000 Frequency(MHz) Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
