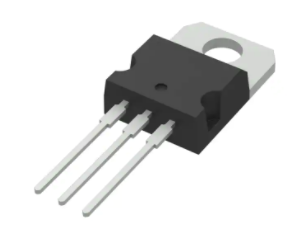

TIP127

TIP125/126/127 Silicon PNP Darlington Power Transistors DESCRIPTION ・With TO-220 package ・DARLNGTON ・High DC durrent gain ・Low collector saturation voltage ・Complement to type TIP120/121/122 APPLICATIONS ・Designed for general–purpose amplifier and low–speed switching applications PINNING PIN DESCRIPTION 1 Base 2 Collector;connected to mounting base 3 Emitter Absolute maximum ratings(Tc=25℃) SYMBOL PARAMETER CONDITIONS TIP125 VCBO VCEO Collector-base voltage Collector-emitter voltage TIP126 Open emitter Emitter-base voltage IC -80 TIP127 -100 TIP125 -60 TIP126 UNIT -60 Open base TIP127 VEBO VALUE -80 V V -100 Open collector -5 V Collector current-DC -5 A ICM Collector current-Pulse -8 A IB Base current-DC -120 mA PC Collector power dissipation TC=25℃ 65 Ta=25℃ 2 W Tj Junction temperature 150 ℃ Tstg Storage temperature -65~150 ℃ www.slkormicro.com 1 TIP125/126/127 CHARACTERISTICS Tj=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS TIP125 VCEO(SUS) Collector-emitter sustaining voltage TIP126 MIN TYP. MAX UNIT -60 IC=-0.1A, IB=0 TIP127 V -80 -100 VCEsat-1 Collector-emitter saturation voltage IC=-3A ,IB=-12mA -2.0 V VCEsat-2 Collector-emitter saturation voltage IC=-5A ,IB=-20mA -4.0 V Base-emitter on voltage IC=-3.0A ; VCE=-3V -2.5 V -0.2 mA -0.5 mA -2 mA 300 pF VBE ICBO ICEO Collector cut-off current Collector cut-off current TIP125 VCB=-60V, IE=0 TIP126 VCB=-80V, IE=0 TIP127 VCB=-100V, IE=0 TIP125 VCE=-30V, IB=0 TIP126 VCE=-40V, IB=0 TIP127 VCE=-50V, IB=0 IEBO Emitter cut-off current VEB=-5V; IC=0 hFE-1 DC current gain IC=-0.5A ; VCE=-3V 1000 hFE-2 DC current gain IC=-3.0A ; VCE=-3V 1000 Cob Output capacitance IE=0 ; VCB=-10V,f=0.1MHz www.slkormicro.com 2 TIP125/126/127 www.slkormicro.com 3 TIP125/126/127 TO-220 Package Dimensions Unit: mm Symbol W W1 W2 W3 * W4 Size Min Max 9.66 10.28 2.54（TYP） 0.70 0.95 1.17 1.37 1.32 1.72 www.slkormicro.com Symbol W5 L L1 L2 L3 Size Min 9.80 9.00 6.40 2.70 12.70 Max 10.20 9.40 6.80 2.90 14.27 4 Symbol L4** L5 T T1 T2 Size Min 6.20 2.79 4.30 1.15 2.20 Max 6.60 3.30 4.70 1.40 2.60 Symbol T3 G(Φ) Size Min 0.45 3.50 Max 0.60 3.70
