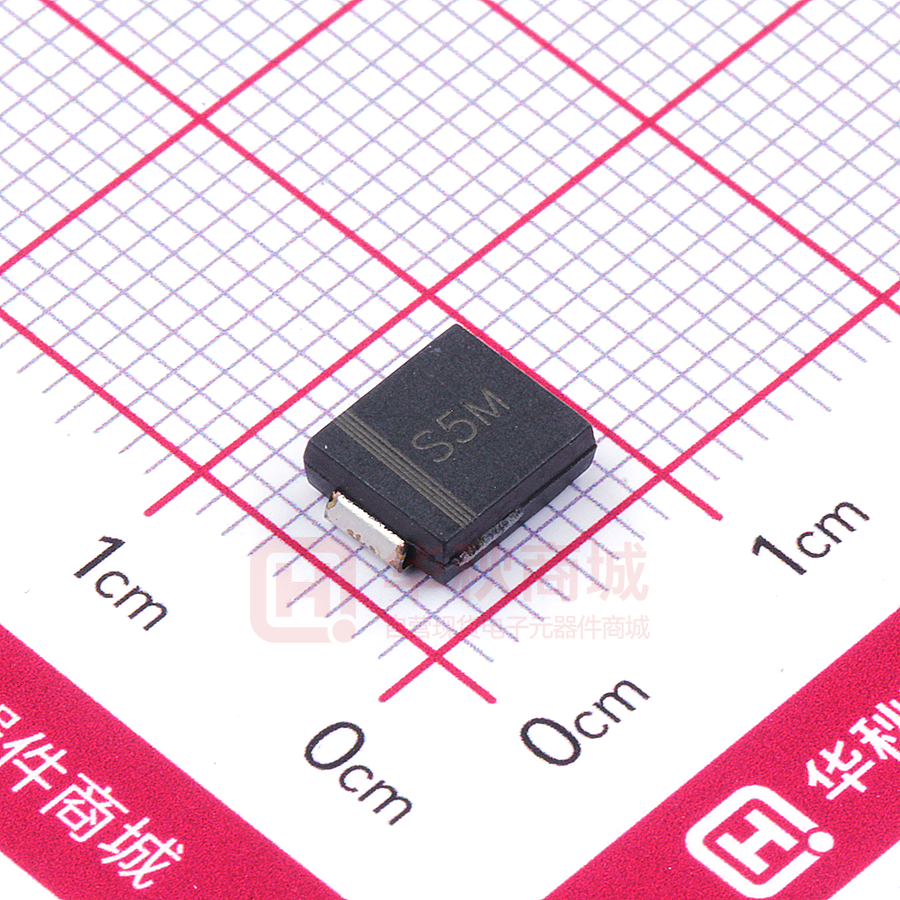

S5M

S5M

  • 厂商:

    PROSEMI(普罗森美)

  • 封装:

    DO214AB

  • 描述:

    整流二极管 DO214AB 1.1V 5A 5μA

  • 数据手册
  • 价格&库存
S5M 数据手册
S5A THRU S5M Surface Mount General-purpose Rectifiers Reverse Voltage 50 ~ 1000 V Forward Current 5.0 A www.prosemitech.com Features Low reverse leakage High forward surge capability High reliability High temperature soldering guaranteed: 260℃/10seconds Lead and body according with RoHS standard Ro H S 2002/95/EC Green compound with suffix "-F" on Marking DO-214AB/SMC Mechanical Data Case:DO-214AB Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Pure tin plated, lead free Maximum Ratings & Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Symbols S5A S5B S5D S5G S5J S5K S5M Unit Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current IF(AV) 5.0 A IFSM 150 A VF 1.1 V Non-repetitive peak forward surge current 8.3 ms singlehalf sine-wave @IF=5.0A Maximum forward voltage @VDC TA= 25℃ Maximum reverse current TA= 125℃ Typical thermal resistance (Note 1) VR=4.0V,f=1MHz Type junction capacitance Operating junction and storage temperature rang 5 IR 100 μA RθJA 47 ℃/W CJ 65 pF TJ, TSTG -55 --- +150 ℃ Note: 1) Thermal resistance from junction to ambient , PCB mounted. Specifications are subject to change without notice. C PROSEMI Document No:HEX35022147Z 1 of 3 www.prosemitech.com S5A THRU S5M www.prosemitech.com Characteristic Curves FORWARD CURRENT DERATING CURVE 10 IF(A) Average Forward Rectified Current (A) IF Instantaneous Forward Current (A) TYPICAL FORWARD CHARACTERISTIC 1 Tj=25℃ 0.1 0.2 0.6 1 1.4 6 5 4 3 2 1 0 0 1.8 25 50 75 100 150 125 175 Tamb, ambient temperature (°C) VF Instantaneous Forward Voltage (V) MAXIMUM NON REPETITIVE PEAK FORWARD Typical Reverse Characteristics SURGE CURRENT 10 120 Reverse Current(uA) IFSM Peak Forward Surge Current (A) 150 90 60 1 0.1 30 Tj=25℃ Tj=25℃ 0.01 0 1 10 100 Number of Cycles at 60 Hz. Specifications are subject to change without notice. C PROSEMI Document No:HEX35022147Z 0% 20% 40% 60% 80% 100% Percent Of Rated Peak Reverse voltage % 2 of 3 www.prosemitech.com S5A THRU S5M www.prosemitech.com Package Outline 0.240(6.10) 0.217(5.50) 0.128(3.25) 0.108(2.75) 0.280(7.10) 0.256(6.50) 0.012(0.305) 0.006(0.152) 0.106(2.70) 0.083(2.10) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX 0.331(8.40) 0.291(7.40) Unit: inch (mm) Package Information Qty:3,000 /Tape and reel Specifications are subject to change without notice. C PROSEMI Document No:HEX35022147Z 3 of 3 www.prosemitech.com
