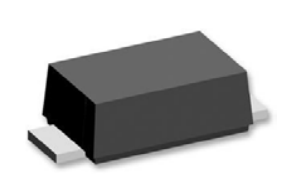

SMF24A

200Watts Transient Voltage Suppressor SMF3.3(C)A ~ SMF440A Features Glass passivated chip 200 W peak pulse power capability with a 10/1000 us HALOGEN H F FRE E waveform, repetitive rate (duty cycle):0.01 % Pb Excellent clamping capability Low reverse leakage lead- free SMF SOD-123FL Very fast response time Lead and body according with RoHS standard RoHS 2015/863/EC Applications Mechanical Characteristics JEDEC SOD-123FL package I/O Interfaces Molding compound flammability rating: UL 94V-0 Power lines Automotive and Telecommunication Marking: Marking Code Computers & Consumer Electronics Packaging: Tape and Reel per EIA 481 Industrial Electronics Absolute Maximum Rating Rating Peak power dissipation with a 10/1000 us waveform(1) (1) Peak pulse current wih a 10/1000 us waveform Power disspation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sinewave unidirectional only(2) Maximum instantaneous forward voltage at 10 A for unidirectional only(3) Operating junction and storage temperature range Symbol Value Units PPPM 200 W IPPM See Next Table A PD 1.0 W IFSM 30 A VF 3.5/6.5 V TJ，TSTG -55 to +150 ℃ 1) Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1； 2) Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum； 3) VF
