ST10100L

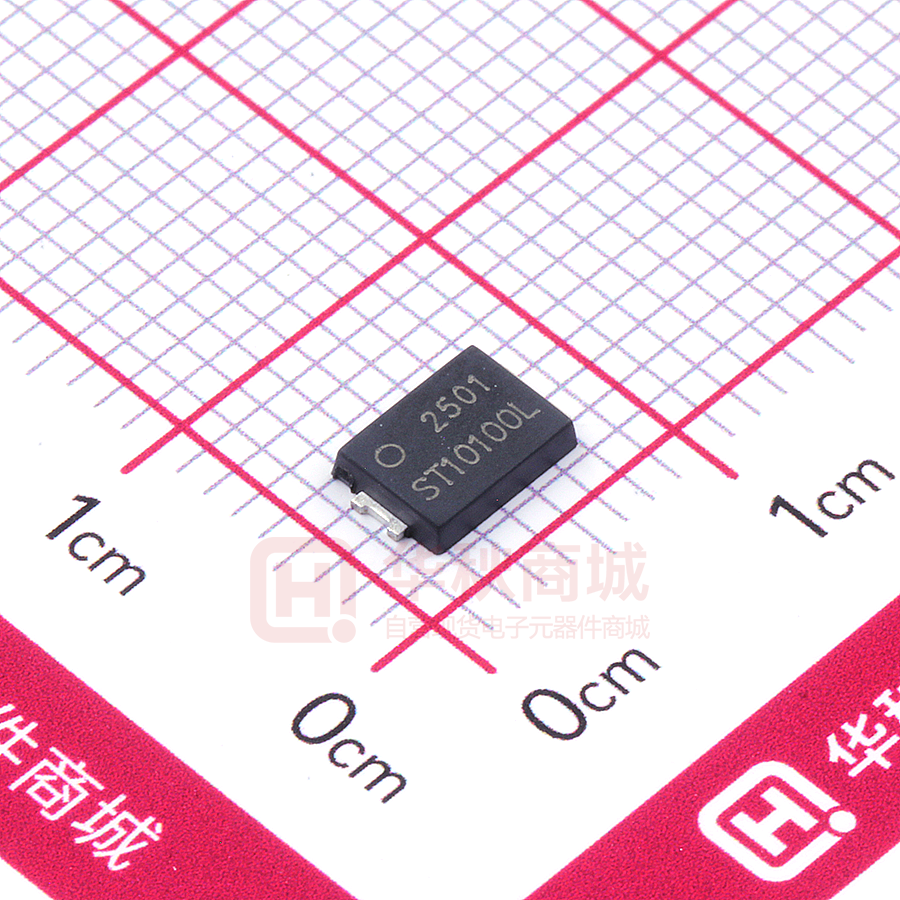

ST10100L www.prosemitech.com LOW VF TRENCH SCHOTTKY BARRIER RECTIFIER Reverse Voltage 100 V Features Low power loss, high efficiency Low forward voltage drop High forward surge capability High frequency operation Excellent high temperature stability Trench MOS Schottky technology Suffix “H” indicates halogen free parts eSGC (TO ‐ 277） Mechanical Data Case: TO-277B small outline plastic package Cathode & Heatsink Terminal: Matte tin plated, solderable per MIL-STD-750, Method 2026 Anode 1 Anode 2 Molding Compound Flammability Rating:UL94-0 High temperature soldering guaranteed: 260°C /10second Maximum Ratings & Characteristics Ratings at 25℃ ambient temperature unless other wise specified. Parameter Symbols ST10100L Unit Maximum repetitive peak reverse voltage VRRM 100 V Maximum RMS voltage VRMS 70 V Maximum DC blocking voltage VDC 100 V IF(AV)1) 10.0 2) IF(AV) 5.0 IFSM 200 A Tj, TSTG -65 --- +150 ℃ Maximum average forward rectified current Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load Operating junction and storage temperature rang A Note: 1) The thermal resistance from junction to ambient ,case or mount，mounted on P.C.B with 30×30mm copper pads,2 OZ,FR4PCB 2) Mounted on recommended copper pad area pad area，free air. Specifications are subject to change without notice. C PROSEMI Document No:P0D2610130710001Z 1　ｏｆ　3 www.prosemitech.com ST10100L www.prosemitech.com Electrical characteristics (TA = 25 °C unless otherwise noted) Parameter Instantaneous forward voltage Test conditions IF=3A IF=5A IF=10A IF=15A IF=3A IF =5A IF=10A Symbols TA=25 VF TA=125 IF=15A Instantaneous reverse current Typical junction capacitance Rated VR TA=25℃ TA=125℃ 4.0 V, 1 MHz IR Typ. Max. 0.43 0.51 0.59 0. 0.67 0.36 0.44 0.64 0.74 0.74 0.57 0.62 0.62 0.68 0. 0.02 0. 0.08 12 20 CJ Unit V mA nF 0.95 Package Outline DIM HE E D B1 B2 A C L L1 L2 L3 D1 E1 Unit: mm Unit: inch MIN MAX 6.4 6.6 5.6 5.8 4.1 4.3 4. 3 1.7 1.9 0.8 1 1.05 1.2 0.3 0.4 0.85 1.1 4.2 4.4 3.52 Typ. 1.1 1.4 3 3.3 1.86 Typ. MIN MAX 0.252 0.260 0.220 0.228 0.161 0. 161 0. 0.169 169 0.067 0.075 0.031 0.039 0.041 0.047 0.012 0.016 0.033 0.043 0.165 0.173 0.139 Typ. 0.043 0.055 0.118 0.130 0.073 Typ. Soldering  footprint Package Information Qty：5,000 /Tape and reel Specifications are subject to change without notice. C PROSEMI Document No:P0D2610130710001Z 2　ｏｆ　3 www.prosemitech.com ST10100L www.prosemitech.com Rating and charactertic curves Specifications are subject to change without notice. C PROSEMI Document No:P0D2610130710001Z 3　ｏｆ　3 www.prosemitech.com
