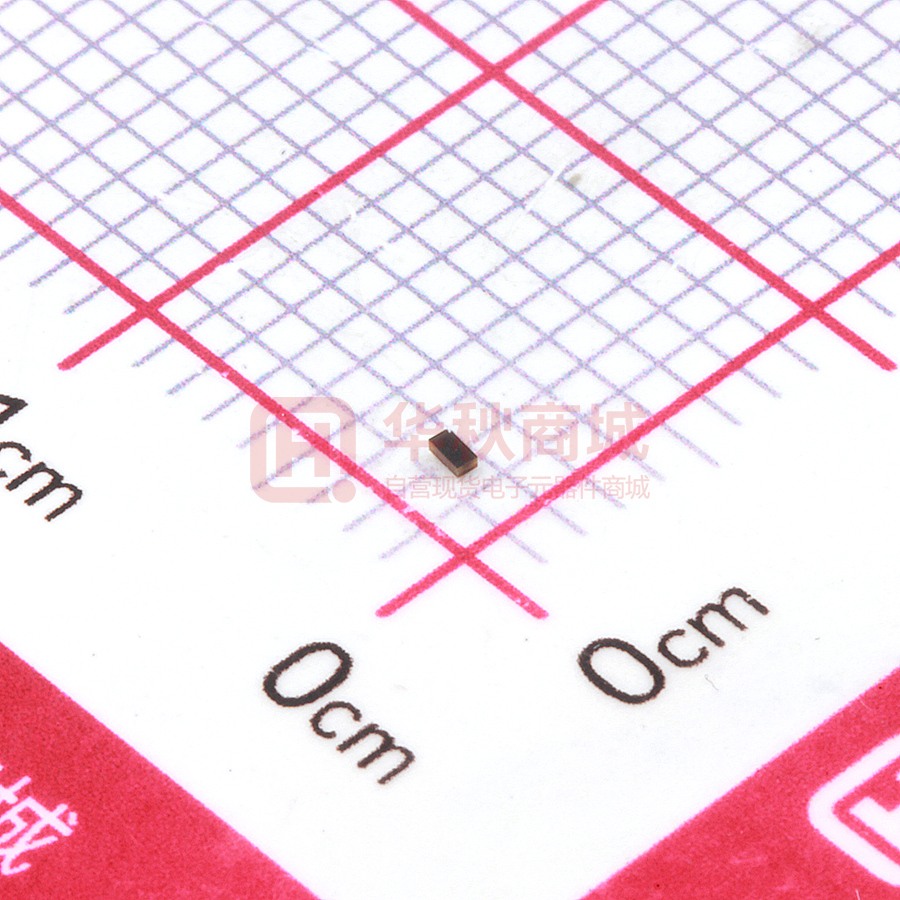

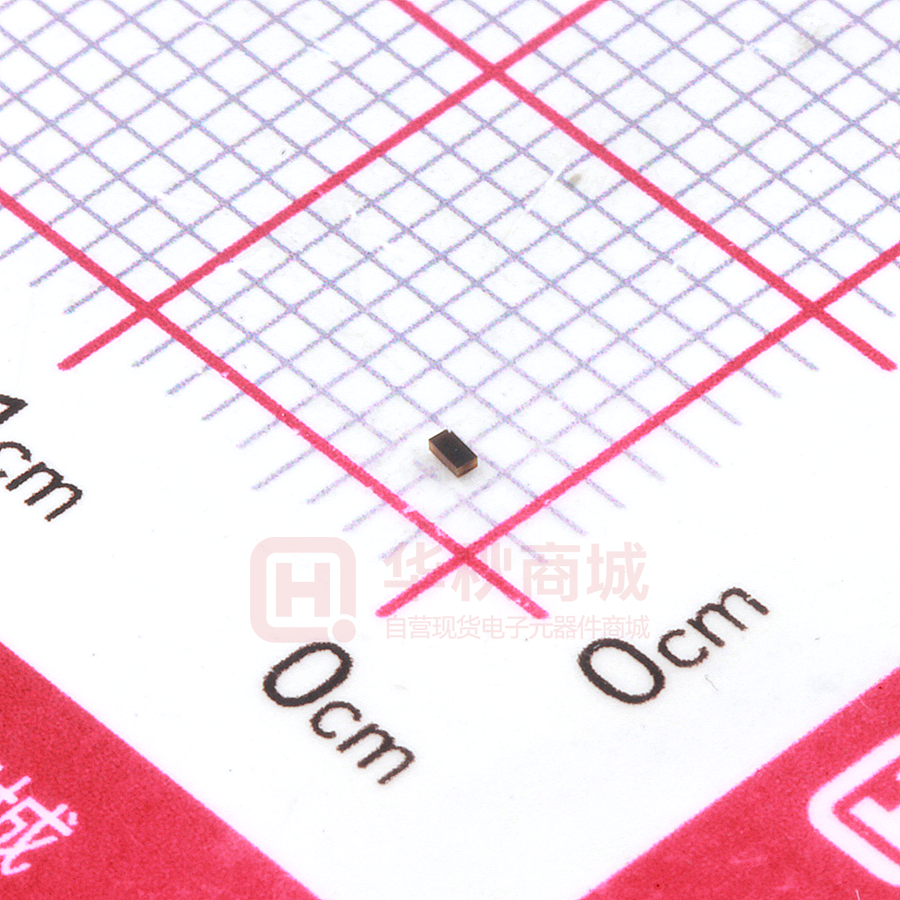

UPEP2D05T0402

Ultra-Low Capacitance Series ESD Solutions Description The PROSEMI Polymer ESD Suppressors protect valuable high-speed data circuits from ESD damage without distorting data signals as a result of its ultra-low (0.05pF typical) capacitance. Pb lead- free RoHS 2015/863/EC Features ESD protection for high speed data lines to IEC61000-4-2 ESD contact discharge typical 8KV, max 15KV ESD air discharge typical 15KV, max 25KV Surface mount Extremely low capacitance Very low leakage current Fast response time Bi-directional ESD protection Lead free solder termination The best ESD protection for high frequency, low voltage applications DP-1006 Applieation Antenna circuit USB2.0/3.0/3.1 IEEE-1394 DVI HDMI1.3/1.4/2.0 Display A/V Equipment HDTV Hardware Laptop/Desktop Computers Network Hardware Computer Peripherals Digital Cameras External Storage Set-Top Boxes Bi-directional Part Numbering System UPEP 2D 05 T 0402 Ultra-Low Capacitance ESD Suppressor Size ０４０２：０４０２（１００５） 　　　　　 Bi-directional Packaging 10,000pcs Operating Voltage 05: 5V Specifications are subject to change without notice. C PROSEMI Document No:P0E1610133337001S 1 of 4 www.prosemitech.com Ultra-Low Capacitance Series ESD Solutions Absolute Maximum Ratings Parameter Symbol Value Unit Maximum Contact discharge voltage Per IEC61000-4-2 -- 15KV V Maximum Air discharge voltage Per IEC61000-4-2 -- 25KV V Maximum Operating temperature TOPER -55 to+125 ℃ Maximum Storage temperature TSTG -55 to+125 ℃ Maximum lead temperature for soldering during 1 Os TL 260 ℃ Electrical Characteristics Parameter (T A=25℃) Symbol Test Conditions --- Min Typ Max Unit -- -- 5 V RatedVoltage VR Clamping Voltage VC IEC61000-4-2 8KV contact discharge -- 300 -- V Trigger Voltage VT IEC61000-4-2 8KV contact discharge -- 35 -- V Leakage Current IL DC 5V shall be applied on component -- 0.01 0.10 uA Capacitance CP VR = OV, f = 1MHz -- 0.05 -- pF *Note: 1. Trigger and clamping voltage are measured per IEC 61000-4-2, 8KV contact discharge method. 2. After reliability tests such as high temp storage, temp cycles, continuous ESD strike etc, the maximum leakage current is less than 10uA. Specifications are subject to change without notice. C PROSEMI Document No:P0E1610133337001S 2 of 4 www.prosemitech.com Ultra-Low Capacitance Series ESD Solutions Dimensions *OS 3OT 3G^ A 0.90 1.20 B 0.45 0.65 C 0.30 0.40 D 0.00 0.05 E F G Unit:mm 3ORROSKZKY H 0.125Ref. 0.40 0.50 0.65BSC 0.25 0.35 Soldering Pad 0.9 mm 0.65 mm 0.50 mm Note：Print solder in thickness of 0.08mm to 0.10mm ESD Clamping Test Waveforms Specifications are subject to change without notice. C PROSEMI Document No:P0E1610133337001S 3 of 4 www.prosemitech.com Ultra-Low Capacitance Series ESD Solutions Carrier Tape Dimensions Unit:mm Type ＵＰＥＰ （０４０２） A B 0.68±0.05 1.17±0.05 W F 8.0±0.2 E 3.5±0.05 1.75±0.1 P1 P2 P0 2.0±0.1 2.0±0.05 4.0±0.1 D0 Φ1.5 C T +0.1 0.45±0.1 -0 F T B A Unit:mm A B C F T 180±1.5 51.0±1.0 13.0±1.0 9.4±1.0 12.4±2.0 Storage Conditions and Shelf Life Temperature: 5℃~35℃, Humidity: 40%~75% 2 years from manufacturing date Packaging ＵＰＥＰ2D05T０４０２ :quantity10,000 pieces Specifications are subject to change without notice. C PROSEMI Document No:P0E1610133337001S 4 of 4 www.prosemitech.com
