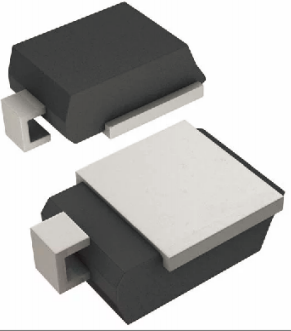

SM8S33A

Automotive Load Dump Protection Vrwm 10-43V Pppm 6600 Watts Features 6600 watts Peak Pulse Power (10/1000μs) Available in uni-directional polarity only Junction passivation optimized design passivated anisotropic rectifier technology Low leakage current Low forward voltage drop High surge capability DO-218AB Meets ISO7637-2 surge specification (varied by test condition) AEC-Q101 Qualified Pb lead- free Mechanical Characteristics RoHS 2002/95/EC Applications JEDEC DO-218AB package Use in sensitive electronics protection Molding compound flammability rating: against voltage transients induced by UL 94V-0 inductive load switching and lighting, Marking: Marking Code especially for automotive load dump Heatsink is anode protection application. Schematic & PIN Configuration Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp =10/1000μs) (see Note1,2&3) PPPM 6600 Watts Peak pulse current (10/1000μs) (see Note2&3) IPPM See Electrical Characteristics A Peak forward surge current (see Note4&5) IFSM 700 A Power dissipation on infinite heat sink TA = 25 °C (Fig5) PD 8 W Operating junction temperature range TJ -55 to + 175 ℃ TSTG -55 to + 175 ℃ Storage temperature range Note1: Peak Pulse Power Rating as Pulse Width ,per Fig1. Note2: Peak Pulse Power or Current Derated above TA=25℃ Per Fig. 2 and Non-Repetitive Current Pulse,Per Fig6. Note3: Mounted on 5.0x5.0mm2 copper pad to each terminal. Note4: 8.3ms Single Half Sine Wave or Equivalent Square Wave. Note5: Maximum Forward Surge Current per Fig6. Specifications are subject to change without notice. C PROSEMI Document No : EＰＧＷＳＭ８ｘ１６０８ １　ｏｆ　５ www.prosemitech.com Automotive Load Dump Protection Vrwm 10-43V Pppm 6600 Watts Electrical Characteristics Part Number Reverse Breakdown Standoff Voltage Voltage V VRWM BR(Volts)@IT Test Current IT Maximum Maximum Maximum Clamping Peak Pulse Reverse Leakage Voltage Current Vc@IPP IR@VRWM Ipp (Volts) (Amps) (μA) Uni-polar (Volts) MIN MAX (mA) SM8S10A 10 11.1 12.3 5 17.0 388 15 SM8S11A 11 12.2 13.5 5 18.2 363 10 SM8S12A 12 13.3 14.7 5 19.9 332 10 SM8S13A 13 14.4 15.9 5 21.5 307 10 SM8S14A 14 15.6 17.2 5 23.2 284 10 SM8S15A 15 16.7 18.5 5 24.4 270 10 SM8S16A 16 17.8 19.7 5 26.0 254 10 SM8S17A 17 18.9 20.9 5 27.6 239 10 SM8S18A 18 20.0 22.1 5 29.2 226 10 SM8S20A 20 22.2 24.5 5 32.4 204 10 SM8S22A 22 24.4 26.9 5 35.5 186 10 SM8S24A 24 26.7 29.5 5 38.9 170 10 SM8S26A 26 28.9 31.9 5 42.1 157 10 SM8S28A 28 31.1 34.4 5 45.4 145 10 SM8S30A 30 33.3 36.8 5 48.4 136 10 SM8S33A 33 36.7 40.6 5 53.3 124 10 SM8S36A 36 40.0 44.2 5 58.1 114 10 SM8S40A 40 44.4 49.1 5 64.5 102 10 SM8S43A 43 47.8 52.8 5 69.4 95.1 10 Specifications are subject to change without notice. C PROSEMI Document No : EＰＧＷＳＭ８ｘ１６０８ ２　ｏｆ　５ www.prosemitech.com Automotive Load Dump Protection Vrwm 10-43V Pppm 6600 Watts Typical Characteristics Specifications are subject to change without notice. C PROSEMI Document No : EＰＧＷＳＭ８ｘ１６０８ ４　ｏｆ　５ www.prosemitech.com Automotive Load Dump Protection Vrwm 10-43V Pppm 6600 Watts Outline Drawing – (DO-218AB) Ref.（mm） Millimeters Min. Max. A 15.0 16.0 B 13.3 13.7 C 9.5 10.5 D 8.3 8.7 D1 2.4 3.0 E 8.7 9.3 F 9.7 10.3 G 2.5 3.5 H 4.7 5.1 I 1.5 2.5 K 0.5 0.7 Pad Layout Part Numbering System Package Information Out line Taping Reel（pcs） Per carton（pcs） Packing Option 3000 box 750 Specifications are subject to change without notice. C PROSEMI Document No : EＰＧＷＳＭ８ｘ１６０８ ５　ｏｆ　５ www.prosemitech.com
