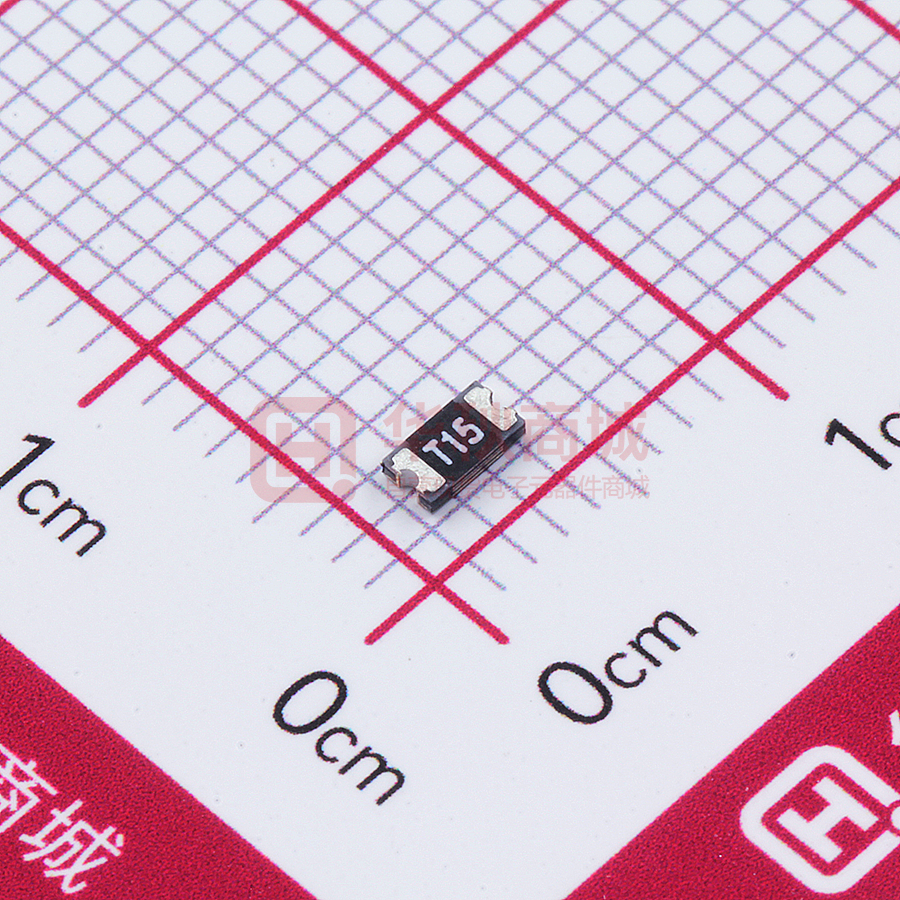

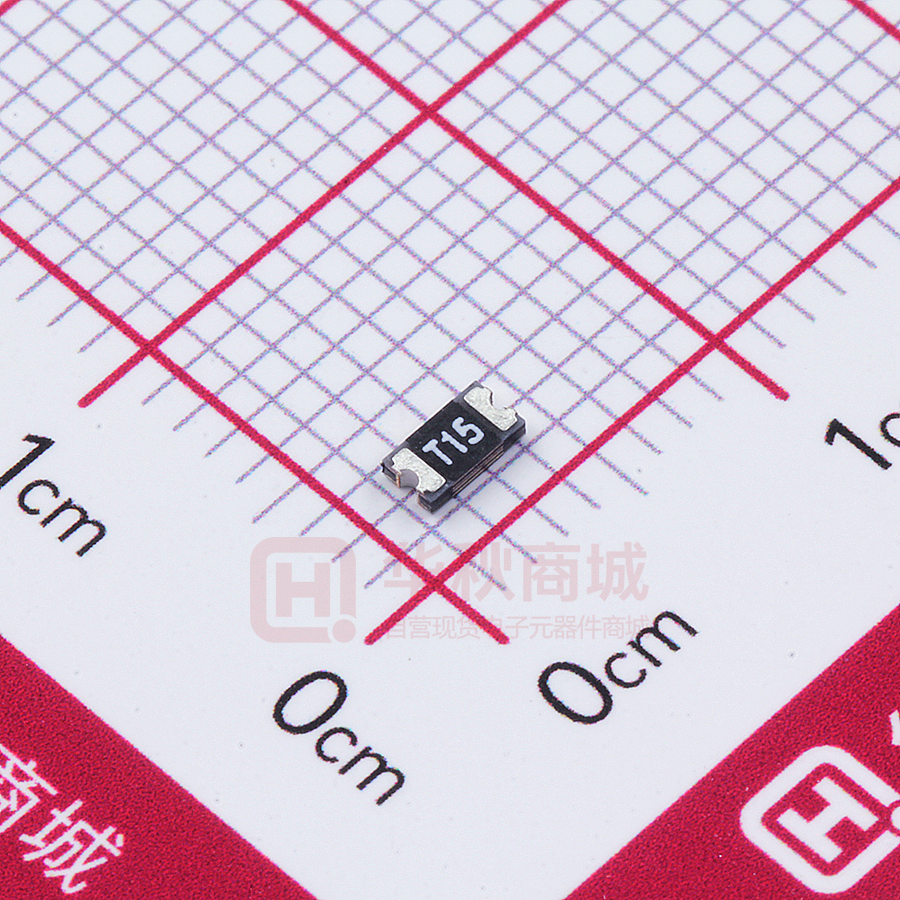

SRF1206P150

Circuit Protection SRF1206 Series Surface-Mount Devices | 1206 Size PTC Resettable Fuses Applications Features Computer Portable electronics Multimedia Game machines Telephony and broadband Mobile phones Automotive Industrial controls Compact design saves board space Fast response to fault currents Compatible with high temperature solders Low resistance Low-profile RoHS compliant, lead-free and halogen-free Electrical Characteristics IH (A) IT (A) V max (V) I max (A) Time to Trip Part Number (A) SRF1206P005 0.05 0.15 30 10 SRF1206P010 0.10 0.25 30 SRF1206P012 0.12 0.29 SRF1206P020 0.20 SRF1206P025 (Sec.) Pd typ (W) Rmin (Ω) R1max (Ω) 0.25 1.50 0.40 2.500 40.00 10 0.50 1.20 0.40 1.400 15.00 30 10 1.00 0.20 0.40 1.350 8.500 0.46 24 10 1.00 0.60 0.60 0.600 2.600 0.25 0.55 16 10 1.25 0.60 0.60 0.400 2.400 SRF1206P035 0.35 0.75 6 40 8.00 0.10 0.60 0.300 1.200 SRF1206P050 0.50 1.00 13.2 40 8.00 0.10 0.40 0.150 0.750 SRF1206P075 0.75 1.50 6 100 8.00 0.10 0.40 0.100 0.400 SRF1206P100 1.00 2.00 6 100 8.00 0.10 0.60 0.060 0.280 SRF1206P110 1.10 2.20 6 100 8.00 0.10 0.60 0.060 0.280 SRF1206P150 1.50 3.00 6 100 8.00 0.30 0.60 0.030 0.170 SRF1206P200 2.00 4.00 6 100 8.00 1.00 0.70 0.020 0.120 I hold = Hold current: maximum current device will pass without tripping in 25°C still air. I trip = Trip current: minimum current at which the device will trip in 25°C still air. V max = Maximum voltage device can withstand without damage at rated current (I max) I max = Maximum fault current device can withstand without damage at rated voltage (V max) P d = Power dissipated from device when in the tripped state at 25°C still air. 1 Document Number: P170702J1337 R min = Minimum resistance of device in initial (un-soldered) state. R typ = Typical resistance of device in initial (un-soldered) state. R 1max = Maximum resistance of device at 25°C measured one hour after tripping or reow soldering of 260°C for 20 sec. Surface-Mount Devices | 1206 Size SRF1206 Series PTC Resettable Fuses Thermal Derating Chart Hold Current (A) Part Number Ambient Operating Temperature -40°C -20°C 0°C 25°C 40°C 50°C 60°C 70°C 85°C SRF1206P005 0.08 0.07 0.06 0.05 0.05 0.04 0.04 0.03 0.03 SRF1206P010 0.16 0.14 0.13 0.10 0.09 0.08 0.08 0.07 0.06 SRF1206P012 0.19 0.17 0.15 0.12 0.11 0.10 0.09 0.08 0.07 SRF1206P020 0.30 0.27 0.24 0.20 0.18 0.16 0.14 0.12 0.11 SRF1206P025 0.38 0.34 0.30 0.25 0.23 0.20 0.18 0.15 0.14 SRF1206P035 0.51 0.46 0.40 0.35 0.30 0.27 0.24 0.22 0.18 SRF1206P050 0.76 0.68 0.59 0.50 0.44 0.40 0.35 0.32 0.26 SRF1206P075 1.11 1.00 0.85 0.75 0.67 0.61 0.52 0.50 0.42 SRF1206P100 1.60 1.40 1.30 1.00 0.90 0.80 0.75 0.70 0.60 SRF1206P110 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52 SRF1206P150 2.20 1.99 1.77 1.50 1.34 1.23 1.10 1.01 0.84 SRF1206P200 2.88 2.61 2.28 2.00 1.80 1.66 1.51 1.39 1.19 Dimensions A Top View B C Recommended Pad Layout (mm) Side View 1.80 1.80 Bottom View 1.00 D Part Number Marking SRF1206P005 T0 A B C D Min. Max. Min. Max. Min. Max. Min. 3.00 3.40 1.40 1.80 0.80 1.20 0.25 SRF1206P010 T1 3.00 3.40 1.40 1.80 0.80 1.20 0.25 SRF1206P012 T01 3.00 3.40 1.40 1.80 0.80 1.20 0.25 SRF1206P020 T02 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P025 T03 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P035 T04 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P050 T05 3.00 3.40 1.40 1.80 0.55 0.75 0.25 SRF1206P075 T07 3.00 3.40 1.40 1.80 0.45 0.85 0.25 SRF1206P100 T10 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P110 T10 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P150 T15 3.00 3.40 1.40 1.80 0.60 1.00 0.25 SRF1206P200 T20 3.00 3.50 1.40 1.80 0.60 1.00 0.25 2 Document Number: P170702J1337 Surface-Mount Devices | 1206 Size SRF1206 Series PTC Resettable Fuses Temperature Rerating Curve 170% Percentage of Rated Current 150% 130% 110% 90% 70% 50% 30% 10% -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 Temperature (°C) Packaging Options I hold(A) Quantity 0.05~0.12, 1~2 3,500pcs 0.2~0.75 4,000pcs Reel packaging per EIA -481-1 standard © 2017 PROSEMI Inc. All Rights Reserved. Specifications and features are subject to change without notice. www.prosemitech.com 3 Document Number: P170702J1337 The PROSEMI logo, and all other PROSEMI trademarks are the property of PROSEMI Inc. All other trademarks are the property of their respective owners.
