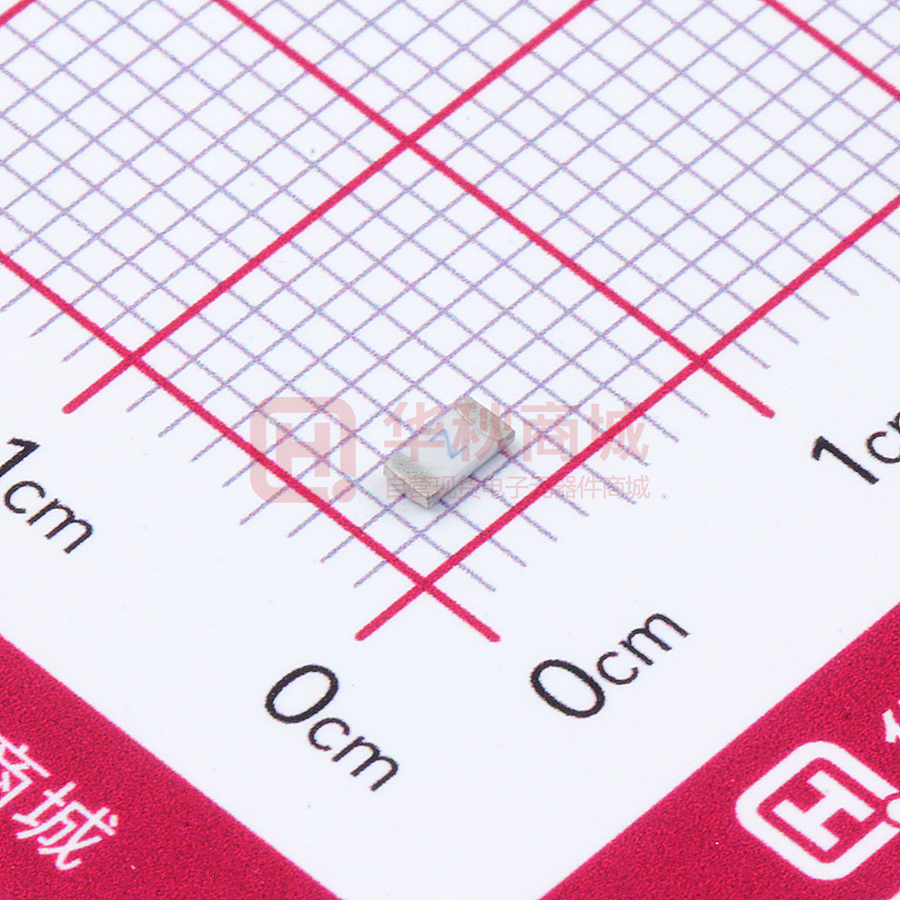

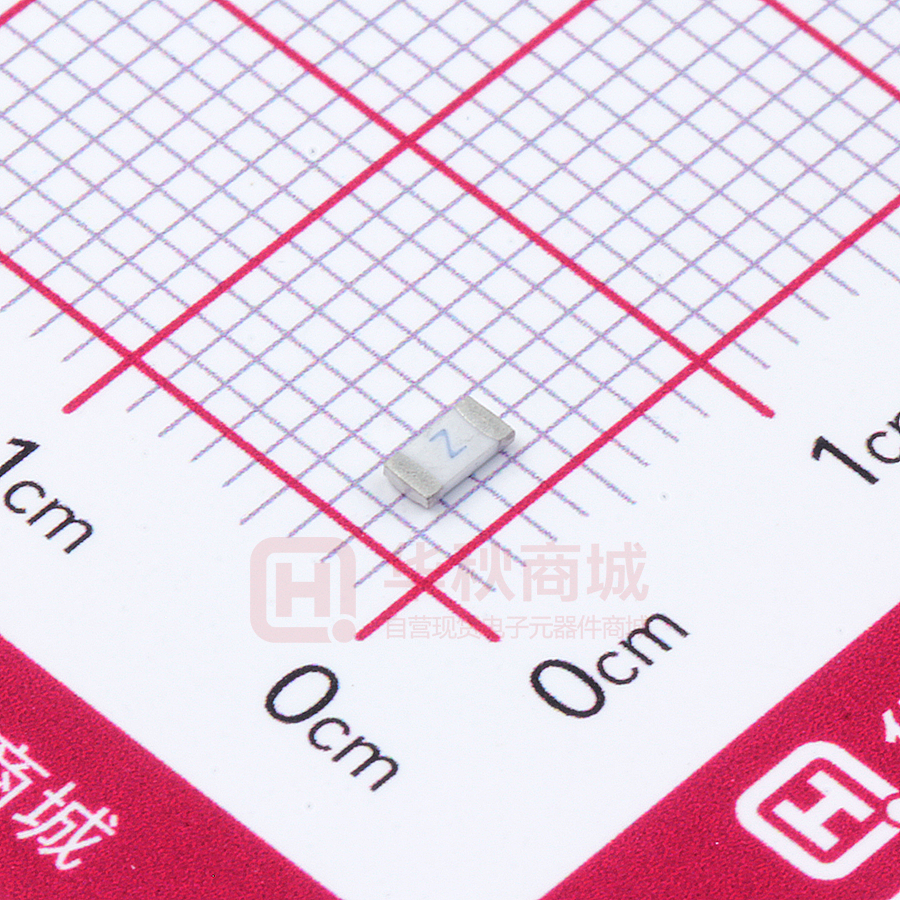

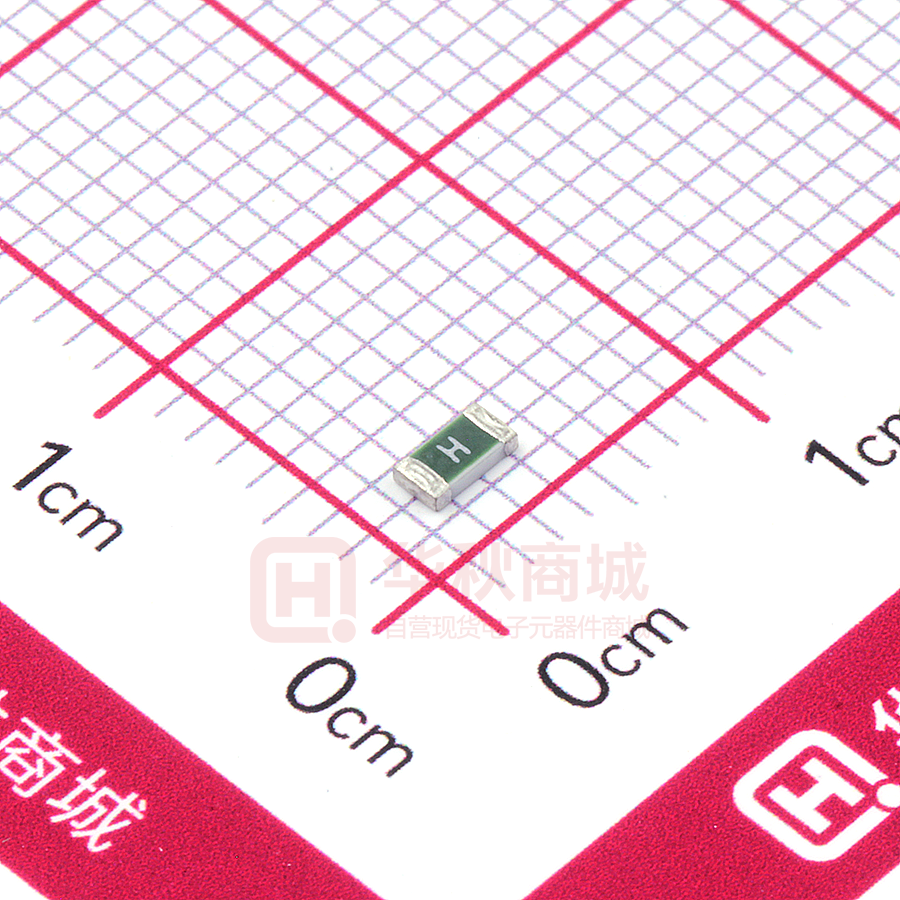

1206TD-30A

Circuit Protection 1206TD Series Time Delay | 0.126x0.064 inch Thick Film Chip Fuses 1206TD Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. RoHS 2015/863/EC O Features P High inrush current withstanding capability AEC-Q200 Automotive Grade Certified Compatible with reflow and wave solder Ceramic and glass construction Excellent environmental integrity One time positive disconnect Lead Free and Halogen free material Electrical Characteristics Appications Flat panel displays and televisions Amp Rating Automotive infotainment and ECU 0.63~30A 0.63~3A 0.63~5A 0.63~5A 6~30A 0.63~30A Computer servers Portable electronics Mobile device chargers Power Battery Packs % of Amp Rating Opening Time 100% 200% 250% 300% 350% 1000% 4 Hours Min. 1sec~60sec 5 Seconds Max. 0.1sec~3sec 5 Seconds Max. 0.2ms~20ms Specification Part Number Ampere Rating (A) 1206TD-R630 1206TD-R750 1206TD-1A 1206TD-1.25A 1206TD-1.5A 1206TD-1.75A 1206TD-2A 1206TD-2.5A 1206TD-3A 1206TD-3.5A 1206TD-4A 1206TD-4.5A 1206TD-5A 1206TD-6A 1206TD-7A 1206TD-8A 1206TD-10A 1206TD-12A 1206TD-15A 1206TD-20A 1206TD-25A 1206TD-30A 0.63 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00 3.50 4.00 4.50 5.00 6.00 7.00 8.00 10.0 12.0 15.0 20.0 25.0 30.0 Voltage Rating Interrupting Rating 72Vdc @ 50A 63Vdc @ 50A 32Vdc @ 50A 24Vdc @ 300A 32Vdc @ 150A 24Vdc @ 300A Typical Cold Resistance (Ohms) Typical Melting I 2 t (A 2 Sec) Typical Voltage Drop (V) Marking Code 1.08 0.85 0.48 0.33 0.23 0.18 0.135 0.075 0.047 0.038 0.034 0.029 0.024 0.016 0.0123 0.0083 0.0065 0.0050 0.0037 0.0034 0.0016 0.0013 0.009 0.01 0.11 0.15 0.17 0.20 0.41 0.68 1.5 2.0 2.5 2.65 4 12 14 16 22 11.5 16.5 50 60 100 0.950 0.900 0.510 0.500 0.465 0.450 0.316 0.240 0.187 0.180 0.173 0.164 0.145 0.140 0.130 0.123 0.110 0.085 0.078 0.080 0.090 0.090 B 0.75 H H K E N O P R S X T F 7 M U 12 15 Q L Z DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) DC Cold Resistance are measured at
