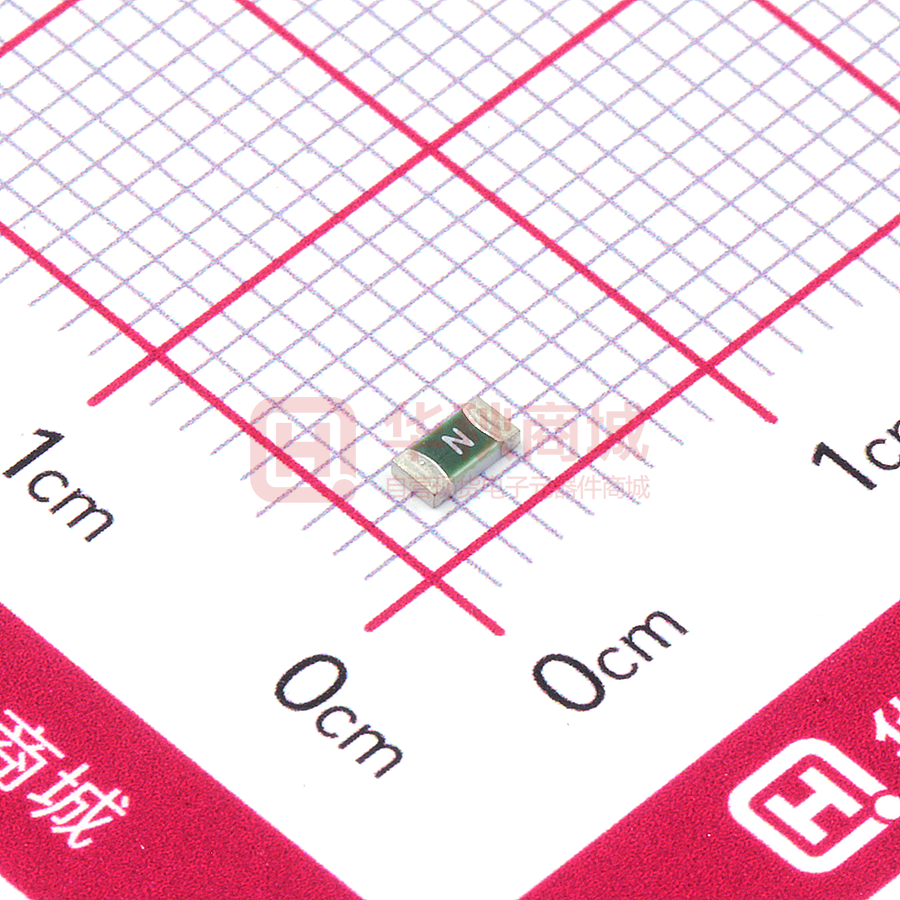

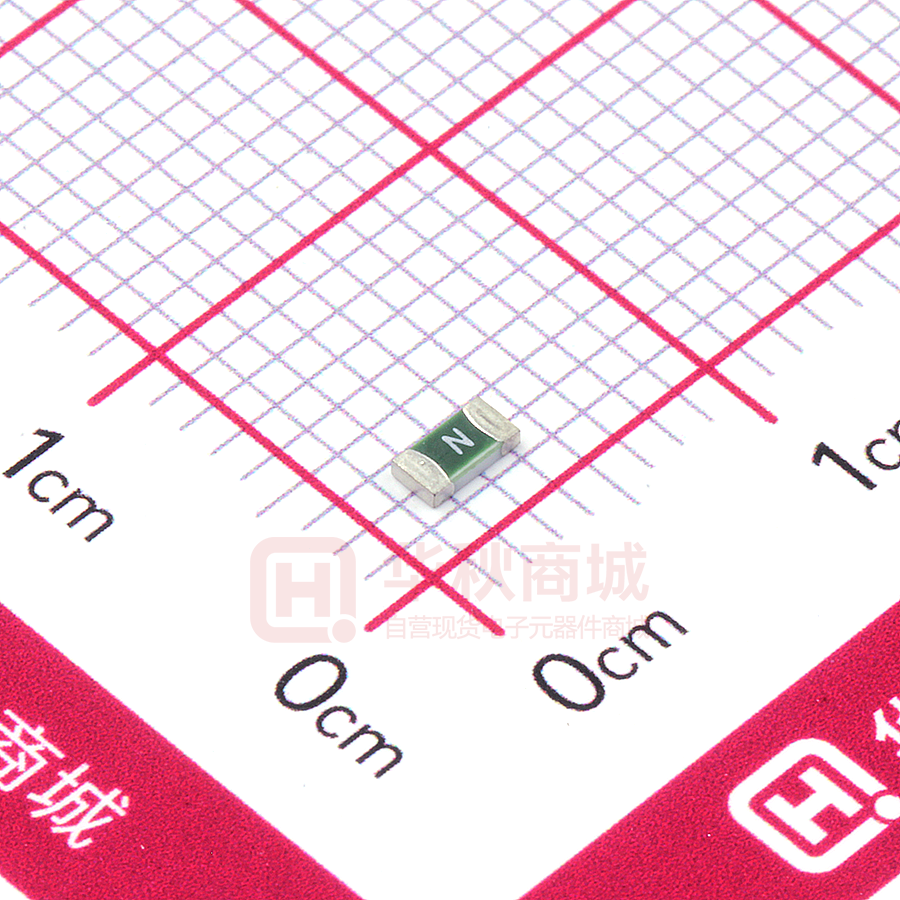

1206FA-2A

Circuit Protection 1206FA Series Fast Acting | 0.126x0.064 inch Thick Film Chip Fuses 1206FA Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. RoHS 2015/863/EC Appications Features AEC-Q200 Automotive Grade Certified Flat panel displays and televisions Automotive infotainment and ECU Computer servers Portable electronics Mobile device chargers Power Battery Packs Rapid interruption of excessive current Compatible with reflow and wave solder Ceramic and glass construction One time positive disconnect Lead Free and Halogen free material 30 P Electrical Characteristics Amp Rating % of Amp Rating 0.25~40A 0.25~5A 6~40A 100% 250% 350% Opening Time 4 Hours Min. 5 Seconds Max. 5 Seconds Max. Specification Part Number Ampere Rating (A) 1206FA-R250 1206FA-R375 1206FA-R500 1206FA-R750 1206FA-1A 1206FA-1.5A 1206FA-2A 1206FA-2.5A 1206FA-3A 1206FA-3.5A 1206FA-4A 1206FA-4.5A 1206FA-5A 1206FA-6A 1206FA-7A 1206FA-8A 1206FA-10A 1206FA-12A 1206FA-15A 1206FA-20A 1206FA-25A 1206FA-30A 0.250 0.375 0.500 0.750 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 6.00 7.00 8.00 10.0 12.0 15.0 20.0 25.0 30.0 1206FA-40A 40.0 Voltage Rating Interrupting Rating 72Vdc @ 50A 63Vdc @ 50A 32Vdc @ 150A 24Vdc @ 300A 32Vdc @ 150A 24Vdc @ 300A 32Vdc @ 150A 24Vdc @ 300A 24Vdc @ 200A 32Vdc @ 200A Typical Cold Resistance (Ohms) Typical Melting I 2 t (A 2 Sec) Typical Voltage Drop (V) Marking Code 3.608 1.882 1.028 0.601 0.490 0.240 0.132 0.077 0.048 0.040 0.035 0.030 0.025 0.0165 0.0120 0.0085 0.0068 0.0050 0.0039 0.0018 0.0015 0.00125 0.0004 0.0008 0.0022 0.0057 0.100 0.150 0.385 0.650 1.150 1.630 1.730 2.000 2.890 11.00 12.50 14.00 20.00 9.20 14.00 47.17 32.00 43.00 1.407 0.718 0.650 0.616 0.510 0.367 0.316 0.240 0.187 0.180 0.173 0.164 0.141 0.142 0.140 0.110 0.100 0.085 0.078 0.060 0.057 0.068 .25 E 0.5 .75 H K N O P R S X T F 7 M U 12 15 20 25 30 0.00085 240.0 0.095 XL DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) DC Cold Resistance are measured at
