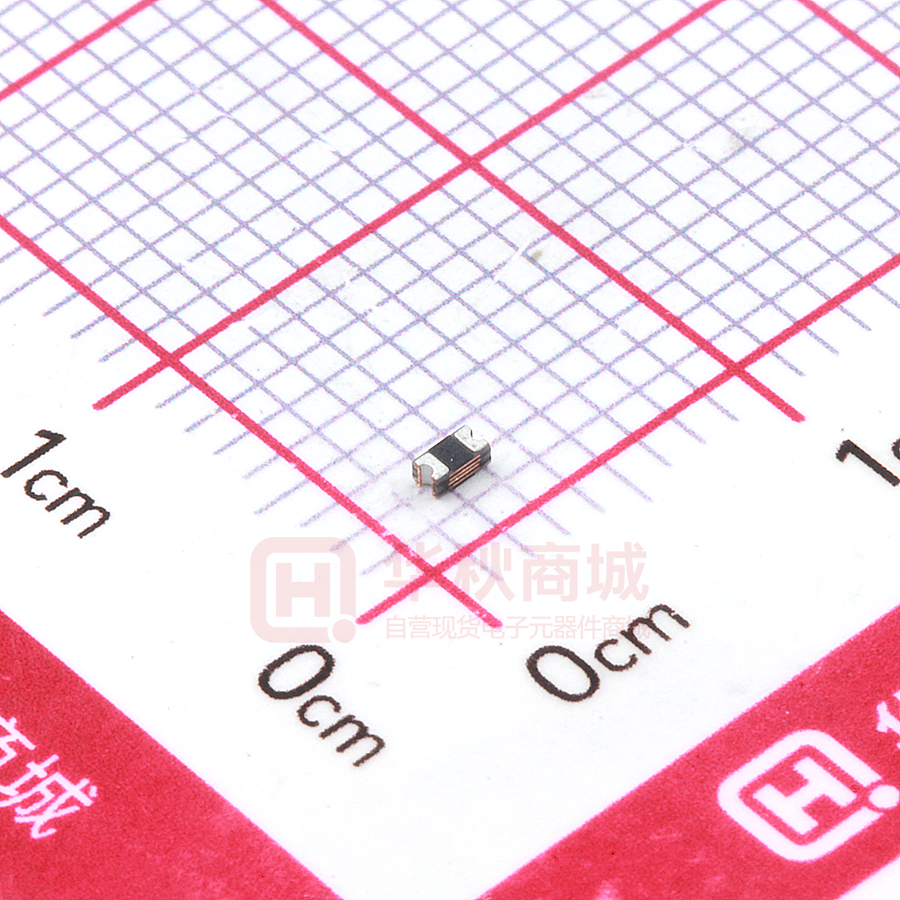

SRF0603P050

Circuit Protection SRF0603 Series Surface-Mount Devices | 0603 Size PTC Resettable Fuses Applications Features Computer Portable electronics Multimedia Game machines Telephony and broadband Mobile phones Automotive Industrial controls Compact design saves board space Fast response to fault currents Compatible with high temperature solders Low resistance Low-profile RoHS compliant, lead-free and halogen-free Electrical Characteristics Time to Trip (Sec.) Pd typ (W) R min (Ω) R1max (Ω) 0.5 1.00 0.50 0.900 6.000 40 1.0 0.60 0.50 0.550 3.500 6.0 40 8.0 0.10 0.50 0.200 1.400 6.0 40 8.0 0.10 0.50 0.100 0.800 Part Number IH (A) IT (A) V max (V) I max (A) (A) SRF0603P010 0.10 0.30 15.0 40 SRF0603P020 0.20 0.50 9.0 SRF0603P035 0.35 0.75 SRF0603P050 0.50 1.00 I hold = Hold current: maximum current device will pass without tripping in 25°C still air. I trip = Trip current: minimum current at which the device will trip in 25°C still air. V max = Maximum voltage device can withstand without damage at rated current (I max) I max = Maximum fault current device can withstand without damage at rated voltage (V max) P d = Power dissipated from device when in the tripped state at 25°C still air. 1 Document Number: P170702J1154 R min = Minimum resistance of device in initial (un-soldered) state. R typ = Typical resistance of device in initial (un-soldered) state. R 1max = Maximum resistance of device at 25°C measured one hour after tripping or reow soldering of 260°C for 20 sec. Operating Temperature = -40 °C to +85 °C Surface-Mount Devices | 0603 Size SRF0603 Series PTC Resettable Fuses Thermal Derating Chart Hold Current (A) Ambient Operating Temperature Part Number -40°C -20°C 0°C 25°C 40°C 50°C 60°C 70°C 85°C SRF0603P010 0.13 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03 SRF0603P020 0.27 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 SRF0603P035 0.47 0.41 0.38 0.35 0.29 0.26 0.24 0.20 0.14 SRF0603P050 0.67 0.60 0.54 0.50 0.41 0.37 0.34 0.29 0.20 Temperature Rerating Curve 170% Percentage of Rated Current 150% 130% 110% 90% 70% 50% 30% 10% -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 Temperature (°C) Dimensions (mm) A Top View B C Recommended Pad Layout (mm) Side View 0.80 1.00 Bottom View 1.00 D Part Number Marking A Min. B Max. Min. C Max. D Min. Max. Min. SRF0603P010 I 1.45 1.85 0.65 1.05 0.35 0.75 0.20 SRF0603P020 – 1.45 1.85 0.65 1.05 0.30 0.65 0.20 SRF0603P035 II 1.45 1.85 0.65 1.05 0.30 0.65 0.20 SRF0603P050 ● 1.45 1.85 0.65 1.05 0.60 1.00 0.20 2 Document Number: P170702J1154 Surface-Mount Devices | 0603 Size SRF0603 Series PTC Resettable Fuses Packaging Options I hold(A) Quantity 0.10~0.35 5,000pcs 0.50 4,000pcs Reel packaging per EIA -481-1 standard Tape and Reel Specification Dimensions: mm W 8.0 ± 0.1 P0 4.0 ± 0.1 P1 4.0 ± 0.05 P2 2.0 ± 0.05 A 1.25 ± 0.05 B 2.05 ± 0.05 D 1.55 ± 0.05 F 3.5 ± 0.05 E 1.75 ± 0.1 D P0 E F W B P1 P2 A W2(Measured at hub) Reel Dimensions A max. 185 N min. 50 W1 8.4 + 1.5/ -0.0 W2 max. 14.4 A N(hub dia.) W1(Measured at hub) © 2017 PROSEMI Inc. All Rights Reserved. Specifications and features are subject to change without notice. www.prosemitech.com 3 Document Number: P170702J1154 The PROSEMI logo, and all other PROSEMI trademarks are the property of PROSEMI Inc. All other trademarks are the property of their respective owners.
