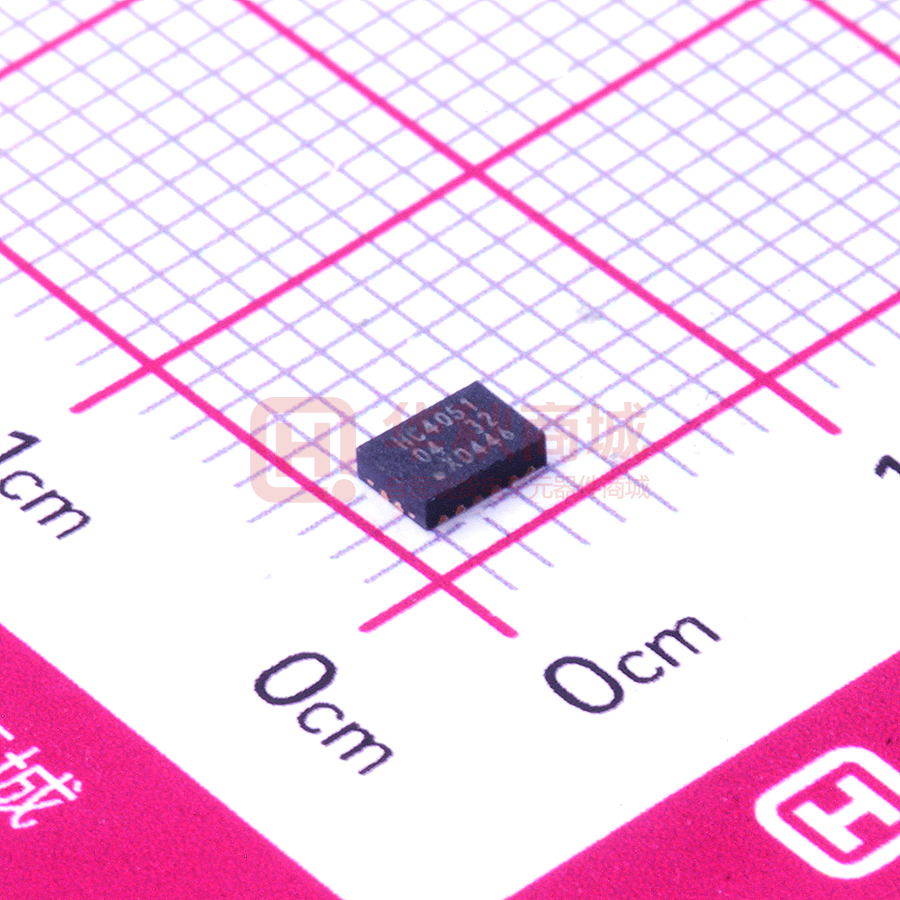

74HC4051BQ,115

74HC4051; 74HCT4051 8-channel analog multiplexer/demultiplexer Rev. 8 — 5 February 2016 Product data sheet 1. General description The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits  Wide analog input voltage range from 5 V to +5 V  Complies with JEDEC standard no. 7A  Low ON resistance:  80  (typical) at VCC  VEE = 4.5 V  70  (typical) at VCC  VEE = 6.0 V  60  (typical) at VCC  VEE = 9.0 V  Logic level translation: to enable 5 V logic to communicate with 5 V analog signals  Typical ‘break before make’ built-in  ESD protection:  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V  CDM JESD22-C101E exceeds 1000 V  Multiple package options  Specified from 40 C to +85 C and 40 C to +125 C 3. Applications  Analog multiplexing and demultiplexing  Digital multiplexing and demultiplexing  Signal gating 74HC4051; 74HCT4051 Nexperia 8-channel analog multiplexer/demultiplexer 4. Ordering information Table 1. Ordering information Type number 74HC4051D Package Temperature range Name Description Version 40 C to +125 C SO16 plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 40 C to +125 C SSOP16 plastic shrink small outline package; 16 leads; body width 5.3 mm SOT338-1 40 C to +125 C TSSOP16 plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT403-1 40 C to +125 C DHVQFN16 plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; 16 terminals; body 2.5  3.5  0.85 mm 74HCT4051D 74HC4051DB 74HCT4051DB 74HC4051PW 74HCT4051PW 74HC4051BQ 74HCT4051BQ SOT763-1 5. Functional diagram 9&&
