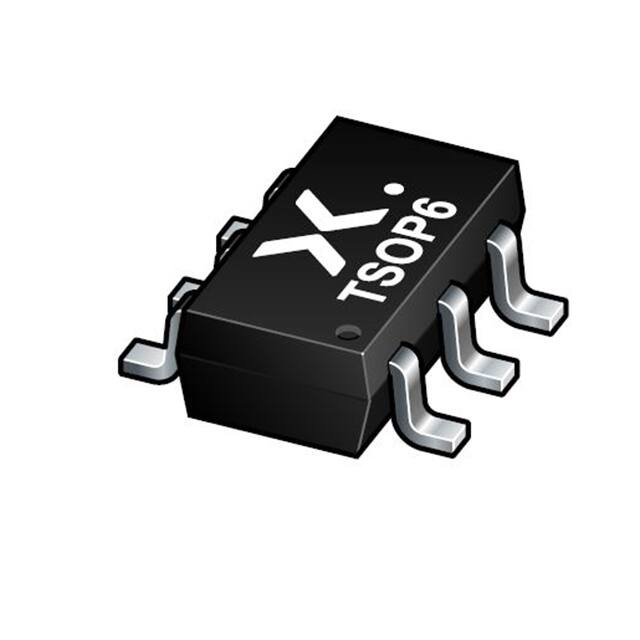

74LVC1G3157-Q100 2-channel analog multiplexer/demultiplexer Rev. 4 — 7 December 2016 Product data sheet 1. General description The 74LVC1G3157-Q100 provides one analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1) and a common input/output (Z). Schmitt trigger action at the select input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 V to 5.5 V. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2. Features and benefits  Automotive product qualification in accordance with AEC-Q100 (Grade 1)  Specified from 40 C to +85 C and from 40 C to +125 C  Wide supply voltage range from 1.65 V to 5.5 V  Very low ON resistance:  7.5  (typical) at VCC = 2.7 V  6.5  (typical) at VCC = 3.3 V  6  (typical) at VCC = 5 V  Switch current capability of 32 mA  Break-before-make switching  High noise immunity  CMOS low power consumption  TTL interface compatibility at 3.3 V  Latch-up performance meets requirements of JESD 78 Class I  Control input accepts voltages up to 5.5 V  Multiple package options  ESD protection:  MIL-STD-883, method 3015 exceeds 2000 V  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 ) 74LVC1G3157-Q100 Nexperia 2-channel analog multiplexer/demultiplexer 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name Description Version SOT363 74LVC1G3157GW-Q100 40 C to +125 C SC-88 plastic surface-mounted package; 6 leads 40 C to +125 C SC-74 plastic surface-mounted package (TSOP6); 6 leads SOT457 74LVC1G3157GV-Q100 4. Marking Table 2. Marking Type number Marking code[1] 74LVC1G3157GW-Q100 YJ 74LVC1G3157GV-Q100 YJ [1] The pin 1 indicator is located on the lower left corner of the device, below the marking code. 5. Functional diagram
