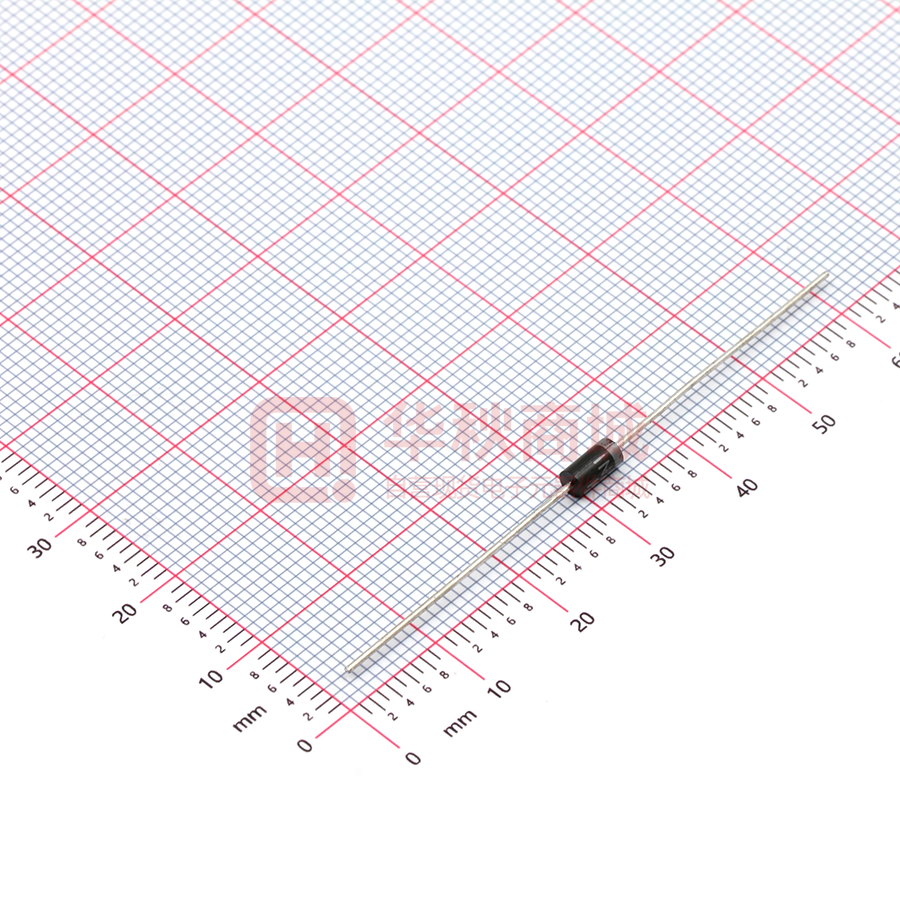

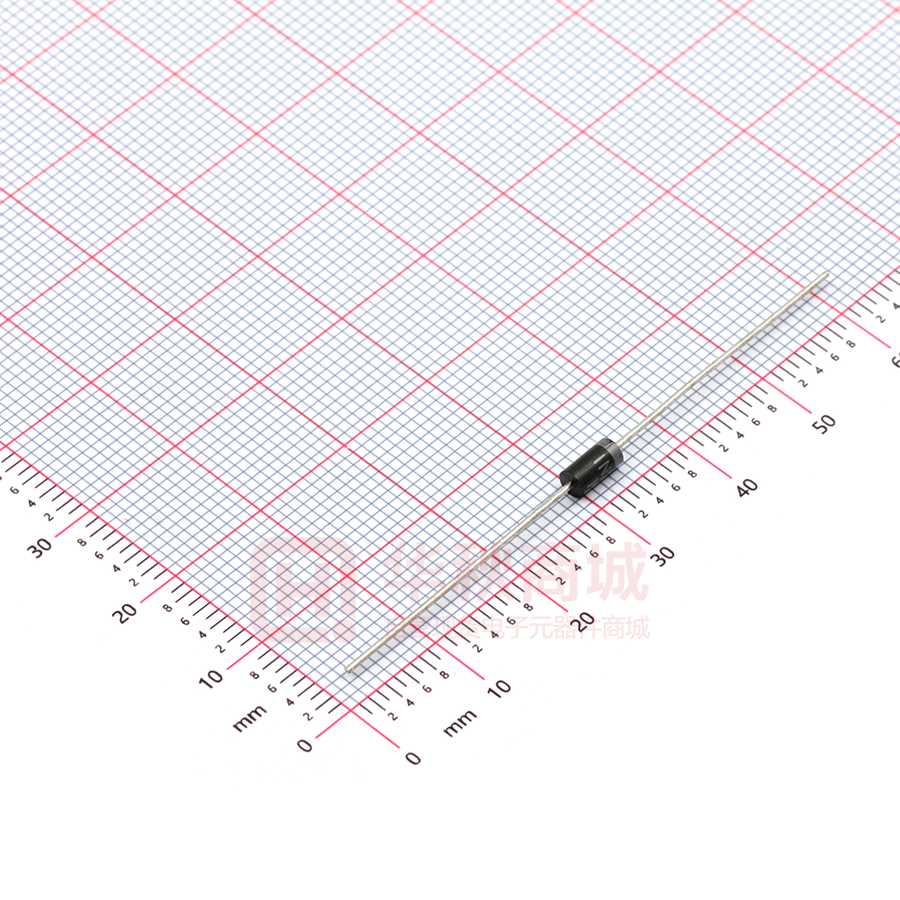

1N4004

1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere GENERAL PURPOSE SILICON RECTIFIER Features A-405  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 1.0 (25.4) MIN.  Idea for printed circuit board  Open Junction chip  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed 0.107 (2.7) 0.080 (2.3) DIA. 0.205(5.2) 0.166(4.2) 250℃/10 seconds at terminals Mechanical Data 1.0 (25.4) MIN. Case : JEDEC A-405 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.008 ounce, 0.23 grams 0.025 (0.65) 0.021 (0.55) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD 1N4001 MDD 1N4002 MDD 1N4003 MDD 1N4004 MDD 1N4005 MDD 1N4006 MDD 1N4007 UNITS VRRM 50 VRMS VDC 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=75℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) I(AV) 1.0 A IFSM 30 A Maximum instantaneous forward voltage at 1.0A VF V Maximum DC reverse current at rated DC blocking voltage IR 1.10 5.0 50.0 μA CJ RθJA 15.0 pF 50.0 TJ,TSTG -55 to +150 ℃/W ℃ TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A1 Page :1 1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 25 20 15 10 175 5.0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) TA=75 C 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 1,000 100 TJ=150 C 10 TJ=100 C 1 0.1 TJ=25 C 0.01 0 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 200 100 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2
