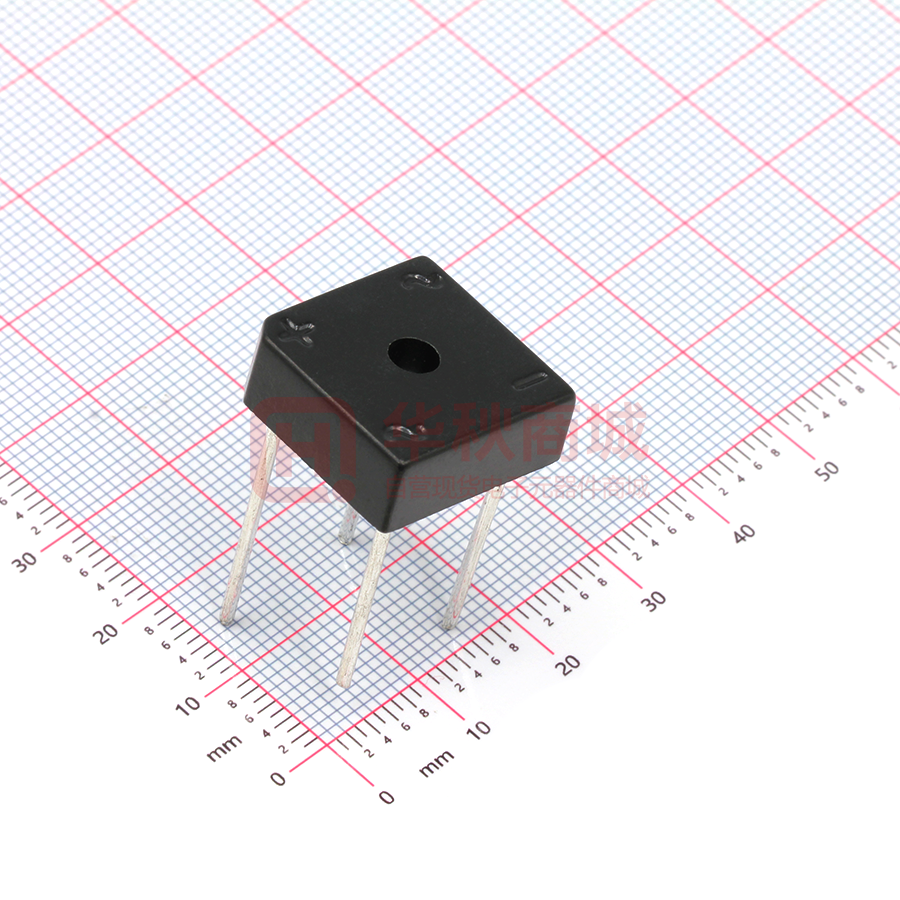

KBPC1010

KBPC10005 THRU KBPC1010 Reverse Voltage - 50 to 1000 Volts Forward Current -10.0 Amperes SILICON BRIDGE RECTIFIERS Features KBPC-8/BR-8  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 0.770(19.6) 0.730(18.5) 0.30(7.60) 0.25(6.35)  Ideal for printed circuit boards HOLE FOR NO.6 SCREW 0.52(13.2) 0.48(12.2)  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 0.750 (19.1) 0.052(1.3) DIA. 0.048(1.2) TYP. AC MIN. 0.770(19.6) 0.730(18.5) 0.52(13.2) 0.48(12.2) AC 260°C/10 seconds,5 lbs. (2.3kg) tension ~ - + ~ Mechanical Data Case : JEDEC BR-8 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.20 ounce, 5.62 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward TC=50 C (Note 1) output rectified current at TC=100 C (Note 1) TA=50 C SYMBOLS VRRM VRMS VDC I(AV) (Note 2) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
