KBPC35005 THRU KBPC3510
Reverse Voltage - 50 to 1000 Volts Forward Current -35.0 Amperes
SILICON BRIDGE RECTIFIERS
Features
KBPC-25
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ideal for printed circuit boards
.452
MAX.
(11.5)
~
0.480(12.2)
0.425(10.8)
High forward surge current capability
High temperature soldering guaranteed:
+
Low reverse leakage
1.181(30.0)
1.102(28.0)
HOLE FOR
NO.8 SCREW
0.673(17.1)
0.633(16.1)
1.181(30.0)
1.102(28.0)
AC
+
0.732(18.6)
0.692(17.6)
0.673(17.1)
0.633(16.1)

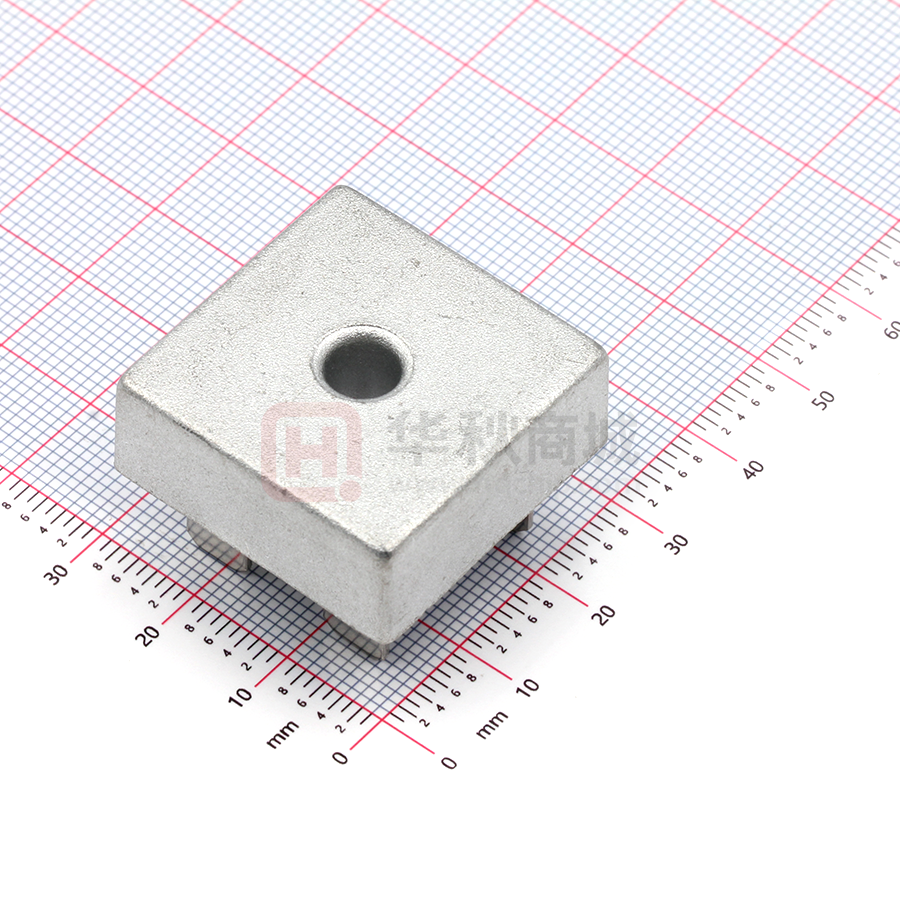

Case : JEDEC KBPC-25 Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 1.02 ounce, 29 grams
-
AC
0.582(14.8)
0.543(13.8)
~
Mechanical Data
-
260°C/10 seconds,5 lbs. (2.3kg) tension
0.033x0.250
(0.8x6.4)
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwisespecified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
output rectified current at TC=55°C ( N o t e 1 )
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
Rating for Fusing(t
