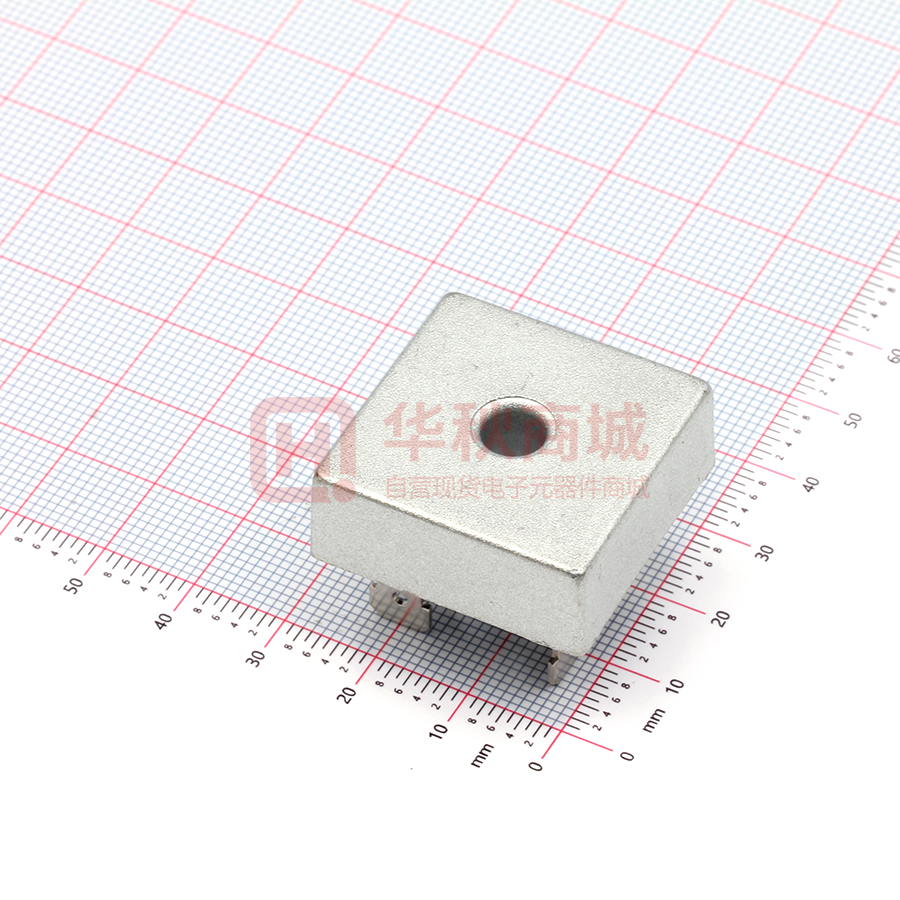

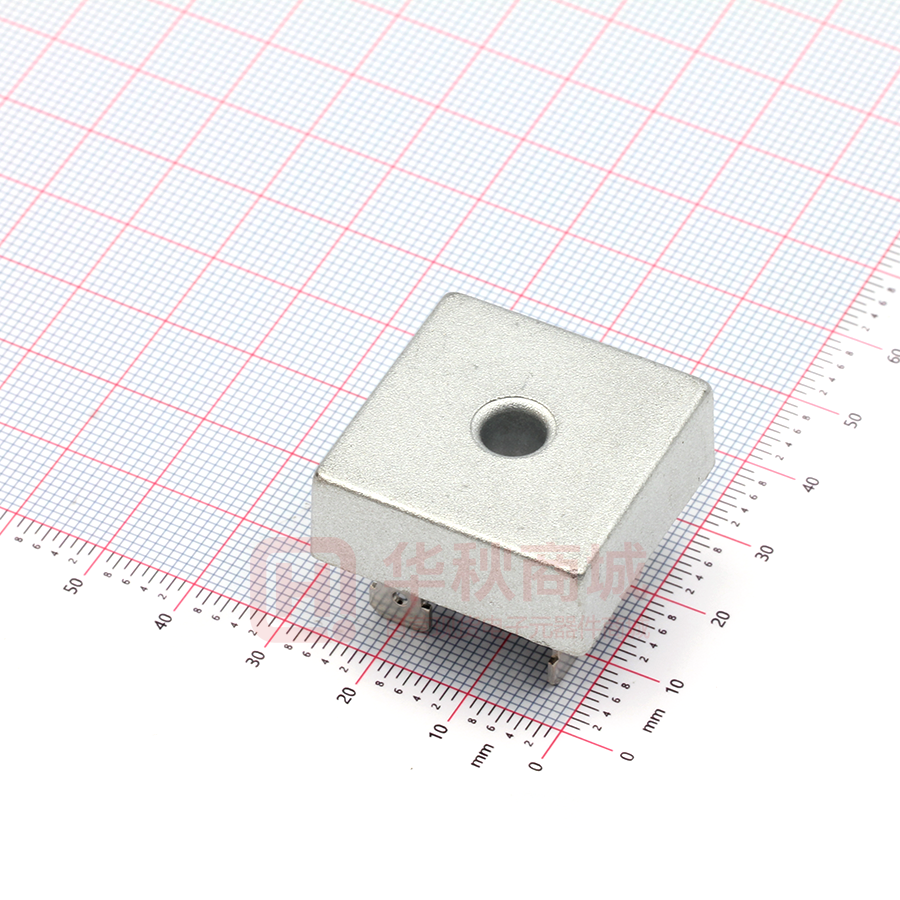

KBPC5010

KBPC50005 THRU KBPC5010 Reverse Voltage - 50 to 1000 Volts Forward Current - 50.0 Amperes SILICON BRIDGE RECTIFIERS Features KBPC-35  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Ideal for printed circuit boards  Low reverse leakage .452 MAX. (11.5) ~ + 0.480(12.2) 0.425(10.8)  High forward surge current capability  High temperature soldering guaranteed: 1.181(30.0) 1.102(28.0) HOLE FOR NO.8 SCREW 0.673(17.1) 0.633(16.1) Case : JEDEC KBPC Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any 1.181(30.0) 1.102(28.0) AC + 0.732(18.6) 0.692(17.6) 0.673(17.1) 0.633(16.1) - AC 0.582(14.8) 0.543(13.8) ~ Mechanical Data - 260 C/10 seconds,at 5 lbs. (2.3kg) tension 0.033x0.250 (0.8x6.4) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TC=55°C ( N o t e 1 ) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
