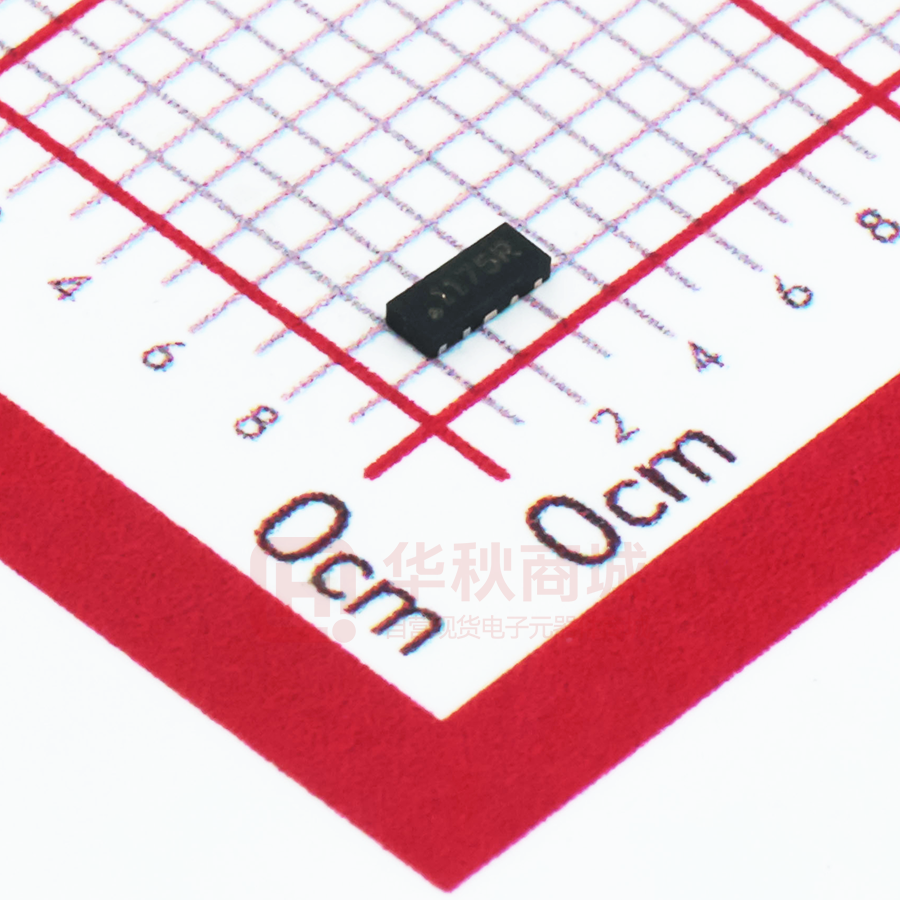

AZ1045-04F.R7G

AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Features Consumer Electronics
Set Top Box
DVDRW Players
Graphics Cards
ESD Protect for Transition Minimized Differential Signaling (TMDS) channels
Protects four I/O lines
Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact) Description IEC 61000-4-5 (Lightning) 3.5A (8/20µs) AZ1045-04F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1045-04F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1045-04F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components. AZ1045-04F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). For operating voltage of 5V and below
Ultra low capacitance : 0.5pF typical
Fast turn-on and Low clamping voltage
Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode
Simplified layout for HDMI connectors
Solid-state silicon-avalanche and active circuit triggering technology
Green part
Applications High Definition Multi-Media Interface (HDMI) 1.3 & 1.4 version
DisplayPort interface
SATA and eSATA interface
USB3.0
Digital Visual Interface (DVI)
USB2.0 up to 480Mb/s
IEEE 1394 up to 3.2 Gb/s
Ethernet port: 10/100/1000 Mb/s
Desktop and Notebooks PCs
Circuit Diagram 1 2 4 Pin Configuration 5 3,8 Line-1 1 10 NC Line-2 2 9 GND 3 Line-3 4 7 NC Line-4 5 6 NC 8 NC GND DFN2510P10E (Top View) Revision 2013/03/08 ©2013 Amazing Micro. 1 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATING UNITS Peak Pulse Current (tp =8/20µs) IPP 3.5 A Peak Pulse Power (tp =8/20µs) PPP 30 W Operating Voltage (I/O pin-GND) VDC (GND – 0.5) to 6 V ESD per IEC 61000-4-2 (Air) 15 VESD ESD per IEC 61000-4-2 (Contact) Lead Soldering Temperature TSOL Operating Temperature 260 (10 sec.) o -55 to +85 o -55 to +150 o TOP Storage Temperature TSTO kV 10 C C C ELECTRICAL CHARACTERISTICS PARAMETER Reverse Stand-Off Voltage Channel Leakage Current Reverse Breakdown Voltage Forward Voltage ESD Clamping Voltage ESD Dynamic Turn-on Resistance Channel Input Capacitance Channel to Channel Input Capacitance Revision 2013/03/08 SYMBOL CONDITIONS VRWM Pin-1,-2,-4,-5 to pin-3,-8, T=25 oC ICH-Leak VPin-1,-2,-4,-5 = 5V, VPin-3,-8 = 0V, T=25 oC VBV VF Vclamp Rdynamic CIN CCROSS IBV = 1mA, T=25 oC, Pin-1,-2,-4,-5 to pin-3,-8 IF = 15mA, T=25 oC, pin-3,-8 to pin-1,-2,-4,-5 IEC 61000-4-2 +6kV,T=25 oC, Contact mode, any I/O pin to Ground IEC 61000-4-2, 0~+6kV,T=25 oC, Contact mode, any I/O pin to Ground Vpin-3,-8 = 0V,VIN = 2.5V,f = 1MHz,T=25 o C, any I/O pin to Ground Vpin-3,-8 = 0V, VIN = 2.5V, f = 1MHz, T=25 oC , between I/O pins ©2013 Amazing Micro. 2 MIN TYP MAX UNITS 5 V 1.5 µA 6 V 0.9 1.1 V 12 V 0.3 Ω 0.5 0.65 pF 0.04 0.08 pF www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Typical Characteristics Typical Variation of CIN vs. VIN 0.9 0.09 0.8 0.08 0.7 Typical Variation of CIO-to-IO vs. VIN 0.10 Input Capacitance (pF) Input Capacitance (pF) 1.0 o f = 1MHz, T=25 C, 0.6 0.5 0.4 0.3 0.2 0.1 0.07 f = 1MHz, T=25 oC, 0.06 0.05 0.04 0.03 0.02 0.01 0.0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 0.00 0.0 4.0 0.5 Input Voltage (V) 2.0 2.5 3.0 3.5 4.0 Analog Cross Talk 20 0 10 Analog Cross Talk (dB) -3 Insertion Loss (dB) 1.5 Input Voltage (V) insertion Loss S21 (I/O-to-GND) -6 -9 -12 -15 -18 -21 -24 3GHz: -0.92dB 4.3GHz: -3dB -27 0 -10 -20 -30 -40 -50 -60 -70 -30 -80 1e+8 1e+9 1e+8 Frequency (Hz) Transmission Line Pulsing (TLP) Current (A) 1.0 1e+9 Frequency (Hz) Transmission Line Pulsing (TLP) Measurement 18 16 14 V_pulse 12 Pulse from a transmission line TLP_I 10 100ns + TLP_V 8 DUT - 6 4 I/O to GND 2 0 0 2 4 6 8 10 12 14 Transmission Line Pulsing (TLP) Voltage (V) Revision 2013/03/08 ©2013 Amazing Micro. 3 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Applications Information A. Device Connection The AZ1045-04F is designed to protect four data lines from transient over-voltage (such as ESD stress pulse). The device connection of AZ1045-04F is shown in the Fig. 1. In Fig. 1, the four protected data lines are connected to the ESD protection pins (pin1, pin2, pin4, and pin5) of AZ1045-04F. The ground pins (pin3 and pin8) of AZ1045-04F are the negative reference pins. data line I/O 1 I/O 2 I/O 2 Line-1 Line-2 1 10 NC 2 9 GND 3 Line-3 Line-4 To I/O-port Connector I/O 1 data line 4 AZ1045-04F To I/O-port Connector These pins should be directly connected to the GND rail of PCB (Printed Circuit Board). To get minimum parasitic inductance, the path length should keep as short as possible. AZ1045-04F can provide ESD protection for 4 I/O signal lines simultaneously. If the number of I/O signal lines is less than 4, the unused I/O pins can be simply left as NC pins. NC GND 8 5 7 NC 6 NC I/O 3 I/O 3 data line I/O 4 To Protected IC data line To Protected IC I/O 4 Fig. 1 Data lines connection of AZ1045-04F. B. Application AZ1045-04F is designed for protecting high speed I/O ports from over-voltage caused by Electrostatic Discharging (ESD). Thus, a lot of kinds of high speed I/O ports can be the applications of AZ1045-04F, especially, the HDMI port. HDMI Protection for High and Low speed signals The HDMI Compliance Test Specification (CTS) requires sink (receiver) ports maintain a differential impedance of 100 Ohms +/- 15%. ESD protection devices have an inherent junction capacitance. Even a small amount of added capacitance on a HDMI port will cause the impedance of the differential pair to drop. Thus, some form of compensation to the layout will be required to bring the differential pairs back within the required 100 Ohm +/- 15% range. The higher the added capacitance, the more extreme the modifications will need to be. If the added capacitance is too high, compensation may not even be possible. The AZ1045-04F presents 0.5pF capacitance to each differential signal while being rated to handle >8kV ESD contact Revision 2013/03/08 4 ©2013 Amazing Micro. www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port discharges (>15kV air discharge) as outlined in IEC 61000-4-2. Therefore, it is possible to make none adjustment to the board layout parameters to compensate for the added capacitance of the AZ1045-04F. Figure 2 shows how to implement the AZ1045-04F in a HDMI application. The AZ1045-04F is designed for allowing the traces to run straight through the device to simplify the PCB layout. As shown in Figure 2, the best way to design the PCB trace is using the flow through layout. The solid line represents the PCB trace. Note that the PCB traces are used to connect the pin pairs for each line (pin 1 to pin 10, pin 2 to pin 9, pin 4 to pin 7, pin 5 to pin 6). For example, line 1 enters at pin 1 and exits at Pin 10 and the PCB trace connects pin 1 and 10 together. Lines 2, 3, and 4 have the same way of connection. The ground pins (pin3 and pin8) of AZ1045-04F are the negative reference pins. These pins should be directly connected to the GND plane of PCB. To get minimum parasitic inductance, the path length should keep as short as possible. In Figure 2, the none-TMDS signals, DDC_CLK, DDC_DAT, CE_REMOTE, and HOTPLUG_DET, can be protected with another low cost part, e.g., AZC199-04S. Line -1 1 10 NC TMDS_GND Line -2 2 9 NC 8 GND 7 NC 6 NC TMDS_D2- GND AZ1045-04F TMDS_D2+ 3 TMDS_D1+ Line -3 4 TMDS_GND Line -4 5 TMDS_D2+ TMDS_D2- TMDS_D1+ TMDS_D1- TMDS_D11 10 NC Line-2 2 9 NC TMDS_D0- GND 3 8 GND TMDS_CK+ Line-3 4 7 NC TMDS_GND Line-4 5 6 NC TMDS_GND AZ1045-04F Line-1 TMDS_D0+ TMDS_D0+ TMDS_D0- TMDS_CK+ TMDS_CK- TMDS_CKCE_REMOTE CE_REMOTE Via hole to GND N/C DDC_DAT GND 3 GND 2 DDC_CLK 1 AZC199-04S DDC_CLK 4 5 +5V 6 Via hole to +5V DDC_DAT +5V OUT Via hole to GND C=100nF (optional) HOTPLUG_DET HOTPLUG_DET HDMI Connector Fig. 2 HDMI Protection for High and Low speed signals. Revision 2013/03/08 ©2013 Amazing Micro. 5 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port C. Measurement Results on a HDMI port Fig. 3a and 3b show the test boards for measuring the differential impedance of a HDMI port without using ESD protection array, and with using AZ1045-04F ESD protection array, respectively. Fig. 4 shows the differential impedance measurement results. The range of the differential impedance without ESD protection array on it is from 96Ω to 106Ω, which meets the spec of 100 Ohms +/- 15%. And the range of the differential impedance with AZ1045-04F ESD protection array on it is from 88.9Ω to 104Ω, which still meets the spec of 100 Ohms +/- 15%. From the measured results shown in Fig. 4, the degradation of the differential impedance induced by the parasitic effects of AZ1045-04F is at the range of 12.8Ω to 14.2Ω. This demonstrates when the PCB differential impedance is designed at around 105Ω, then none adjustment to the board layout parameters is needed to compensate for the added ultra small capacitance of the AZ1045-04F and the test results can pass the spec of 100Ω +/- 15%. Fig. 5 shows the HDMI Eye Diagram performance when the AZ1045-04F is under used. No apparent affection is shown due to the low capacitance feature of the AZ1045-04F. Fig. 3a The test board for measuring the differential impedance of a HDMI port without using ESD protection array. Fig. 3b The test board for measuring the differential impedance of a HDMI port with using ESD protection array, AZ1045-04F. Fig. 4a The measured differential impedance of Data0- and Data0+ (103.3Ω without ESD protection array, and 89.1Ω with AZ1045-04F). Fig. 4b The measured differential impedance of Data1- and Data1+ (102.7Ω without ESD protection array, and 89.1Ω with AZ1045-04F). Revision 2013/03/08 ©2013 Amazing Micro. 6 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Fig. 4c The measured differential impedance of Data2- and Data2+ (104.2Ω without ESD protection array, and 90.8Ω with AZ1045-04F). Fig. 4d The measured differential impedance of Clock- and Clock+ (101.7Ω without ESD protection array, and 88.9Ω with AZ1045-04F). Fig. 5 the HDMI Eye Diagram performance when the AZ1045-04F is under used. No apparent affection is shown due to the low capacitance feature of the AZ1045-04F. Revision 2013/03/08 ©2013 Amazing Micro. 7 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port PACKAGE OUTLINE (DFN2510P10E) TOP VIEW (unit in mm) BOTTOM VIEW (unit in mm) SIDE VIEW (unit in mm) Symbol A A1 A3 D E D1 E1 b e L1 L2 b2 L Revision 2013/03/08 Millimeters min max 0.40 0.55 0.00 0.05 0.152REF. 2.45 2.55 0.95 1.05 0.35 0.45 0.35 0.45 0.15 0.25 0.5 BSC 0.075 REF 0.05 REF 0.20 0.30 0.35 0.45 ©2013 Amazing Micro. 8 Inches min max 0.016 0.022 0.000 0.002 0.006 BSC 0.096 0.100 0.037 0.041 0.014 0.018 0.014 0.018 0.006 0.010 0.019 BSC 0.0029 REF 0.0019 REF 0.0079 0.012 0.014 0.018 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port LAND LAYOUT D D1 Dimensions B F A E C C1 Notes: Index Millimeter Inches A 0.875 0.034 B 0.20 0.008 C 0.50 0.02 C1 1.00 0.039 D 0.25 0.01 D1 0.4 0.016 E 0.675 0.027 F 1.55 0.061 This LAND LAYOUT is for reference purposes only. Please consult your manufacturing partners to ensure your company’s PCB design guidelines are met. MARKING CODE Part Number 117XY AZ1045-04F (Green part) 117 = Device Code X = Date Code Y= Control Code Marking Code 117XY Note. Green means Pb-free, RoHS, and Halogen free compliant. Ordering Information PN# Material Type Reel size MOQ/interal box MOQ/carton AZ1045-04F.R7G Green T/R 7 inch 4 reel= 12,000/box 6 box =72,000/carton Revision 2013/03/08 ©2013 Amazing Micro. 9 www.amazingIC.com AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Revision History Revision Modification Description Revision 2008/12/09 Preliminary Release. Revision 2009/01/16 The Initial Formal Release. Revision 2009/05/15 Correct the typos at Package Outline. Revision 2009/06/10 1. Correct the typos at the ABSOLUTE MAXIMUM RATINGS. 2. Update the information of the measurement results on a HDMI port. Revision 2009/09/08 1. Update the bottom view indication of the Package Outline. 2. Update the “D” value of Land Layout. Revision 2009/11/25 Increase the Lightning (8/20µs) spec. Revision 2009/12/26 Update the PACKAGE DIMENSIONS. Revision 2011/05/05 1. Update the Company Logo. 2. Add the Ordering Information. Revision 2011/07/16 Add the Applications of USB3.0 and HDMI 1.4 version. Revision 2012/02/09 Modify the Bottom View of Package Outline to add three parameters, b2, L1, and L2. Revision 2012/03/23 Add Fig. 5 of HDMI Eye Diagram. Revision 2012/06/05 Update the diagram of the Pin Configuration on page 1. Revision 2013/03/08 Update the “A” value of Package Outline. Revision 2013/03/08 ©2013 Amazing Micro. 10 www.amazingIC.com
