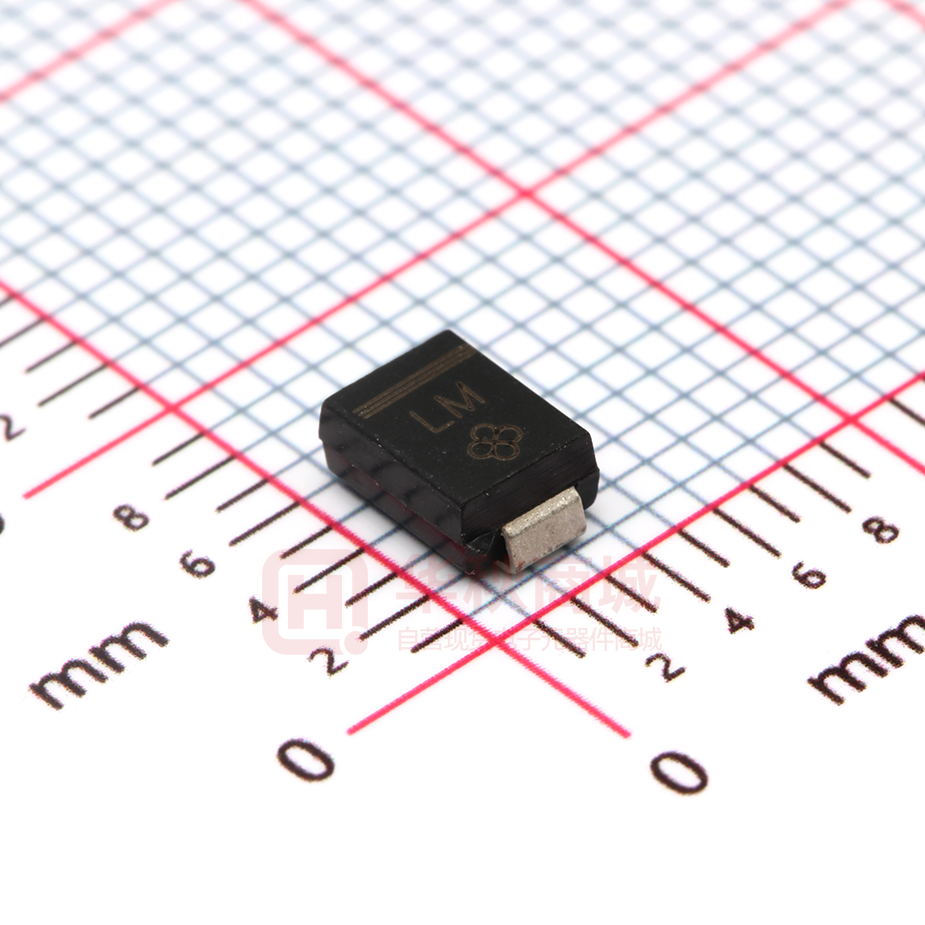

SMBJ15A

SMBJ5.0 - SMBJ170CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 B SMB(DO-214AA) Mechanical Data ! ! ! ! ! A Case: SMB/DO-214AA, Molded Plastic Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 Polarity: Cathode Band or Cathode Notch Marking: Type Number Weight: 0.093 grams (approx.) C D J H Maximum Ratings Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25°C) (Note 1) Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3) Instantaneous Forward Voltage @ IPP = 35A V BR
