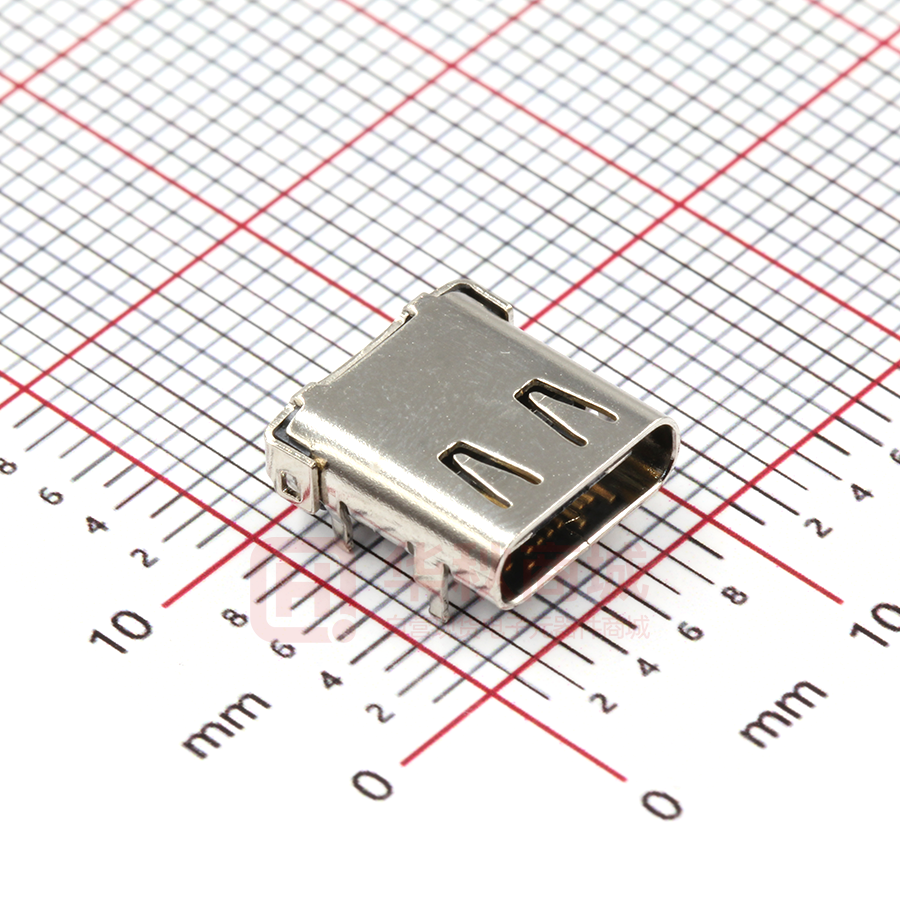

U262-241N-4BV60

Material Housing Material: High temperature thermoplastic UL 94V-0 Contact Terminal: High Grade Copper Alloy Metallic Shell: Stainless Steel Gnd Latch: Stainless Steel Plating Data Contact Underplating: 50µ" Min. Nickel Contact Plating: 1µ" Gold Solder Area: 80µ" Matte Tin Shell Metallic Shell: 50µ" Min. Nickel Cover Shell Metallic Shell: 80µ" Min. Nickel Inner Ground Cover Shell Metallic Shell: 50µ" Min. Nickel Electrical Voltage Rating: 20V DC Current Rating: Vbus pins collectively 5.00A, GND pins collectively 6.25A, B5 pin 1.25A, Other pins 0.25A per pin. Contact Resistance: 40mΩ Max. Insulation resistance: 100 MΩ MIN. Dielectric withstanding voltage: 100V AC/Minute Mechanical Durability: 10,000 cycles Mating Force:5 to 20N Unmating Force:8 to 20N (post test) 1.84 [0.072] 9.90 [0.390] 6.50 [0.256] 8.48 [0.334] A12 2.60 [0.102] 3.21 [0.126] B12 B1 0.81 [0.032] 1.62 [0.064] 2.44 [0.096] A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 10.02 [0.395] 4.53 [0.178] A1 3.25 [0.128] 4.87 [0.192] 2.57 [0.101] 5.69 [0.224] 4.46 [0.175] 1.27 [0.050] 8.39 [0.330] 0.71 [0.028] 9.12 [0.359] PIN SIGNAL NAME 0.90 [0.035] B5 B4 B8 B6 B7 B10 B11 B9 B12 φ0.56 0.51 [0.020] 0.50 [0.019] 5.58 [0.220] X X X DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
