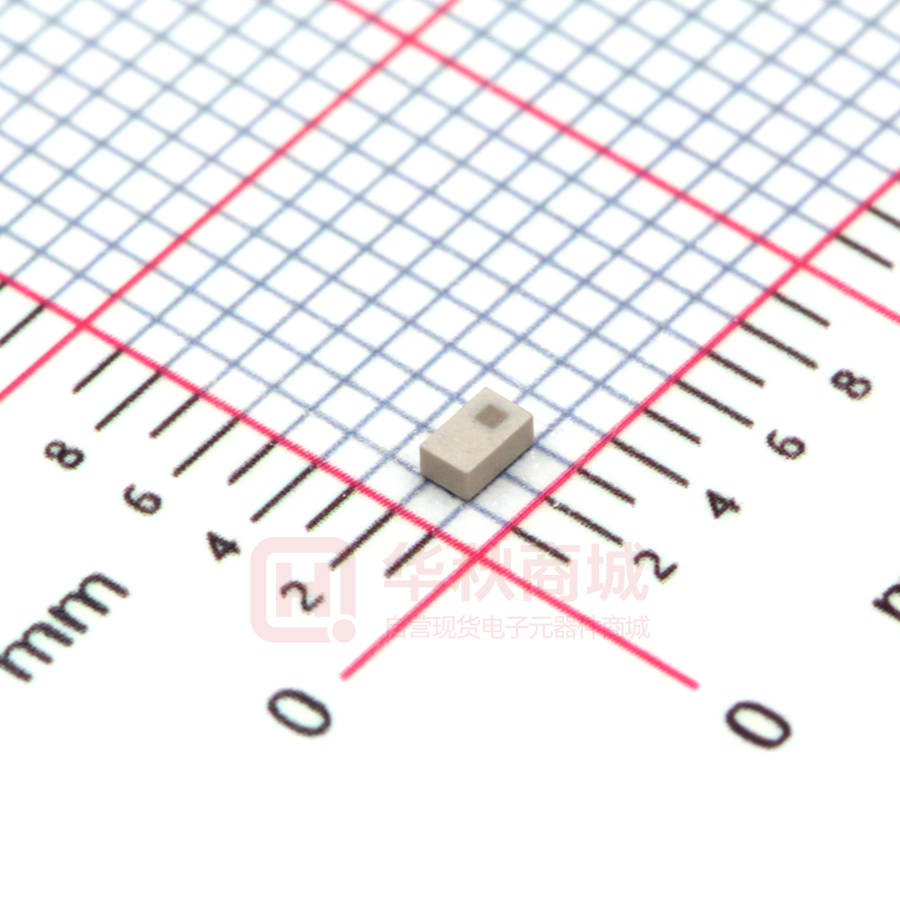

SLFB21-2R450G-06TF

Multilayer Chip LC Band Pass Filter – SLFB Series Operating Temp. : -40℃ ~+ 85℃/ -55℃ ~+ 125℃ FEATURES Small and low profile enables high density mounting Low insertion loss and high attenuation Excellent solderability ● ● ● APPLICATIONS Mobile communication equipment for GSM, LTE,5G systems, etc. Bluetooth, WLAN, Wi-Fi etc. Base station application ● ● ● PRODUCT IDENTIFICATION SLFB 18 -2R450G -07 T F ① ② ③ ④ ⑤ ⑥ ① ② External Dimensions (L×W) (MM) 15 [0402] 1.0×0.5 Type SLFB ③ Bandpass LC Filter 18 [0603] 1.6×0.8 19 [0403] 1.1×0.9 21 [0805] 22 [1008] 32 [1210] 2.0×1.2 2.5×2.0 3.2×2.5 ⑤ ④ Series Code 07 etc. T Packing Tape & Reel Center Frequency Example Nominal Value 1R917G 1910MHz 2R450G 2450MHz 5R550G 5550MHz ⑥ Hazardous Substance Free Products F SHAPE AND DIMENSIONS SLFB15-2R450G-02TF Dimensions and Land Patterns SLFB15-2R450G-31TF Dimensions and Land Patterns Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Type: SLFB18 Series Dimensions and Land Patterns SLFB18-2R450G-31/36TF/ SLFB18-3R800G-01/03TF/ Dimensions and Land Patterns SLFB18-4R700G-03TF SLFB18-5R500G-33/34/38/39TF/ SLFB18-5R900G-01TF SLFB19-2R450G-03TF Sunlord Dimensions and Land Patterns Dimensions and Land Patterns Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Type: SLFB21 Series Dimensions and Land Patterns SLFB21-3R600G-41TF/ SLFB21-3R800G-17TF/ SLFB21-4R700G-19TF/ SLFB21-4R900G-31TF Dimensions and Land Patterns Type: SLFB22 Series Dimensions and Land Patterns Type: SLFB32 Series Dimensions and Land Patterns Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFB15 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Units Symbol MHz f0 MHz PB dB IL SLFB15-2R450G-02TF 2450 f 0 ±50.0 1.4 SLFB15-2R450G-31TF 2450 f 0 ±50.0 1.3 Attenuation Thickness dB 25 dB Min. at 880~960MHz 8.0 dB Min. at 1710~1970MHz 23 dB Min. at 4800~5000MHz 32dB Min. at 7200~7500MHz 9 dB Min. at DC~915 MHz 34 dB Min. at 4800~5000 MHz 27 dB Min. at 7200~7500 MHz MM T 0.38±0.05 SLFB18 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Attenuation Thickness Units MHz MHz dB dB MM Symbol f0 PB IL - T SLFB18-1R910G-01TF 1910 1805~2025 1.65 SLFB18-2R450G-07TF 2450 2400~2500 1.8 SLFB18-2R450G-31TF 2450 f 0 ±50.0 0.95 30 dB at 700~950MHz 15 dB at 950~1050MHz 25 dB at 2400~2500MHz 35 dB at 2700~5400MHz 20 dB at 5500~12500MHz 30 dB Min. at 800~960MHz 30 dB Min. at 1710~1990MHz 30 dB Min. at 4800~5000MHz 30 dB Min. at 7200~7500MHz 20 dB at 500~960 MHz 23 dB at 3200~3312 MHz 30 dB at 4800~5000 MHz 32 dB at 7200~7500 MHz SLFB18-2R450G-32TF 2495 2300~2690 2.0 SLFB18-2R450G-36TF 2450 2400~2500 0.95 12 dB Min. at 500~1800 MHz 25 dB Min. at 3600~4000 MHz 20 dB at 500~960 MHz 23 dB at 3200~3312 MHz 0.80±0.10 30 dB at 4800~5000 MHz 32 dB at 7200~7500 MHz 30 dB Min. at DC~693 MHz 30 dB Min. at 693~2300 MHz 30 dB Min. at 2300~2690 MHz SLFB18-3R800G-01TF 3800 3300~4200 1.5 18 dB Min. at 5150~5470 MHz 25 dB Min. at 5470~5925 MHz 25 dB Min. at 6600~8400 MHz 25 dB Min. at 9900~12600 MHz 38 dB Min. at DC~693 MHz 38 dB Min. at 693~2300 MHz 36 dB Min. at 2300~2690 MHz SLFB18-3R800G-03TF 3800 3300~4200 1.9 20 dB Min. at 5150~5470 MHz 25 dB Min. at 5470~5925 MHz 25 dB Min. at 6600~8400 MHz 25 dB Min. at 9900~12600 MHz Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFB18 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Attenuation Thickness Units MHz MHz dB dB MM Symbol f0 PB IL - T 38 dB Min. at DC~693 MHz 38 dB Min. at 693~2690 MHz SLFB18-4R700G-03TF 4700 4400~5000 1.5 12 dB Min. at 5470~5735 MHz 18 dB Min. at 5735~5925 MHz 27 dB Min. at 8800~10000 MHz SLFB18-5R500G-01TF 5512.5 f 0 ±362.5 1.5 SLFB18-5R500G-31TF 5512.5 f 0 ±362.5 1.5 25 dB Min. at 13200~15000 MHz 30 dB Min. at 800~3800MHz 15 dB Min. at 10000~12000MHz 33 dB at 100~2170 MHz 29 dB at 2170~2500 MHz 15 dB at 6900~7000 MHz 16 dB at 7000~7200 MHz 16 dB at 7200~7800 MHz 32 dB at 9800~12000 MHz 35 dB at 700~2690 MHz 0.55±0.10 28 dB at 3300~4200 MHz SLFB18-5R500G-33TF 5500 5150~5925 1.5 SLFB18-5R500G-34TF 5425 5000~5850 1.5 SLFB18-5R500G-36TF 5370 4900~5840 1.5 SLFB18-5R500G-38TF 5550 5150~5950 0.8 SLFB18-5R900G-01TF 5900 5855~5925 1.1 SLFB18-5R500G-39TF 5425 4900~5950 1 Sunlord 3.5 dB at 4400~4600 MHz 0.5 dB at 5950~6000MHz 0.5 dB at 6000~6900MHz 15 dB at 6900~7200 MHz 20 dB at 7200~9800 MHz 20 dB at 9800~11700 MHz 35 dB at 14700~17850 MHz 35 dB at 700~2690 MHz 10 dB at 6900~72000 MHz 33 dB Min. at 100~2170 MHz 29 dB Min. at 2170~2500 MHz 15 dB Min. at 6900~7800 MHz 32 dB Min. at 9800~12000 MHz 35 dB at 30~2700 MHz 30 dB at 3400~3800 MHz 15 dB at 7200~7800 MHz 20 dB at 10300~11700 MHz 35 dB at 100~2700 MHz 30 dB at 2700~3600 MHz 25 dB at 3600~3800 MHz 25 dB at 3800~4000 MHz 20 dB at 4000~4400 MHz 16 dB at 7000~7400 MHz 16 dB at 7400~9750 MHz 20 dB at 9750~10300 MHz 16 dB at 10300~12750 MHz 35 dB at 30~2700 MHz 33 dB at 3400~3800 MHz 9 dB at 6900~7000 MHz 15 dB at 7200~7500 MHz 20 dB at 9800~11900 MHz Specifications subject to change without notice. Please check our website for latest information. 0.65±0.10 0.55±0.10 0.70±0.10 0.55±0.10 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFB19 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Units Symbol MHz f0 MHz PB dB IL SLFB19-2R450G-03TF 2450 2400~2500 1 Attenuation Thickness dB 20 dB Min. at 50~960 MHz 30 dB Min. at 1560~1606 MHz 15 dB Min. at 1710~1990 MHz 10 dB Min. at 3600 MHz 35 dB Min. at 4800~5000 MHz 25 dB Min. at 7200~7500 MHz MM T 0.60±05 SLFB21 TYPE Part Number Units Symbol Center Frequency MHz f0 Pass Band MHz PB Max. IL in PB (at 25°C) dB IL Attenuation Thickness dB - MM T 15 dB Min. at 1600MHz SLFB21-2R450G-31TF 2450 2400~2500 1.2 SLFB21-3R600G-31TF 3600 3300~3900 1.5 SLFB21-3R600G-41TF 3600 3400~3800 1.3 SLFB21-3R800G-17TF 3800 3300~4200 2 SLFB21-4R700G-19TF 4700 4400~5000 1.8 Sunlord 25 dB Min. at 3200MHz 20 dB Min. at 4800~5000MHz 32 dB Min. at 824~960 MHz 24 dB Min. at 1710~1990 MHz 21 dB Min. at 1990~2170 MHz 28.5 dB Min. at 6900~8070 MHz 37.5 dB Min. at 1~2170 MHz 27.5 dB Min. at 2170~2400 MHz 27.5 dB Min. at 2400~2500 MHz 9.5 dB Min. at 2500~2800 MHz 4.5 dB Min. at 4400~4800 MHz 25 dB Min. at 4800~4900 MHz 25 dB Min. at 4900~5337 MHz 25 dB Min. at 5337~5430 MHz 25 dB Min. at 5430~6800 MHz 34.5 dB Min. at 6800~7600 MHz 30 dB Min. at 7600~9000 MHz 25 dB Min. at 9000~11400 MHz 20 dB Min. at 11400~15200 MHz 36 dB at 450~2200 MHz 38 dB at 2300~2483 MHz 33 dB at 2496~2690 MHz 25 dB at 5150~5850 MHz 25 dB at 6600~8400 MHz 15 dB at 9900~12600 MHz 37 dB at 450~2200 MHz 37 dB at 2300~2483 MHz 33 dB at 2496~2690 MHz 15 dB at 5490~5670 MHz 18 dB at 5670~5950 MHz 18 dB at 6200~8000 MHz 20 dB at 8800~10000 MHz 15 dB at 13200~15000 MHz Specifications subject to change without notice. Please check our website for latest information. 0.95±0.10 0.70±0.10 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFB21 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Attenuation Thickness Units MHz MHz dB dB MM Symbol f0 PB IL - T SLFB21-4R900G-31TF 4880 4720~5040 2 SLFB21-5R500G-01TF 5410 f 0 ±510 1.5 30 dB Min. at 2300~2690 MHz 10 dB Min. at 3300~3800 MHz 20 dB Min. at 5725~5850 MHz 30 dB Min. at 3500MHz 25 dB Min. at 9800~11840MHz 5 dB Min. at 14700~17760MHz 0.80±0.10 0.95±0.10 SLFB22 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Units Symbol MHz f0 MHz PB dB IL SLFB22-3R600G-31TF 3600 3186.4~ 4186.4 2 SLFB22-4R500G-31TF 4500 3823.68~ 5023.68 1.2 SLFB22-4R950G-31TF 4950 4415~5415 1.8 Attenuation Thickness dB 35 dB Min. at 500~1711 MHz 28 dB Min. 33 dB typ. at 1711.84~2711.84 MHz 28 dB Min. 33 dB typ. at 4660.96~5660.96 MHz 38 dB Min. at 5660~7610 MHz 40 dB Min. 45 dB typ. at 7610~8610 MHz 20 dB Min. at 8610~11000 MHz 15 dB Min. at 11000~14000 MHz 40 dB Min. at 500~874.56 MHz 40 dB Min. at 874.56~2074.56 40 dB Min. at 6772.8~7972.8 40 dB Min. at 7972.8~10921.92 30 dB Min. at 10921.92~15000 40 dB Min. at 500~3350 MHz 40 dB Min. at 6480~7500 MHz 36 dB Min. at 6480~9250 MHz MM T 10±0.10 25 dB Min. at 9250~11200 MHz 15 dB Min. at 11200~17200 MHz SLFB32 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Units Symbol MHz f0 MHz PB dB IL SLFB32-1R920G-31TF 1920 1680~2295 2.5 SLFB32-2R525G-11TF Sunlord 2525 2150~2900 2.5 Attenuation Thickness dB 30 dB Min. @ DC~1400 MHz 30 dB Min. @ 2620~2705 MHz 35 dB Min. @ 2705~2740 MHz 35 dB Min. @ 2740~3115 MHz 30 dB Min. @ 3115~3235 MHz 30 dB Min. @ 3235~6590 MHz 30 dB Min. @ 6590~7210 MHz 35 dB @ 259~650MHz 28 dB @3208~3599MHz 35 dB @6157~6548MHz MM T Specifications subject to change without notice. Please check our website for latest information. 20±0.10 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFB32 TYPE Part Number Center Frequency Pass Band Max. IL in PB (at 25°C) Attenuation Thickness Units MHz MHz dB dB MM Symbol f0 PB IL - T 1.7dB Max. 30 dB Min.@ 824~960MHz @3300~3900 MHz 2dB Max. SLFB32-3R600G-12TF 3600 3160~4040 24 dB Min.@1200~1990MHz 36 dB Min.@2098-2598 MHz @3160~3300 MHz 23 dB Min.@4600~5000MHz 2 dB Max. 43 dB Min.@5000~5600MHz @3900~4040 30 dB Min.@6349~6749MHz MHz 28 dB Min.@6900~8070MHz 1.50±0.10 45 dB Min.@10~2000MHz 30 dB Min.@2000~3400MHz SLFB32-4R900G-31TF 4900 4700~5100 3 30 dB Min.@3400~3800MHz 24 dB Min.@3800~4330MHz 25 dB Min.@4700~5100MHz Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
