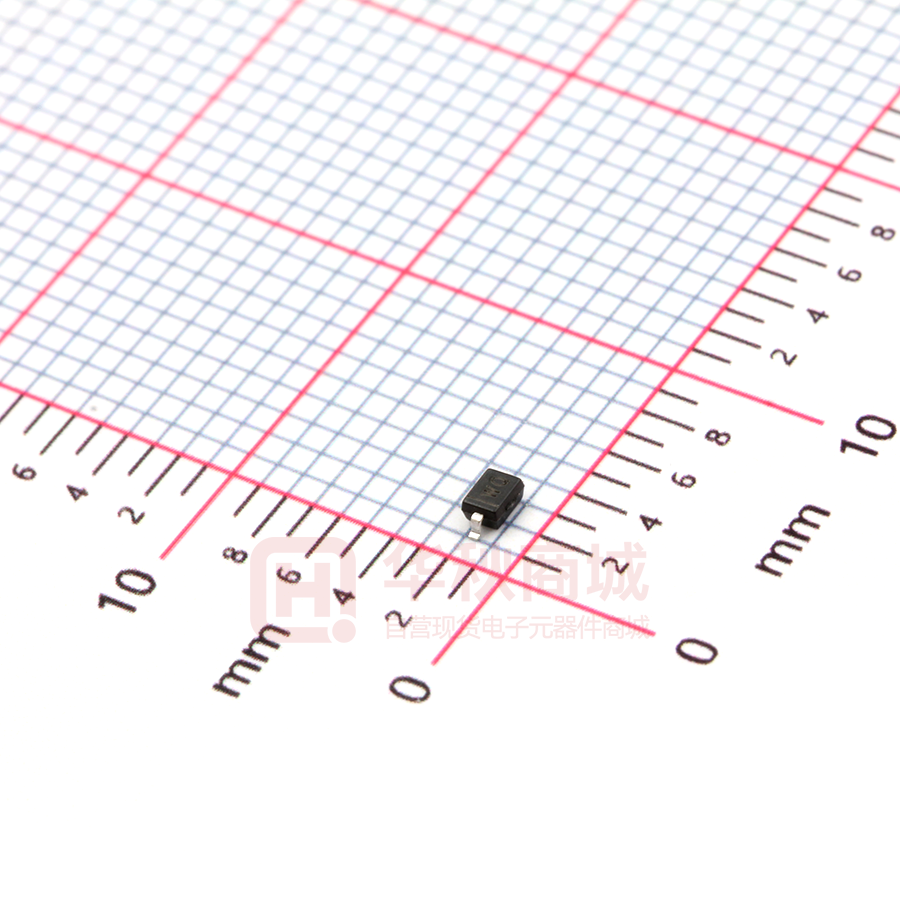

SPD9103W-2/TR

SPD9103W SPD9103W http//:www.sh-willsemi.com 1 Lines, Bi-directional, Low Capacitance Transient Voltage Suppressors Descriptions The SPD9103W is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress caused SOD-323 by Electrostatic Discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges. The SPD9103W incorporates low capacitance steering diodes that reduce the typical capacitance to 1pF per line. Pin1 Pin2 The SPD9103W may be used to provide ESD protection up to ±30kV (contact discharge) according to IEC61000-4-2, and withstand peak pulse current up to 20A (8/20μs) according to IEC61000-4-5. Circuit diagram The SPD9103W is available in SOD-323 package. Standard products are Pb-free and Halogen-free. Features  Stand-off voltage: 3.3V Max.  Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact discharge) * = Month code ( A~Z) IEC61000-4-5 (surge): 20A (8/20μs). Low capacitance: CJ = 1pF typ.  Ultra-low leakage current: IR = 0.1nA typ.  Low clamping voltage.  Solid-state silicon technology Marking (Top View) Order information Applications  10/100/1000 Ethernet  STB  Router  Networking  Modem Will Semiconductor Ltd. Pin2 W = Device code IEC61000-4-4 (EFT): 40A - 5/50ns  W* Pin1 1 Device Package Shipping SPD9103W-2/TR SOD-323 3000/Tape&Reel Revision 1.2, 2015/01/13 SPD9103W Absolute maximum ratings Parameter Symbol Rating Unit Peak pulse power (tp = 8/20μs) Ppk 340 W Peak pulse current (tp = 8/20μs) IPP 20 A ESD according to IEC61000-4-2 air discharge ±30 VESD ESD according to IEC61000-4-2 contact discharge Junction temperature TJ Operating temperature TOP Lead temperature TL Storage temperature kV ±30 TSTG 125 o -40~85 o 260 o -55~150 o C C C C Electrical characteristics (TA = 25 oC, unless otherwise noted) *Parameter Symbol Reverse maximum working voltage VRWM Reverse leakage current Reverse breakdown voltage Clamping voltage 1) Junction capacitance 1) IR VBR VCL CJ Condition Min. VRWM = 3.3V IT = 1mA Typ. 0.1 Max. Unit 3.3 V 100 nA 4.0 V IPP = 1A, tp = 8/20μs 8 V IPP = 5A, tp = 8/20μs 10 V IPP = 20A, tp = 8/20μs 17 V 1.5 pF VR = 0V, f = 1MHz I/O to I/O 1.0 According to IEC61000-4-5. Will Semiconductor Ltd. 2 Revision 1.2, 2015/01/13 SPD9103W o Typical characteristics (TA = 25 C, unless otherwise noted) Current (%) Peak pulse current (%) 100 90 Front time: T1= 1.25 × T = 8µs Time to half-value: T2= 20µs 100 90 50 T2 10 10 0 0 T T1 tr = 0.7~1ns Time (µs) 8/20μs waveform per IEC61000-4-5 1.6 CJ - Junction capacitance (pF) Pulse waveform: tp = 8/20µs 14 VC - Clamping voltage (V) Time (ns) Contact discharge current waveform per IEC61000-4-2 16 12 10 8 6 4 t 60ns 30ns 20 0 5 10 15 IPP - Peak pulse current (A) 1.4 1.2 1.0 0.8 0.6 0.4 20 f = 1MHz VAC = 50mV -3 Clamping voltage vs. Peak pulse current -2 -1 0 1 2 VR - Reverse voltage (V) 3 Capacitance vs. Reverse voltage 10 1 % of Rated power Peak pulse power (KW) 100 0.1 80 60 40 20 0.01 0 1 10 100 Pulse time (µs) 1000 25 50 75 100 125 150 o TA - Ambient temperature ( C) Non-repetitive peak pulse power vs. Pulse time Will Semiconductor Ltd. 0 Power derating vs. Ambient temperature 3 Revision 1.2, 2015/01/13 SPD9103W o Typical characteristics (TA=25 C, unless otherwise noted) ESD clamping ESD clamping (+8kV contact discharge per IEC61000-4-2) (-8kV contact discharge per IEC61000-4-2) 20 TLP current (A) 15 10 5 0 -5 Z0 = 50Ω tr = 2ns tp = 100ns -10 -15 -20 -15 -10 -5 0 5 TLP voltage (V) 10 15 TLP Measurement Will Semiconductor Ltd. 4 Revision 1.2, 2015/01/13 SPD9103W Package outline dimensions SOD-323 Symbol Dimensions in millimeters Dimensions in Inches Min. Max. Min. Max. A 0.800 1.000 0.031 0.039 A1 0.000 0.100 0.000 0.004 A2 0.800 0.900 0.031 0.035 b 0.250 0.350 0.010 0.014 c 0.080 0.150 0.003 0.006 D 1.200 1.400 0.047 0.055 E 1.600 1.800 0.063 0.071 E1 2.500 2.700 0.098 0.106 0.475 REF L 0.019 REF L1 0.250 0.400 0.010 0.016 θ 0° 8° 0° 8° Recommend land pattern (Unit: mm) Note: This land pattern is for your reference only. Actual pad layouts may vary depending on application. Will Semiconductor Ltd. 5 Revision 1.2, 2015/01/13
