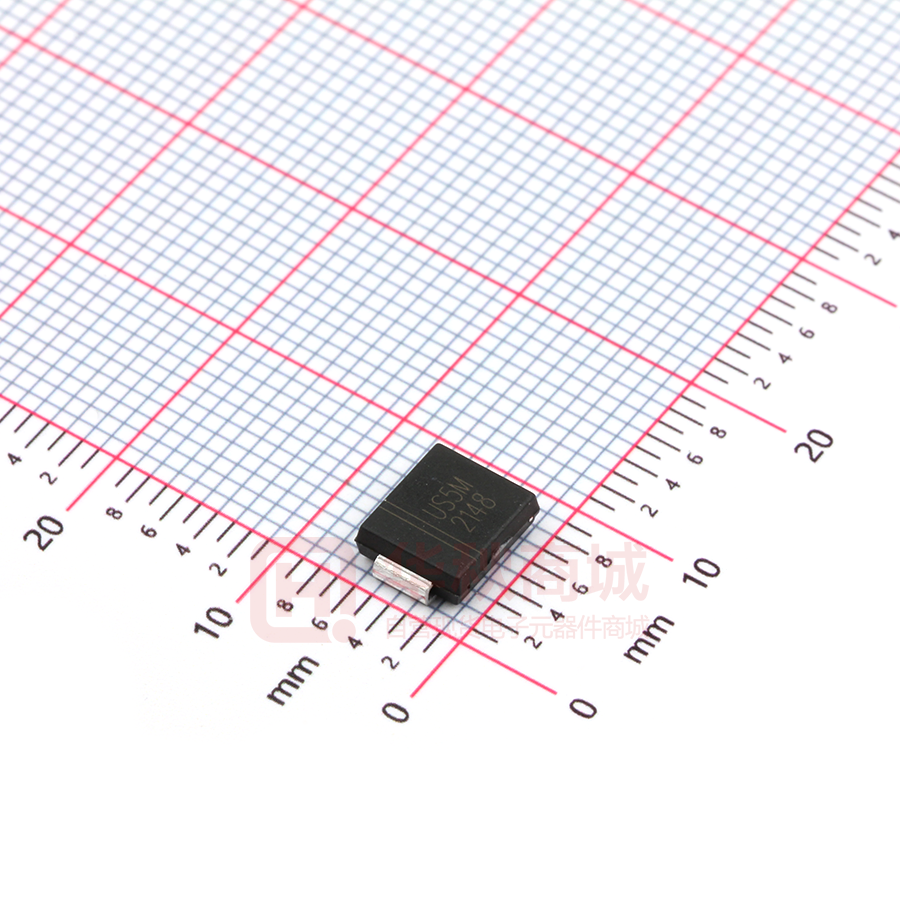

US5MC

山东晶导微电子有限公司 US5AC THRU US5MC Jingdao Microelectronics Surface Mount Ultrafast Recovery Rectifier Reverse Voltage – 50~1000 V PINNING Forward Current – 5 A PIN DESCRIPTION 1 Cathode 2 Anode FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Superfast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives 2 1 Top View Marking Code: US5A~US5M Simplified outline SMC symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 217mg / 0.0077oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter US5AC US5BC US5DC US5GC US5JC US5KC US5MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 100 °C I F(AV) 5 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 120 A Maximum Instantaneous Forward Voltage at 5 A VF Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Operating and Storage Temperature Range 1.3 1.65 V IR 5 100 μA Cj 50 pF t rr Typical Thermal Resistance （2） 1.0 50 75 ns RθJA 35 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.01 SMC-U-US5AC~US5MC-5A1000V Page 1 of 3 山东晶导微电子有限公司 US5AC THRU US5MC Jingdao Microelectronics Fig.1 Reverse Recovery Time Characteristic And Test Circuit Diagram 50 ohm Noninductive t rr 10 ohm Noninductive +0.5 D.U.T + PULSE GENERATOR Note 2 25Vdc approx 0 - -0.25 1 ohm NonInductive OSCILLOSCOPE Note 1 -1.0 Note：1.Rise Time = 7ns, max. Input Impedance = 1megohm,22pF. 2. Ries Time =10ns, max. Source Impedance = 50 ohms. 20ns/div Set time Base for 20ns/div Fig.3 Typical Reverse Characteristics 7.0 300 6.0 100 I R - Reverse Current ( μ A) Average Forward Current (A) Fig.2 Maximum Average Forward Current Rating 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 50 75 10 T J =75°C 1.0 T J =25°C 0.1 0.0 25 T J =125°C 100 125 150 20 0 175 40 Case Temperature (°C) 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 80 100 Fig.5 Typical Junction Capacitance Fig.4 Typical Forward Characteristics T J =25°C 1.0 US5AC~US5DC US5GC 0.1 60 % of PIV.VOLTS US5JC~US5MC 0.01 T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 1 0.001 0 0.5 1.0 1.5 0.1 Instaneous Forward Voltage (V) 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 US5AC THRU US5MC Jingdao Microelectronics PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) Type number Marking code US5AC US5A US5BC US5B US5DC US5D US5GC US5G US5JC US5J US5KC US5K US5MC US5M mm Unit ： (mil) 2017.01 JD702221B20 Page 3 of 3
