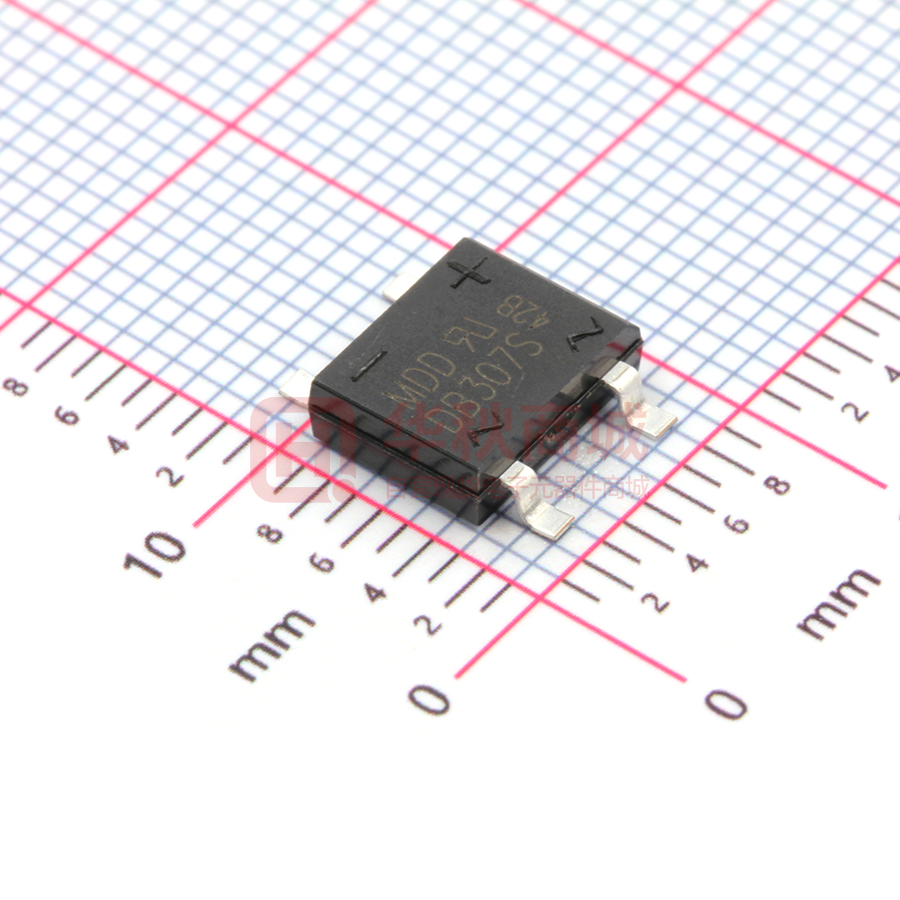

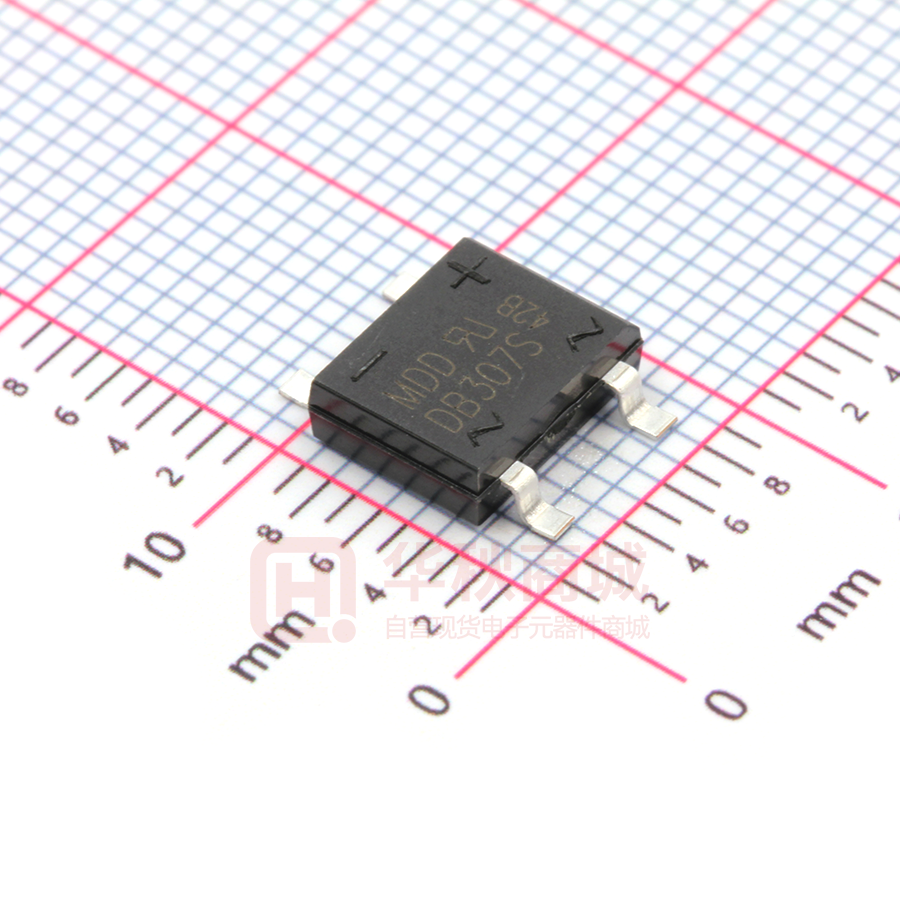

DB307S

DB301S THRU DB307S Voltage Range - 50 to 1000 Volts Current - 3.0 Ampere SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Features  Ideal for printed circuit board DBS  Reliable low cost construction utilizing molded plastic technique  High temperature soldering guaranteed: 260°/10 seconds at 5 lbs., .205(5.2) (2.3kg) tension .195(5.0)  Small size, simple installation  High surge current capability .335(8.50) 45 .307(7.8) .118(3.0) + .087(2.20) .047(1.20) .035(0.88) （2） Mechanical Data - .402(10.2) （1） + .382(9.70) .255(6.5) .245(6.2) .014(0.35) .008(0.15) Case : JEDEC DBS Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.02 ounce, 0.4 grams .008(0.20) .060(1.53) ~ .002(0.05) （3） .040(1.02) ~ （4） Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code MDD MDD MDD MDD MDD MDD MDD UNITS DB301S DB302S DB303S DB304S DB305S DB306S DB307S 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC Maximum average forward rectified current at TA=40°C I F(AV) 3.0 A IFSM 80 A VF 1.1 V IR 10 500 µA µA 27 25 110 A2 s pF Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per leg at 3.0A Maximum DC reverse current TA=25°C TA=125°C at rated DC blocking voltage I2t Rating for Fusing (t
