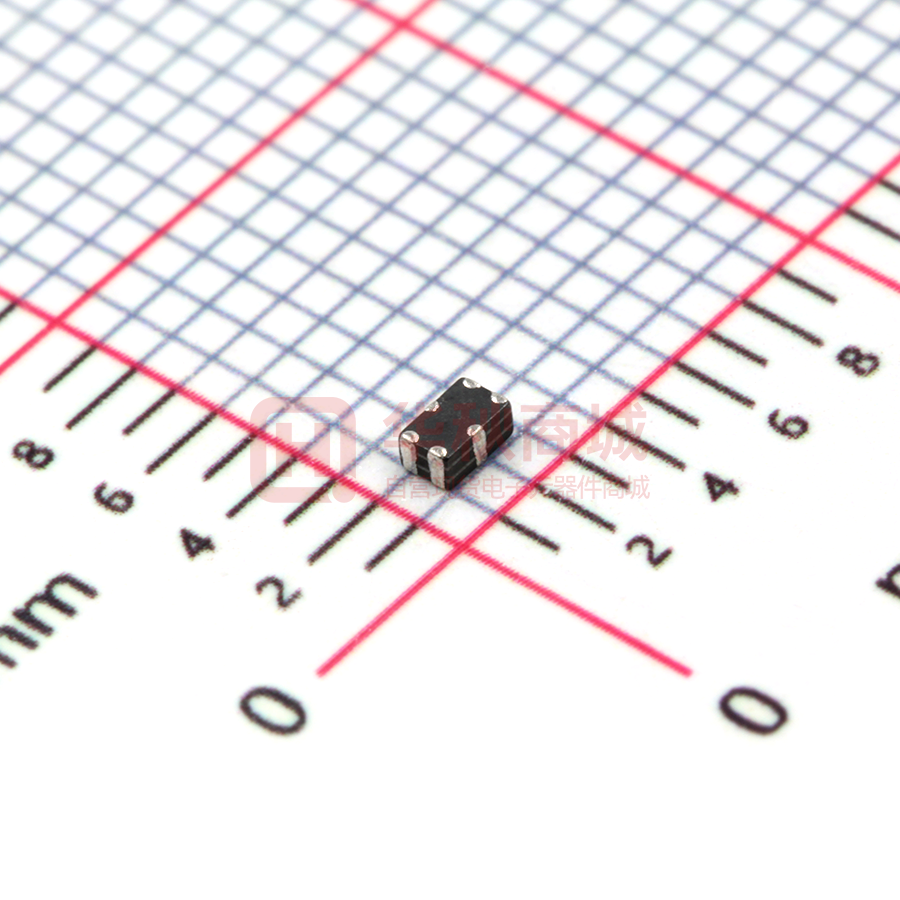

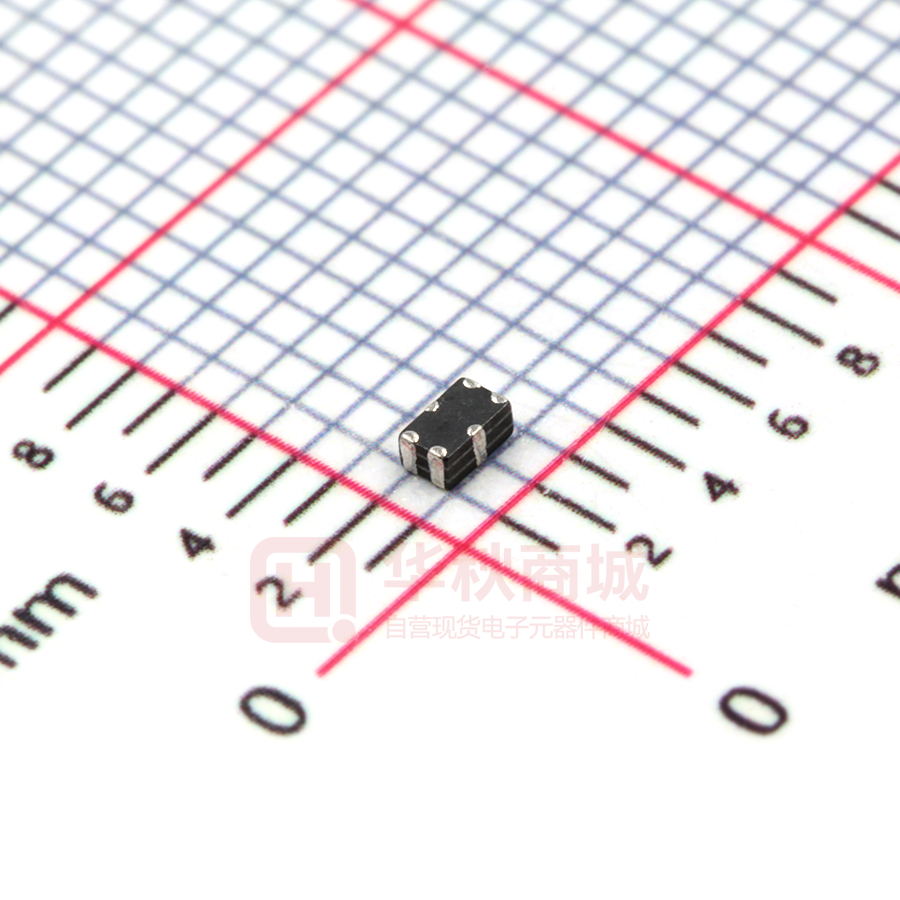

ICMEF212P900MFR

ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 1 Data Sheet - ITEM - PART NO : COMMON MODE ESD FILTER : ICMEF212P900MFR - CONDITION : 1. 2. 3. 4. ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 2 1. Generals • This specification covers the engineering requirements for the ICMEF212P900MFR (Common Mode ESD Filter) 2. Features • Effective for suppressing common mode noise and almost no effect for high speed differential data line • One common mode filters and two ESD suppression devices integrated • Ultra low profile (2.0ⅹ1.2ⅹ0.8mm) • Ceramic multilayer type SMD component • Non-polarized product • It is a product conforming to RoHS directive. 3. Applications • LVDS lines in notebook computers • USB2.0, IEEE1394, DVI, lines in PDP, LCD TV, DVD Player, PC, Audio player, DSC • MDDI, MIPI in mobile phone 4. Product specifications 4. 1 PART NUMBER CODE ICMEF 21 ① ② 2P ③ 900 ④ M ⑤ F ⑥ R ⑦ ① Series name of ICT’s Common Mode ESD Filter ② Dimensions, 2.0mm (L) ⅹ 1.2mm (W) ③ Number of lines, 2P= 2 lines ④ Common Mode Impedance (at 100MHz), 900= 90Ω ⑤ Tolerance of common mode impedance, M= ±25% ⑥ Type of electrode plating: F= Lead Free ⑦ Packing Type, R= Reel ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 3 Capacitance Insulation Resistance (Max) Rated Voltage Rated Current 4. 2 Specification of electrical characteristics Characteristics Common Mode Impedance Resistance CTF Leakage Current CTF symbol ZCM RDC IL C IRCR VR IR Units Ω Ω ㎂ pF MΩ Volt mA Test Condition @100MHz 25℃±2℃ 5V 0.5Vrms @1MHz 10V Value 90(±25%) Max 4.0 Max 1.0 Max 1.7 Min 10 25℃±2℃ 25℃±2℃ 5 Max100 -Transmission characteristics (S-parameter) - Impedance Curves 0 1k Differential Mode S21 Insertion loss (dB) Impedance () -6 100 10 -12 -18 -24 1 1M 10M 100M Frequency (Hz) 1G -30 1M 10M 100M Frequency (Hz) 1G ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 4 4. 3 Operating Temperature DESCRIPTION REQUIREMENTS Operating Temperature -40℃ ∼ + 85℃ 5. 5. Equivalent Circuit & Recommended Foot print & Stencil mask PIN NUMBER DESCRIPTION ①~④ DATA LINE ⑤, ⑥ GROUND ① Unit : mm Stencil Mask T : 0.10mm ② ⑤ ⑥ ③ ④ [ Equivalent circuit ] [ Foot print ] [ Stencil Mask ] 6. Mechanical Property 6. 1 Appearance and Dimension Unit : mm ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 5 7. TEST METHOD OF ELECTRICAL PROPERTY - PIN INDEX Pin6 Pin1 Pin3 Pin2 Pin4 Pin5 ITEM DESCRIPTION SOURCE EQUIPMENT Rdc Pin 1-3, 2-4 10mA DC Source Source Meter CM Impedance Pin 1-2(Short) to Pin 3-4(Short) 500mV LCR Meter (3GHz) IL Pin 5 or 6 to Pin 1, 2, 3, 4 5V DC Source Source Meter ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 6 8. REFLOW CONDITION 8. 1 RECOMMENDED SOLDERING PROFILE (Lead-free condition) (℃ ) Dwell: max 260℃-10sec 185℃ 160℃ Δ T≤ 220℃ 130 ℃ 250℃ ΔT ≤130℃ 30~50 sec 30~50 sec Soldering Soldering Pre-heating 110 ± 10 sec Gradual Cooling 25℃ 60 sec Time (sec) 8. 2 RECOMMENDED LEAD-FREE SOLDER PASTE - Supplier : Tamura Donghwa - Main composition : Sn-Ag-Cu - Ratio of composition : 96.5%-3.0%-0.5% 8. 3 RECOMMENDED HAND SOLDER - Max Temperature: Max 380 ℃(Max 5sec) ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 7 9. PACKING SPECIFICATION 9. 1 TAPING FIGURE 9. 2 CARRIER TAPE DIMENSIONS Unit : mm SYMBOL DIMENSION 21 A B W F E P1 P2 P0 D T 1.55 0.05 2.3 0.05 8.0 0.1 3.5 0.05 1.75 0.05 4.0 0.1 2.0 0.05 4.0 0.1 1.55 0.03 0.95 0.05 ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 8 9. 3 REEL DIMENSIONS (1) Reel Materials: Polystyrene (2) Label (3) Taping - Standard Packing Quantity per Reel (178) - Paper Tape: 4,000pcs Unit : mm CODE A B C D E W t R DIMENSION 1782 Min. 50 130.5 200.8 3.00.5 101.5 1.30.2 1.00.2 9. 4 LABEL CODE ICMEF212P900MFR J01218LA B 001 QTY 4,000 PCS ICMEF212P900MFR J01218LA 2012, 2P, 90ohm - P/N : Part Number - L/N : Lot Number - C/N : Customer Number - SPEC : Size, Line numbers & CM Impedance - DATE : Date code - Q’TY : Quantity 150401 4,000 ITEM P/N Page COMMON MODE ESD FILTER ICMEF212P900MFR 9 9. 5 REEL PACKING Part Number / Company Name MADE IN KOREA (Country of region ) (1) (2) Product box material : Card board 5 Reels in each SPQ Box (3) PQ Box contains 10 SPQ Boxes (50 Reels) Packing box + Product weight Size L x W x H(mm) Product Common Mode Filter Common Mode ESD Filter Size weight(g) /1 unit S-box + 5reel M-box + 5S-box L-box + 10S-box 185 x 70 x 185 370 x 190 x 200 380 x 370 x 200 Total(g) Chip(g) Total(g) Chip(g) Total(g) Chip(g) 0806 0.00124 643 62 3215 310 6147 620 1210 0.00480 750 96 3758 480 7503 960 2012 0.00750 804 150 4028 750 8043 1500 0806 0.00128 646 65 3230 325 6177 650 1210 0.00490 752 98 3768 490 7523 980 1608 0.00237 701 47 3515 237 7017 474 2012 0.00760 806 152 4038 760 8063 1520
