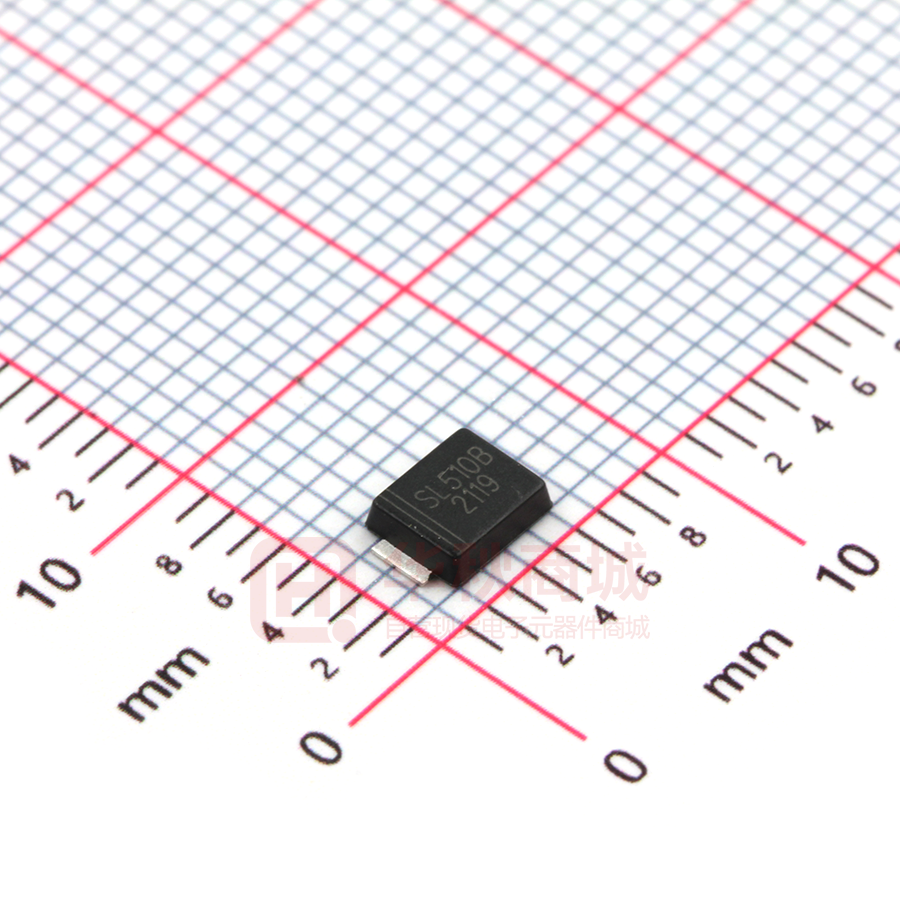

SSL510BF

山东晶导微电子股份有限公司 SSL510BF Jingdao Microelectronics co.LTD Surface Mount Schottky Barrier Rectifier Reverse Voltage - 100V Forward Current - 5.0A PINNING PIN FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: SL510 Simplified outline SMBF and symbol MECHANICAL DATA • Case: SMBF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 5 7mg / 0.002oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % SSL510BF Symbols Parameter Units Maximum Repetitive Peak Reverse Voltage V RRM 100 V Maximum RMS voltage V RMS 70 V Maximum DC Blocking Voltage V DC 100 V Maximum Average Forward Rectified Current I F(AV) 5.0 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 150 A VF 0.6 V IR 1.0 50 mA Cj 600 pF RθJA 45 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C Max Instantaneous Forward Voltage at 5 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.08 SMBF-S-SSL510BF-5A100V Page 1 of 3 山东晶导微电子股份有限公司 SSL510BF Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics Average Forward Current (A) 6.0 5.0 4.0 3.0 2.0 1.0 0.0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve 10 4 T J =100°C 10 3 10 1 T J =25°C 10 0 0 Case Temperature (°C) 60 80 100 Fig.4 Typical Junction Capacitance T J =25°C Junction Capacitance ( pF) 20 10 1 0.1 0 0.5 1.0 1.5 100 20 10 0.1 1 10 100 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 140 120 100 80 60 40 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 500 Instaneous Forward Voltage (V) 160 20 1000 2.0 10 100 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) Peak Forward Surage Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic 100 10 Number of Cycles at 60Hz 2017.08 T J =75°C 10 2 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 SSL510BF Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMBF ∠ALL ROUND C A ∠ALL ROUND HE g Top View mil Bottom View A C D E HE e max 1.3 0.26 4.4 3.7 5.5 2.2 min 1.1 0.18 4.2 3.5 5.1 1.9 max 51 10 173 146 216 86 min 43 7 165 138 200 75 UNIT mm g pad e E A pad D E A V M g 1.0 9° The recommended mounting pad size 40 Marking Type number 2.2 (86) 1.6 (63) SSL510BF Marking code SL510 1.8 (71) 1.6 (63) ∠ mm Unit ： (mil) 2017.08 709157B0 Page 3 of 3
