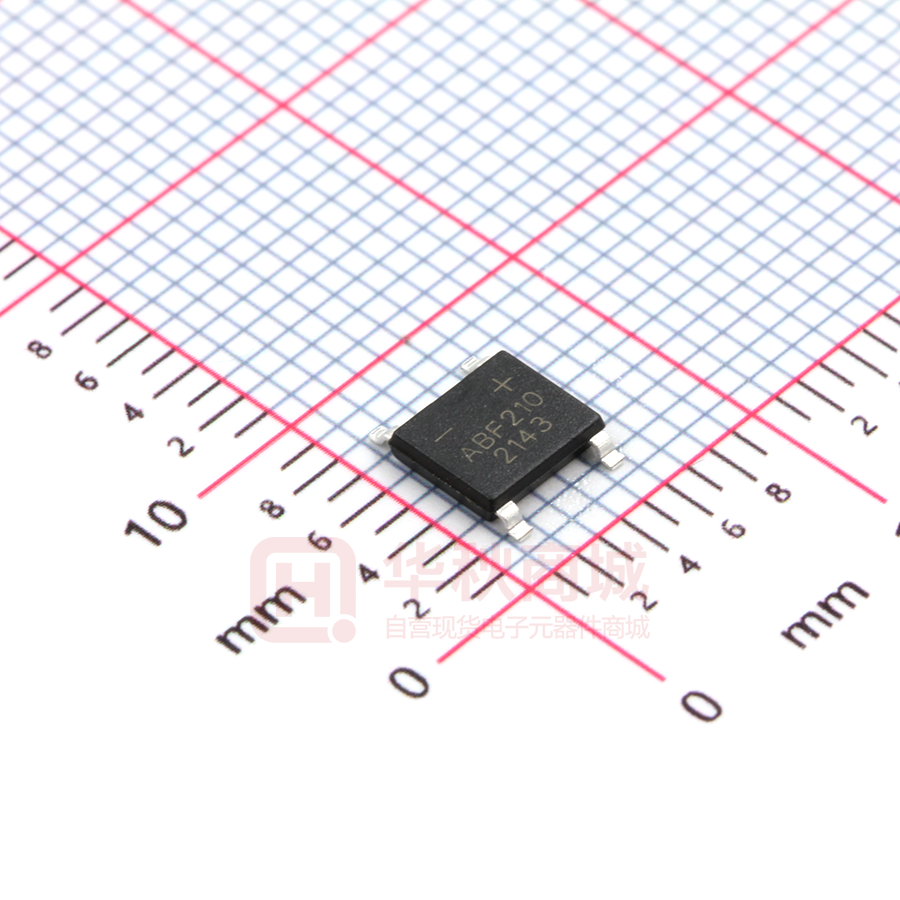

山东晶导微电子有限公司 ABF201 THRU ABF210 Jingdao Microelectronics 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING • Glass Passivated Chip Junction • Reverse Voltage - 100 to 1000 V PIN DESCRIPTION 1 Input Pin（~） 2 Input Pin（~） • Forward Current - 2.0 A • High Surge Current Capability 3 Output Anode（+） • Designed for Surface Mount Application 4 Output Cathode（-） MECHANICAL DATA • Case: ABF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 82mg 0.0029oz 3 4 2 1 ABF Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols ABF201 ABF202 ABF204 ABF206 ABF208 ABF210 Units Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 100 200 400 600 800 1000 V Parameter Average Rectified Output Current at T c = 125 °C IO 2.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 50 A Maximum Forward Voltage at 2.0 A VF 1.1 V IR 5 100 μA Cj 30 pF RθJA RθJC 55 16 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage @ T A =25 °C @ T A =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. 2016.01 ABF-A-ABF201~ABF210-2A1KV Page 1 of 3 山东晶导微电子有限公司 ABF201 THRU ABF210 Jingdao Microelectronics Fig.2 Typical Reverse Characteristics 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) 100 T J =25°C 10 1 0.5 1.0 1.5 2.0 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 60 50 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2016.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 ABF201 THRU ABF210 Jingdao Microelectronics PACKAGE OUTLINE Plastic surface mounted package; 4 leads ABF ∠ALL ROUND ∠ALL ROUND C A a L1 d L HE e D e E ABF mechanical data A C D E HE d e max 1.2 0.22 5.2 4.5 6.4 4.2 0.7 min 1.0 0.15 4.9 4.2 6.0 3.8 0.5 max 47 8.7 205 177 252 165 28 min 39 5.9 193 166 236 150 20 UNIT mm L L1 a 0.95 0.6 0.2 ∠ 7° 37 mil The recommended mounting pad size 24 8 Marking Type number 6.2 244 4.0 157 1.0 39 2.0 79 Marking code ABF201 ABF201 ABF202 ABF202 ABF204 ABF204 ABF206 ABF206 ABF208 ABF208 ABF210 ABF210 mm Unit ： (mil) ABF2xx 2016.01 JD512276B0-5B8 Page 3 of 3
