SL10100DS

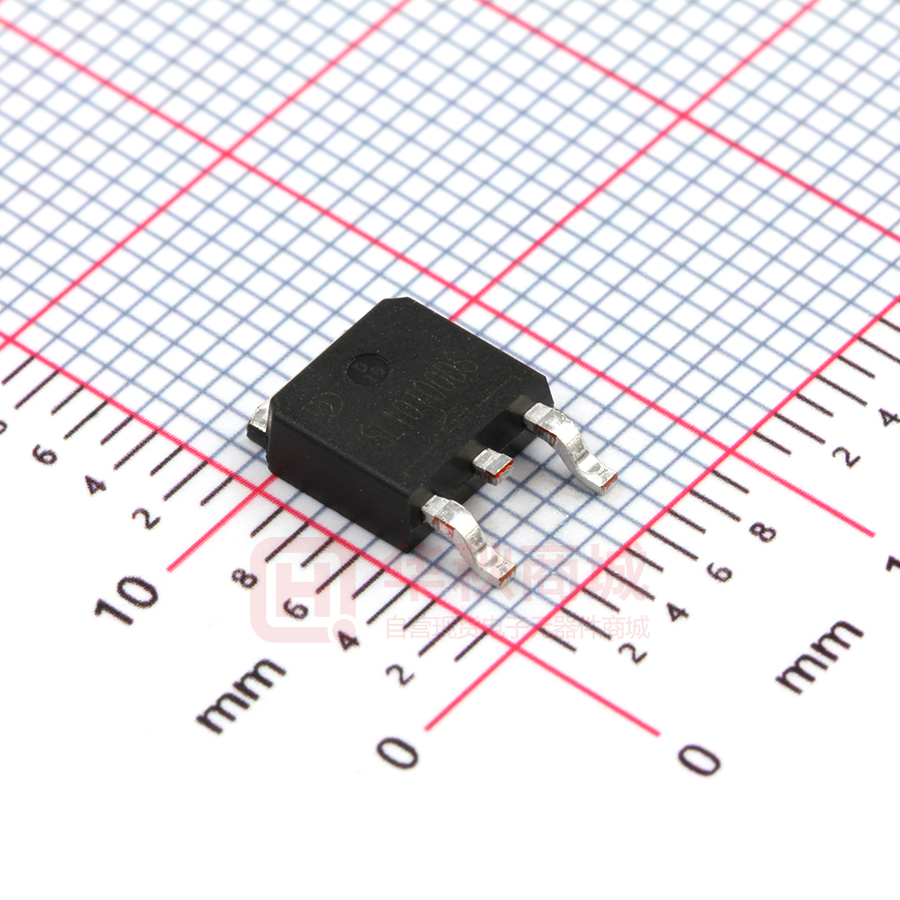

山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SL10100xS SCHOTTKY BARRIER RECTIFIERS Reverse Voltage - 100 V Forward Current - 10 A FEATURES • Low power loss,high efficiency • Low forward voltage drop • High surge capability • High temperature soldering guaranteed • Mounting position: any 1 2 4 3 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified TO-251 SL10100VS TO-252 SL10100DS Maximum Recurrent Peak Reverse Voltage V RRM 100 V Maximum RMS voltage V RMS 70 V Maximum DC Blocking Voltage V DC 100 V Maximum Average Forward Rectified Current I F(AV) 10 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 150 A Cj 620 pF RθJC 45 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C Units PARAMETER Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2） Mounted on infinite heat sink. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified PARAMETER Breakdown voltage per diode Instantaneous forward voltage per diode Reverse current per diode SYMBOL V BR VF TEST CONDITIONS MIN TYP MAX Units I R =0.5mA 100 - - V I F =2A I F =5A T J =25℃ I F =10A - 0.43 0.49 0.60 - I F =2A I F =5A T J =125℃ I F =10A - V R =70V 0.65 V IR V R =100V 2019.03 - T J =25℃ T J =125℃ - - 0.38 0.45 0.58 - 5 - uA - 5.5 50 - uA mA TO251 TO252-S-SL10100xS-10A100V - Page 1 of 4 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SL10100xS Fig.2 Typical Reverse Characteristics 10 8.0 6.0 4.0 2.0 0.0 20 40 60 80 100 120 140 160 180 Instaneous Reverse Current ( mA) Average Forward Current (A) Fig.1 TYPICAL FORWARD CURRENT DERATING CURVE 100 1.0 T J =25°C 0.01 0.001 0 80 Junction Capacitance ( pF) 10 1 0.1 0 0.2 0.4 0.6 1000 500 100 20 10 0.8 0.1 120 100 80 60 40 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 100 Transient Thermal Impedance（ °C /W） 140 1 1 10 100 Reverse Voltage (V) 160 20 100 T J =25°C T J =25°C Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 60 Fig.4 Typical Junction Capacitance Instaneous Forward Voltage (V) Fig.6- Typical Transient Thermal Impedance 100 10 Number of Cycles at 60Hz 2019.03 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) T J =75°C 0.1 Tc,Case Temperature (°C) 20 T J =125°C 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 4 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SL10100xS TO-251(D-PAK) Package Outline Dimensions A B C E L1 + D L M N b1 b G H F G TO-251(I-PAK) mechanical data UNIT A B b b1 C D E F G H L L1 M N max 6.7 5.5 0.8 0.9 2.5 6.3 0.6 1.8 0.55 4.3 1.2 min 6.3 5.1 0.3 0.76 2.1 5.9 0.4 1.3 2.29 TYPICAL 0.45 3.9 0.8 1.8 TYPICAL 1.3 TYPICAL max 264 217 31 35 98 248 24 71 22 169 47 min 248 201 12 30 83 232 16 51 18 154 31 71 TYPICAL 51 TYPICAL mm mil 90 TYPICAL Important Notice and Disclaimer Jingdao Microelectronics reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design, purchase or use. Jingdao Microelectronics makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Jingdao Microelectronics assume any liability for application assistance or customer product design. Jingdao Microelectronics does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Jingdao Microelectronics. Jingdao Microelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of Jingdao Microelectronics. 2019.03 JD90307 Page 3 of 4 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SL10100xS TO-252(D-PAK) Package Outline Dimensions A B C E L1 + D M N J K T S L2 L L3 b G H G F TO-252(D-PAK) mechanical data UNIT mm mil A B b C D E F max 6.7 5.5 0.8 2.5 6.3 0.6 1.8 min 6.3 5.1 0.3 2.1 5.9 max 264 217 31 98 min 248 201 12 83 G H L L1 L2 L3 S 1.2 1.0 1.75 0.1 0.4 0.55 3.1 2.29 TYPICAL 1.3 0.45 2.7 0.8 0.6 1.40 0.0 248 24 71 122 47 39 69 4 232 16 51 22 90 TYPICAL 18 106 31 24 55 0 M N J K T 3.16 1.80 4.83 1.8 1.3 TYPICAL TYPICAL ref. ref. ref. 124 71 190 71 51 TYPICAL TYPICAL ref. ref. ref. Important Notice and Disclaimer Jingdao Microelectronics reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design, purchase or use. Jingdao Microelectronics makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Jingdao Microelectronics assume any liability for application assistance or customer product design. Jingdao Microelectronics does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Jingdao Microelectronics. Jingdao Microelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of Jingdao Microelectronics. 2019.03 JD90307 Page 3 of 4
