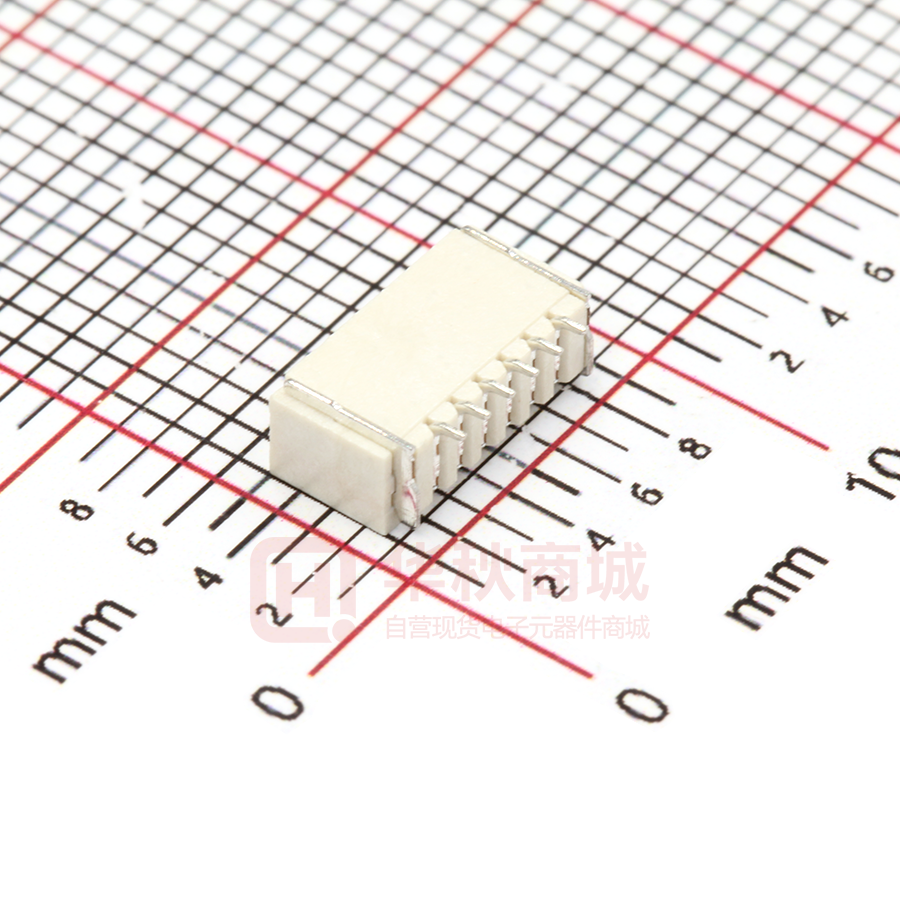

AFC10-S06QCA-00

AFC10-S06QCA-00

  • 厂商:

    JS(钜硕电子)

  • 封装:

    Accessories_8.3X5.05MM_SM

  • 描述:

    线对板 间距1.00mm 6Pin 卧贴

  • 数据手册
  • 价格&库存
AFC10-S06QCA-00 数据手册
深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 認 書 Productacknowledgment 客户(Customer): 品名(Product Name): 1.0mm间距卧式贴片连接器 料号(Material number): AFC10-S**QCA-00 (**表示PIN位数) 本公司确认Our confirmation 工程/日期engineering/date 刘中华 2019.09.14 业务/日期business/date 王 斌  2019.09.14 批准/日期Approval/date 幸坤新 2019.09.14 客户确认Customer confirmation 工程/日期engineering/date 公司地址: 电话: 联系人: 传真: 邮件: 品质/日期quality/date 批准/日期Approval/date 深圳市钜硕电子有限公司 产品名称 Product name 1.0mm卧式贴片 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产品型号 Product mode 产 品 承 认 书 Product acknowledgement 版本号 Version number 页码 Page number AFC10-S**QCA-00  1版 1 version 共8页 第2页 Page 2 of 8 目录 directory 项次 Items are 文件名称 The file name 页码 Page number 1 封面The cover P-1 2 目录directory P-2 3 工程变更记录Engineering change record P-3 4 标准额定值、包装、运输、贮存、部件名称/材质、外观 Standard rating、Packing、transport、Keep in storage、storage Part name material、appearance P-4 5 电气特性、环境特性Electrical and environmental characteristics P-5 6 环境特性Environmental characteristic P-6 7 环境特性Environmental characteristic P-7 8 机械特性Mechanical properties P-8 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Product acknowledgement 版本号 Version number 工程变更记录 Engineering change record 变更记录 Change record 产品名称 1.0mm卧式贴片 Product name 产品型号 AFC10-S**QCA-00  Product model 版本号 1版 Version 1 version number 页码 共8页 第3页 Page number Page 3 of 8 变更人 Change a person 日期 The date of 产品名称 product name 产品型号 Product model 版本号 Version number 页码 Page number 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Certificate of production 1.适用范围 AFC10-S**QCA-00  1版 1 version 共8页 第4页 Page 4 of 8 Scope of application 本规范适用于1.0系列产品。 2.标准额定值 This specification is applicable to A1251 series products. Standard rating 项目 project 规格 specifications 额定电压 The rated voltage 50V 额定电流 Rated current 0.5A 使用温度范围 Operating temperature range AC/DC -25℃~+105℃ 使用湿度范围 Operating humidity range 3.环保 1.0mm卧式贴片 相对湿度90%以下 Relative humidity is below 90% The environmental protection 产品符合ROHS环保要求。Products in line with ROHS environmental protection requirements. 4.包装 Packing 产品内包装为连带,外包装为纸箱,产品在箱内密封,不晃动。 The inner packing of the product is joint and several, the outer packing is carton, the product is sealedin the box, do not shake. 5.运输 transport 允许用任何方式运输,但需避免雨雪淋和阳光照射,不能有碰撞和挤压等机械损伤,运输环境温度为-20℃+50℃ It is allowed to be transported by any means, but it should avoid rain, snow and sunlight, no mechanicaldamage such as collision and extrusion, and the ambient temperature of transportation is -20℃+50℃ 6.贮存:Storage 包装完毕连接器应在环境温度为-20℃~+50℃,相对湿度不大于90%,周围空气中没有酸性,碱性及其它腐 蚀性气体的仓库中贮存。 After packaging, the connector should be in the ambient temperature of -20℃ ~ +50℃, the relative humidity should not be more than 90%, there is no acid, alkaline and other decayin the surrounding air Storage of corrosive gases in a warehouse. 7.部件名称/部件规格型号/部件材质 部件名称 型号 model 材质 The material 基座 base 1.0 LCP E130i 簧片 reed 1.0 磷铜 Phosphor copper 1.0 磷铜 Phosphor copper 固定片 8.外观及尺寸 8.1外观 Part name Part name/part specification/part material stator Appearance and size appearance 塑胶件表面应无明显疤痕、杂色、开裂、毛刺、飞边、缺料及影响使用的变形;金属件表面应光洁、无锈蚀、 氧化、脱皮、发黑及明显的机械损伤等缺陷。 The surface of plastic parts shall be free of obvious scars, mottled, cracked, burr, flash, lack of material and deformation affecting the use; the surface of metal parts shall be smooth and clean No rust, oxidation, peeling, blackening and obvious mechanical damage. 8.2 尺寸 参照工程图 size Reference engineering drawing 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Certificate of production 9.电气特性 编号 number 产品名称 product name 产品型号 Product model 版本号 Version number 页码 Page number 1.0mm卧式贴片 AFC10-S**QCA-00  1版 1 version 共8页 第5页 Page 5 of 8 Electrical characteristics 项目 project 试验方法 Test method for 9.1 将连接器插合,用接触电阻仪进行测试,测量连接器两个端子 接触电阻 之间组成一个闭合的回路。 contact Plug in the connector and test it with a contact resistance resistance meter to measure both terminals of the connector Form a closed loop between. 9.2 将连接器插合,在相邻接触件之间和接触件与外壳之间施加 绝缘电阻 500V DC电压,持续1分钟进行测试。 Insulation Plug in the connector and apply 500V DC voltage between resistance the adjacent contacts and between the contacts and the enclosure for 1 minute. 9.3 将连接器插合,在相邻接触件之间和接触件与外壳之间施加 耐电压 500V AC电压,持续1分钟进行测试。 Withstand Plug in the connector and apply 500V AC voltage between voltage the adjacent contacts and between the contacts and the enclosure for 1 minute. 性能要求 performance requirement 20mΩ 100MΩ Max Min 无击穿和飞弧现象 No breakdown and flashover 10.环境特性 编号 number 项目 project 10.1 耐热试验 Heating test 10.2 将插合连接器放在温度为-25℃±2℃的环境中96H,取出放在 耐冷试验 正常环境中1~2H后再进行测试。 Cold The plug connector was placed in the environment with tolerance the temperature of -25℃±2℃ for 96H, and was taken test out and placed in the normal environment for 1~2H before being tested. 10.3 试验方法 Test method for 将插合连接器放在温度为+105℃±2℃的环境中96H,取出放 在正常环境中1~2H后再进行测试。 Put the plug connector in the environment of +105℃±2 ℃ for 96H, take it out and put it in the normal environment for 1~2H before testing. 将插合连接器放在温度为40℃±2℃,相对湿度90~96%的环 境中,持续96H,经试验后,取出放在正常环境中1~2H后再进行 耐湿性试验 测试。 Moisture Place the plug connector in an environment with a resistance temperature of 40℃±2℃ and relative humidity of 90~ test 96%.Last for 96H, after the test, take it out and put it in the normal environment for 1~2H before the test. 性能要求 performance requirement 外观:外观无损伤 Appearance: appearance without damage 接触电阻:30mΩ Max Contact resistance: 30mΩ Max 外观:外观无损伤 Appearance: appearance without damage 接触电阻:30mΩ Max Contact resistance: 30mΩ Max 外观:外观无损伤 Appearance: appearance without damage 绝缘电阻:50MΩ MIN Insulation resistance: 50MΩ min 耐电压:200VAC/min teMINWithstand voltage:200VAC/minte MIN 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Certificate of production 编号 number 10.4 10.5 项目 project 产品名称 product name 产品型号 Product model 版本号 Version number 页码 Page number 试验方法 Test method for 把试验样品分别放入高低温试验箱,按下列步骤调试温度: a.在-25℃±3℃的恒温条件下放置30分钟 b.在常温条件下放置1H C.在+105℃±3℃的恒温条件下放置30分钟 D.在常温条件下放置1H 从a到d为一个循环周期,共进行5个循环,在正常环境中恢 复2H后进行检查。 Put the test samples into the high and low 温度循环 temperature test chamber, and adjust the temperature Temperature according to the following steps: A. Place for 30 minutes under the constant cycle temperature of -25℃±3℃ B. Place at room temperature for 1 hour C. Place for 30 minutes at a constant temperature of +105℃±3℃ D. Place at room temperature for 1 hour From a to d is a cycle period, a total of 5 cycles are carried out, and 2H is recovered in the normal environmentCheck later. 1.0mm卧式贴片 AFC10-S**QCA-00  1版 1 version 共8页 第6页 Page 6 of 8 性能要求 performance requirement 外观:无任何异状 接触电阻:30mΩMax Contact resistance: 30mΩ Max 外观:无损伤、腐蚀 (五金件应无露出底金属 的严重锈蚀:使用预镀好 的型材,其落料面允许有 不影响其性能的轻微腐蚀 。 将试验样品从试验箱顶悬挂下来,采用浓度为(5±1) Appearance: no damage %的氯化钠溶液,连续喷雾24H,试验后用流动的蒸溜水轻轻 or corrosionHardware 洗去表面沉淀积物,在常温条件下恢复1~2H后再检查测量。 should have no exposed Suspend the test sample from the top of the test bottom metalSevere 盐雾试验 chamber with a concentration of (5 ± 1)% of Sodium corrosion: use preSalt Spray Chloride Solution, continuous spray 24H, after test, plating wellThe Test with flowing steaming water gently.Wash away the profile, the blanking precipitates on the surface, recover for 1 ~ 2H surface is allowed to under normal temperature, and then check and haveSlight corrosion measure. that does not affect its performance. 接触电阻:30mΩ Max Contact resistance: 30mΩ Max 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Certificate of production 编号 number 10.6 10.7 项目 project 产品名称 product name 产品型号 Product model 版本号 Version number 页码 Page number 试验方法 Test method for 把试验样品需要焊接的部位浸入235±5℃的锡溶液中, 可焊性 保持2.5±0.5秒。 weldability Dip the welded part of the test sample into 235±5℃ tin solution and hold 2.5±0.5 seconds. 将连接器置于PCB板上,然后将产品通过260℃±5℃回 耐焊性 流焊或波峰焊5±1S进行测试。 Soldering Place the connector on the PCB, and then reflow the resistance product through 260 ℃± 5℃Or wave soldering for 5±1s. 1.0mm卧式贴片 AFC10-S**QCA-00  1版 1 version 共8页 第7页 Page 7 of 8 性能要求 performance requirement 沾锡面积95%以上 Tin area above 95% 1.塑胶件不得有明显变 形损坏起泡。 2.电气特性必须符合规格。 Plastic parts shall be free from obvious deformation, damage and blistering. 2. The electrical characteristics must meet the specifications. 产品名称 1.0mm卧式贴片 product name 产品型号 AFC10-S**QCA-00  Product model 1版 版本号 Version number 1 version 页码 共8页 第8页 Page number Page 8 of 8 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD 产 品 承 认 书 Certificate of production 11.机械特性 编号 number mechanical properties 项目 project 性能要求 performance requirement 试验方法 Test method for 11.1 将针座固定在插拔力机上,在针脚前端施加力,以每分 PIN针固定力 钟25±3mm的速率,直到针退出针座的拔出力。 Pin fixing Fix the pin holder on the drawing machine and apply force force on the front end of the pin at a rate of 25±3mm per minute until the pin is withdrawn from the pin holder. 11.2 端子在塑胶 件中保持力 Terminal retention in plastic parts 11.3 端子与孔座配合,以每分钟25±3mm的速率沿导线方向, 将端子从孔座中拔出的力。 The terminal shall be matched with the hole seat, and at the rate of 25±3mm per minute along the conductor direction, theThe force that the terminal is pulled out of the socket. 机械寿命 无通电状态下,10次/分钟的速度插拔50次。 Mechanical Under no power on state, plug and unplug 50 times at life the speed of 10 times / min. 单一PIN针7N Min Single pin 7n min 单一端子:5N Min Single terminal: 5N min 接触电阻: 30mΩ Max contactresistance 30mΩ Max 试验方法:Test methods (1)将孔座和端子配合好,与针座在同一轴线上进行插拔测试,测试时需将孔座锁扣 去掉(测试速度:20±5mm/minute) (1) the hole seat and the terminal should be well matched, and the pin seat should be inserted on the same axis for the test. The hole seat should be locked during the test Remove (test speed: 20±5mm/minute) (2)性能要求:Performance requirements 11.4 插入力/拔出 力 Insert force/draw force PIN位 插入(N) insert 拔出(N) Pull out PIN位 插入(N) insert 拔出(N) Pull out 1 3.00 0.50 9 29.00 5.50 2 8.00 2.00 10 32.00 6.00 3 11.00 2.50 11 35.00 6.50 4 14.00 3.00 12 38.00 7.00 5 17.00 3.50 13 41.00 7.50 6 20.00 4.00 14 44.00 8.00 7 23.00 4.50 15 47.00 8.50 8 26.00 5.00 16 50.00 9.00 1.0mm卧式贴片 AFC10-S**QCA-00 刘中华 王 斌 幸坤新 深圳市钜硕电子有限公司 SHENZHEN JUSHUO ELECTRONIC CO.,LTD SHENZHEN JUSHUO ELECTRONIC CO.,LTD 深圳市钜硕电子有限公司 幸坤新 1.0mm卧式贴片插座 AFC10-S**QCA-00
