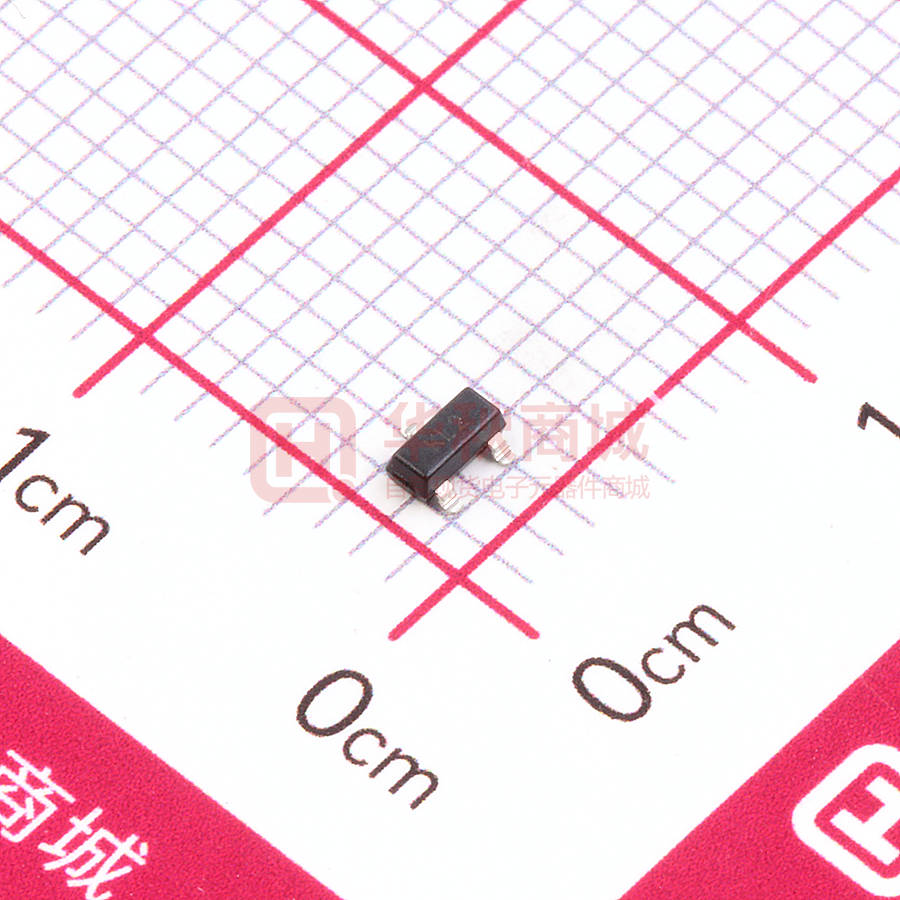

BAT54A

BAT54A

  • 厂商:

    JINGDAO(晶导微电子)

  • 封装:

    SOT-23

  • 描述:

    SOT23 200mW

  • 数据手册
  • 价格&库存
BAT54A 数据手册
山东晶导微电子股份有限公司 BAT54/A/C/S Jingdao Microelectronics co.LTD SCHOTTKY BARRIER DIODE FEATURES • Extremely Fast Switching Speed 3 SOT-23 3 3 2 BAT54 1 1 2 3 BAT54A 1 3 2 1 2 BAT54C 1 2 BAT54S MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Value Unit V RRM V RWM VR 30 V Forward Continuous Current I FM 200 mA Non-repetitive Peak Forward Surge Current @ t=8.3ms I FSM 600 mA Repetitive Peak Forward Current @ t≤1s,δ≤0.5 I FRM 300 mA PD 200 mW R thJA 500 ℃/W Tj -40~ +125 ℃ T stg -55 ~ +150 ℃ Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Power Dissipation Thermal Resistance from Junction to Ambient Operating Junction Temperature Range Storage Temperature Range ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Reverse voltage V BR Reverse current IR Forward voltage VF Test conditions I R =100μA Min Typ 30 CD Reverse recovery time trr 2020.10 Unit V V R =25V 2 uA I F1 =0.1mA 0.24 V I F2 =1mA 0.32 I F3 =10mA 0.40 V V I F4 =30mA 0.50 V 1 V I F5 =100mA Diode capacitance Max V R =4V, f=1MHz I F = I R =10mA, I rr =0.1×I R,R L=100Ω www.sdjingdao.com pF 10 5 ns Page 1 of 4 山东晶导微电子股份有限公司 BAT54/A/C/S Jingdao Microelectronics co.LTD Fig.2 Reverse Characteristics 300 REVERSE CURRENT I R (uA) POWER DISSIPATION P D (mW) Fig.1 Power Derating Curve 250 200 150 100 50 0 25 75 50 100 125 100 Ta=100°C 10 1 T a =25°C 0.1 0.01 0 150 Ambient temperature Ta(℃) 2 5° C Ta = 1 200 400 600 800 1000 CAPACITANCE BETWEEN TERMINALS C T (pF) =1 00 °C 100 Ta FORWARD CURRENT I F(mA) 200 0.01 0 15 20 25 30 Fig.4 Capacitance Characteristics 20 T J =25°C f=1MHz 8 0 10 20 30 Reverse Voltage (V) FORWARD VOLTAGE V F(mV) 2020.10 10 Reverse Voltage V R (V) Fig.3 Forward Characteristics 10 05 www.sdjingdao.com Page 2 of 4 山东晶导微电子股份有限公司 BAT54/A/C/S Jingdao Microelectronics co.LTD SOT-23 Package Outline Dimensions e ∠ALL ROUND A D e M e E C a L1 L HE SOT-23 mechanical data UNIT mm mil A C D E HE max 1.1 0.15 1.4 3.0 2.6 min 0.9 0.08 1.2 2.8 2.2 e M L1 a ∠ 0.5 1.95 0.55 0.36 0.15 (ref) (ref) 0.3 1.7 0.0 12° max 43 6 55 118 102 20 77 min 35 3 47 110 12 67 87 0.8 (0.031) 0.9 (0.039) 0.95 (0.037) 22 14 (ref) (ref) 6 0.0 Marking The recommended mounting pad size 0.95 (0.037) L 2.0 (0.079) Type number Marking code BAT54 KL1 BAT54A KL2 BAT54C KL3 BAT54S KL4 mm Unit : (inches) 2020.10 201009 Page 3 of 4 山东晶导微电子股份有限公司 BAT54/A/C/S Jingdao Microelectronics co.LTD SOT-23 Packing 1.The method of packaging and dimension are shown as below figure. (Dimension in mm) 7 inX8 mm Cover Tape 3,000 pcs per reel Carrier Tape SOT-23 220mm 8 reels per box 24,000 pcs per box 5 boxes per carton 120,000 pcs per carton 105 mm m mm m 210 5m 0m 18 55 180 mm SOT-23 Embossed Carrier Tape SOT-23 Tape Leader and Trailer 2020.10 Page 4 of 4
