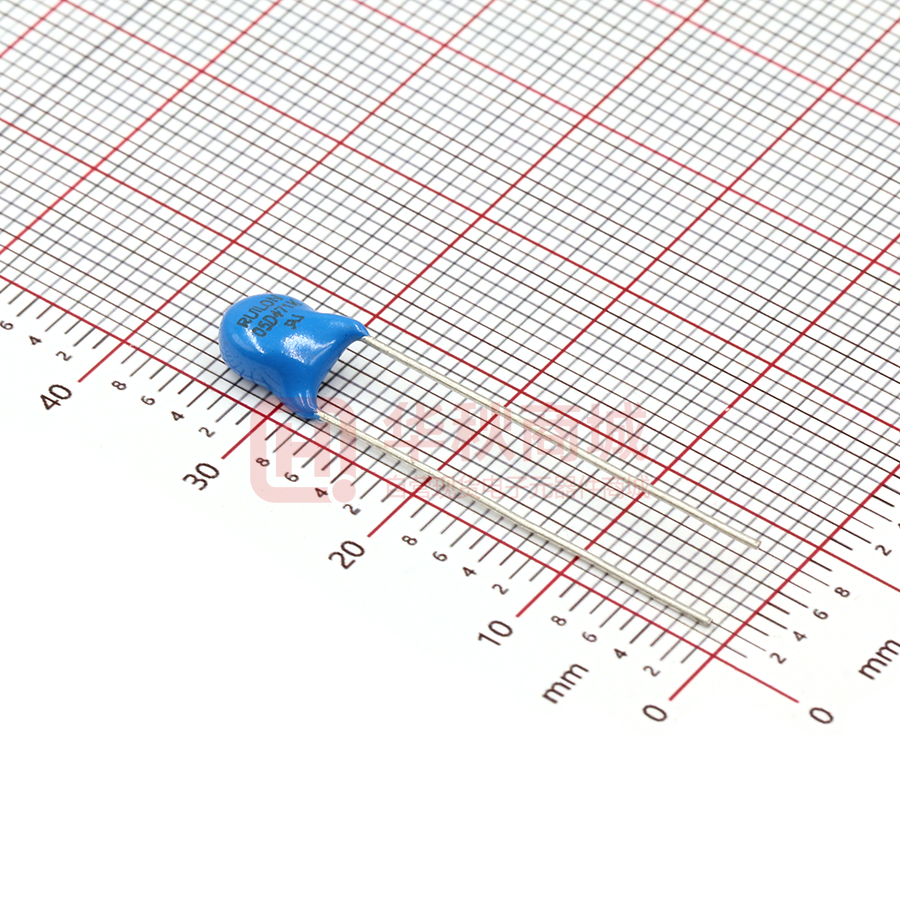

05D471K

Metal Oxide Varistors 05D Series Circuit Protection System Specifications are subject to change without notice. Metal Oxide Varistors - 05D Series Features • Wide operating voltage (V1mA) range from 18V to 750V. • Fast responding to transient over-voltage. • Large absorbing transient energy capability. • Low clamping ratio and no following-on current. General Information • Transistor, diode, IC, thyristor or triac semiconductor protection • Surge protection in consumer electronics • Surge protection in industrial electronics • Surge protection in electronic home appliances, gas and petroleum appliances • Relay and electromagnetic valve surge absorption General Characteristics • No Radioactive Material Storage Temperature: -40 ºC to +125ºC • Operating Temperature: -40ºC to +85ºC • Body: Nickel Plated • Leads: Surface-mount, Axial Devices: Tin Plated • Devices with No Leads: Nickel Plated Product Name 0 Element Diameter 5 D Type D: Disk S: Square Circuit Protection System 4 7 1 K J Nominal Varistor Voltage Varistor Voltage Tolerance Surge Series 471=47*101V K = ±10 % No Suffix:Standard Type J:High Surge Type Specifications are subject to change without notice. Page:1 Metal Oxide Varistors - 05D Series Electriacl Characteristics Type Number Maximum Allowable Voltage Varistor Voltage VAC(V) VDC(V) V1mA(V) Maximum Withstanding Surge Maximum Energy Clamping Current (10/1000μs) Voltage High Surge Standard High Surge (J) (W) @1KHz(pf) 40 100 250 0.4 0.6 0.01 1400 1 48 100 250 0.5 0.7 0.01 1150 27(24~31) 1 60 100 250 0.6 0.9 0.01 930 26 33(29.5~36.5) 1 73 100 250 0.8 1.1 0.01 760 25 31 39(35~43) 1 80 100 250 0.9 1.2 0.01 640 05D470KJ 30 38 47(42~54) 1 104 100 250 1.1 1.5 0.01 530 05D560K 05D560KJ 35 45 56(50~62) 1 123 100 250 1.3 1.8 0.01 450 05D680K 05D680KJ 40 56 68(61~75) 1 150 100 250 1.6 2.2 0.01 370 05D820K 05D820KJ 50 65 82(74~90) 5 145 400 800 2.5 4.0 0.1 300 05D101K 05D101KJ 60 85 100(90~110) 5 177 400 800 3.0 4.1 0.1 250 05D121K 05D121KJ 75 100 120(108~132) 5 210 400 800 4.0 4.9 0.1 210 05D151K 05D151KJ 95 125 150(135~165) 5 260 400 800 4.1 6.5 0.1 165 05D181K 05D181KJ 115 150 180(162~198) 5 320 400 800 4.9 7.5 0.1 140 05D201K 05D201KJ 130 170 200(180~220) 5 355 400 800 6.5 8.5 0.1 125 05D221K 05D221K 140 180 220(198~242) 5 380 400 800 7.5 9.0 0.1 110 05D241K 05D241KJ 150 200 240(216~264) 5 415 400 800 8.0 10.5 0.1 100 05D271K 05D271KJ 175 225 270(243~297) 5 475 400 800 8.5 11.0 0.1 95 05D301K 05D301KJ 190 250 300(270~330) 5 520 400 800 9.0 12.0 0.1 85 05D331K 05D331KJ 210 275 330(297~363) 5 570 400 800 9.5 13.0 0.1 75 05D361K 05D361KJ 230 300 360(324~396) 5 620 400 800 10.0 16.0 0.1 70 05D391K 05D391KJ 250 320 390(351~429) 5 675 400 800 12.0 17.0 0.1 65 05D431K 05D431KJ 275 350 430(387~473) 5 745 400 800 13.0 20.0 0.1 60 05D471K 05D471KJ 300 385 470(423~517) 5 810 400 800 15.0 21.0 0.1 55 05D511K 05D511KJ 320 415 510(459~561) 5 845 400 800 16.0 22.5 0.1 50 05D561K 05D561KJ 350 460 560(504~616) 5 920 400 800 16.0 24.0 0.1 50 05D621K 05D621KJ 385 505 620(558~682) 5 1025 400 800 21.0 25.0 0.1 40 05D681K 05D681KJ 420 560 680(612~748) 5 1120 400 800 21.0 29.0 0.1 35 05D751K 05D751KJ 460 615 750(675~825) 5 1240 400 800 22.4 32.0 0.1 30 High Surge 05D180K 05D180KJ 11 14 18(15~21.6) 1 05D220K 05D220KJ 14 18 22(19.5~26) 05D270K 05D270KJ 17 22 05D330K 05D330KJ 20 05D390K 05D390KJ 05D470K Circuit Protection System IP(A) VC(V) I(A) (J) Typical Capacitance (Reference) Standard Standard I(A) Rated Power Specifications are subject to change without notice. Page:2 Metal Oxide Varistors - 05D Series Electrical Ratings Circuit Protection System Specifications are subject to change without notice. Page:3 Metal Oxide Varistors - 05D Series Package Dimensions (Unit:mm) H1 L1 K
