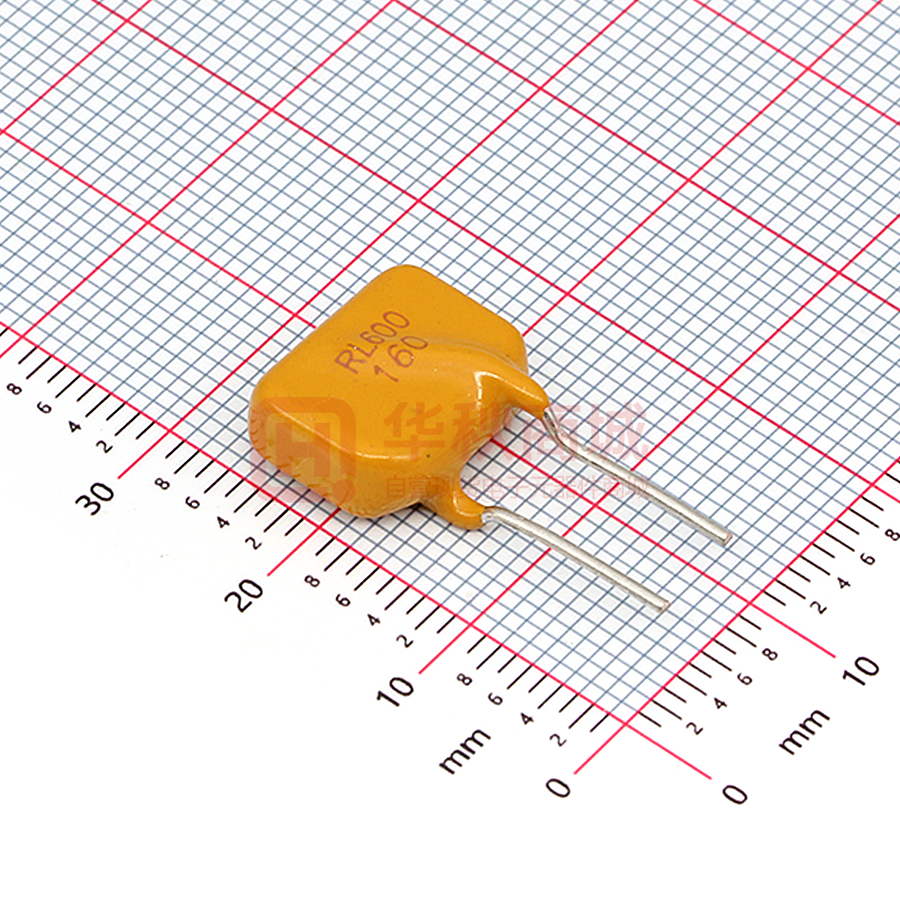

RL600-160

ELECTRONICS Positive Thermal Coefficent RL600 Series Circuit Protection System Specifications are subject to change without notice. Positive Thermal Coefficent - RL600 Series Features 1. I(hold):110~160mA 2. 600V Operating voltages 3. Radial leaded devices. 4. Very high voltage surge capabilities. 5. Available in lead-free version. 6. Fast time–to–trip 7. RoHS compliant, Lead- Free and Halogen-Free Applications 1. Overcurrent and overtemperature 2. protection of automotive electronics 3. Hard disk drives 4. PC motherboards 5. PC peripherals • Point-of-sale (POS) equipment • PCMCIA cards • USB port protection • HDMI 1.4 Source protection • Computers & peripherals • General Electronics Product Name R L 6 LOGO Circuit Protection System 0 Vmax:600V 0 - 1 1 0 Ihold:110A Specifications are subject to change without notice. Page:1 E D Positive Thermal Coefficent - RL600 Series Dimension E D E Fig.1 Ihold Vmax Itrip A V A Ttrip Imax Rmax Rmin A Ω Ω Package Dimensions (mm) Type Number Current A RL600-110 0.11 600 0.3 0.5 RL600-150 0.15 600 0.3 1.5 RL600-160 0.16 600 0.32 1.5 Times S E A B C D Circuit Figure E 1.5 3 14 7 14 14 5.1 6.1 0.8 Fig.1 0.15 3 12 6 14 14 5.1 6.1 0.8 Fig.1 0.15 3 10 4 14 14 5.1 6.1 0.8 Fig.1 I hold = Hold Current. Maximum current device will not trip in 25°C still air. D I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air. V max = Maximum operating voltage device can withstand without damage at rated current (Imax). I max = Maximum fault current device can withstand without damage at rated voltage (V max). R min/max = Minimum/Maximum device resistance prior to tripping at 25°C. E Environmental Specifications Test Conditions Resistance change Passive aging +85°C,1000 hrs ±5％typical Humiditty aging +85°C,85％ R.H.,168 hours ±5％typical Thermal shock +85°C to -40°C,20 times ±33％typical Resistance to so vent MIL-STD-202,Method 215 Nn change Vibration MIL-STD-202,Method 201 Nn change Ambient operating conditins:-40°Cto+85°C Maximum surface temperature of the device in the tripped state is 125°C Circuit Protection System Specifications are subject to change without notice. Page:2 RL600-160 221 190 160 146 133 117 102 88 67 TEST PROCEDURES AND REQUIREMENT Test Test Conditions Accept/Reject Criteria In still air @25 Resistance Rmin R Rmax Positive Thermal Coefficent - RL600 Series Specified current,Vmax,25 Time to Trip Hold Current T max. Time to trip(Ttirp) 30 min, at IH No trip Trip Cycle Life Vmax, Imax,100 cycles No arcing or burning Trip Endurance Vmax,24hours No arcing or burning TYPICAL TIME-TO-TRIP CHARTS @ 25°C TYPICAL TIME-TO-TRIP CHARTS @ 25 Time-to-trip (s) A = RL600-110 B = RL600-150 C = RL600-160 STORAGE RECOMMENDATIONS 1. Storage Temperature : -10 °C~+40°C 2. Relative Humidity : ≤ 80%RH 4. Period of Storage: 1 year. 3. Keep away from corrosive atmosphere and sunlight. Fault current (A) STORAGE RECOMMENDATIONS 1. Storage Temperature : -10°C~+40°C 2. Relative Humidity : 80%RH Soldering Parameters 3. Keep away from corrosive atmosphere and sunlight. 4. Period of Storage: 1 year. TP 20~40 S Profile Feature Pb-Free Assembly Average Ramp-Up Rate(Ts max to T p) 3°C/second mac. TP 260 Critical Zone Ramp-up TL 217 TL to TP tL 60~150 s Tsmax 200 Tsmin Ramp-down 150 ts Preheat 60~180 s Preheat -Temperature Min(Ts min) -Temperature Max(Ts max) -Time(Ts min to Ts max) 150°C 200°C 60~180 seconds Time maintained above: -Temperature(TL) -Time(tL) +217°C 60~150 seconds 25 t 25 C to peak Time Peak Temperature(Tp) Ramp-Down Rate Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free Recommended maximum paste thickness is 0.25mm Devices can be cleaned using standard industry methods and solvents. Note 1:All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. Circuit Protection System Time 25°C to Peak Temperature Storage Condition 260°C 6°C/second max. 8 minutes max 0°C~35°C,70%RH Specifications are subject to change without notice. Page:3 Positive Thermal Coefficent - RL600 Series TEST PROCEDURES AND REQUIREMENT Test Test Conditions Accept/Reject Criteria Resistance In still air @25°C Rmin≤ R≤ Rmax Time to Trip Specified current,Vmax,25°C T ≤ max. Time to trip(Ttirp) Hold Current 30 min, at IH No trip Trip Cycle Life Vmax, Imax,100 cycles No arcing or burning Trip Endurance Vmax,24hours No arcing or burning Ihold Versus Temperature Type Number -20℃ 0℃ 25℃ 30℃ 40℃ 50 ℃ 60℃ 70℃ 85℃ RL600-110 152 131 110 100 91 80 70 61 46 RL600-150 207 179 150 137 125 110 96 83 63 RL600-160 221 190 160 146 133 117 102 88 67 Warehouse Storage Conditions of Products · Storage Conditions: 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Page:4 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Circuit Protection System Specifications are subject to change without notice. Page:5
