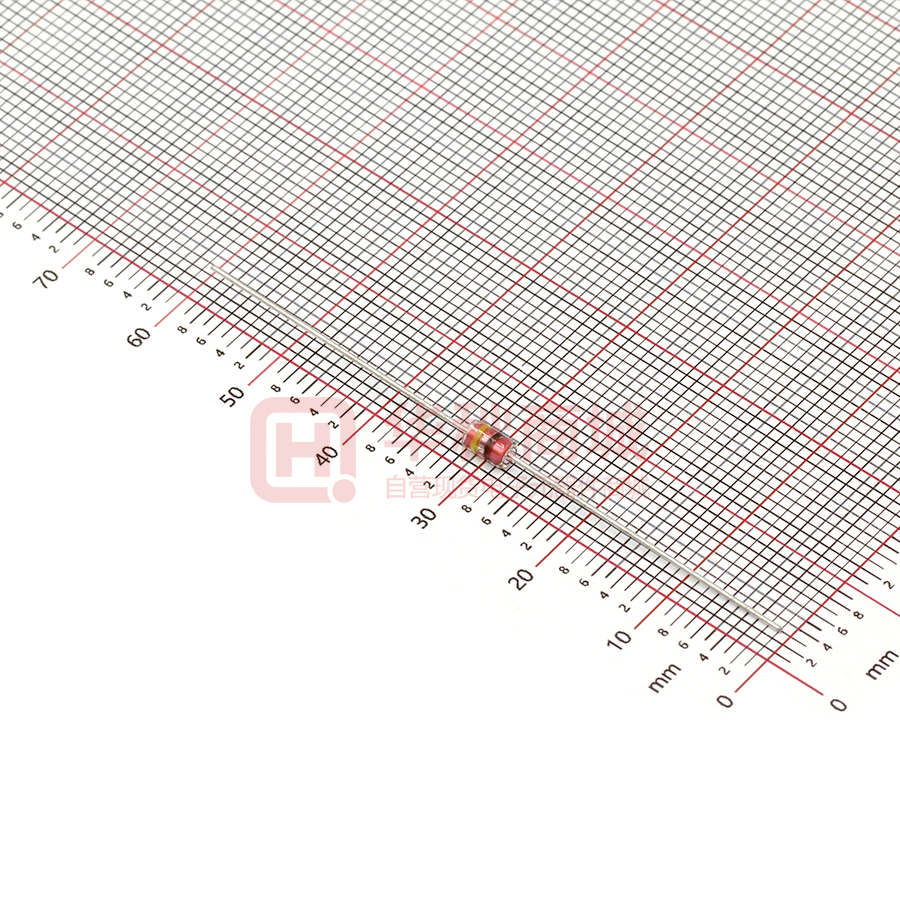

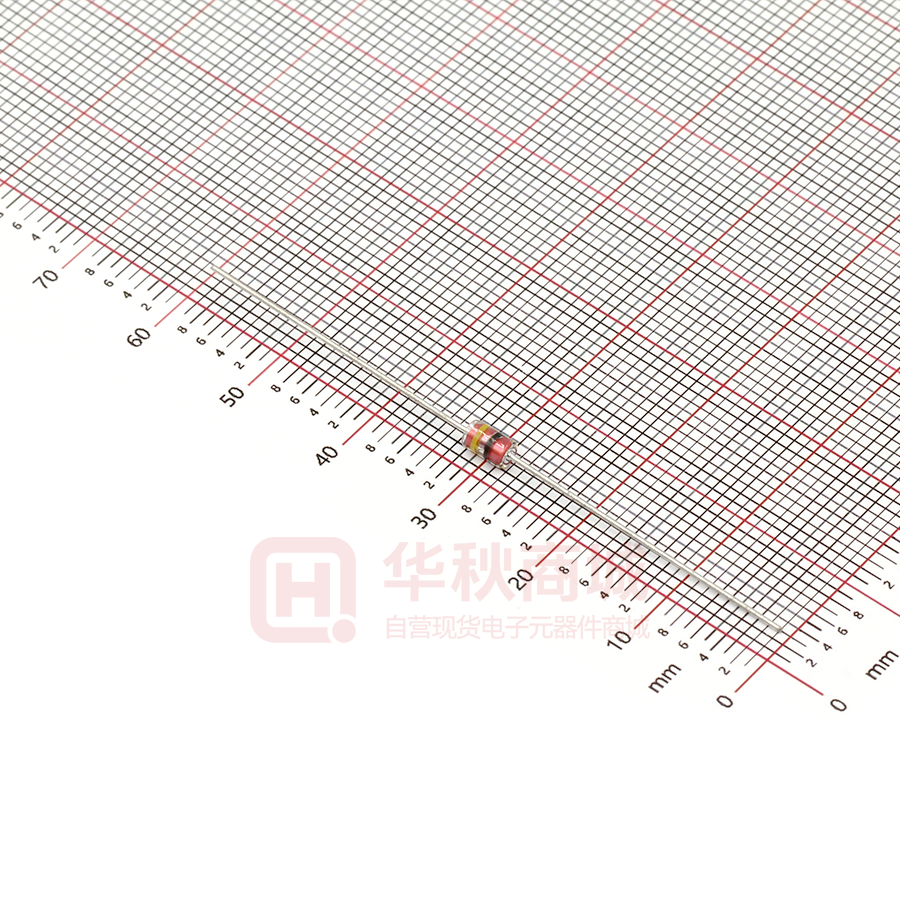

RL102-141N

ELECTRONICS Glass Gas Discharge RL102 Series Circuit Protection System Specifications are subject to change without notice. Glass Gas Discharge - RL102 Series Features • Compared with other surge absorbers having similar functions has the fast response speed ,largest withstand current and voltage but smallest size. • All electrical characteristics are very stable even after long period of charge and discharge. There is no need for inspection and exchange periodically. • Super capability to withstand repeated lightning strikes. • Stable and very Small electrostatic capacitance (100MΩ). • No pollution material. • Bilateral and symmetrical. • Completely insensitive to weather, temperature, humidity and lightness. Applications Dimensions • Power Supplies • Motor sparks eliminating • Relay switching spark absorbing • Data line pulse guarding • Electronic devices requiring UL497A and UL497B compliant • Telephone/Fax/Modem • High frequency signal transmitters/receivers • Satellite antenna • Radio amplifiers • Alarm systems • Cathode ray tubes in Monitors/TVs 4.3±0.3 28±3.0 0.5±0.05 28±3.0 2.6±0.3 Part Number Code R L M LOGO Taping form 1 0 2 - 1 4 Surge Current Capacity DC Spark-over voltage(Vs) 501:0.5KA 14*10 =140V Blank:Line 102:1KA S:Magnet-type 302:3KA 1 1 N DC Sparkover voltage tolerance N:30% M:20% M:SMD Circuit Protection System Specifications are subject to change without notice. Page:1 Glass Gas Discharge - RL102 Series ElectrIcal CharacterlstIcs Type Number DC Spark-Over Voltage Insulation Resistance IR AC Electrostatic Surge current withstanding Capacitance capacity voltage test 1KHz-6Vmax 8/20us condition Surge Life Test UL V MΩ DC V pF A A RL102-141N 140±30% >100MΩmin 50 100MΩmin 100 100MΩmin 100 100MΩmin 250 100MΩmin 250 100MΩmin 250 100MΩmin 500 100MΩmin 500
