1
3
2
5
Dim D
Dim C± 0.38
Dim B± 0.25
Dim A± 0.13
4
7
6
C
MATERIAL AND FINISH
Insulator:PBT+30%G.F(UL94V-0)
Contact:Copper Alloy Nickel Undercoated
Selective Gold Plated
Finish:Metal Iron With Tin Plated
Dim E
D
SPECIFICATIONS:
Current rating:3.0A AC/DC
Voltage rating:250V AC/DC
Contact resistance:30m ohm MAX
Insulation resistance:5000M ohm MIN
Withstanding voltage:1000V AC for one minute
Operating temperature range:-40° C~+85° C
E
1#
2.84
XX#
10°
±1
°
3.2
0.9
11.0
15.3± 0.3
6.0
2.77
E
D
C
Ordering Information
X
RoHS
Number of
contacts
Code Definition
Blank Non-RoHS
R
B
SUB
Code Definition
RoHS
A
9 PIN
B
15 PIN
C
25 PIN
E
Housing
Type
Code Definition
DBXX
Mounting Options Contacts
Material
Definition
Code
1
M Male
2
F
Female
3
37 PIN
4
1 TYPE
2 TYPE
3 TYPE
X0 XX
RIVETED W/
SHIELD ONLY
Code Definition
RIVETED W/
FRONT RIVET
RIVETED W/
REAR RIVET
RIVETED W/
FRONT RIVET
REAR RIVET
XX0
Contact
Plated
Code Contact Area
Insulator
material
Insulator
color
Code Definition
Code Definition
2
Brass
A
Gold 1u"/Light Tin
0
PBT
0
Black
7
Phosphor
bronze
B
Gold 3u"/Light Tin
2
NYLON
6
Blue
C
Gold 5u"/Light Tin
9
White
E
Gold 15u"/Light Tin
B
4 TYPE
深圳市君灏精密工业有限公司
ShenZhen JunHao Exactitude Industry CO.,LTD
A
RIVETED W/
SHIELD ONLY
RIVETED W/
FRONT RIVET
RIVETED W/
REAR RIVET
RIVETED W/
FRONT RIVET
REAR RIVET
Mounting Options
PART. NAME:
D型XX芯焊线式PCB焊接插座(针)
TITLE:
PART. NO.:

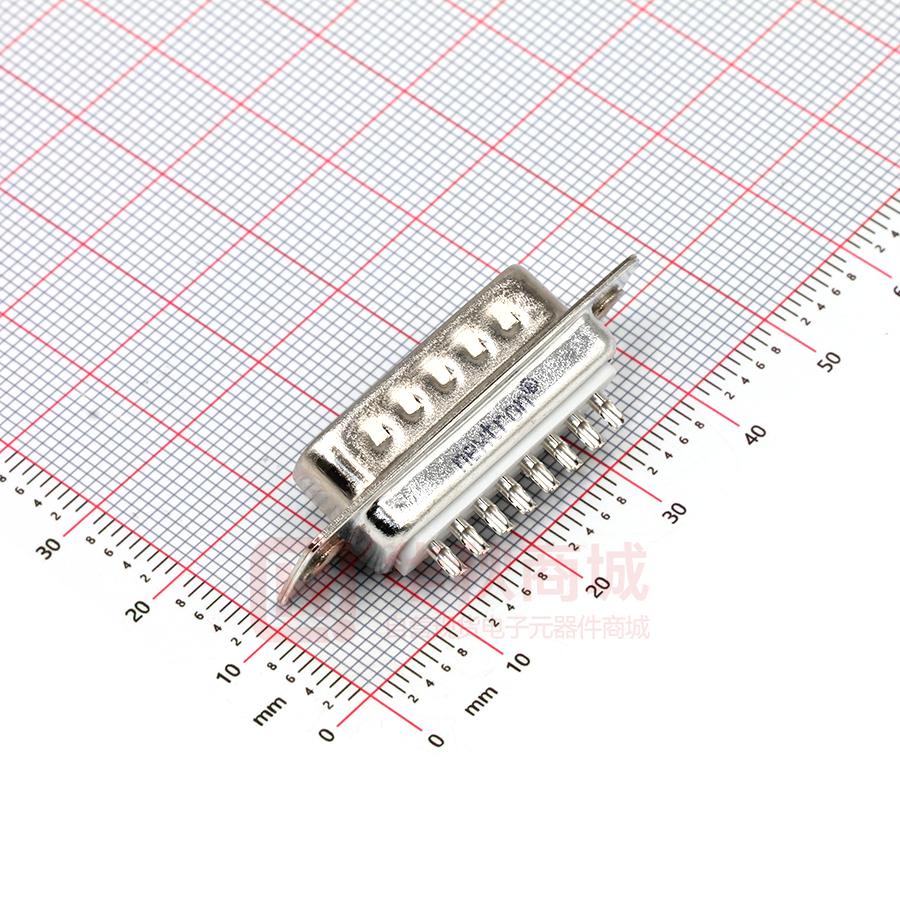

SUB-DBBM-102A-092
DWG NAME:
APPROVED BY
CHECkED BY
Jonnson Jeff
1
2
3
4
5
DESIGNED BY
DRAWN BY
A
CUSTOM NO.:
UNITS: mm
SCALE:
REVISION:
allan
6
7
Toleance
x.
± 0.50
x.x
± 0.30
x.xx ± 0.10
xx°
± 1°
