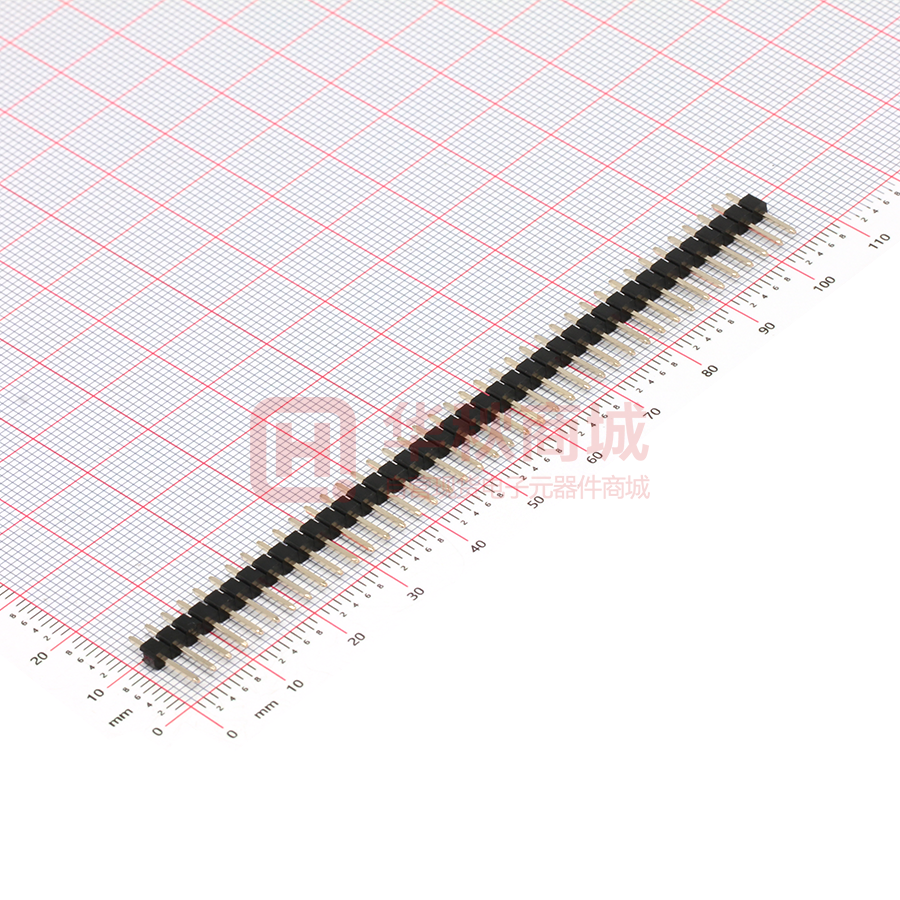

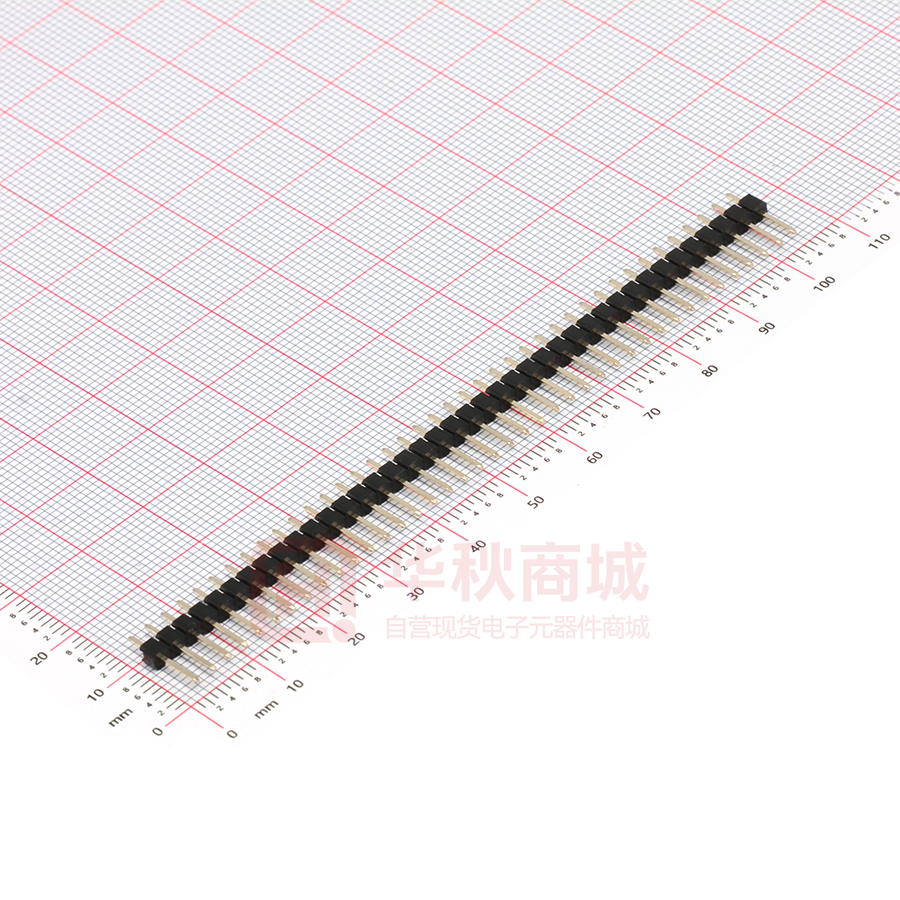

211-4011-0021-001

NOTES: 1.MATERIALS: 1-1.INSULATOR:Polyester UL94V-0. 1-2.CONTACT:BRASS. 1-3.PLATED:CONTACT GOLD PLATED OVER Ni. 2.ELECTRICAL CHARACTERISTICS: 2-1.CURRENT RATING:3 Amp. 2-2.VOLTAGE RATING:250V AC/DC. 2-3.CONTACT RESISTANCE: 20 mOhms MAX. 2-4.INSULATION RESISTANCE:1000 MOhms MIN. 2-5.WITHSTANDING VOLTAGE: 500V AC/MINUTE. 2-6.Operation Temperature:-25°C~+105°C. Part NO. R-213-**1*-002*-**0 Table (1) NO.Of Positions 04~80 Contact length Dim"A"X"B" 1:3.0x6.0 2:2.4x6.0 3:4.5x6.0 5:2.54x5.84 7:3.2x5.84 8:3.0x10.0 C:3.0x4.5 E:6.0x6.0 Housing Color 0:BLACK 2:RED 4:YELLOW 6:BLUE Housing Material 0:PBT 1:LCP 4:PA 6T 5:PA 9T Plated See Table (1) Code Definition PCB LAYOUT 1 Gold/Flash 2 Gold 3u" 3 Gold 5u" 4 Gold 10u" 5 Gold 15u" 6 Gold 30u" 2.54mm Pin Header Double Row SHENZHEN SHENLONGFENG INDUSTRY CO.,LTD SHENZHEN JUNHAO ENGINEERING CO.,LTD 211-4011-0021-001
