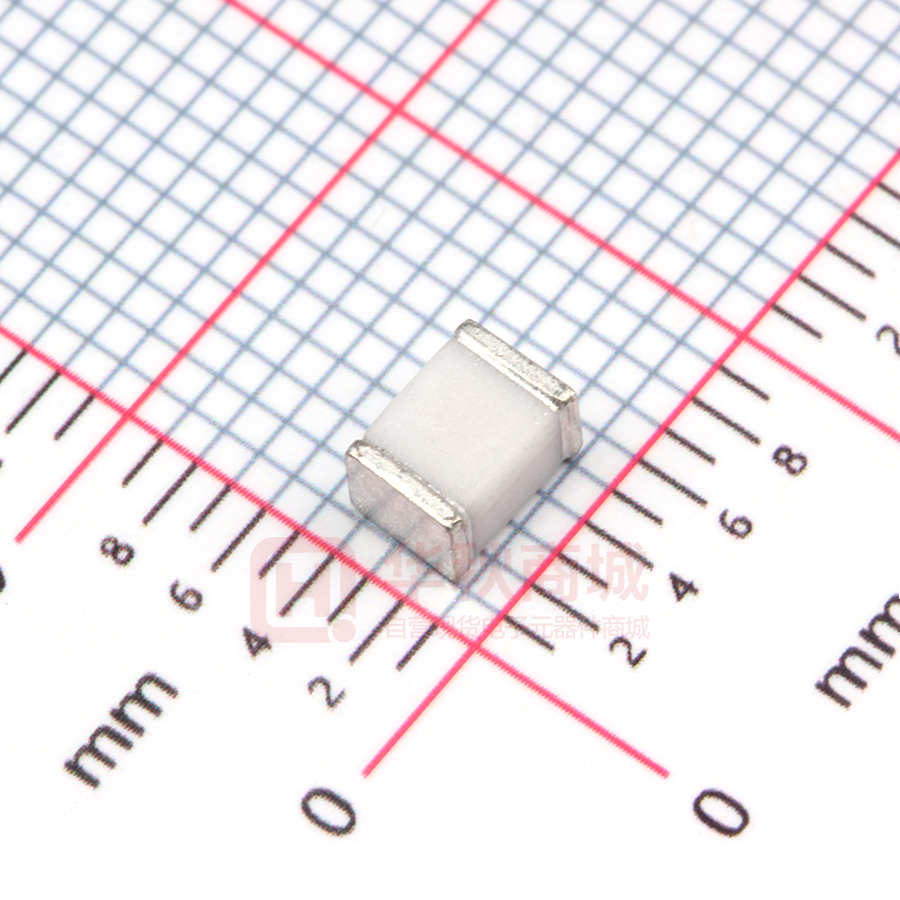

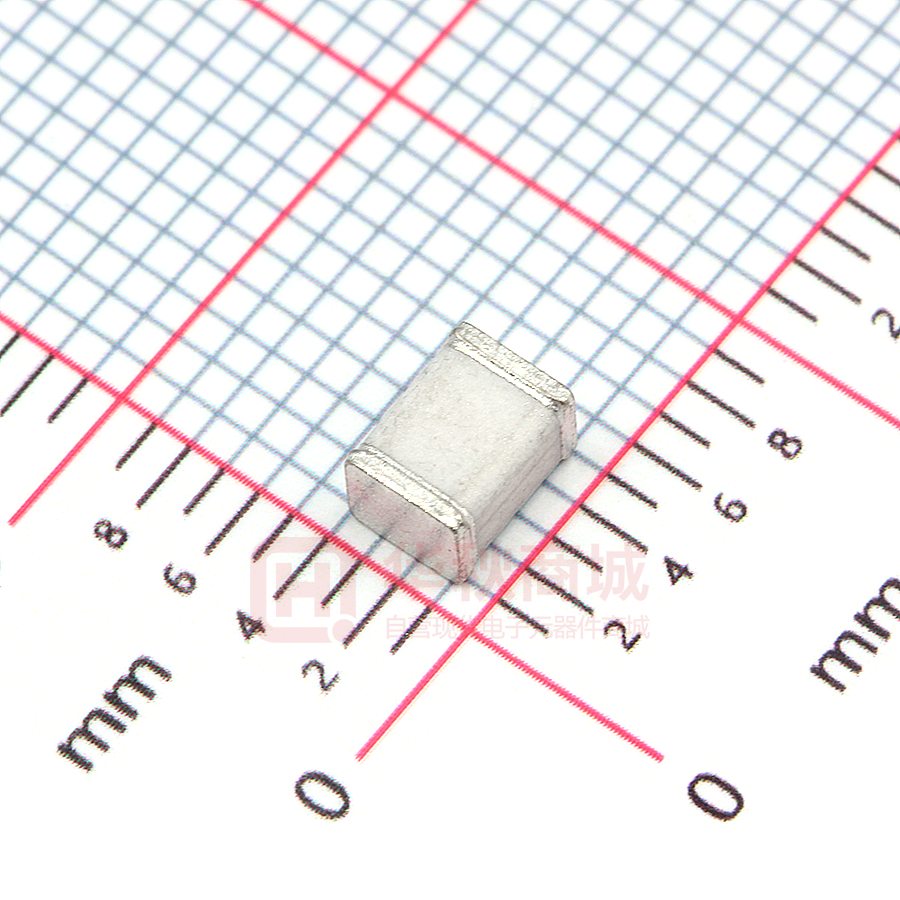

SMD4532-150NF

ELECTRONICS Gas Discharge Tubes SMD4532 Series Circuit Protection System Specifications are subject to change without notice. Gas Discharge Tubes - SMD4532 Series GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Ruilon offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD). Features 1. RoHS & HF compliant 2. SMD Structure 3. DC Spark-over voltage: 70~600V 4. Low Capacitance 5. Agency Recognition : UL 6. Operating temperature : -30°C ~ +85°C Storage temperature: -40°C ~ +115°C Recommended Applications 1. Cable Modem 2. xDSL 3. Set-Top Box 4. TV sets 5. Power supplier 6. Consumer electronics Part Number Code S M D 4 surface mount Circuit Protection System 5 3 4.5*3.2*1.6MM 2 - 0 voltage 7 5 N ±30％ Specifications are subject to change without notice. Page:1 Gas Discharge Tubes - SMD4532 Series Electriacl Characteristics DC Spark-over Voltage Maximum Impulse Breakdown Voltage 100V/S 8/20μs (V) (A) SMD4532-070NF 70 (50~90) 3KA (Positive/Negative10 Times) SMD4532-075NF 75 (55~95) 3KA (Positive/Negative10 Times) SMD4532-090NF 90 (63~117) 3KA (Positive/Negative10 Times) SMD4532-120NF 120 (84~156) 3KA (Positive/Negative10 Times) SMD4532-150NF 150 (105~195) 3KA (Positive/Negative10 Times) SMD4532-200NF 200 (140~260) 3KA (Positive/Negative10 Times) SMD4532-230NF 230 (161~299) 3KA (Positive/Negative10 Times) SMD4532-300NF 300 (210~390) 3KA (Positive/Negative10 Times) SMD4532-350NF 350 (245~455) 3KA (Positive/Negative10 Times) SMD4532-400NF 400 (280~520) 3KA (Positive/Negative10 Times) SMD4532-420NF 420 (294~546) 3KA (Positive/Negative10 Times) SMD4532-470NF 470 (329~611) 3KA (Positive/Negative10 Times) SMD4532-500NF 500 (350~650) 3KA (Positive/Negative10 Times) SMD4532-600NF 600 (420~780) 3KA (Positive/Negative10 Times) Part No. Circuit Protection System Impulse Withstanding Voltage Capacity 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) 10/700us 6kV(Positive/ Negative10 Times) Normal DC Alternating Impulse Life Holdover Discharge Voltage Current 8/20 μs,100A @DC 100V 1MHz Times (MΩ) (pF) 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 300 Min. 100 0.5 Specifications are subject to change without notice. Page:2 Gas Discharge Tubes - SMD4532 Series Dimension Unit:mm 0.5 ± 0.1 4.5 ± 0.3 3.2 ± 0.3 Recommended Pad Size Unit:mm 1.5 4.2 3.0 Packaging Taping Unit:mm P0 D E F P W t K Circuit Protection System Specifications are subject to change without notice. Page:3 Gas Discharge Tubes - SMD4532 Series Quantity: 900pcs per reel (13”) Unit:mm Item P PO W F E D K t Spec. 8.0 4.0 12.0 5.45 1.75 Φ1.55 3.1 0.4 Tolerance ±0.1 ±0.1 ±0.13 ±0.1 ±0.1 ±0.05 ±0.1 ±0.05 . 330 ± 4.0 >1.5 100typ . 18 15. typ Warehouse Storage Conditions of Products · Storage Conditions: 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Page:4 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Circuit Protection System Specifications are subject to change without notice. Page:5
