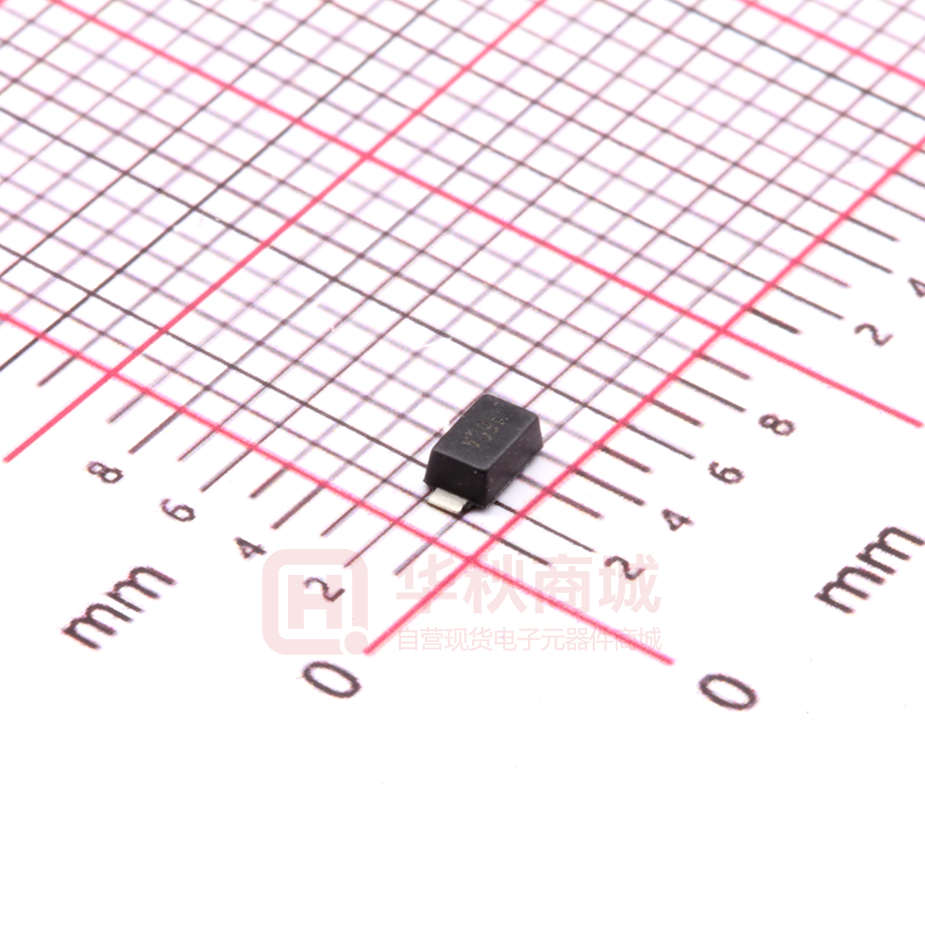

SMFJ16CA

Transient Voltage Suppressors (TVS) SMFJ Series Description The SMFJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SOD SOD-123FL package is 50% smaller in footprint when compare to SMA package and delivering low height profile (1.1mm) in the industry. Features l Fast response time l Built-in strain relief Electrical symbol l Low incremental surge resistance l Matte tin lead–free Plated l Halogen free and RoHS compliant l For surface mounted applications to optimize board space BI l Compatible with industrial standard package SOD SOD-123FL l 200W peak pulse power capability with at 10/1000μs Anode Cathode waveform, repetition rate (duty cycle): 0.01% l High temperature soldering: 260°C/10 0 seconds at terminals UNI Part Number Code S M F J Series code x x x C Reverse Stand-Off Voltage A 5% Voltage Tolerance Blank:Uni-Directional C:Bi-Directional Mechanical Characteristics Rating Symbol Value Units Peak Pulse Power Dissipation at TA=25ºC by 10/1000μs 10/1000μs(Fig.2) (Note1) PPP 200 W Power Dissipation on Infinite Heat Sink at TL=75°C(Fig.6) PD 1.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 2) IFSM 30 A TJ -55 to 150 °C TSTG -55 to 150 °C Operating Temperature Range Storage Temperature Range Notes: 1. Non-repetitive repetitive current pulse , per Fig. 4 and derated above TA = 25°C per Fig. 3. 2.. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional device only only. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2021-08-18 Page:1 Transient Voltage Suppressors (TVS) SMFJ Series Electrical Characteristics Type Number Reverse Stand-Off Voltage Marking VRWM Breakdown Voltage VBR @IT Min Max Test Current Max Max. Clamping Voltage 10/1000 10/1000µs Max. Peak Pulse Current 10/1000µs Reverse Leakage IT VC@IPP IPP IR@VRWM UNI BI UNI BI V V V mA V A µA SMFJ5.0A SMFJ5.0CA 5.0A 5.0CA 5.0 6.40 7.07 10 9. 9.6 20.8 400 SMFJ6.0A SMFJ6.0CA 6.0A 6.0CA 6.0 6.67 7.37 10 10.3 19.4 400 SMFJ6.5A SMFJ6.5CA 6.5A 6.5CA 6.5 7.22 7.98 10 11.2 17.8 50 SMFJ7.0A SMFJ7.0CA 7.0A 7.0CA 7.0 7.78 8.60 10 12.0 16.6 30 SMFJ7.5A SMFJ7.5CA 7.5A 7.5CA 7.5 8.33 9.21 1 12.9 15.5 30 SMFJ8.0A SMFJ8.0CA 8.0A 8.0CA 8.0 8.89 9.83 1 13.6 14.7 10 SMFJ8.5A SMFJ8.5CA 8.5A 8.5CA 8.5 9.44 10.4 1 14.4 13.9 5 SMFJ9.0A SMFJ9.0CA 9.0A 9.0CA 9.0 10.0 11.1 1 15.4 13.0 3 SMFJ10A SMFJ10CA 10A 10CA 10.0 11.1 12.3 1 17.0 11.7 1 SMFJ11A SMFJ11CA 11A 11CA 11.0 12.2 13.5 1 18.2 11.0 1 SMFJ12A SMFJ12CA 12A 12CA 12.0 13.3 14.7 1 19.9 10.0 1 SMFJ13A SMFJ13CA 13A 13CA 13.0 14.4 15.9 1 21.5 9.3 1 SMFJ14A SMFJ14CA 14A 14CA 14.0 15.6 17.2 1 23.2 8.6 1 SMFJ15A SMFJ15CA 15A 15CA 15.0 16.7 18.5 1 24.4 8.2 1 SMFJ16A SMFJ16CA 16A 16CA 16.0 17.8 19.7 1 26.0 7.7 1 SMFJ17A SMFJ17CA 17A 17CA 17.0 18.9 20.9 1 27.6 7.2 1 SMFJ18A SMFJ18CA 18A 18CA 18.0 20.0 22.1 1 29.2 6.8 1 SMFJ20A SMFJ20CA 20A 20CA 20.0 22.2 24.5 1 32.4 6.1 1 SMFJ22A SMFJ22CA 22A 22CA 22.0 24.4 26.9 1 35.5 5.6 1 SMFJ24A SMFJ24CA 24A 24CA 24.0 26.7 29.5 1 38.9 5.1 1 SMFJ26A SMFJ26CA 26A 26CA 26.0 28.9 31.9 1 42.1 4.7 1 SMFJ28A SMFJ28CA 28A 28CA 28.0 31.1 34.4 1 45.4 4.4 1 SMFJ30A SMFJ30CA 30A 30CA 30.0 33.3 36.8 1 48.4 4.1 1 SMFJ33A SMFJ33CA 33A 33CA 33.0 36.7 40.6 1 53.3 3.7 1 SMFJ36A SMFJ36CA 36A 36CA 36.0 40.0 44.2 1 58.1 3.4 1 SMFJ40A SMFJ40CA 40A 40CA 40.0 44.4 49.1 1 64.5 3.1 1 SMFJ43A SMFJ43CA 43A 43CA 43.0 47.8 52.8 1 69.4 2.9 1 SMFJ45A SMFJ45CA 45A 45CA 45.0 50.0 55.3 1 72.7 2.7 1 SMFJ48A SMFJ48CA 48A 48CA 48.0 53.3 58.9 1 77.4 2.6 1 SMFJ51A SMFJ51CA 51A 51CA 51.0 56.7 62.7 1 82.4 2.4 1 SMFJ54A SMFJ54CA 54A 54CA 54.0 60.0 66.3 1 87.1 2.3 1 SMFJ58A SMFJ58CA 58A 58CA 58.0 64.4 71.2 1 93.6 2.1 1 SMFJ60A SMFJ60CA 60A 60CA 60.0 66.7 73.7 1 96.8 2.0 1 SMFJ64A SMFJ64CA 64A 64CA 64.0 71.1 78.6 1 103.0 1.9 1 SMFJ70A SMFJ70CA 70A 70CA 70.0 77.8 86.0 1 113.0 1.7 1 SMFJ75A SMFJ75CA 75A 75CA 75.0 83.3 92.1 1 121.0 1.6 1 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2021-08-18 Page:2 Transient Voltage Suppressors (TVS) SMFJ Series Electrical Characteristics Type Number Reverse Stand-Off Voltage Marking VRWM Breakdown Voltage Test Current Max Max. Clamping Voltage 10/1000 10/1000μs Max. Peak Pulse Current 10/1000μs Reverse Leakage IT VC@IPP IPP IR@VRWM VBR @IT Min Max UNI BI UNI BI V V V mA V A µA SMFJ78A SMFJ78CA 78A 78CA 78.0 86.7 95.8 1 126.0 1.5 1 SMFJ85A SMFJ85CA 85A 85CA 85.0 94.4 104.0 1 137.0 1.4 1 SMFJ90A SMFJ90CA 90A 90CA 90.0 100.0 111.0 1 146.0 1.3 1 SMFJ100A SMFJ100CA 100A 100CA 100.0 111.0 123.0 1 162.0 1.2 1 SMFJ110A SMFJ110CA 110A 110CA 110.0 122.0 135.0 1 177.0 1.1 1 SMFJ120A SMFJ120CA 120A 120CA 120.0 133.0 147.0 1 193.0 1.0 1 SMFJ130A SMFJ130CA 130A 130CA 130.0 144.0 159.0 1 209.0 0.9 1 SMFJ150A SMFJ150CA 150A 150CA 150.0 167.0 185.0 1 243.0 0.8 1 SMFJ160A SMFJ160CA 160A 160CA 160.0 178.0 197.0 1 259.0 0.7 1 SMFJ170A SMFJ170CA 170A 170CA 170.0 189.0 209.0 1 275.0 0.7 1 SMFJ180A SMFJ180CA 180A 180CA 180.0 201.0 222.0 1 29 292.0 0.7 1 SMFJ190A SMFJ190CA 190A 190CA 190.0 209.0 243.0 1 30 308.0 0.6 1 SMFJ200A SMFJ200CA 200A 200CA 200.0 224.0 247.0 1 324.0 0.6 1 SMFJ220A SMFJ220CA 220A 220CA 220.0 246.0 272.0 1 356.0 0.5 1 Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double. I-V Curve Characteristics Uni-directional I Bi-directional IPP VC VBR VR IR VF IT VC VBR VR V IT IR IR IT VR VBR VC V IPP IPP PPPM Peak Pulse Power Dissipation -- Max power dissipation VR Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation VBR Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified test current (I T) VC Clamping Voltage -- Peak voltage measured across the TVS at a specified Ippm (peak impulse current) IR Reverse Leakage Current -- Current measured at VR VF Forward Voltage Drop for Uni-directional directional Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2021-08-18 Page:3 Transient Voltage Suppressors (TVS) SMFJ Series Ratings and Characteristic Curves (TA=25°C unless otherwise noted) Figure 1 - TVS Transients Clamping Waveform Figure 2 - Peak Pulse Power Rating Curve 10 Voltage Transients PPPM-Peak Pulse Power (kW) TJ initial = Tamb Voltage or Current Voltage Across TVS Current Through TVS 1 0.1 0.001 Time 0.01 0. 0.1 1 td-Pulse Pulse Width (ms) ( Figure 4 - Pulse Waveform 100 150 IPPM - Peak Pulse Cur rent, % IRSM Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % Figure 3 - Pulse Derating Curve 80 60 40 20 tr=10μsec 25 50 75 100 125 Peak Value IPPM 100 Half Value IPPM ( IPPM ) 2 50 10/1000μsec.Waveform as defined by R.E.A td 0 0 0 150 175 0 1.0 2.0 TA-Ambient temperature (ººC) Measured@50%Vr 100 10 100 PM(AV), Steady State Power Dissipation (W) Cj (pf) Measured @ Vr=0v 1 4.0 Figure 6 - Steady State Power Derating Curve 10000 10 3.0 t-Time(ms) Figure 5 - Typical Junction Capacitance 1000 TJ =25°C Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM 1.0 0.8 0.6 0.4 0.0 VBR-Reverse Reverse breakdown voltage Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. 60Hz Resistive or Inductive Load 0.2 0 25 50 75 100 125 150 175 200 TL-Lead Lead Temperature(ºC) Temperature( Revised: 2021-08-18 Page:4 Transient Voltage Suppressors (TVS) SMFJ Series Figure 7 - Maximum Non-Repetitive Surge Current IFSM - Peak Forward Surve Current (A) 60 50 Pulse Width 8.3ms Single Half-Sine Sine-Wave (JEDEC METHOD) 40 30 20 10 0 1 10 100 Number of Cycles at 60 Hz Soldering Parameters - Reflow Soldering (Surface Mount Devices) Reflow Condition TP Ramp-up Critical Zone TL to TP TL Pre Heat Temperature TS(max) Ramp-down TS(min) Preheat 25 Time to peak temperature (t 25℃ to peak) Pb - Free assembly -Temperature Temperature Min (Ts(min)) 150°C -Temperature Max (Ts(max)) 200°C - Time (min to max) (ts) 60 -180 Seconds Average ramp up rate ( Liquids Liquid Temp TL) to peak 3°C/second max TS(max) to TL - Ramp-up Rate 3°C/second max Reflo w Time - Temperature (TL) (Liquids) 217°C - Time (min to max) (ts) 60 -150 Seconds Peak Temperature (TP) 260 +0/-5°C Time within 5°C of actual peak Temperature (tp) 20 - 40 Seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max Do not exceed 260°C Part Marking System Cathode band(for Uni-directional products only) XXX Marking code Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2021-08-18 Page:5 Transient Voltage Suppressors (TVS) SMFJ Series Dimensions Millimeters Inches DIM Min Max Min Max A 2.30 2.90 0.091 0.114 B 3.30 3.90 0.130 0.154 C 0.50 1.20 0.020 0.047 D 1.40 1.95 0.055 0.077 E 0.35 0.85 0.014 0.033 H 0.90 1.40 0.035 0.055 Taping and Reel Specifications Symbol Millimeters Inches W 8±0.1 0.315±0.004 P 4±0.1 0.157±0.004 F 3 3.44±0.1 0.135±0.004 E 1.75±0.1 0.069±0.004 D 1.5+0.1/ 1.5+0.1/-0.0 0.059+0.004/-0.0 P0 4±0.1 0.157±0.004 P2 2±0.1 0.079±0.004 D0 16.7 16.7±0.15 0.657±0.006 D1 178±2 7.007±0.079 D2 59.6 59.6+1/-2 2.346+0.039/-0.079 W1 9.3 9.3±0.2 0.366±0.008 Direction of Unreeling Part Number Component package Quantity Packaging option Packaging specification SMFJXXXA/CA SOD-123FL 3000 Tape&Reel-8mm/7”tape EIA STD RS-481 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2021-08-18 Page:6
