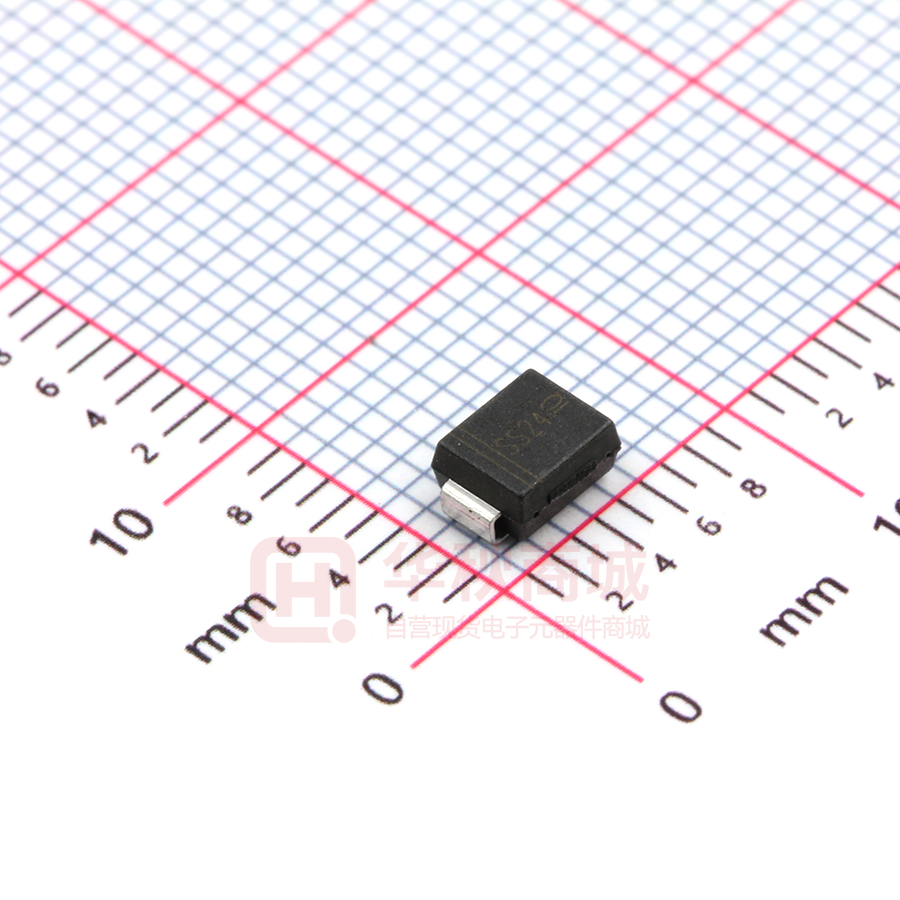

SS24BG

SS22BG THRU SS220BG Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200V Forward Current - 2.0A PINNING PIN FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Simplified outline SMB and symbol MECHANICAL DATA • Case : SMB • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight : 0.055g / 0.002oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SS22BG SS24BG SS26BG SS28BG SS210BG SS212BG SS215BG SS220BG Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM A 2.0 55 45 A Max Instantaneous Forward Voltage at 2 A VF Maximum DC Reverse Current T a = 25°C T a =100°C IR 0.5 5 0.3 3 mA Typical Junction Capacitance（1） Cj 220 110 pF Typical Thermal Resistance （2） RθJA 60 °C/W Tj -55 ~ +125 °C T stg -55 ~ +150 °C at Rated DC Reverse Voltage Operating Junction Temperature Range Storage Temperature Range 0.55 0.70 （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. REV.08 1 of 3 0.85 0.95 V SS22BG THRU SS220BG Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 T J =75°C 10 2 SS22BG /SS26BG T J =25°C 10 0 0 60 80 T J =25°C Junction Capacitance ( pF) T J =25°C 20 10 1.0 SS22BG /SS24BG SS26BG /SS28BG SS210BG /SS212BG SS215BG /SS220BG 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 500 200 100 20 SS22BG ~SS26BG SS28BG ~SS220BG 10 1.8 1 0.1 100 10 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance SS22BG-SS28BG SS210BG -SS220BG 50 40 30 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 1000 Instaneous Forward Voltage (V) 60 10 100 Fig.4 Typical Junction Capacitance Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Peak Forward Surage Current (A) SS28BG -SS220BG 10 1 Case Temperature (°C) 10 100 Number of Cycles at 60Hz REV.08 T J =100°C 10 3 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 SS22BG THRU SS220BG PACKAGE OUTLINE SMB Plastic surface mounted package; 2 leads L A A1 C A b D E E1 VM A SMB mechanical data UNIT mm mil A1 L C b 5.59 0.20 1.5 0.305 2.2 3.3 5.08 0.05 0.8 0.152 1.9 155 220 7.9 59 12 87 200 2.0 32 6 75 A E D max 2.44 4.70 3.94 min 2.13 4.06 max 96 185 min 84 130 160 The recommended mounting pad size E1 Marking Type number 2.2 (86) 2.4 (94) 2.8 (110) 2.4 (94) mm Unit ： (mil) REV.08 3 of 3 Marking code SS22BG SS22 SS24BG SS24 SS26BG SS26 SS28BG SS28 SS210BG SS210 SS212BG SS212 SS215BG SS215 SS220BG SS220
